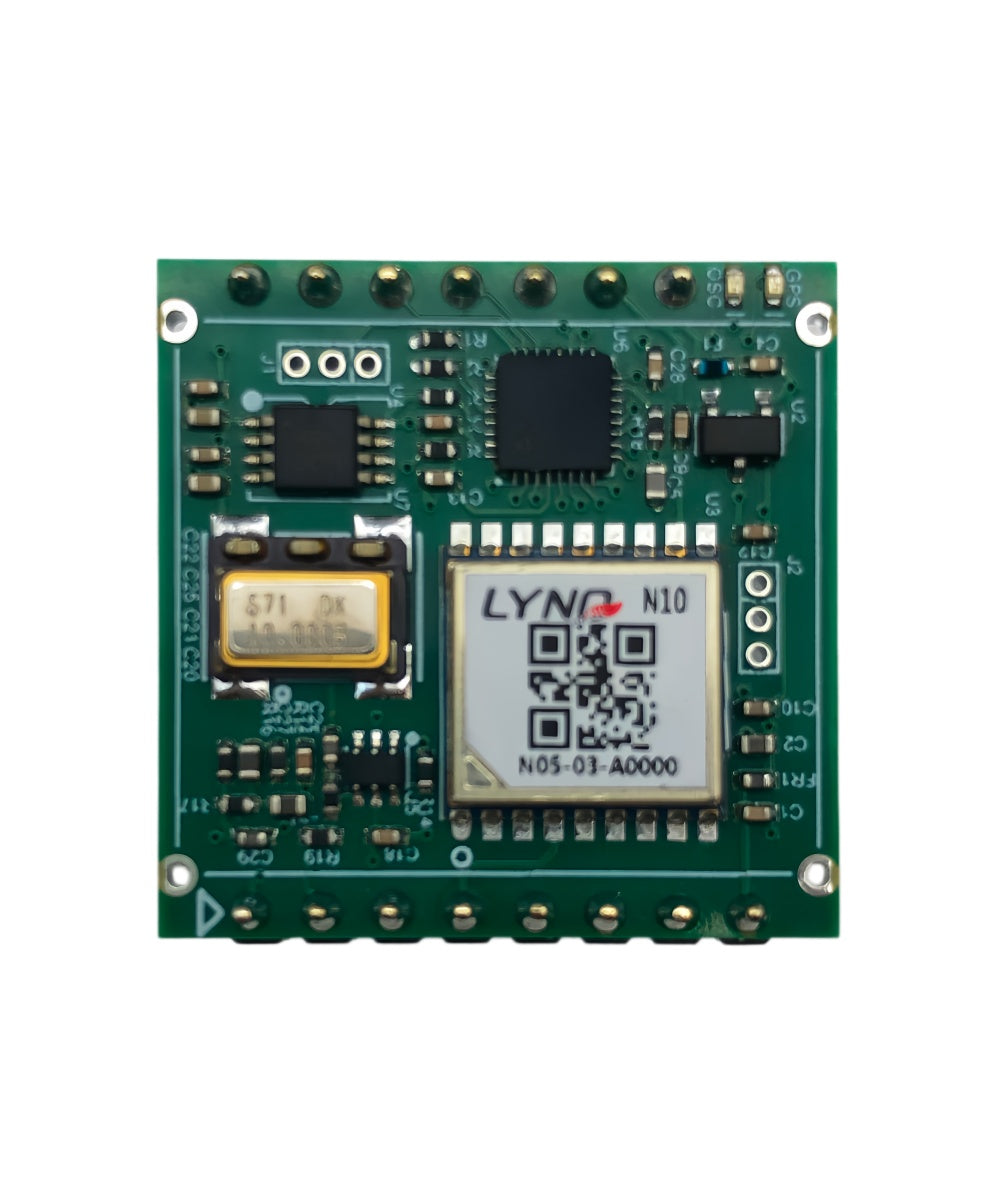

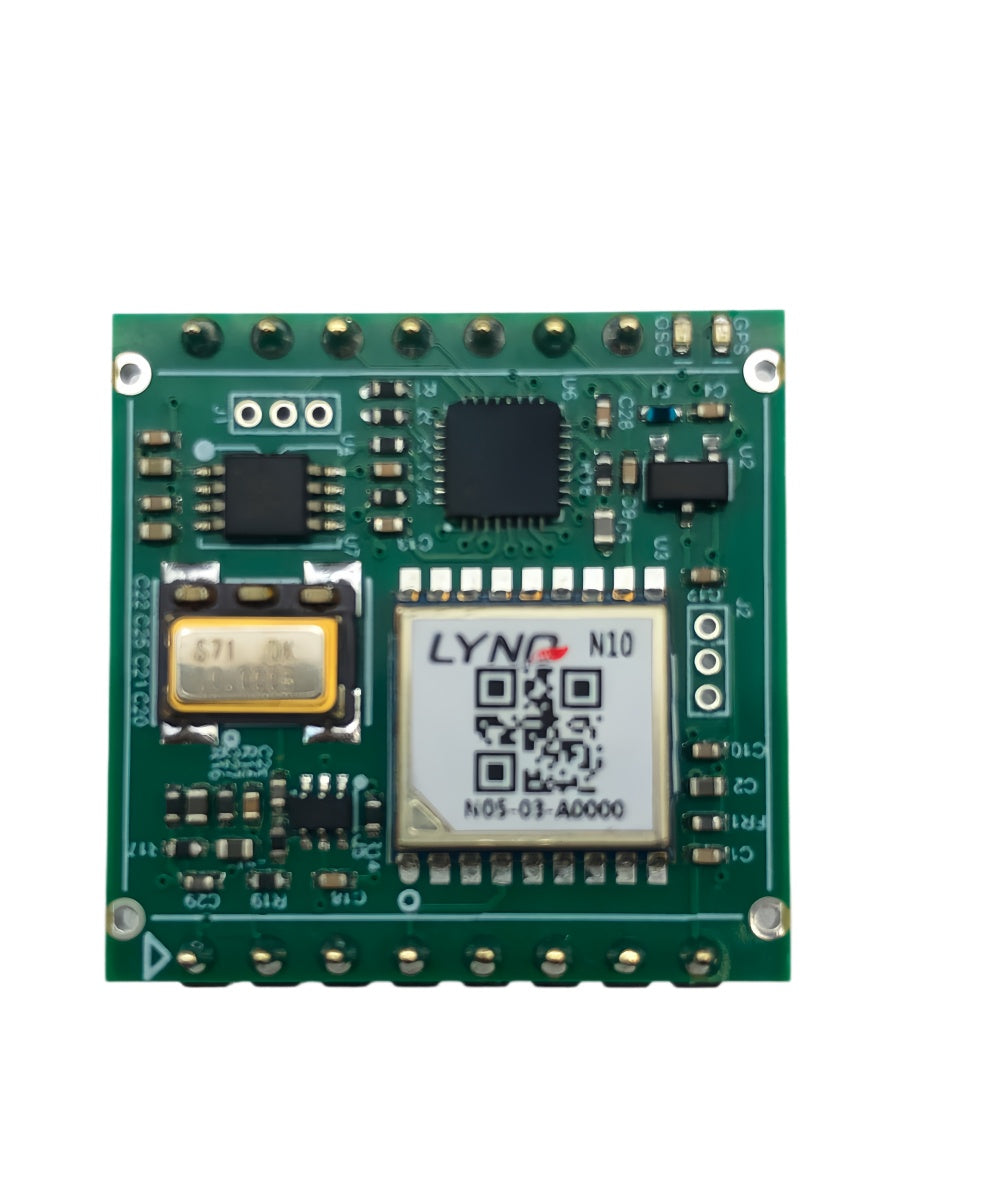

YX-OS31 Embedded GPSDO for Clock Synchronization, Compatible with USRP B210 and X310

$105.00
$140.00
$105.00
-25%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

A premium GPS-disciplined oscillator engineered specifically for SDR synchronization and distributed RF systems. By locking an onboard precision OCXO/TCXO to GPS (or BeiDou) PPS, this module delivers an ultra-stable reference clock with sub-nanosecond accuracy and superior long-term stability — essential for phase-coherent multi-receiver setups.

🎯 Designed for SDR Synchronization

Specifically optimized for Software Defined Radio (SDR) platforms such as Ettus Research USRP™. Provides the stable, accurate reference clock required for phase-coherent, synchronous operation across multiple distributed SDR devices.

How It Works – Disciplining Principle

📡GPS/BeiDou Reception

Receives satellite signals via external antenna

⏱️Precise PPS Generation

1-second pulse with exact interval

🔄Phase-Locked Loop (PLL)

PPS compared to internal oscillator, corrected via DAC

🎯Disciplined Output

Long-term stable, ultra-accurate reference clock

The disciplining process continuously corrects the internal oscillator against GPS PPS, guaranteeing exceptional long-term stability independent of temperature and voltage fluctuations.

Key Hardware Components

Component Description

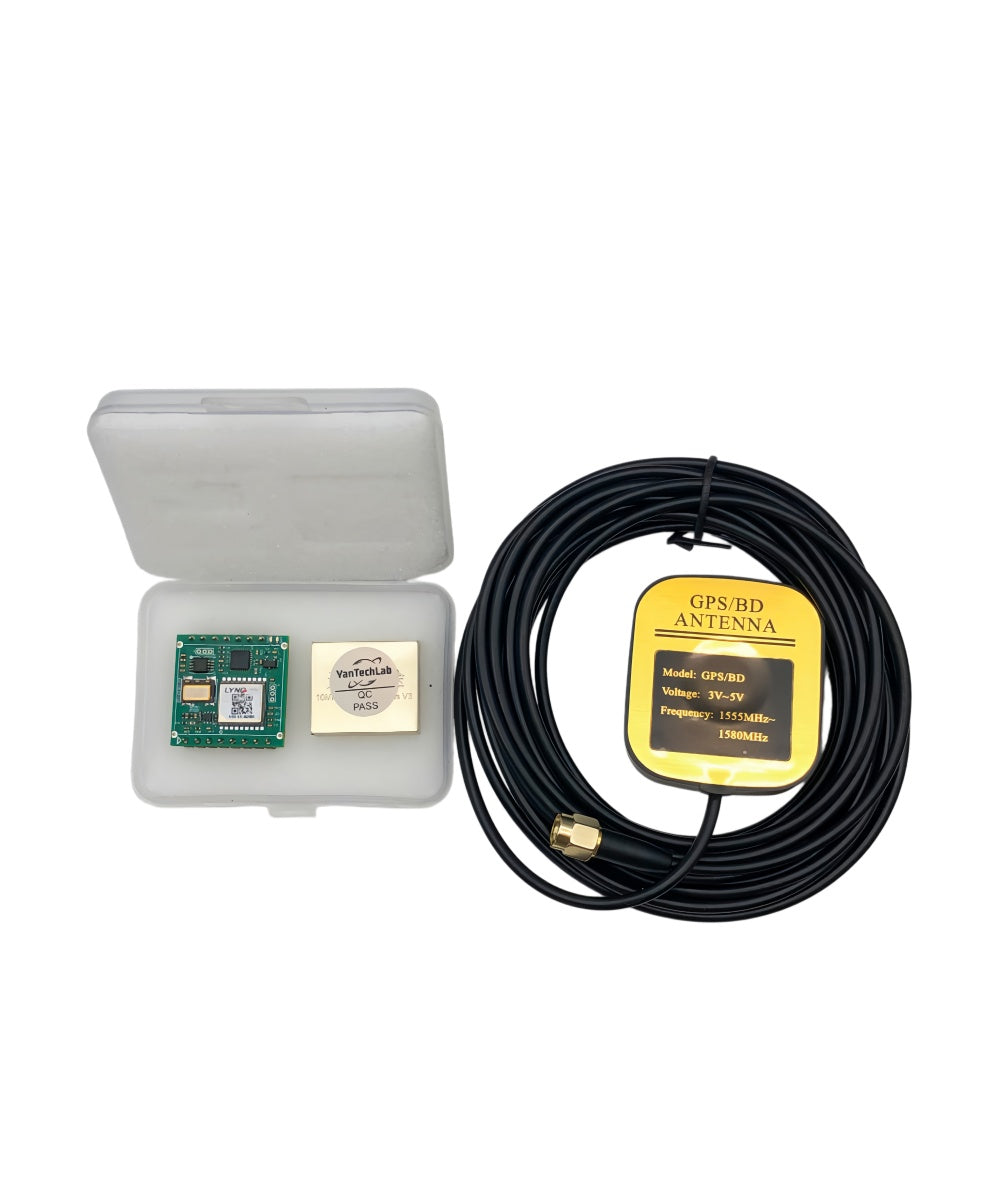

Satellite Antenna GPS / BeiDou signal reception
GNSS Receiver Module Extracts accurate PPS and time-of-day data
PLL (Phase-Locked Loop) Core disciplining feedback loop
Precision Oscillator OCXO or TCXO – ultra-stable local reference
High-Resolution DAC Fine control voltage for oscillator correction

Key Advantages

Accuracy Sub-Nanosecond Synchronization Precision
Long-Term Stability Maintains stability regardless of temperature or supply voltage
SDR Optimized Direct compatibility with Ettus Research USRP & similar SDR platforms
GNSS Flexibility Compatible with both GPS and BeiDou satellite systems
Configurable Correction Adjustable correction period (1s, 10s, etc.)

Target Applications

📡 SDR (Software Defined Radio)
🗼 Telecom Base Stations
🔬 Scientific Research
📻 RF Spectrum Monitoring
📺 TV & Radio Broadcasting
⚡ Power Grid Synchronization
