YX-OS15 ZYNQ-7100 Xilinx FPGA Development Board with FMC Interface for Zynq SoC Embedded System Development

$492.90
$492.90
-0%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

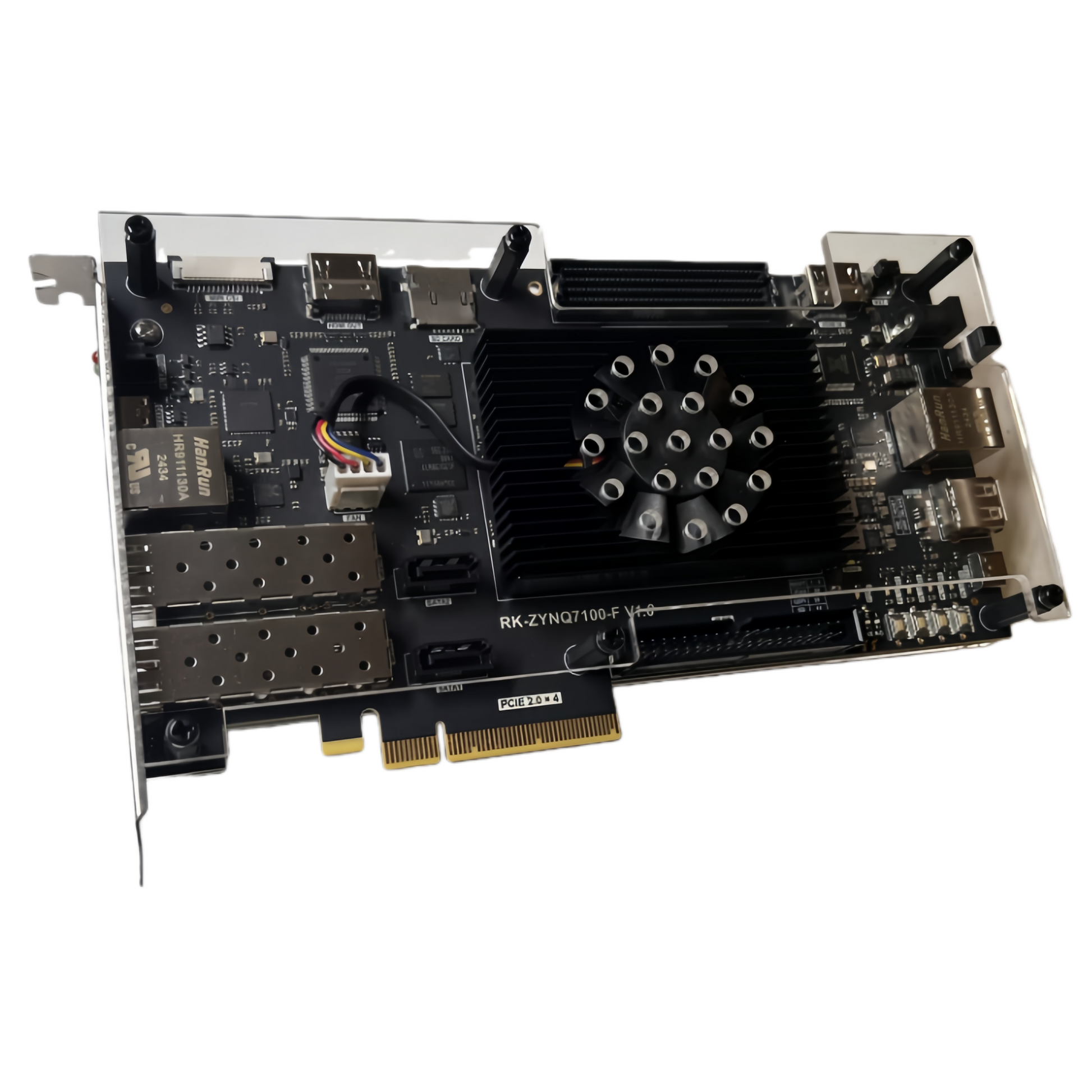

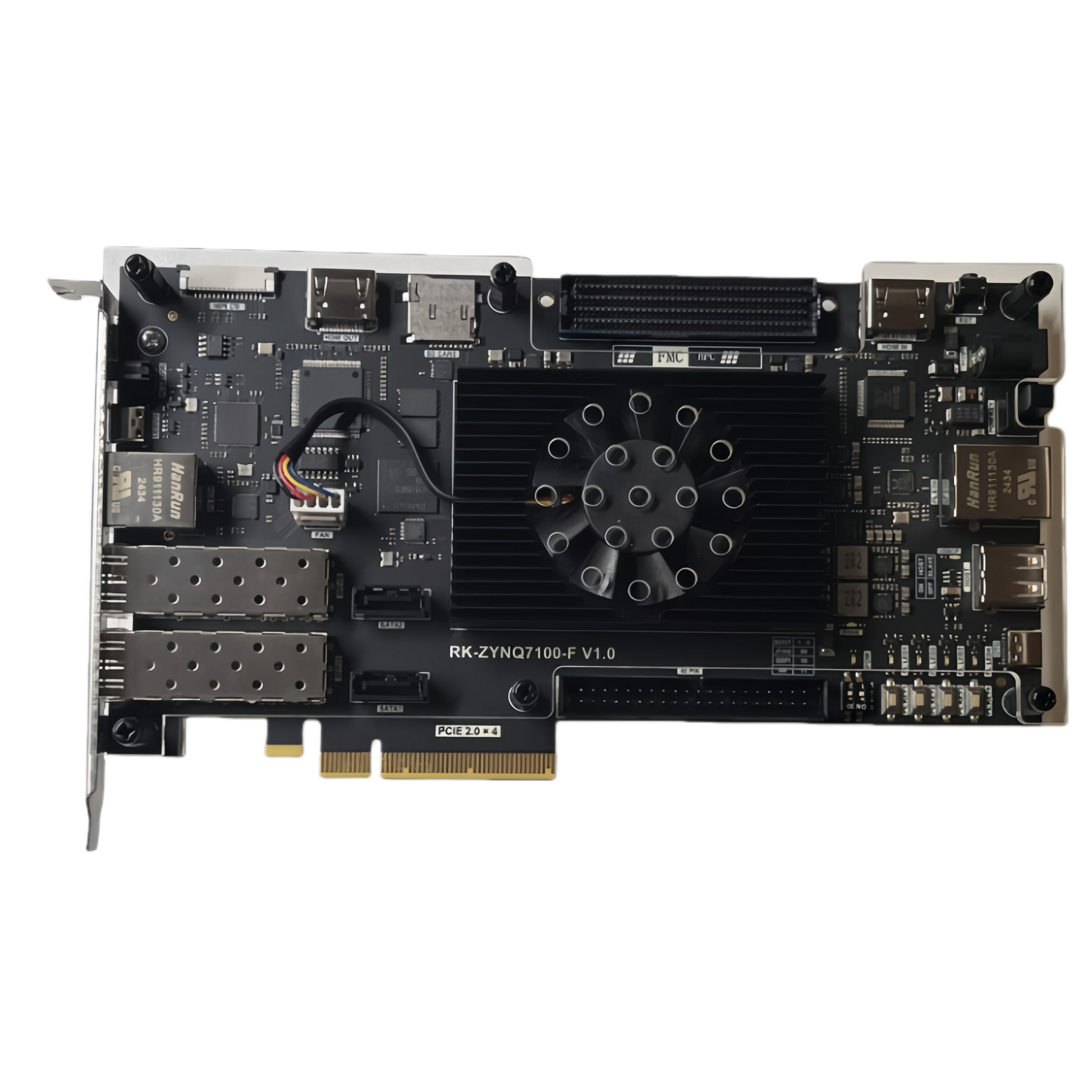

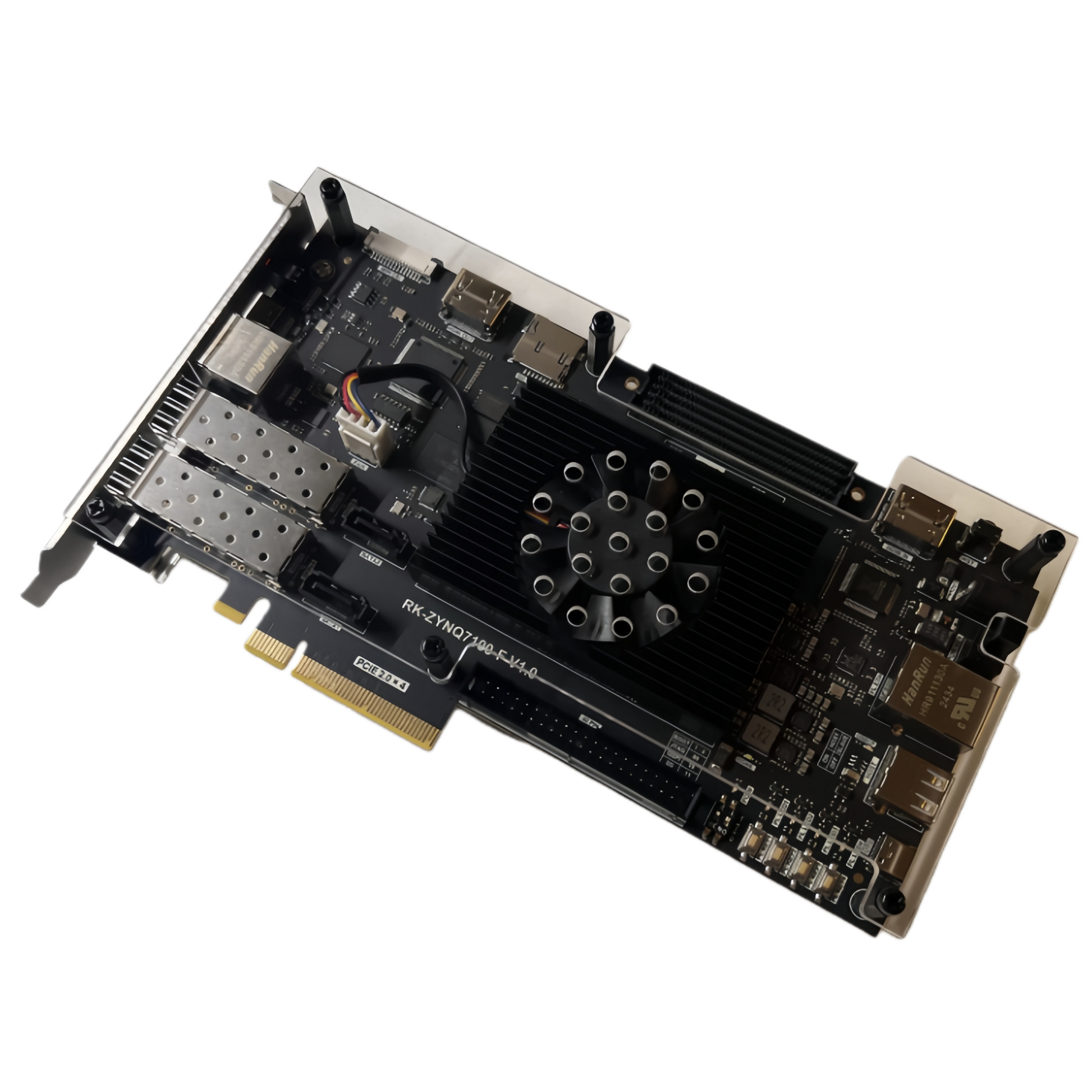

ZYNQ7100-F Zynq-7000 FPGA Development Board

Product Overview

The ZYNQ7100-F Development Board is built around the Xilinx Zynq-7000 XC7Z100-2FFG900, integrating a dual-core ARM Cortex-A9 Processing System (PS) with high-density FPGA Programmable Logic (PL) in a single SoC.

Designed with a full-featured single-board architecture, the ZYNQ7100-F provides extensive high-speed and multimedia interfaces, making it ideal for data acquisition, high-performance computing, communication systems, and advanced FPGA research and development.

Core Specifications

Item Specification
SoC Xilinx Zynq-7000 XC7Z100-2FFG900
CPU Dual-core ARM Cortex-A9
FPGA Logic High-density Programmable Logic (PL)
Architecture ARM + FPGA SoC
Power Input DC 12V

Onboard Memory & Storage

Component Details
DDR3 4 × DDR3 Memory
eMMC Onboard eMMC Flash
QSPI Flash Onboard QSPI Flash

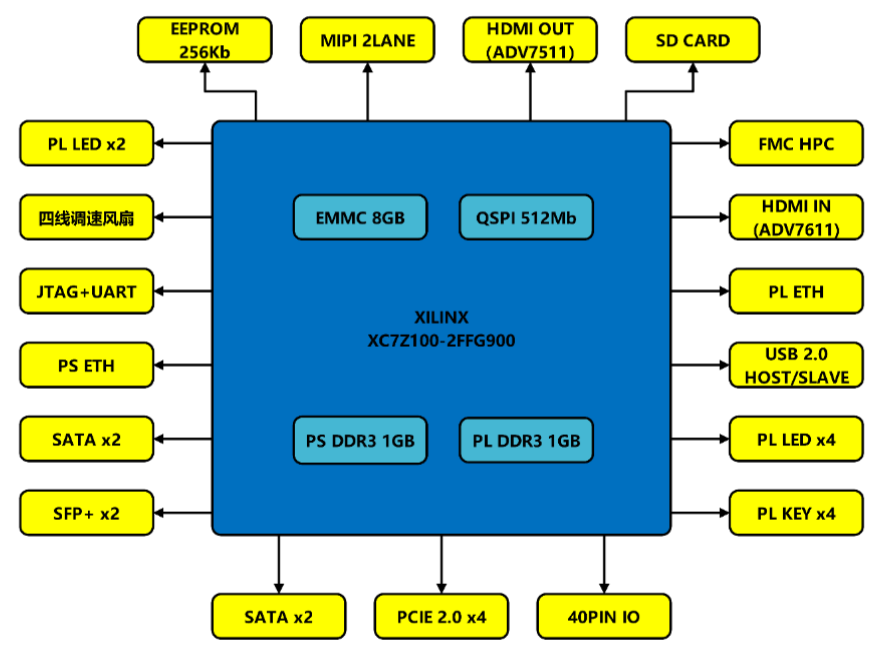

High-Speed & Expansion Interfaces

Category Interfaces
High-Speed IO PCIe 2.0 x4, FMC HPC
Optical & Storage 2 × SFP+, 2 × SATA
Ethernet 1 × PS Ethernet, 1 × PL Ethernet
USB USB 2.0 Host / Device

Multimedia & Peripheral Interfaces

Category Interfaces
Video & Camera MIPI CSI, HDMI Input, HDMI Output
Storage & Control SD Card Slot, EEPROM
Cooling 4-wire Adjustable Speed Fan Interface
User IO 6 × PL LEDs, 4 × PL Keys, 40-pin IO Header
Debug Onboard JTAG + UART (Integrated)

Package Contents

Item Quantity
ZYNQ7100-F Development Board 1
DC 12V 3A Power Adapter 1
Type-C Cable 1
