YX-OS18 miniB210 AD9361 SDR 70MHz–6GHz USB 3.0 Board for GSM Base Station Prototyping and GNU Radio Development

$249.90
$249.90
-0%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

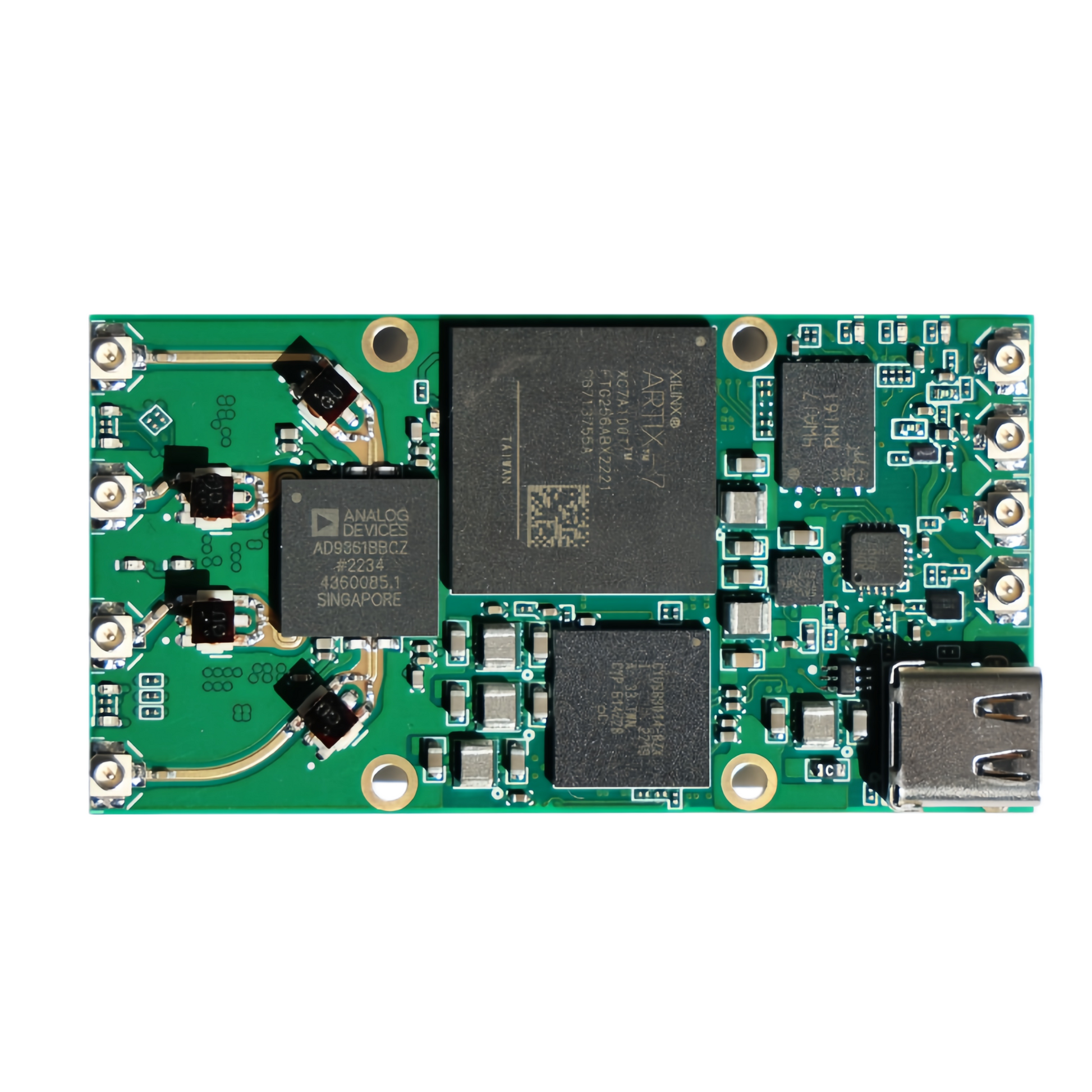

TinyB210 Software Defined Radio (SDR) Platform

Product Overview

TinyB210 is a fully integrated, single-board, general-purpose software defined radio peripheral platform with continuous frequency coverage from 70MHz to 6GHz. It is designed for low-cost experimentation and education, integrating the Analog Devices AD9361 direct-conversion RF transceiver, a reconfigurable FPGA, and a high-speed USB 3.0 interface with bus-powered operation.

TinyB210 is fully supported by mainstream SDR software ecosystems, allowing developers to immediately start working with GNU Radio, build GSM base station prototypes using OpenBTS, and seamlessly migrate code from B210-class devices to higher-performance, industry-ready SDR platforms.

RF & Digital Architecture

The integrated RF front-end is based on the AD9361, a single-chip, direct-conversion transceiver capable of up to 56MHz real-time RF bandwidth. TinyB210 utilizes both signal chains of the AD9361 to provide coherent 2x2 MIMO (2Tx / 2Rx) operation.

Onboard signal processing and control are handled by the FPGA, which connects to the host PC via USB 3.0. The system supports a real-time throughput benchmark of 61.44 MS/s complex I/Q, enabling full utilization of the 56MHz instantaneous RF bandwidth in GNU Radio or UHD API-based applications.

Key Performance Parameters

Category Value Unit
DC Input Voltage 5 V
ADC Sampling Rate (Max) 61.44 MS/s
ADC Resolution 12 bits
ADC SFDR 78 dBc
DAC Sampling Rate 61.44 MS/s
DAC Resolution 12 bits
Host Interface Throughput (16-bit) 61.44 MS/s
Reference Clock Accuracy ±2 ppm
TCXO Accuracy (Unlocked) ±7.5 ppm
TCXO Accuracy (Locked) <1 ppm
Single-Sideband / Image Suppression -35 / -50 dBc
Output Power @ 2.4GHz 3.5 dBm
Output Power @ 6GHz -12 dBm
Maximum Output Power >10 dBm
Input IP3 -20 dBm
Noise Figure <8 dB

Key Features

Feature Description
Frequency Coverage 70MHz – 6GHz continuous
MIMO Capability Full-duplex 2Tx / 2Rx coherent MIMO
Instantaneous Bandwidth Up to 56MHz (61.44MS/s complex)
Host Interface High-speed USB 3.0, bus-powered
FPGA Open and reconfigurable FPGA architecture
RFIC Analog Devices AD9361 direct-conversion transceiver
Enclosure Optional steel enclosure for black PCB devices

SRSRAN & Base Station Support

TinyB210 is capable of running SRSRAN small-cell base stations. Detailed workflows and experimental procedures are documented on our blog:

Deploying an srsRAN LTE Small Cell Using miniB210
