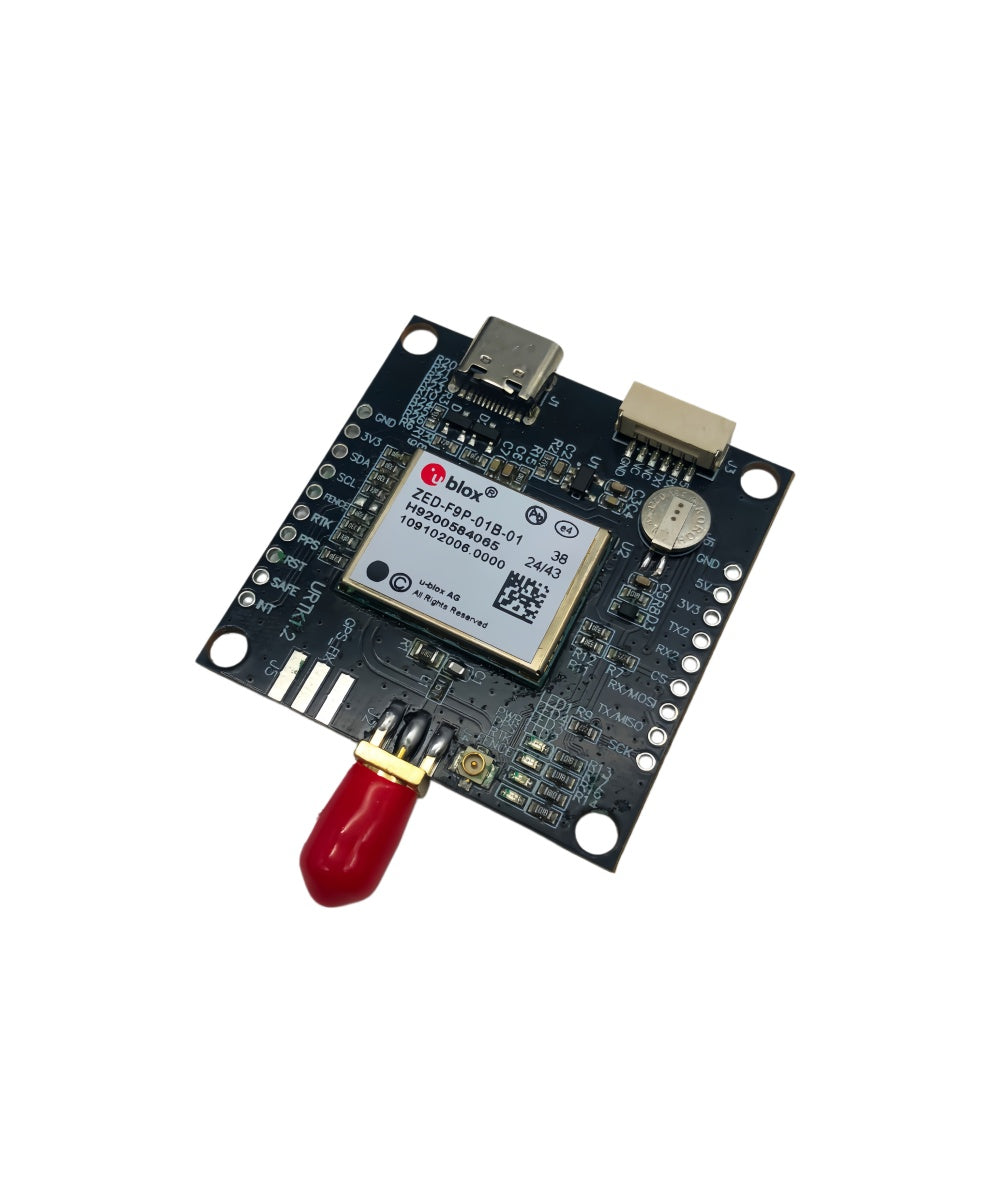

YX-OS30 u-blox ZED-F9P-01B High-Precision Module for Centimeter-Level Accuracy

$111.90
$148.00
$111.90
-24%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

ZED-F9P RTK GNSS Module – Centimeter Precision GPS/GLONASS/BeiDou Receiver

An ultra-compact, high-performance multi-band RTK positioning module built around the u-blox ZED-F9P-01B-01 chip. Achieves centimeter-level accuracy for demanding industrial applications — from drone navigation and autonomous vehicles to precision agriculture and geodetic surveying. No complex setup required: works straight out of the box as a mobile RTK station.

Technical Specifications

Chipset ZED-F9P-01B-01 (u-blox)
Frequency Bands GPS L1/L2; GLONASS G1/G2; BeiDou B1/B2; Galileo E1/E5; QZSS L1/L2
Operating Mode Multi-constellation (GPS + QZSS + GLONASS + BeiDou + Galileo)
Channels 184 Hardware Channels
Baud Rate 4800–921600 bps (Default: 38400 bps)
Output Level / Protocol TTL Level; NMEA-0183, RTCM
Update Rate 1 Hz–20 Hz (Default: 1 Hz)
Flash Memory 4 MB, configurable, non-volatile (settings preserved on power-off)
1PPS (Pulse Per Second) Configurable 0.25 Hz–10 MHz; Default: 1 s period, 100 ns high level
Carrier Phase Output Supported (RAWX Message Output)
Material High-Quality PCB

Important Configuration Notes

  • Default Baud Rate: 38400 bps. To prevent overwhelming data traffic, the baud rate automatically increases with higher update frequency.
  • Recommendation: Do not exceed 5 Hz update rate to maintain stable data transmission without data overload.

RTK Positioning & Operation Modes

RTK Accuracy Centimeter-Level Differential Positioning
Base Station Mode Fixed mode; simple configuration required
Rover (Mobile Station) Mode Plug-and-play as RTK rover — no configuration needed

Compact Form Factor

Small footprint and lightweight design for easy integration into UAVs, robots, and portable equipment.

Batch Variations

Appearance and printed text may vary slightly between batches — no impact on performance or functionality.

Industrial & Research Applications

  • • R&D & Prototyping
  • • Drone (UAV) Navigation
  • • Unmanned Surface Vessels (USV)
  • • Autonomous Driving & AGV
  • • Robotics & ROS Integration
  • • Driving School Vehicle Tracking
  • • Geodetic & Cadastral Surveying
  • • Precision Agriculture
  • • Landslide & Mountain Monitoring
  • • Mine Deformation Monitoring
  • • Vehicle Navigation & Telematics
  • • DGNSS/RTK Base Station (Radio)

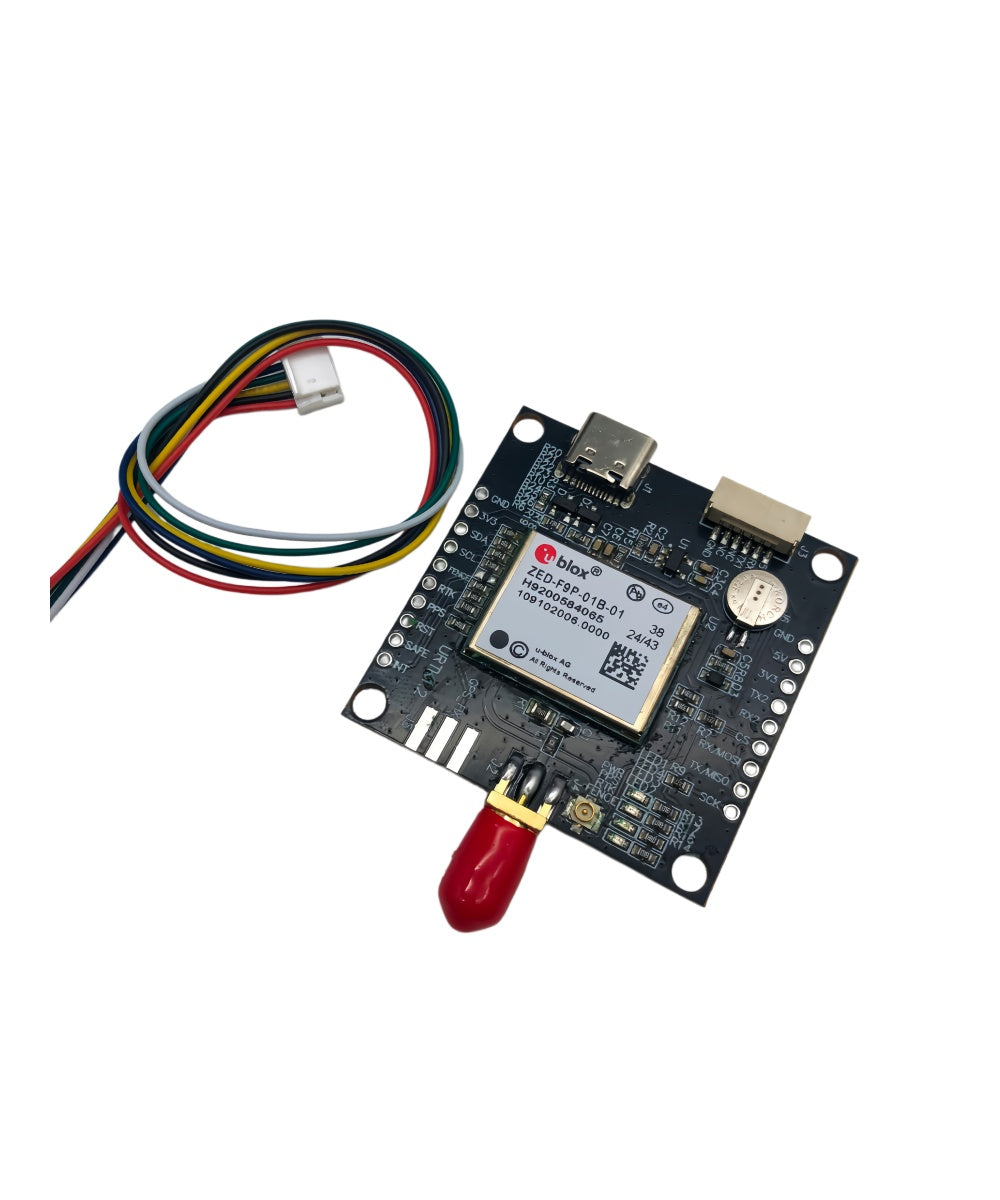

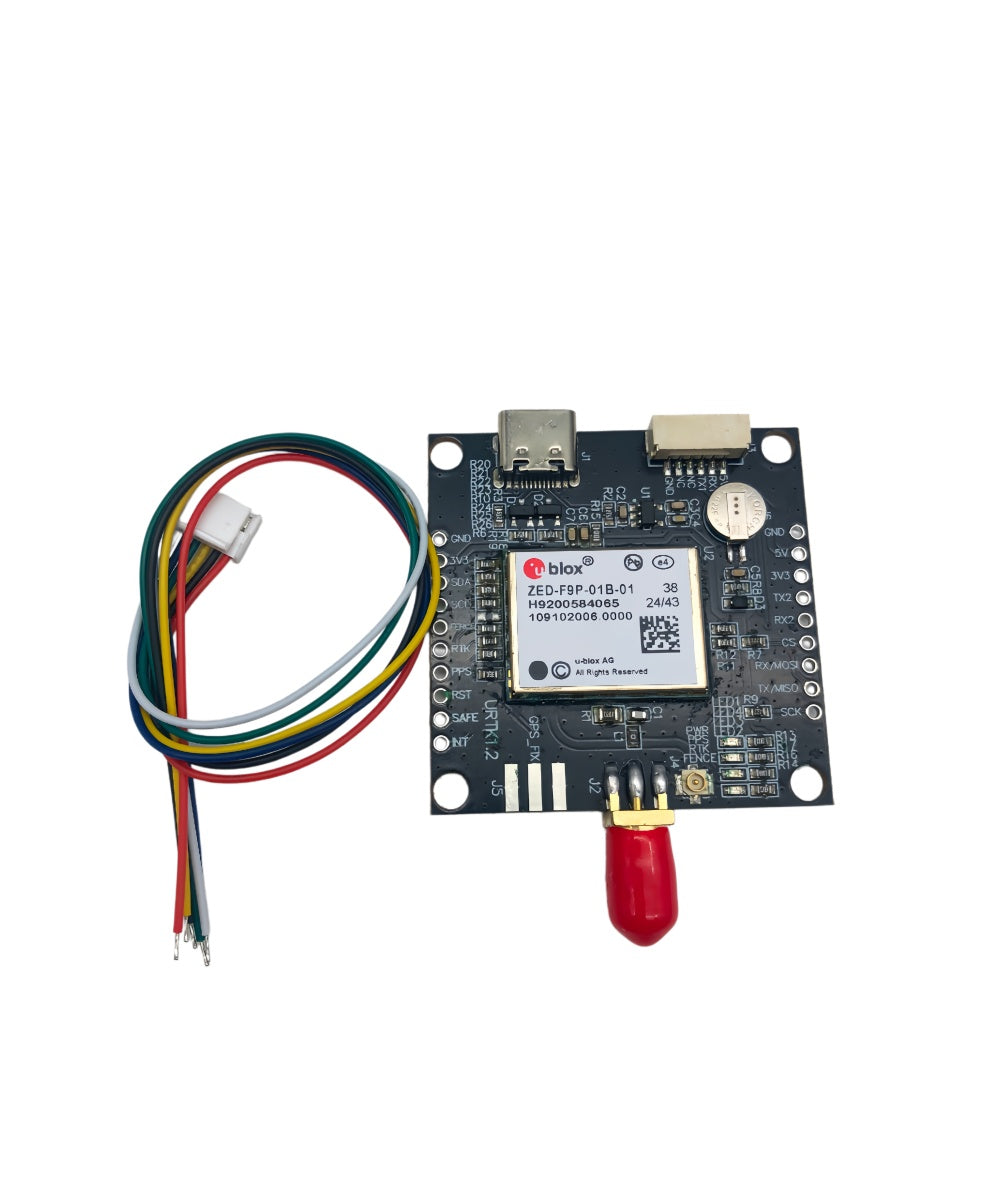

Package Contents

Qty Item
1× ZED-F9P RTK GPS Module
1× Connection Cable

Package Note: Only the listed items are included. Other accessories are not part of this package.

Visual Disclaimer: Slight color variations may occur due to lighting and display settings. Manual measurement tolerance: ±1–3 cm.
