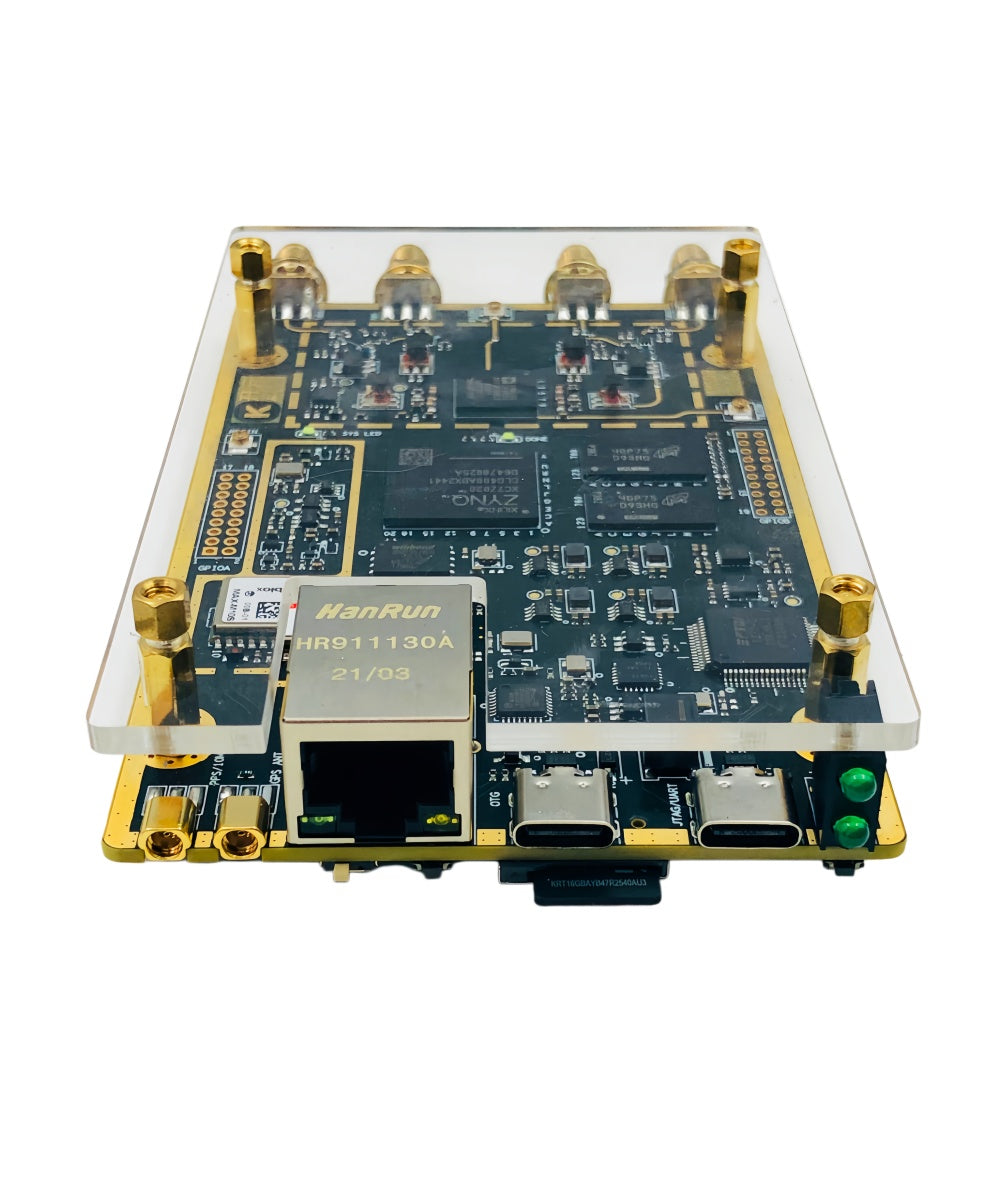

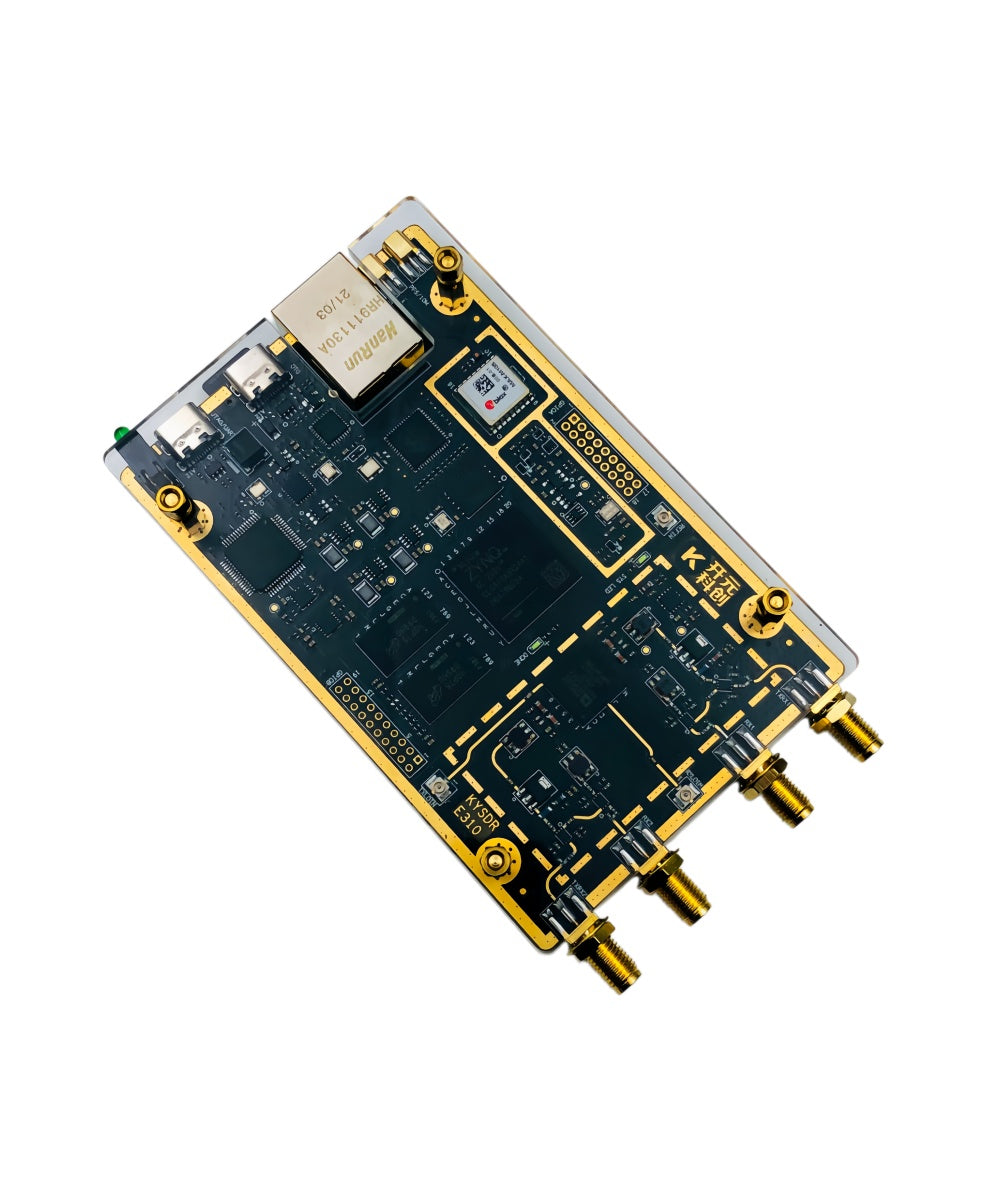

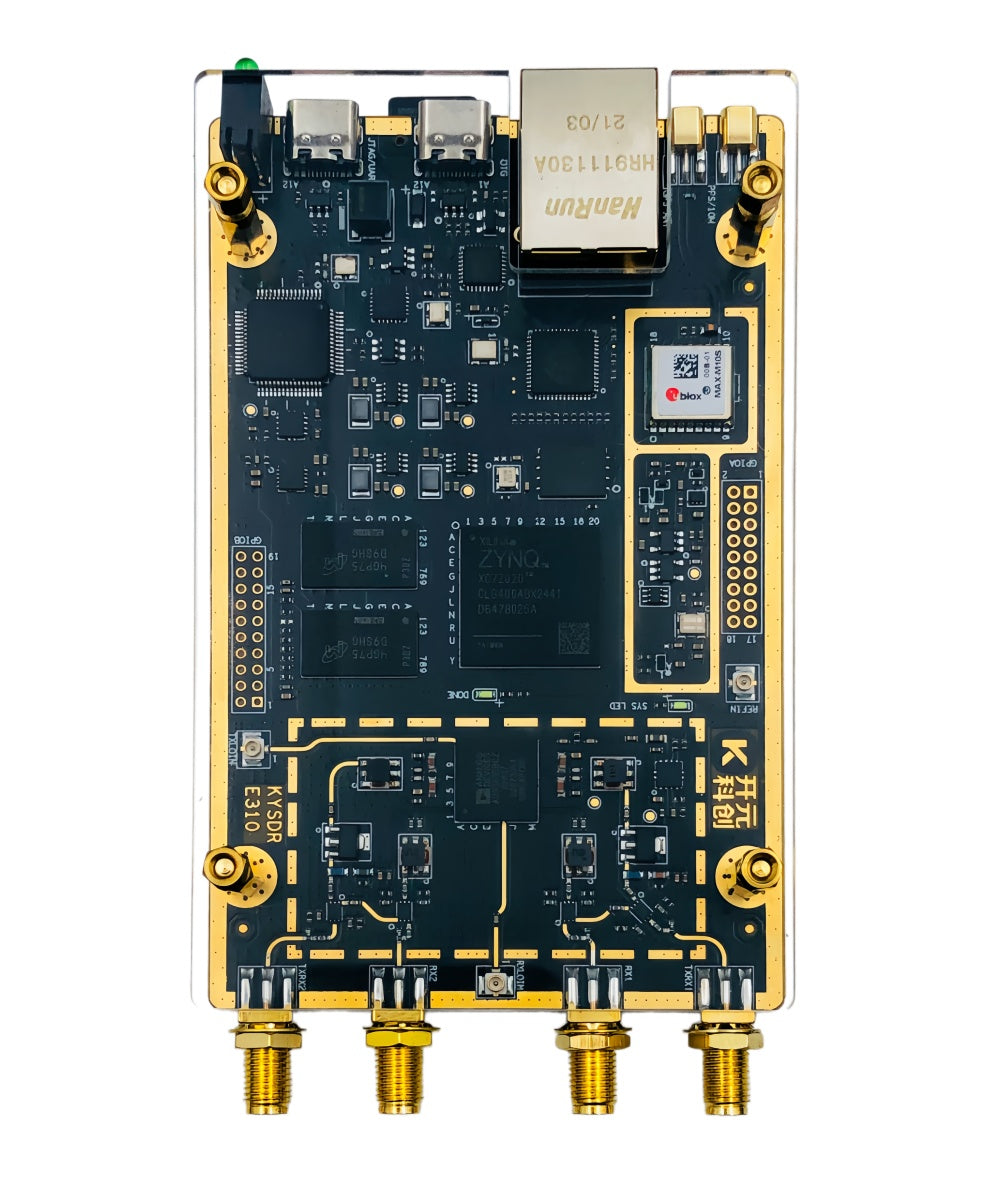

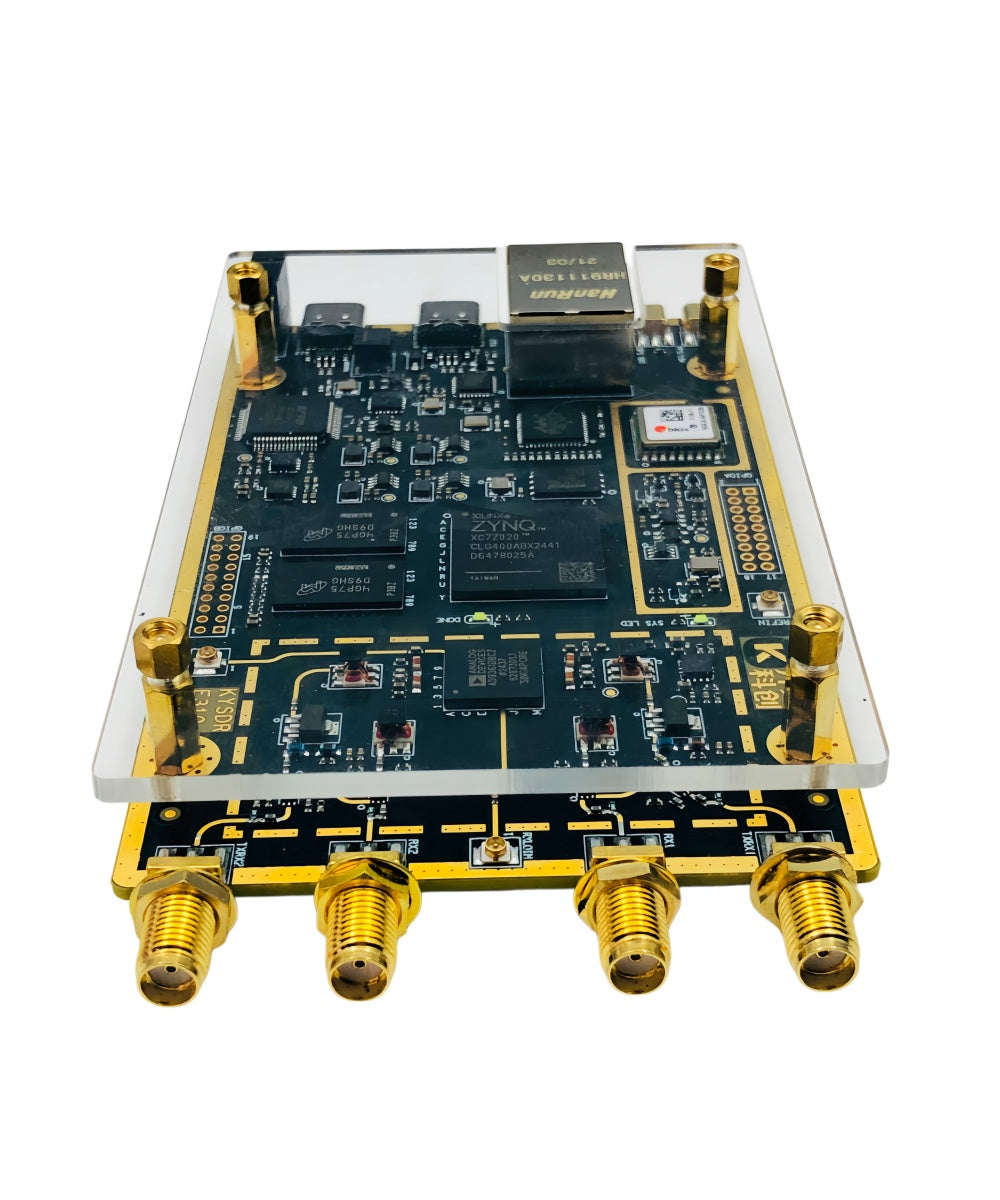

YX-OS34 E310 High-Integration Platform Based on AD9361 and Zynq-7020, with GPS Support,UHD and Pluto SDR Firmware Support, Includes Rich Example Codes

$513.00
$684.00
$513.00
-25%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

A versatile SDR transceiver platform combining the ADI AD9361 RFIC with a Xilinx ZYNQ‑7020 baseband processor. Covers 70 MHz to 6 GHz with 56 MHz instantaneous bandwidth. Fully open‑source software stack — ready for wireless prototyping, research, and education.

RF & Baseband

RFIC ADI AD9361
Configuration 2×2 MIMO (Tx & Rx)
Frequency Range 70 MHz – 6 GHz
Instantaneous Bandwidth 56 MHz (max.)
Tx Power 10 dBm (frequency dependent)
Rx Noise Figure < 8 dB
ADC 12‑bit, 61.44 MSPS
DAC 12‑bit, 61.44 MSPS

Processor & System

Baseband Processor Xilinx ZYNQ‑7020 (Dual ARM Cortex‑A9)
RAM 1 GB DDR3
Flash 256 Mbit QSPI
Interfaces 1× Gigabit Ethernet · 1× USB 2.0 · USB‑C JTAG · USB‑UART · GPIO
Synchronization External 10 MHz + PPS input / Built‑in GPS module
Reference Clock VCTCXO · initial accuracy 0.5 ppm
Power USB Type‑C · 2–6 W consumption
Dimensions 110 × 70 mm

Streaming Performance

Data Rate (ADIIO) 10 MSPS
IQ Bandwidth (UD) 25 MSPS

Software & Ecosystem

API / Framework ADIIO (pre‑installed) · UD (for bulk & custom clients)
Languages C/C++ · Python
Open‑Source Ports PlutoSDR · UHD · No‑OS AD9361 Project
Supported Tools Vivado 2019.1 · Ubuntu 18.04 · GNU Radio · SDRangel · SDR# · Matlab Simulink · Gqrx · PYNQ

Learning Resources

Getting Started Guide (Plug & Play)
GNU Radio Development Guide for KYSDR
Matlab & Simulink Development Guide
E310 C/C++ Development (PC as Host)
E310 Standalone Operation (ZYNQ ARM Host, available on request)
Code Examples & PlutoSDR Migration Guides

Customization & Support

Deep customization available for bulk and corporate clients. E310 supports both Pluto and UD firmware. Professional technical support, continuously updated code examples, and tailored solutions upon request.
