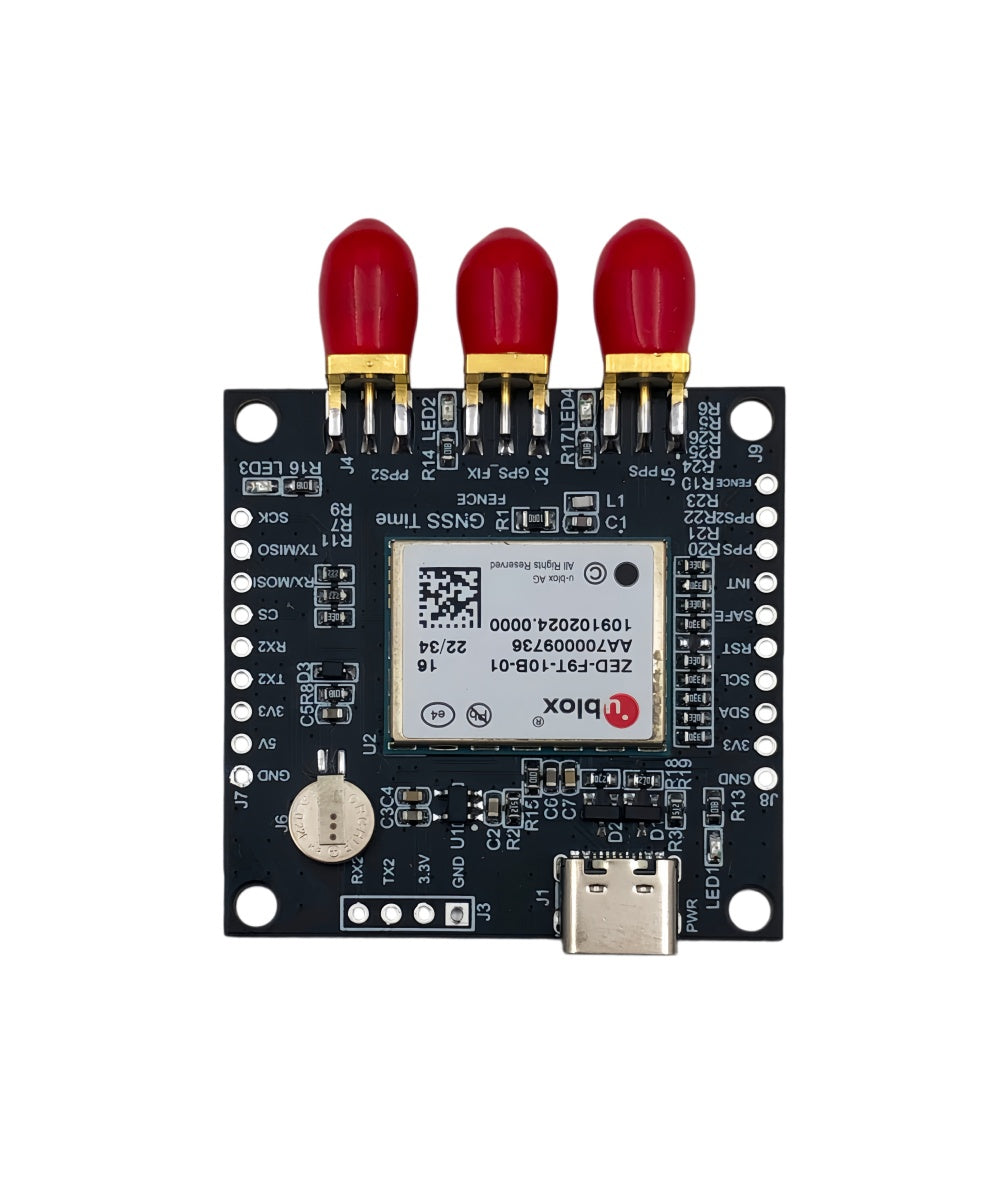

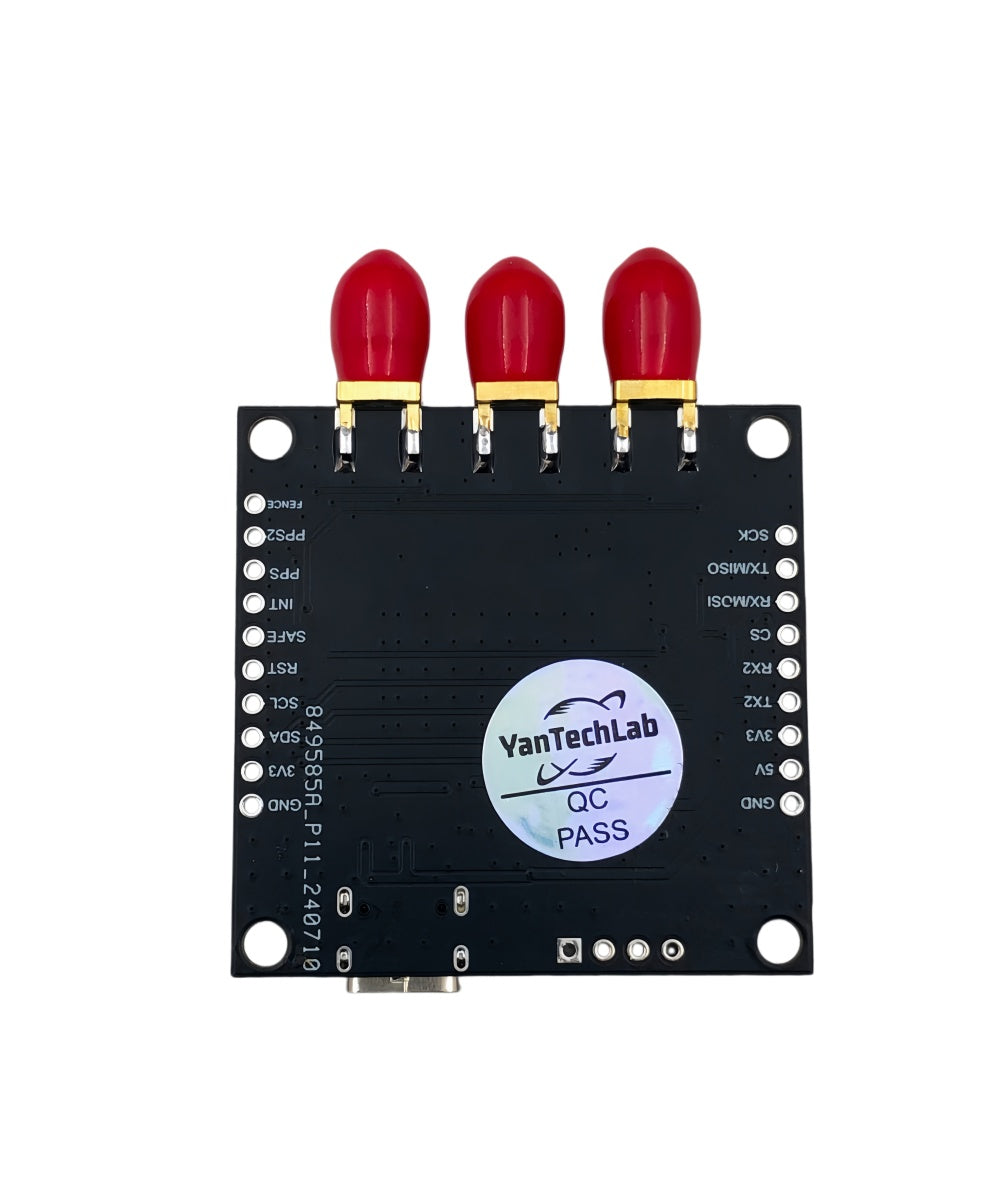

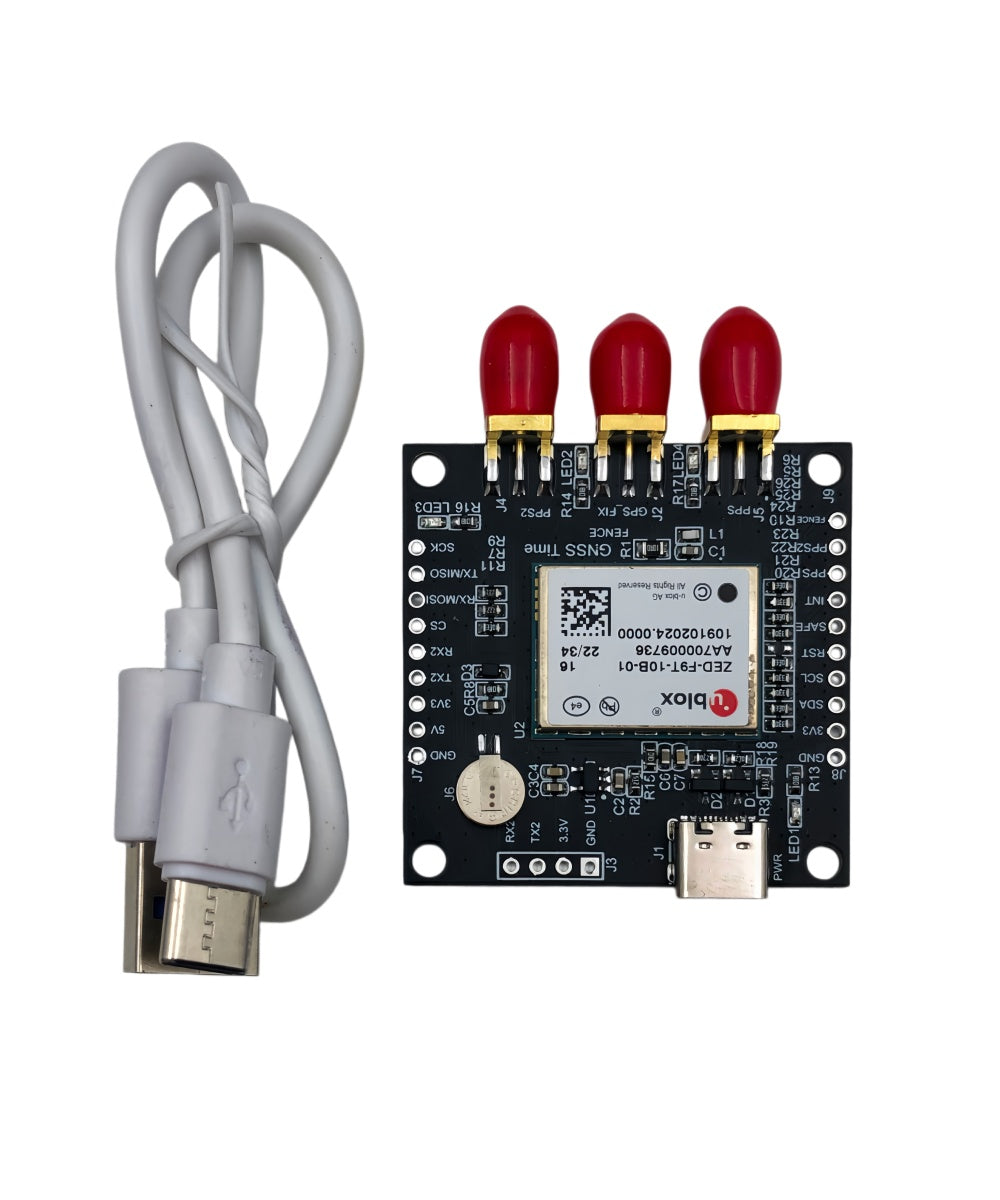

YX-OS36 u-blox ZED-F9P-10 High-Precision Module for Centimeter-Level Accuracy

The ZED-F9T-10B GNSS module is a concurrent GNSS receiver that can receive and track multiple GNSS systems. Thanks to the multi-band RF front-end architecture, all four major GNSS constellations (GPS, Galileo, GLONASS and BeiDou) as well as NavIC, SBAS and QZSS satellites can be received concurrently. If low power consumption is a key factor, then the receiver can be configured for a subset of GNSS constellations.

The ZED-F9T-10B can receive the NavIC L5 satellite signals that share the same frequency with GPS L5 signals and can be configured to work on its own or in parallel with the other GNSS constellations.

The QZSS system shares the same frequency bands with GPS and can only be processed in conjunction with GPS.

To benefit from multi-band signal reception, dedicated hardware preparation must be made during the design-in phase. See the Integration manual [1] for u-blox design recommendations.

The ZED-F9T-10B supports the GNSS and their signals as shown in Table 5.

Table 5: Supported GNSS signals on ZED-F9T-10B

The ZED-F9T-10B can use the u-blox AssistNow™ Online service which provides GNSS assistance information.
