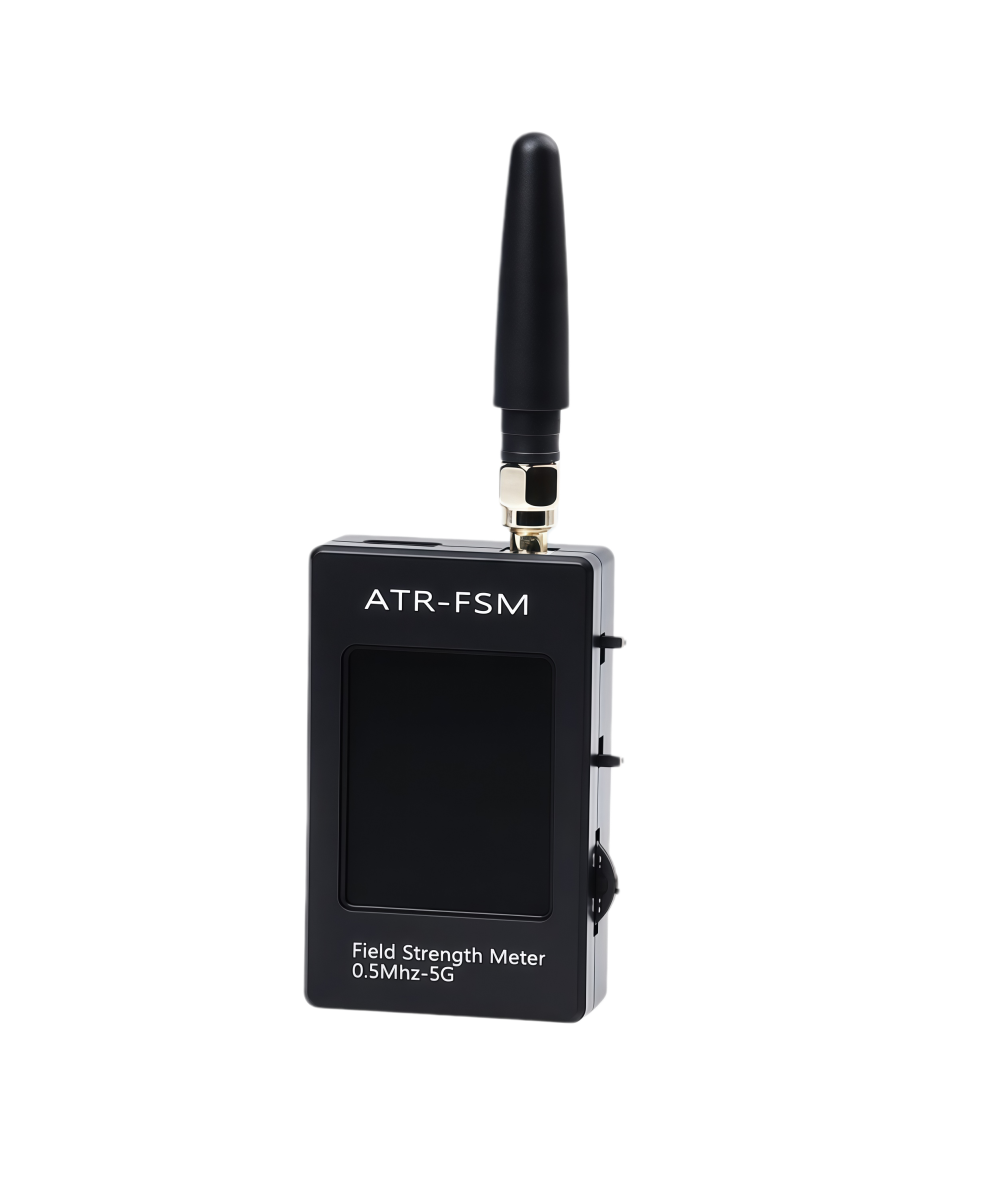

YX-OS60 ATR-FSM Black Handheld Wideband Field Strength Meter – 0.5MHz–5GHz Multi-Function Measurement, 3D-Printed Enclosure

$58.00
$73.00
$58.00
-21%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

ATR-FSM is a multifunctional handheld field strength meter covering 0.5 MHz to 5 GHz — ideal for antenna tuning, interference detection, antenna quality testing, electromagnetic assessment, and polarization measurement. With its compact 3D‑printed enclosure and pocket‑sized design, field strength testing is no longer limited by location.

Key features
  • Wide frequency: 0.5 MHz – 5 GHz
  • Wide dynamic range: –70 dBm to +50 dBm
  • Built‑in attenuation: 20× gain / 20× attenuation switching
  • Display modes: Digital, Analog (needle), Curve, Recording
  • 1.8″ full‑color screen: 160×128 · day/night modes · rotatable
  • Compact & long battery life: 800 mAh · 12h continuous use
  • Type‑C: Charging (5V/1A) and firmware upgrade

Applications: antenna tuning, interference hunting, electromagnetic environment assessment, polarization measurement, field testing.

Technical Specifications
Frequency range 0.5 MHz – 5 GHz
Measurement range –70 dBm to +50 dBm
Gain / Attenuation 20× gain / 20× attenuation (switchable)
Main controller ESP32 @ 240 MHz
ADC resolution 16‑bit
Antenna connector SMA female
Display 1.8″ full‑color · 160×128 · day/night modes
Battery 800 mAh · up to 12h continuous use
Charging USB Type‑C · 5V / 1A (no fast charge)
Dimensions (W×H×D) 64 × 40 × 16 mm
Weight 45 g
Enclosure 3D‑printed (black)
Display Modes

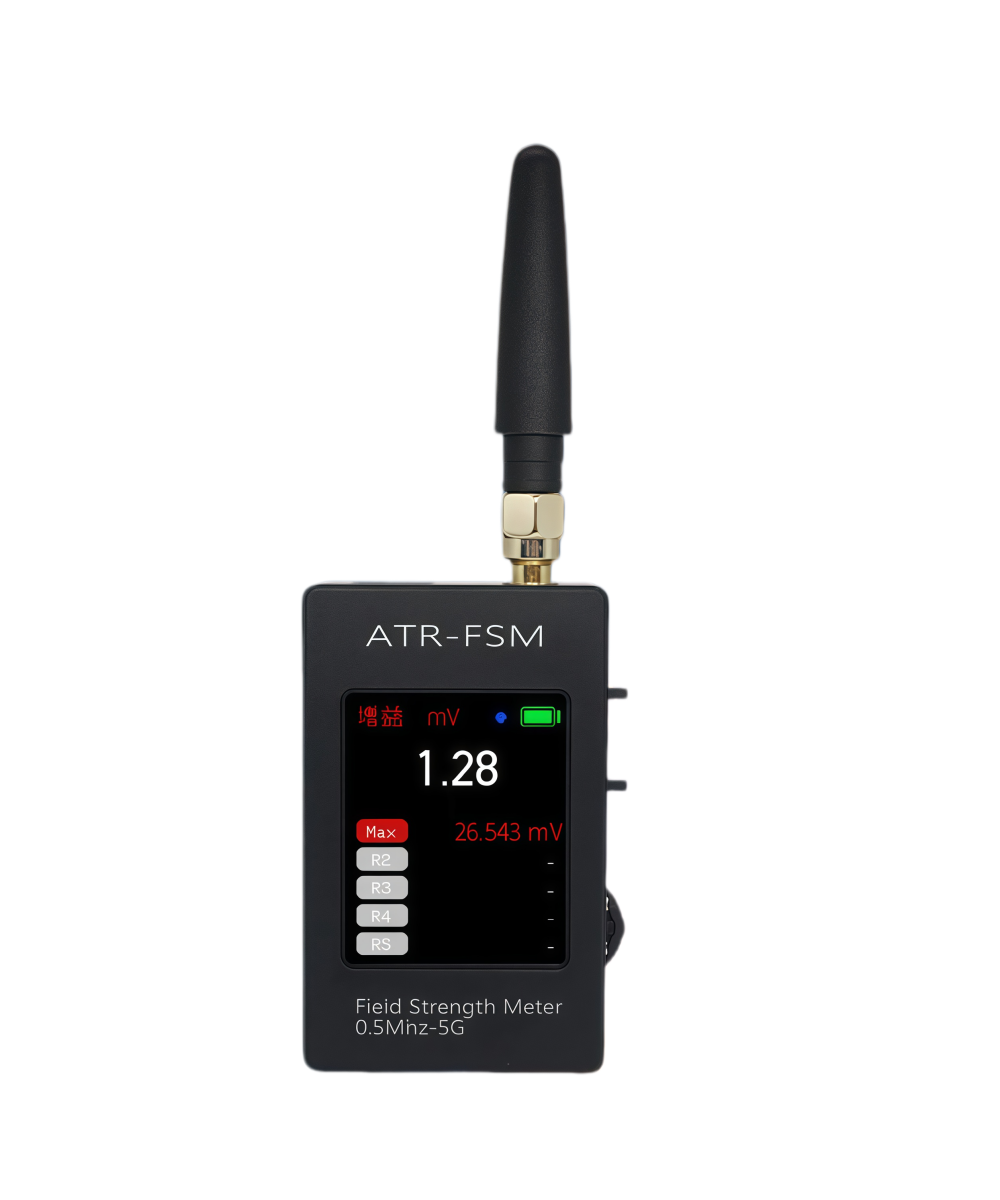

Digital Mode · Clear numeric readout with peak hold
Analog (Needle) Mode · Classic meter display
Curve Mode · Real‑time trend visualization
Recording Mode · Data logging and playback
Important Operating Notes
  • Antenna matching: Use an antenna matched to your signal frequency. The included 433 MHz antenna is for 433 MHz band only — prepare appropriate antennas for other frequencies.
  • Measurement distance: Keep the ATR‑FSM at least 50 cm from the transmitting antenna (ideally >1 wavelength). Close proximity may cause permanent damage.
  • Range setting: Always start with attenuation enabled to avoid damaging the device. Signal strength should not continuously exceed 90% of the selected range.
  • Charging: Do not use fast chargers. Use a standard 5V/1A charger. For long‑term storage, keep battery at ~50% charge.
Package Contents
  • ATR‑FSM Field Strength Meter ×1
  • 433 MHz antenna ×1
  • USB Type‑C charging cable ×1
  • Adapter / connector ×1
Applications
  • Antenna tuning and debugging
  • Interference hunting and EMI detection
  • Antenna quality and performance testing
  • Electromagnetic environment assessment
  • Polarization direction measurement
  • Field testing — tower‑top or on‑site
