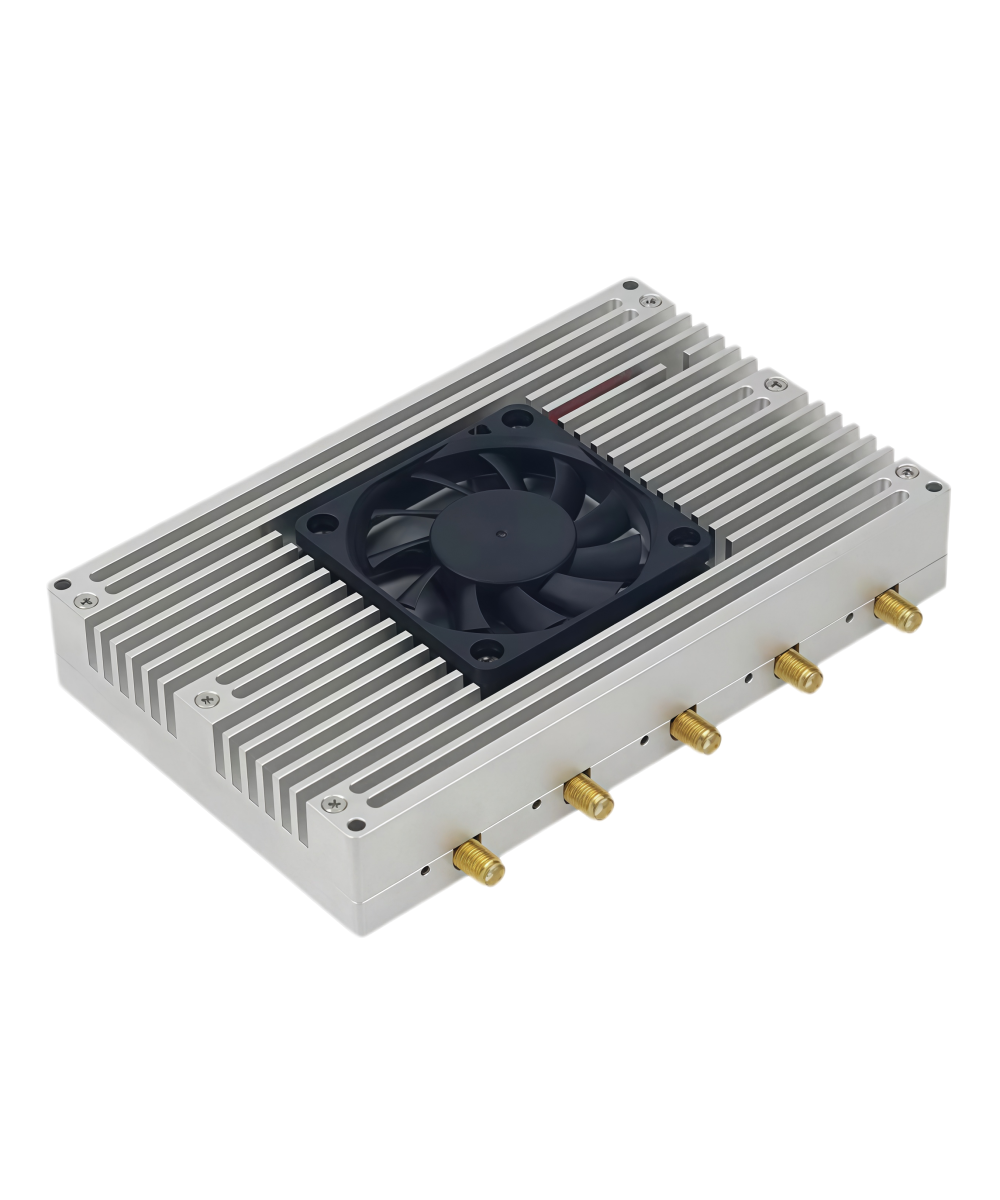

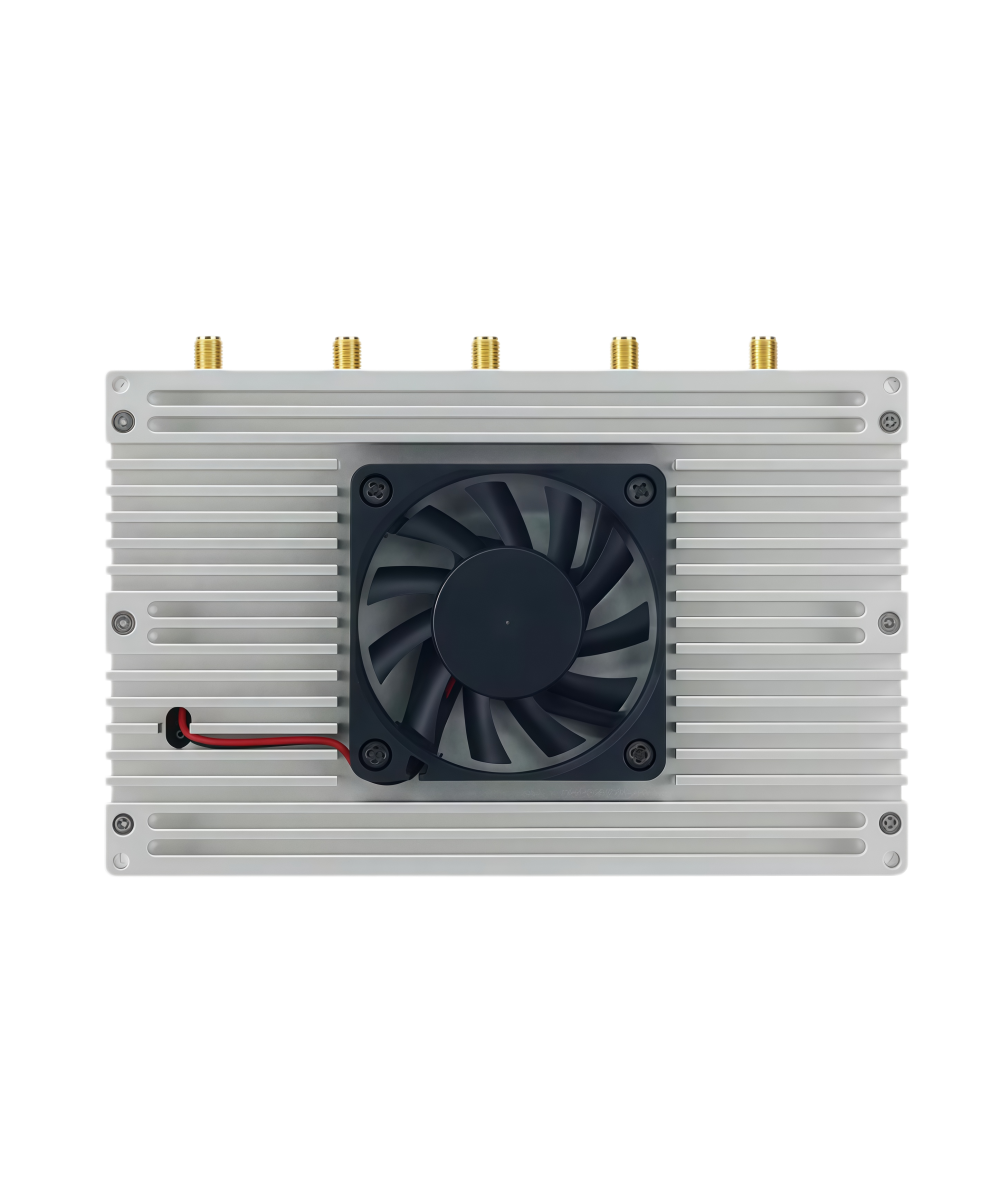

YX-OS67 RTL5CH 5-Channel RTL-SDR Receiver – Passive Radar, SDR, Direction Finding, KrakenSDR Compatible

$802.00
$1,002.00
$802.00
-20%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

RTL5CH is a 5‑channel coherent Software Defined Radio (SDR) receiver designed for advanced RF applications including radio direction finding (RDF), passive radar, and beamforming. Operating from 24 MHz to 1.7 GHz with a maximum demodulation bandwidth of 3.2 MHz, this module provides a cost‑effective alternative to KrakenSDR for hobbyists, researchers, and professionals.

Key features
  • 5 channels: Fully coherent with single local oscillator
  • Frequency range: 24 MHz – 1.7 GHz (R820T2)
  • Bandwidth: Up to 3.2 MHz
  • Demodulation: AM/FM/SSB/OFDM/FSK
  • Built‑in calibration: Automatic coherent sync
  • Bias‑T: 4.5V on all ports for LNA power
  • Software: GNU Radio, SDR#, SDRAngel, gr‑doa, and more
  • Android app: Free non‑commercial direction finding

Applications: radio direction finding, passive radar, beamforming, wildlife tracking, emergency beacon search, radio astronomy interferometry, traffic monitoring.

Technical Specifications
Model RTL5CH
Channels 5 (coherent, single LO)
Frequency range 24 MHz – 1.7 GHz
Max bandwidth 3.2 MHz
Demodulation AM, FM, SSB, OFDM, FSK
Power supply 5V USB (Type‑C)
Bias‑T 4.5 V on all antenna ports
Calibration Automatic hardware calibration
Enclosure CNC‑machined aluminum (rugged)
Compatible software GNU Radio, GQRX, SDR#, SDR Console, SDRAngel, gr‑doa, gr‑aoa, kerberosdr, krakensdr_doa, heimdall_daq_fw
Key Capabilities
Radio Direction Finding Locate unknown signal sources
Passive Radar Detect aircraft, boats, drones
Beamforming Spatial signal processing
Interferometry Radio astronomy applications
Traffic Monitoring Density analysis via passive radar
Emergency Beacon Search Locate distress signals
Improvements over KerberosSDR / KrakenSDR
  • Automatic calibration: No manual antenna switching — remote operation ready
  • 5 channels: Improved direction‑finding accuracy vs 4‑channel design
  • Low‑noise design: Cleaner spectrum with significantly less internal noise

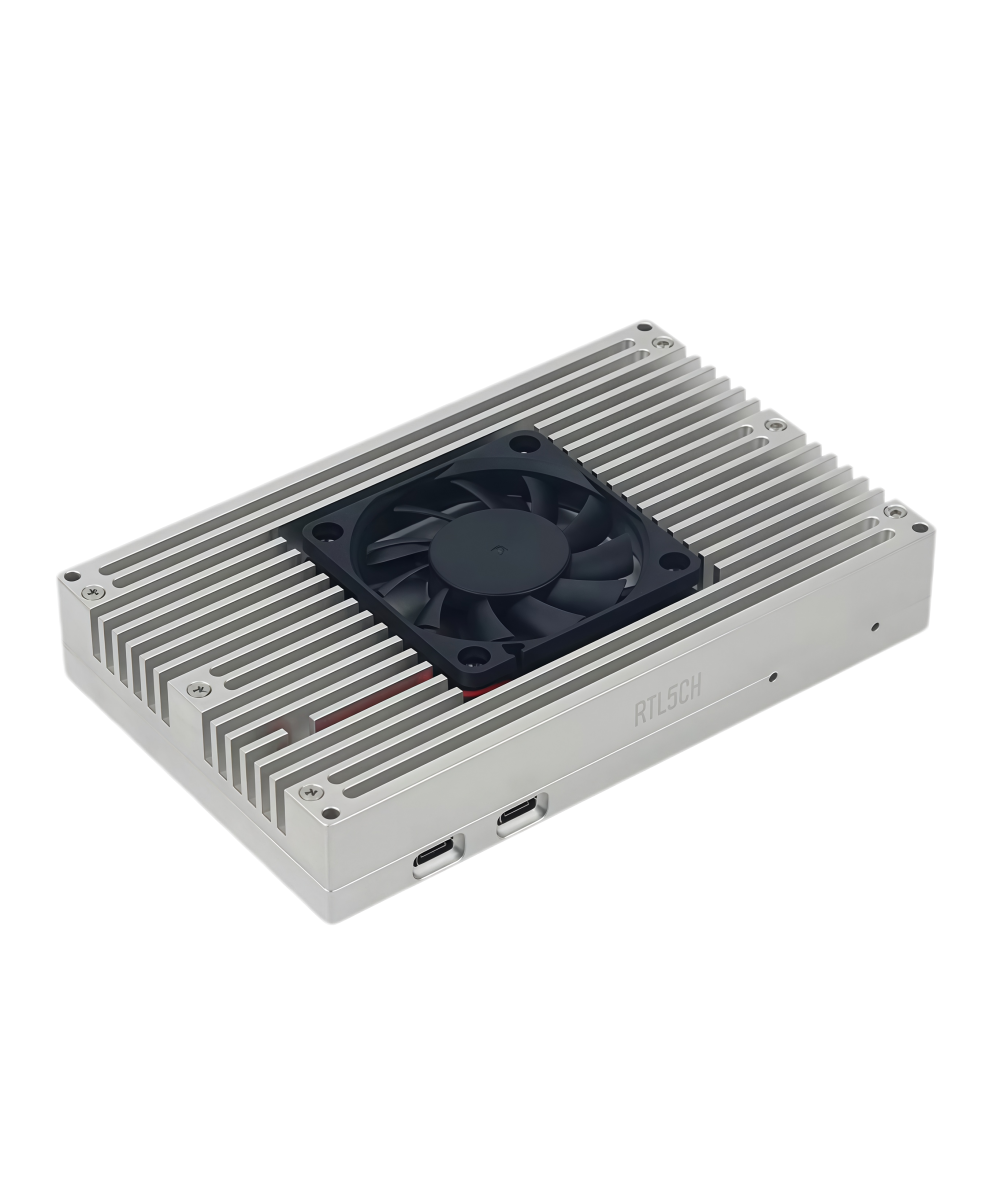

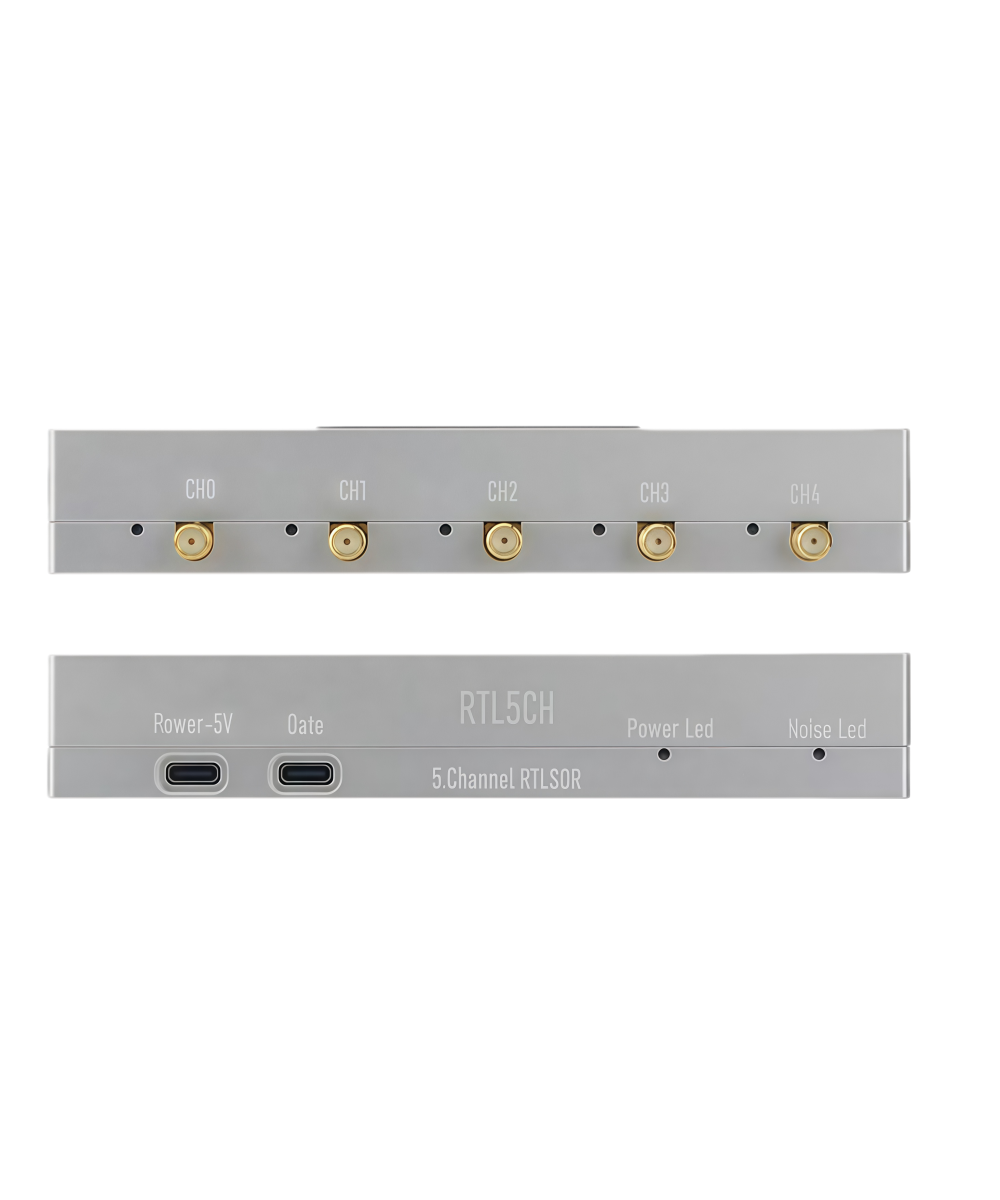

  • Type‑C ports & rugged CNC case: Field‑ready reliability
  • Bias‑T on all ports: Easy LNA and external device powering
  • Enhanced software: Auto‑calibration, intermittent signal tracking, web GUI, Android app with GPS navigation
Getting Started
  • Required: KrakenSDR, Type‑C cable, 5V/2.4A+ power supply, antennas (e.g., magnetic whip set)
  • Recommended compute: Raspberry Pi 4 with pre‑built SD card images provided
  • Optional: Android phone/tablet with hotspot, GPS, and compass (last 3–4 years recommended) for direction finding
Package Contents
  • RTL5CH 5‑channel SDR receiver ×1
  • USB Type‑C data cable ×2

Allgemeine Geschäftsbedingungen

Versandinformationen

Bestellungen werden innerhalb von 48 Stunden vorbereitet. Für den internationalen Versand wird eine schnelle Kleinpaketlogistik genutzt.

  • USA / Europa: ca. 8–14 Tage (Änderungen vorbehalten)
  • Bei ungewöhnlichen Situationen werden Sie umgehend per E-Mail informiert

Rückgabe- und Kundendienstrichtlinien

Sollten Sie nach Erhalt des Produkts Fragen haben, kontaktieren Sie uns bitte umgehend. Rücksendungen oder Umtausch werden gemäß unseren Rückgaberichtlinien bearbeitet. Vielen Dank für Ihr Verständnis.

Dokumentation & Technischer Support

👉 https://t.me/YanTechLab
