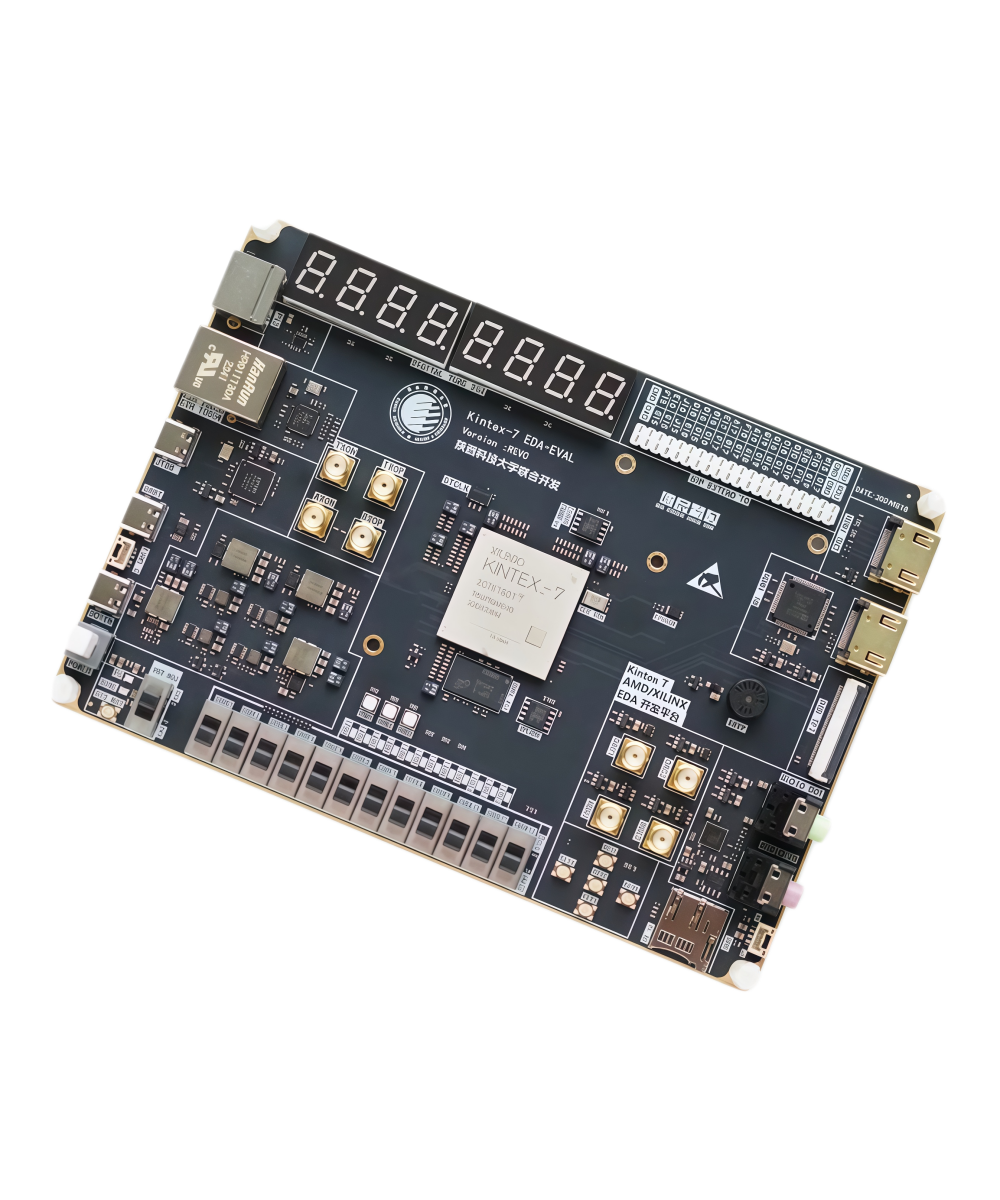

K7EDA_EVAL is a professional FPGA development platform built around the Xilinx Kintex-7 XC7K160T-2FFG676I (industrial‑grade) device. Designed for university EDA teaching, research, and prototyping, this board offers a rich set of peripherals including Gigabit Ethernet, HDMI input/output, audio codec, RGB LCD interface, dual ADC/DAC, GTX high‑speed transceivers, and extensive expansion I/O.
- FPGA: XC7K160T-2FFG676I · 162,240 logic cells
- Memory: 512MB DDR3 (16‑bit, 1600M) · 32MB Flash (×2)
- High‑speed: 8× GTX transceivers · 4× SMA for TX/RX
- Video: HDMI input (ADV7611) · HDMI output · RGB LCD (40‑pin FPC)
- Audio: ADAU1761 codec · headphone/mic/speaker
- Interfaces: Gigabit Ethernet · USB‑JTAG · USB‑UART · PS/2 · SD card
- Expansion: 40‑pin header (2.5V/3.3V configurable) · 34 single‑ended / 17 differential
- Teaching‑ready: 12 LEDs · 12 switches · 5 buttons · 7‑segment displays · buzzer
Applications: EDA teaching, digital logic design, FPGA prototyping, embedded systems, video/image processing, communications research.
| FPGA model | XC7K160T-2FFG676I (industrial) |
| Logic cells (LC) | 162,240 |
| Look‑up tables (LUT) | 25,350 |
| Flip‑flops (CLB) | 202,800 |
| DSP slices | 600 |
| Block RAM | 11,700 Kb |
| GTX transceivers | 8 |
| Speed grade | -2 |
| Temperature range | ‑40 to +85°C (industrial) |
| PLL/MMCM max speed | 709 MHz (recommended) |
| DDR3 memory | MT41K256M16TW‑107 · 512 MB (16‑bit, 1600M) |
| Clock sources | 50M/20PPM (system) · 156.25M/20PPM (GTX reference) |
| GTX high‑speed | 4× SMA (TX0/RX0 pair) |
| Ethernet | Gigabit RGMII (RTL8211E‑VB) |
| USB‑JTAG | Type‑C (on‑board debug/programming) |
| USB‑UART | Type‑C (CH340 bridge) |
| HDMI input | ADV7611 · up to 1080p |
| HDMI output | FPGA direct · up to 1080p |
| RGB LCD | 40‑pin FPC (0.5mm, flip‑down connector) |
| Audio codec | ADAU1761 · headphone/mic/speaker |
| ADC | 2× SPI · 1 MSPS |
| DAC | 2× SPI · ~1 MSPS |
| SD card | TF card slot (SDIO/SPI) |
| PS/2 | Keyboard / mouse interface |
| Config Flash | 32 MB (FPGA BIT configuration) |
| User Flash | 32 MB (user accessible) |
| EEPROM | 24C02 (I²C) |
| LEDs | PG/DONE · 12 user LEDs · 3× RGB |
| Switches | 12× digital input · VOTADJ (BANK voltage select) |
| Buttons | 1× system reset · 5× user buttons |
| 7‑segment | 2× 4‑digit common‑cathode (red) |
| Buzzer | Passive · frequency programmable |
- Location: BANK15 · 34 I/Os (single‑ended or 17 differential pairs)
- Voltage: Configurable via VOTADJ switch — 2.5V (supports LVDS_25) or 3.3V
- Differential use: Set VOTADJ to 2.5V for LVDS_25 support
- K7EDA_EVAL development board ×1
- Type‑C data cable ×2
- SMA (female to female) 15 cm cable ×2
- Nylon standoff screw set ×1 (pre‑installed)
- Acrylic protective cover (front + back) ×2 (pre‑installed)
- 9V/2A Type‑C power adapter ×1 (for board only)
