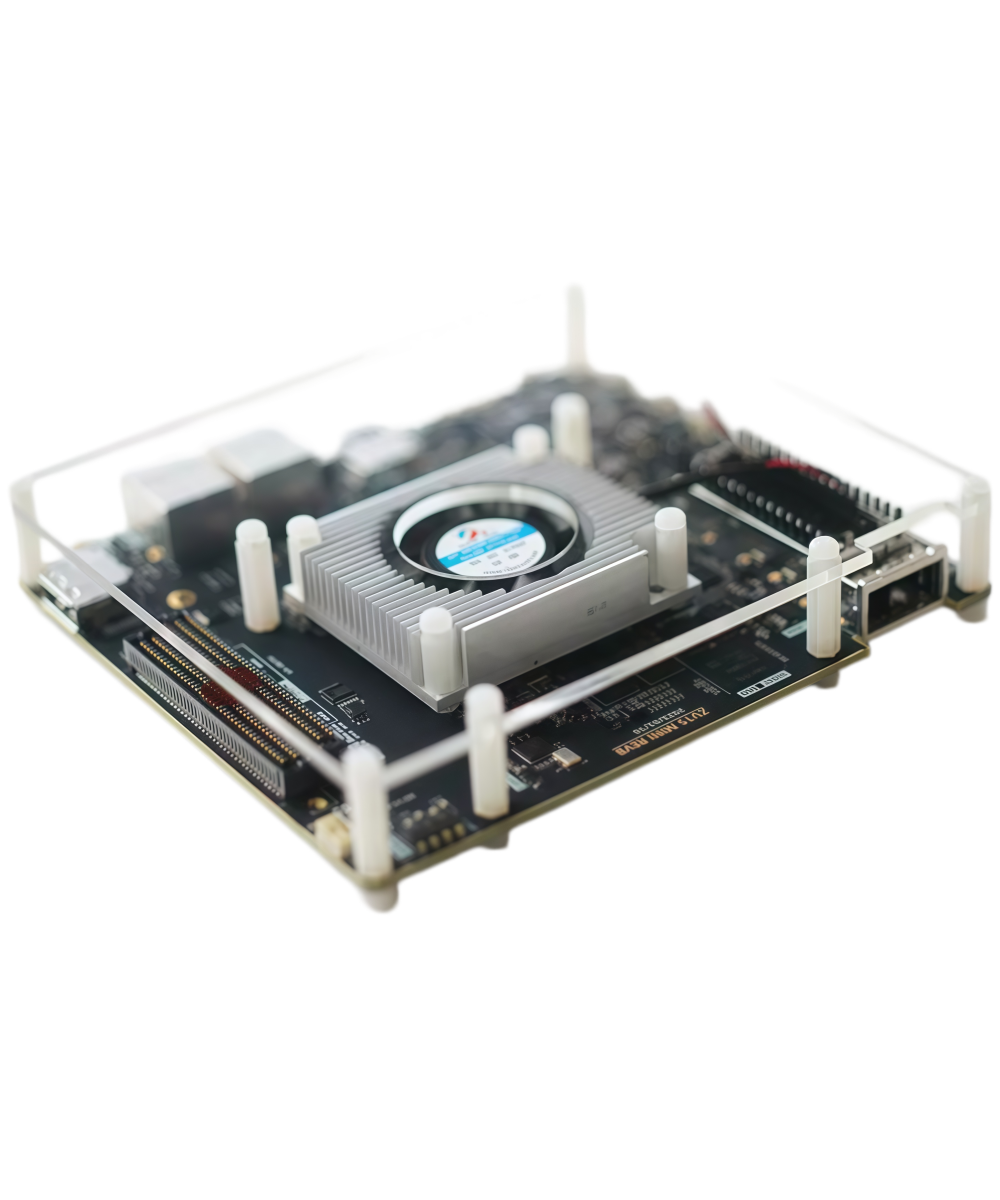

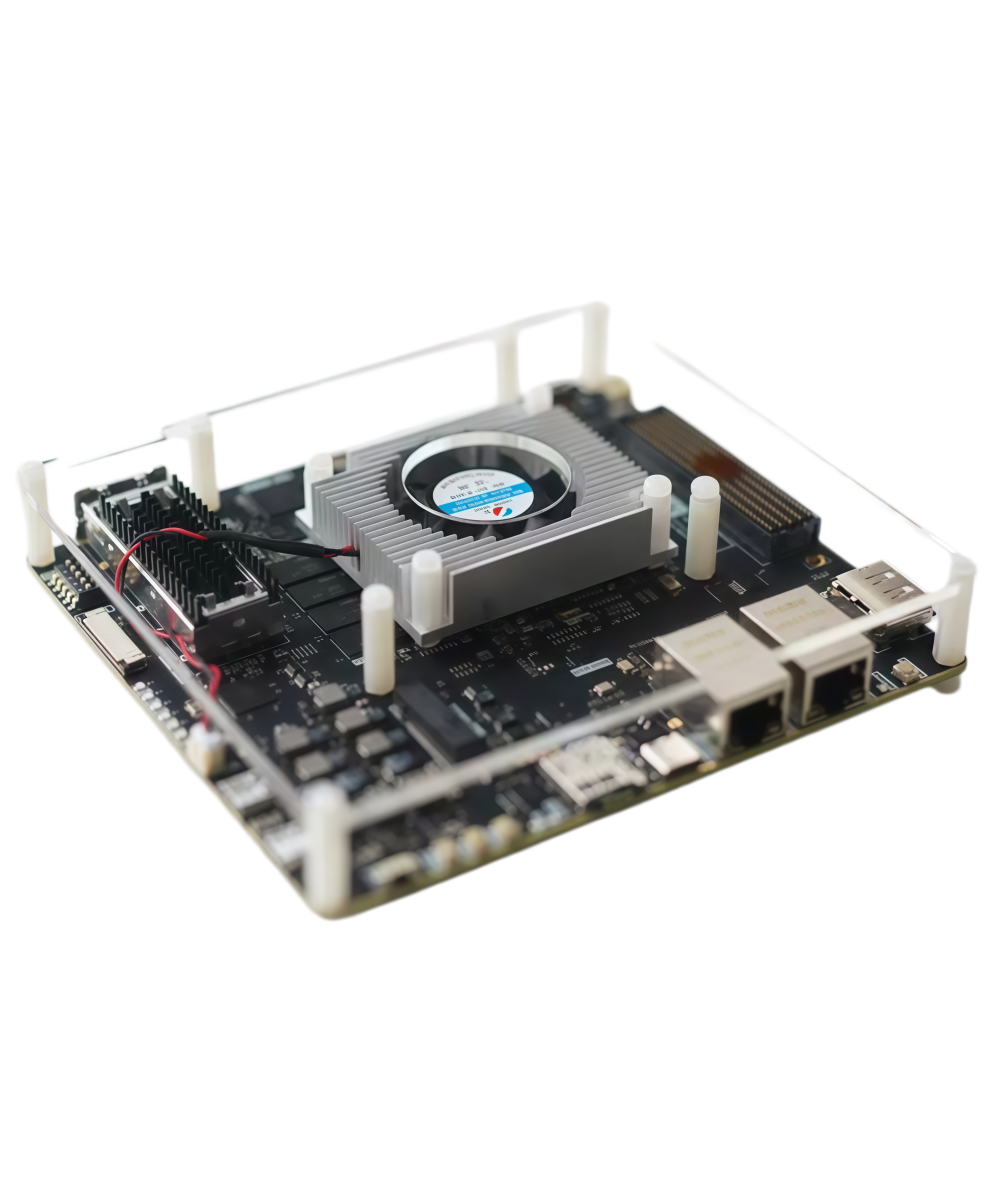

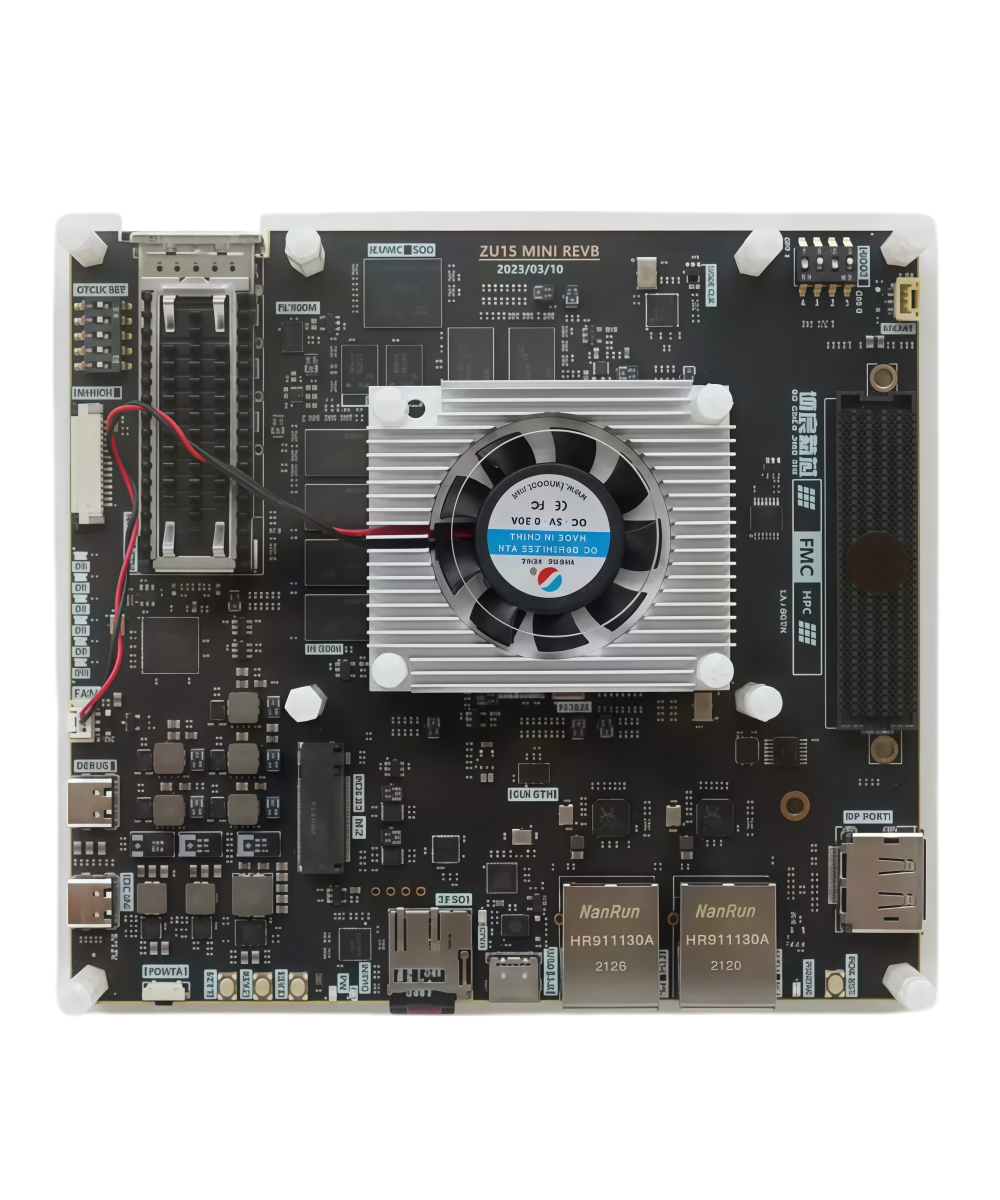

YX-OS70 ZYNQ MPSoC XCZU15EG Development Board – ZU15MINI FPGA Platform for High-Performance Embedded Computing

ZU15MINI is a high‑performance Zynq UltraScale+ MPSoC development board powered by the XCZU15EG-2FFVB1156I device featuring 747K logic cells, a quad‑core ARM Cortex‑A53 application processor (1.33 GHz), dual‑core Cortex‑R5 real‑time processor, and Mali‑400MP2 GPU. With 3GB DDR4 memory (2GB PS + 1GB PL), rich high‑speed interfaces including QSFP 40G, FMC HPC, M.2 NVMe, Gigabit Ethernet, USB 3.0, DP 4K, and MIPI CSI camera support, this board is ideal for FPGA development, ARM embedded Linux, chip verification, AI acceleration, and OpenCV image processing.

• SoC: XCZU15EG · 747K LC · 3528 DSP · 31.5Mb BRAM
• Processor: 4× Cortex‑A53 (1.33GHz) + 2× Cortex‑R5 (533MHz) + Mali‑400MP2 GPU
• Memory: 2GB DDR4 (PS, 64‑bit) + 1GB DDR4 (PL, 32‑bit) · 16GB eMMC · 64MB Flash
• High‑speed: QSFP (40G) · FMC HPC · 8× GTH (FMC) + 4× GTH (QSFP)
• Interfaces: Gigabit Ethernet (PS+PL) · USB 3.0 · M.2 NVMe/SATA · DP 4K · MIPI CSI
• Development: Python support · HLS OpenCV · Linux · Bare‑metal
• Included: 40+ tutorials · Vivado 2020.1 · source code · schematics

Applications: FPGA/ARM co‑development, chip verification, embedded Linux, AI inference, video processing, communications, radar, industrial automation.
