YX-OS71 Kintex UltraScale+ KU5P FPGA Development Board – High-Performance Programmable Logic Platform

$781.00
$976.00
$781.00
-20%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

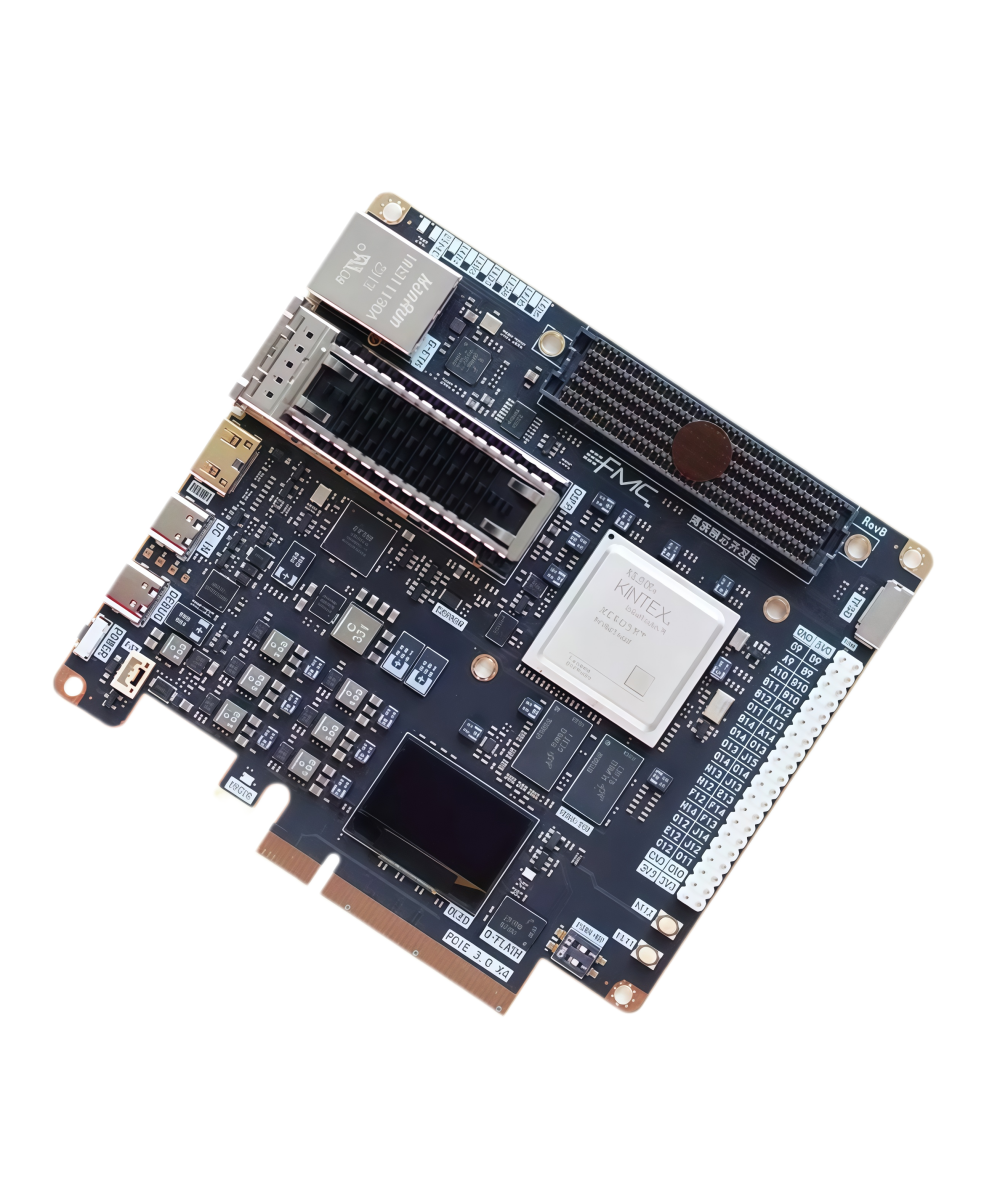

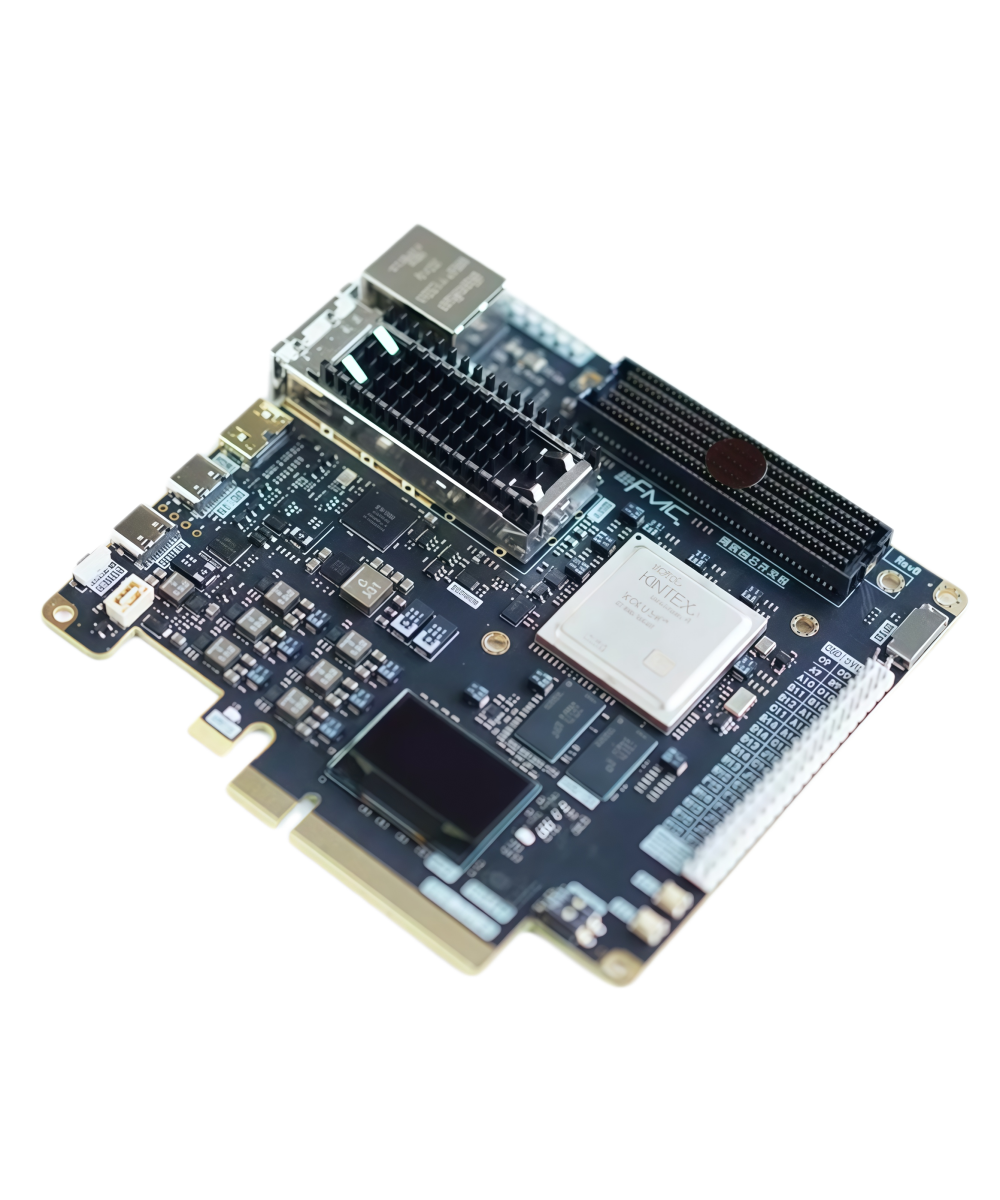

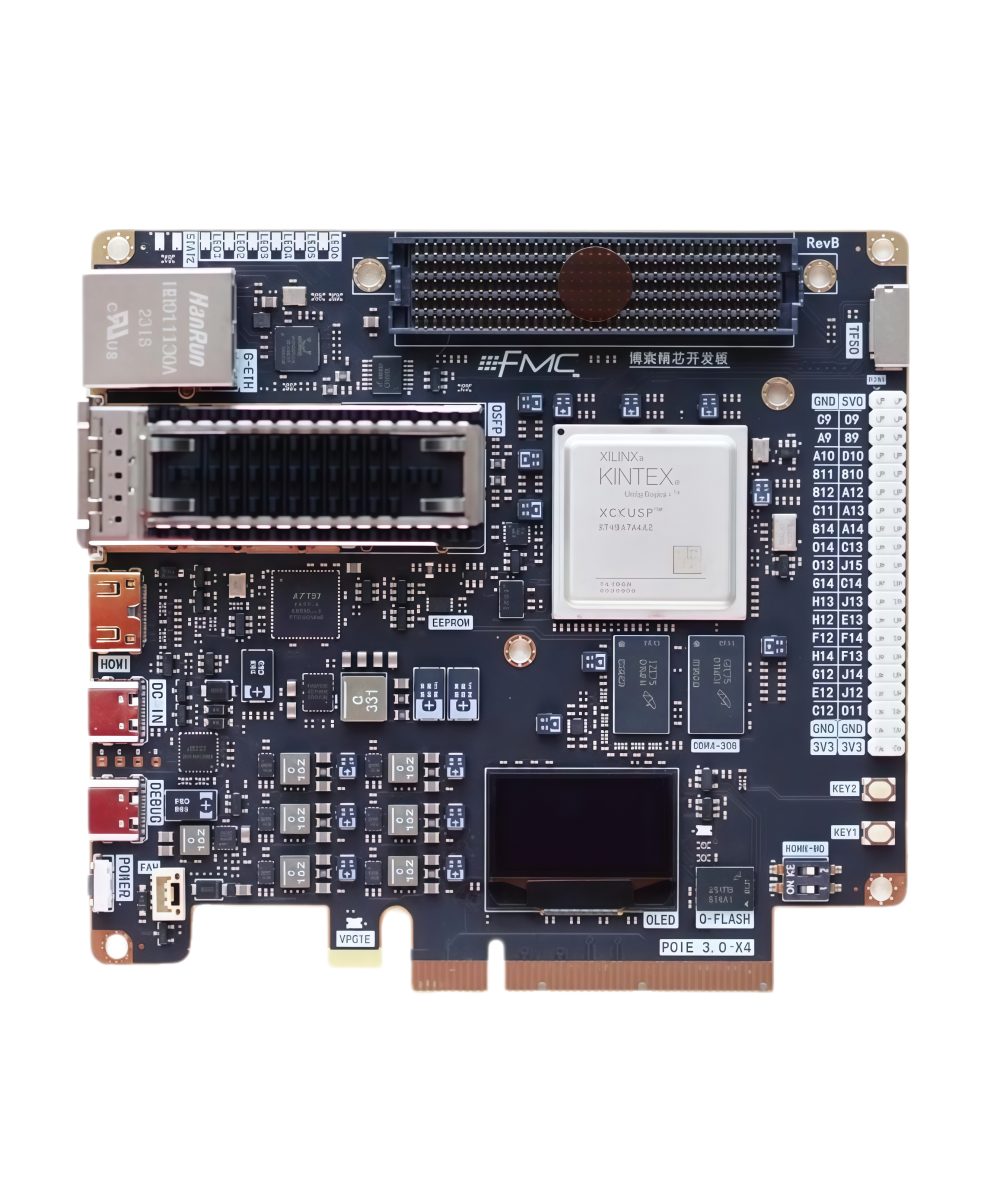

KU5P is a high‑performance Kintex UltraScale+ FPGA development board built around the XCKU5P-2FFVB676I device, featuring 475K logic cells, 1824 DSP slices, and 16 high‑speed GTH transceivers. Designed for high‑speed interface prototyping and IC verification, this board includes a 100G QSFP28 optical port, PCIe 3.0×4 edge connector, 2GB DDR4, FMC HPC with 8× GTH pairs, and Gigabit Ethernet. Ideal for data center, networking, and high‑performance computing applications.

Key features
  • FPGA: XCKU5P-2FFVB676I · 475K LC · 1824 DSP · 16× GTH (32.75 Gb/s)
  • Memory: 2GB DDR4 (32‑bit, 2666M) · 32MB Flash
  • High‑speed: 100G QSFP28 · PCIe 3.0×4 (gold‑finger) · FMC HPC (8× GTH)
  • Interfaces: Gigabit Ethernet · HDMI out · 40‑pin expansion (3.3V)
  • Debug: On‑board JTAG + UART · OLED display · 6× user LEDs
  • Included: 30+ tutorials · Vivado 2020.1 · schematics · constraint files

Applications: high‑speed interface prototyping, IC verification, 100G networking, PCIe development, data center acceleration, radar and signal processing.

XCKU5P Main Specifications
Model XCKU5P-2FFVB676I (industrial)
Logic cells (LC) 475,000
Look‑up tables (LUT) 217,000
Flip‑flops (CLB) 434,000
DSP slices 1,824
Distributed RAM 6.1 Mb
Block RAM 16.9 Mb
UltraRAM 18.0 Mb
GTH transceivers 16 pairs · 32.75 Gb/s each
DDR4 2GB · 32‑bit · 2666M (MT40A512M16LY‑075)
PLL/MMCM max speed 775 MHz (recommended)
Temperature range ‑40 to +85°C (industrial)
Interfaces & Peripherals
Power input Type‑C DC‑IN · 9–12V / 2A (custom adapter included)
Core power 0.85V / 30A
Other rails 1.5V / 1.8V / 3.3V / 1.2V / 0.9V / 1.0V / 2.5V
Clocks 50M (single) · 100M (differential) · 156.25M (GTY reference)
Ethernet Gigabit RGMII (RTL8211E‑VL)
PCIe PCIe 3.0 ×4 (gold‑finger edge connector)
QSFP28 1× QSFP28 · 100G optical interface
FMC HPC · 34× LVDS + 2× clocks + 8× GTH + 2× GTY clock pairs
HDMI 1× output · up to 1080p/60Hz
OLED SSD1306 · 128×64 · SPI/I²C
Flash 32MB (MT25QU256 · 4‑bit)
EEPROM 24C02 (I²C)
Expansion header 40‑pin 2.54mm · 34× GPIO (3.3V single‑ended)
SD card Micro SD slot
Debug On‑board JTAG + UART (Type‑C)
Buttons 2× user · 1× power / reset
LEDs 6× user · DONE · PCIe power · state
Fan header GH1.25‑3P (12V)
Power Supply Options
  • Type‑C DC‑IN: 9–12V / 2A (adapter included)
  • PCIe slot: Can be powered from 12V PCIe edge connector (when installed in a PC)
Included Documentation & Software
  • 30+ tutorials and example projects
  • Vivado 2020.1 with license · drivers
  • Verilog basics for beginners
  • Quick start guide · hardware design manual
  • Third‑party reference projects and learning materials
  • Schematics (PDF) · datasheets · pinout tables
  • FMC schematic and PCB CAD files
  • Constraint files for common interfaces
  • Trace length matching and delay information for expansion header
Package Contents
  • KU5P development board ×1
  • Type‑C data cables ×2
  • Heatsink (pre‑installed)
  • Nylon screw & standoff set (pre‑installed)
  • Acrylic protective panel ×1 (pre‑installed)
  • 9V/2A Type‑C power adapter ×1
