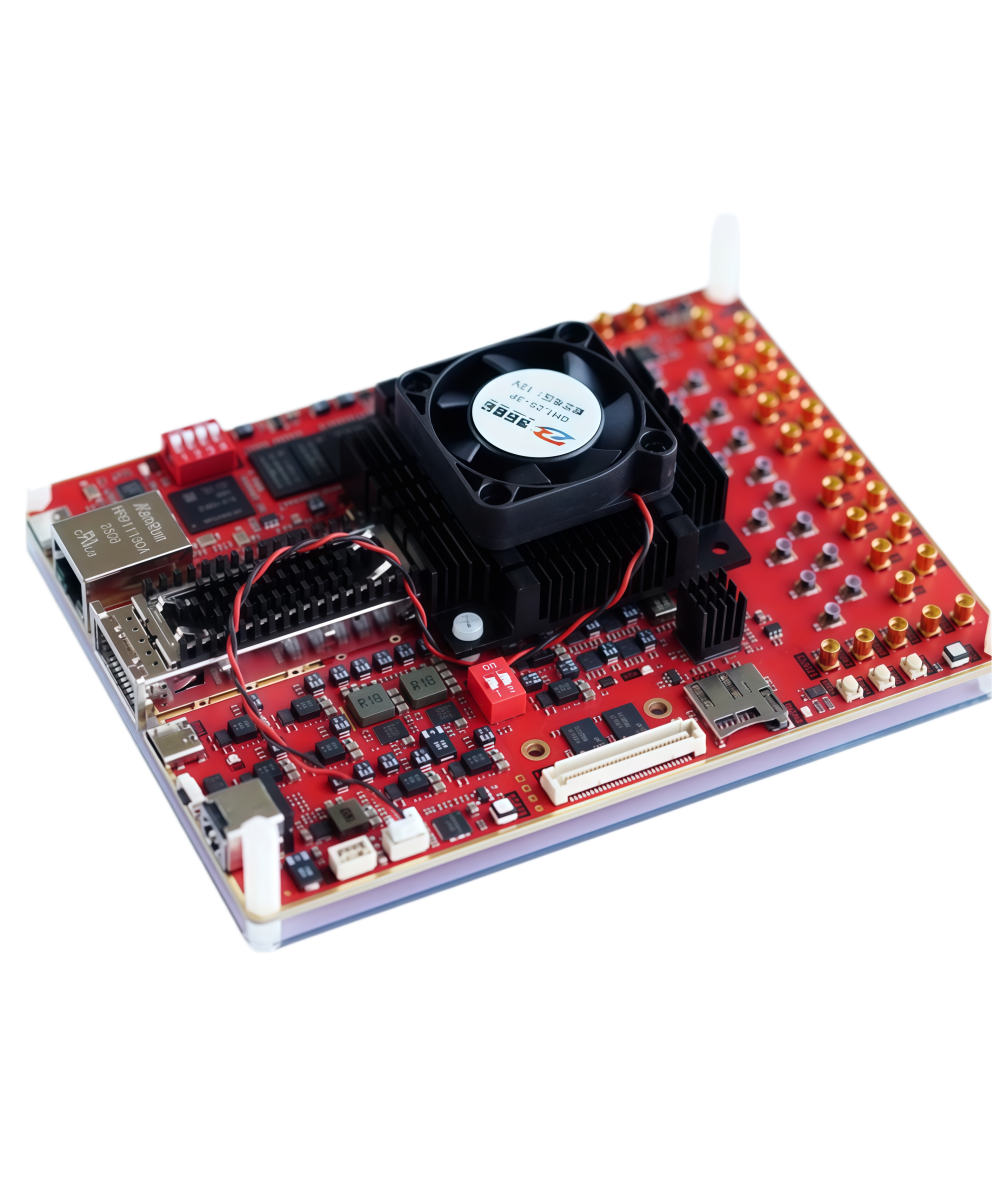

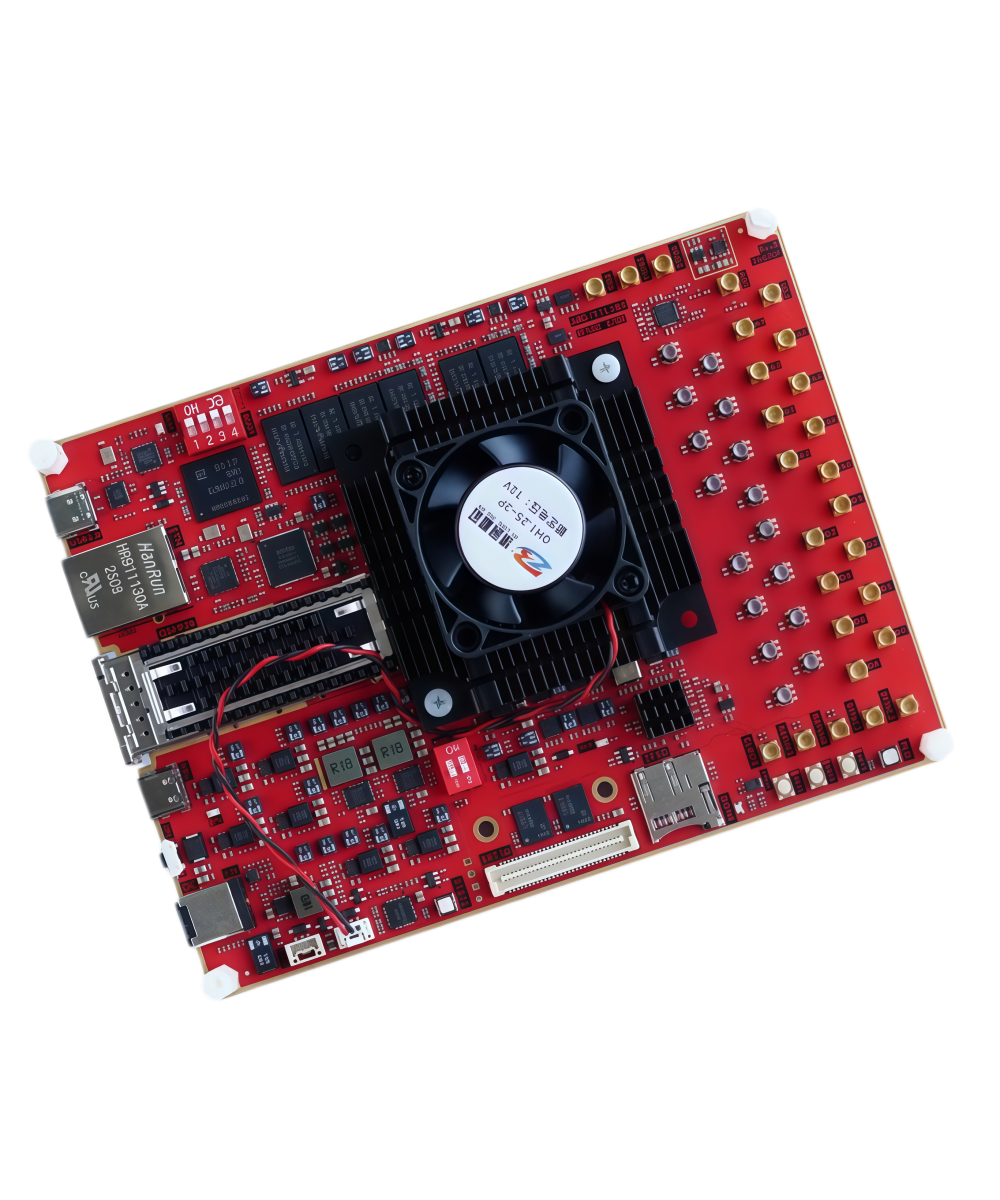

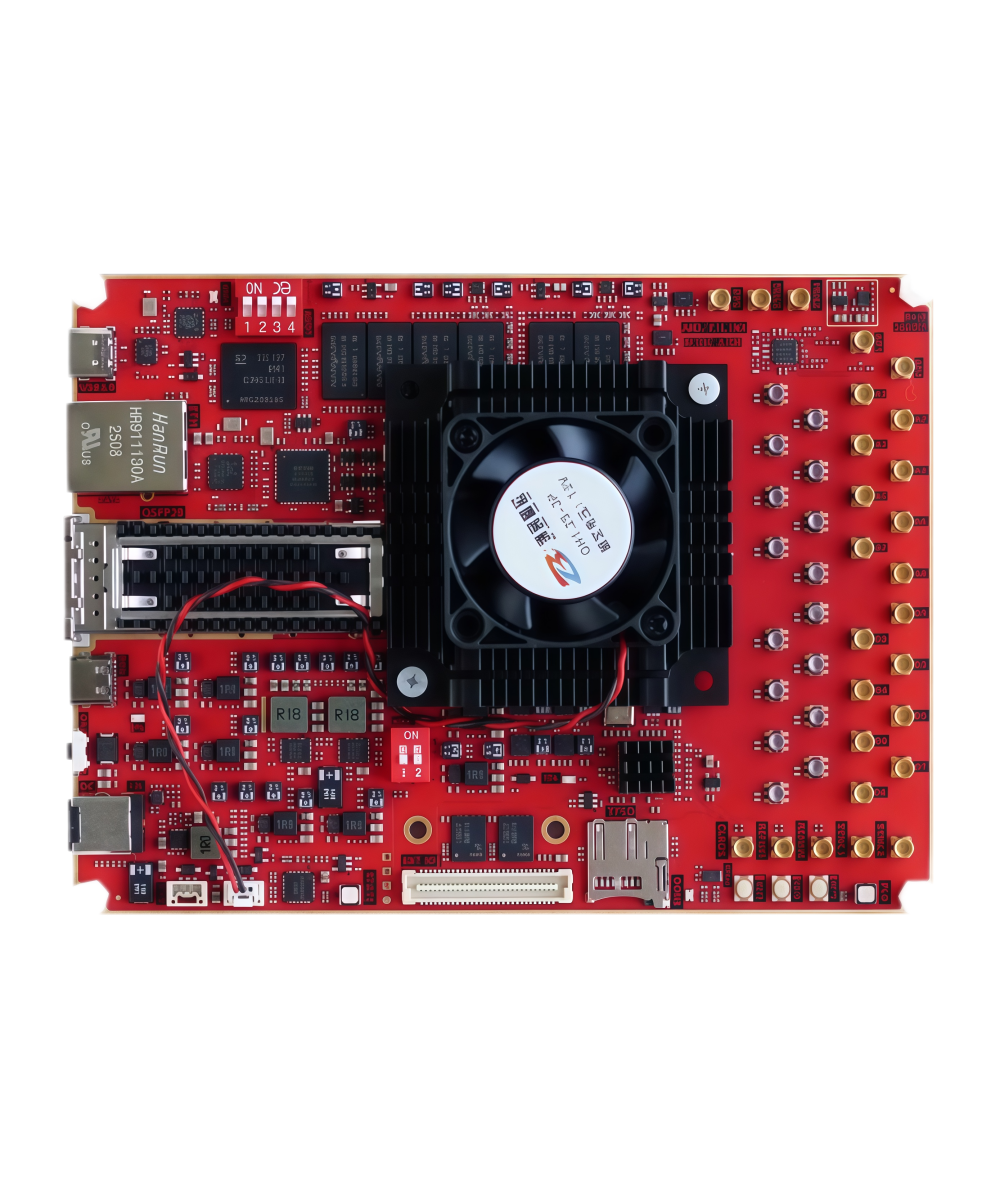

YX-OS72 RFSOC 67DR DFE RF Direct-Sampling Development Board – RF67DRLite Platform for 5G Base Stations & Wideband Communications

$5,984.00
$7,480.00
$5,984.00
-20%
Anbieter: YanTechLab
Only 9 items in stock! Out of stock!

Sichere Kaufabwicklung garantiert

  • PayPal

Beschreibung

RF-67DR-Lite is a high‑performance RFSoC development board built around the Xilinx Zynq UltraScale+ RFSoC XCZU67DR, integrating 8× 14‑bit 2.95 GSPS ADCs, 8× 14‑bit 10 GSPS DACs, and an additional 2× 14‑bit 5.9 GSPS high‑performance ADCs. This direct‑RF sampling platform features a 100G QSFP28 optical port, 3GB DDR4 (2GB PS + 1GB PL), Gigabit Ethernet, and USB 3.0. Ideal for radar, 5G/6G prototyping, electronic warfare, and phased‑array systems.

Key features
  • RFSoC: XCZU67DR · 489K LC · 1872 DSP · 8× GTY (32.5 Gb/s)
  • ADC (2.95 GSPS): 8 channels · 14‑bit · balun‑coupled · up to 7.125 GHz
  • ADC (5.9 GSPS): 2 channels · 14‑bit · op‑amp front‑end · 1.9 GHz BW
  • DAC: 8 channels · 14‑bit · 10 GSPS · direct RF output
  • Memory: 2GB DDR4 (PS, 64‑bit) + 1GB DDR4 (PL, 32‑bit) · 16GB eMMC · 64MB Flash
  • 100G: QSFP28 optical port · up to 28 Gb/s per lane
  • RF performance: SNR >57 dB @ 900 MHz · isolation > -65 dB

Applications: direct RF sampling, 5G/6G prototyping, radar systems, electronic warfare, phased‑array antennas, spectrum monitoring, test & measurement.

XCZU67DR Main Specifications
Model XCZU67DR-FFVE1156-2-I (industrial)
Logic cells (LC) 489,000
Look‑up tables (LUT) 224,000
DSP slices 1,872
Block RAM 22.8 MB
UltraRAM 45.0 MB
GTY transceivers 8 (32.5 Gb/s)
PS processor 4× Cortex‑A53 (1.33GHz) · 2× Cortex‑R5 (533MHz)
DDR4 (PS) 2GB · 64‑bit · 2400M (MT40A256M16LY‑075:E)
DDR4 (PL) 1GB · 32‑bit · 2666M
Temperature range ‑40 to +85°C (industrial)
RF & Data Converter Specifications
High‑performance ADC 2× channels · 14‑bit · 5.9 GSPS · op‑amp front‑end (1.9 GHz BW)
Standard ADC 8× channels · 14‑bit · 2.95 GSPS · balun‑coupled · up to 7.125 GHz
DAC 8× channels · 14‑bit · 10 GSPS
RF frequency range Up to 7.125 GHz
SNR @ 900 MHz >57 dB (typical >56 dB)
Isolation (10M–7.125G) > -65 dB
Channel matching @ 1 GHz < 0.5 dB (typical 0.3 dB)
RF connector MMX (female) · requires MMCX male
Coupling mode AC coupled · VCAM output available
Impedance control 100Ω differential (balun) · 50Ω single‑ended (MMCX)
Interfaces & Peripherals
Power input Type‑C DC‑IN · 9–12V (PD 12V) · 5A adapter included
Clocks 33.33M (PS) · 100M (PL) · 26M (PS GTR) · 156.25M (GTY)
Ethernet Gigabit RGMII (RTL8211E · PS GEM3)
QSFP28 100G optical port · up to 28 Gb/s per lane
USB USB 3.0 slave · virtual Ethernet
Debug FTDI · UART + JTAG (ARM & FPGA)
Storage 64MB Flash (2× MT25QU256) · 16GB eMMC · TF card slot
Expansion 60‑pin BTB · 16× GPIO (3.3V) · 2‑lane PS GTR · 4‑lane GTY
EEPROM FM24C02 (PS I²C)
Buttons Power · reset · PS/PL buttons
LEDs Power · DONE · USB · user LEDs
Fan headers 2× GH1.25‑3P (12V)
Boot config BOOT switch (QSPI / SD / eMMC / JTAG)
RF Connection Notes
  • RF connectors: MMX (female) — use MMCX male cables. Adapters may be required for other interfaces.
  • 5.9 GSPS ADC: Op‑amp front‑end with 1.9 GHz bandwidth — optimized for analog IF sampling.
  • 2.95 GSPS ADC: Balun‑coupled, supports 10 MHz – 10 GHz (chip max 7.125 GHz).
  • Impedance: 100Ω differential (RFSoC → balun) · 50Ω single‑ended (balun → MMCX).
Included Documentation & Software
  • Schematics (PDF) · board layout CAD files
  • Datasheets and official reference manuals
  • Vivado 2024.2 with license · drivers
  • Tutorials · quick start guide · hardware manual
  • Example projects: FPGA, ARM, Petalinux, ADC/DAC demos
  • Tools & Linux packages
Package Contents
  • RF‑67DR‑Lite development board ×1
  • Type‑C data cables ×2 (USB 2.0)
  • Acrylic protective panel ×1 (pre‑installed)
  • Heatsink (pre‑installed)
  • Carrying case ×1
  • Nylon screw & standoff set (pre‑installed)
  • 12V/5A power adapter ×1
  • MMCX RF cables ×8
