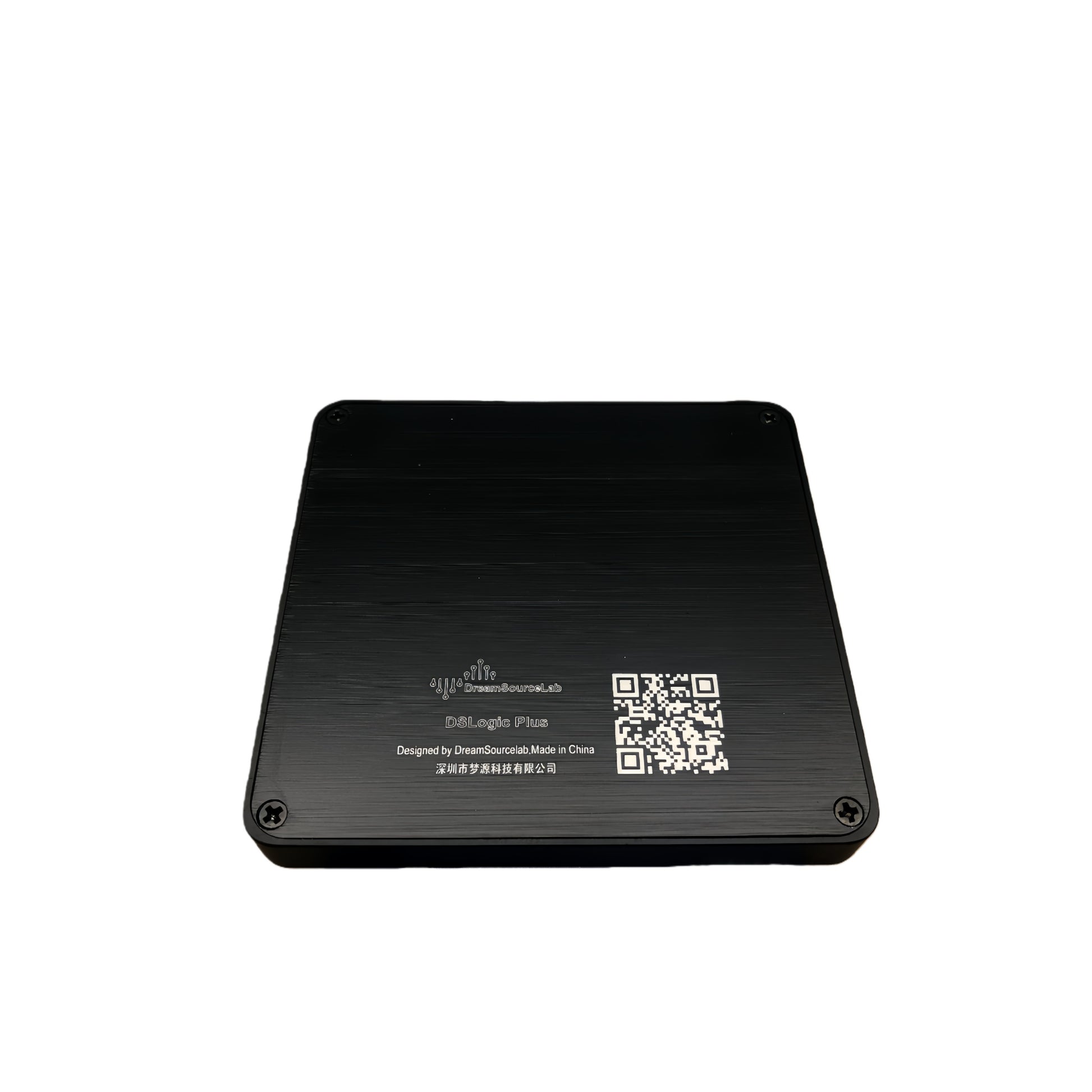

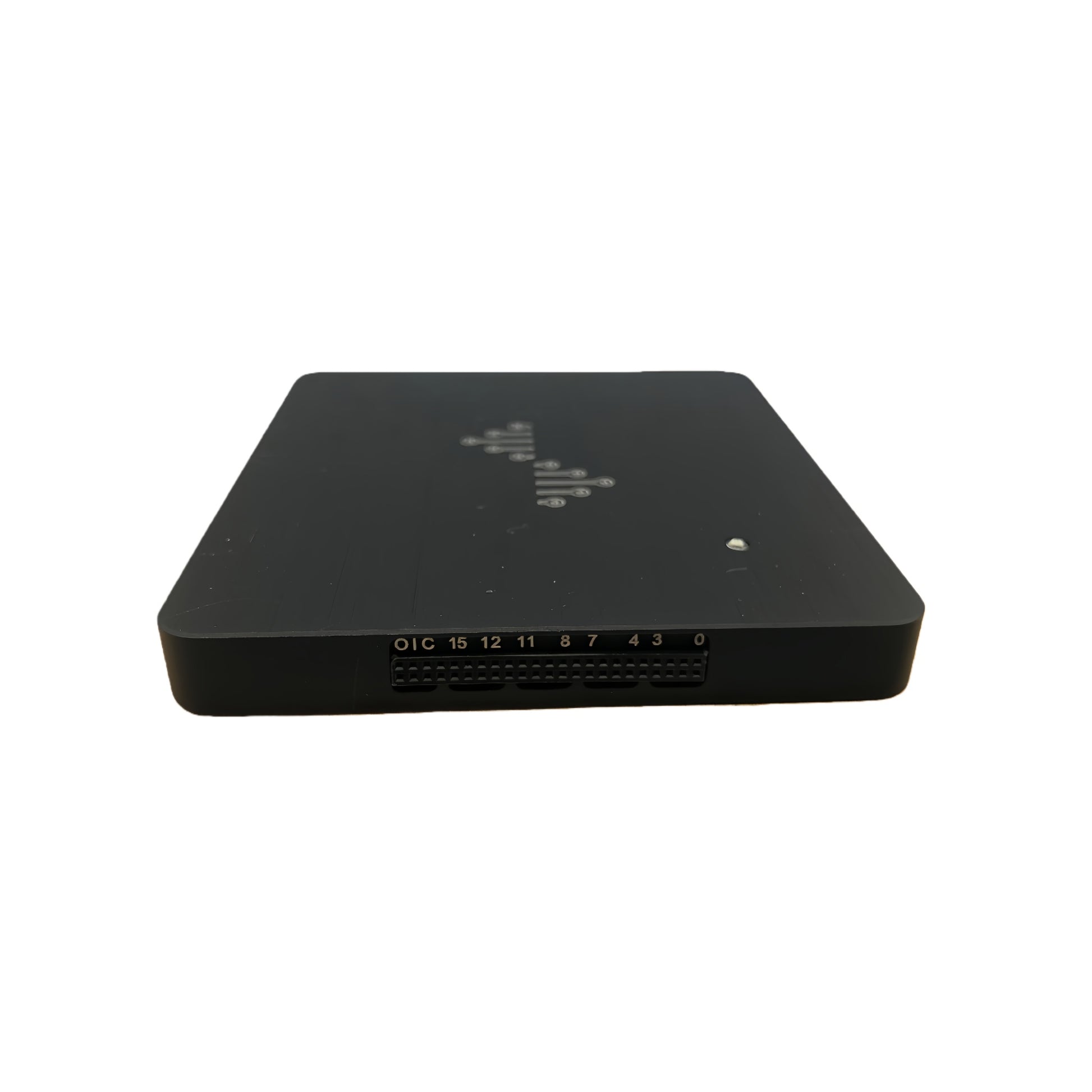

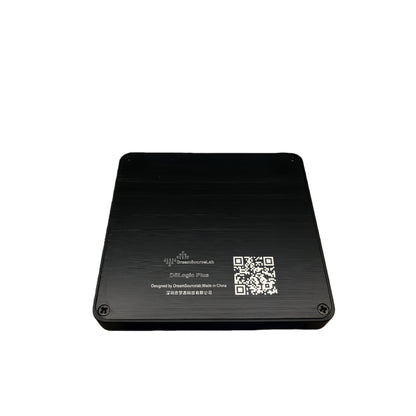

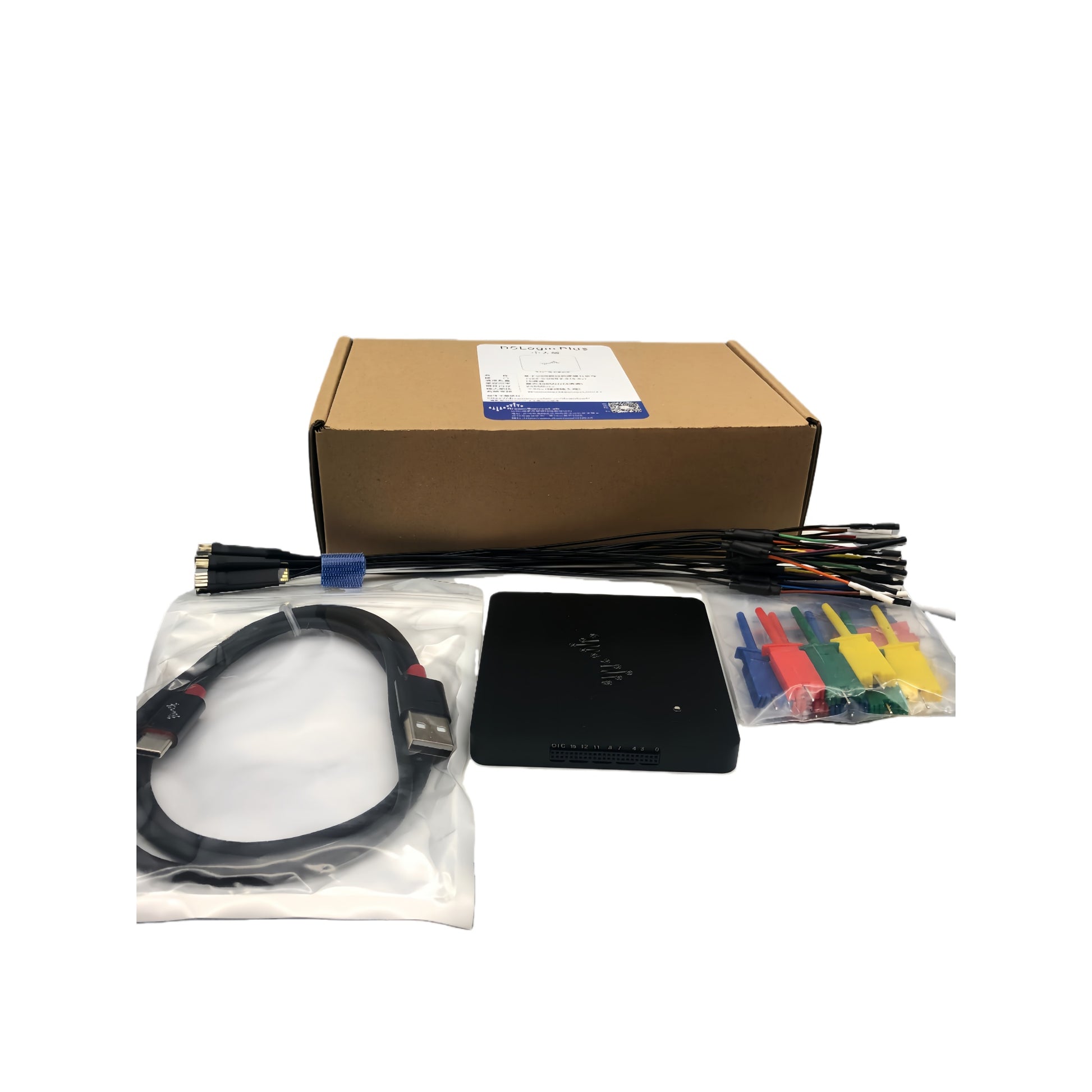

DSLogic Plus Logic Analyzer | 16 Channels, 400MHz Sampling Rate, 256Mbit/s Hardware Memory

DSLogic Plus Logic Analyzer | 16 Channels, 400MHz Sampling Rate, 256Mbit/s Hardware Memory

$107.40 USD
$107.40 USD
Sale Sold out
🚀 Plus Version Upgrade Overview
Max Hardware Memory 📦 Upgraded from 64 MB → 256 MB
Buffered Mode Sampling ⚡ Improved from 100 MHz → 400 MHz
Minimum Pulse Width ⏱️ Enhanced from 20 ns → 5 ns
Max Input Signal Frequency 📡 Increased from 25 MHz → 100 MHz
Other Features Fully compatible with all standard functions 🎯
🔌 1. Data Transmission & Operating Modes
USB Transfer Rate USB 2.0 — 480 Mbps
Supported Modes – Buffer Mode: Fast sampling, short capture duration
– Stream Mode: Long recording, lower sampling rate
📈 2. Sampling Performance
Max Sampling Rate (per channel) Buffer Mode:
– 4 ch: 400 MHz
– 8 ch: 200 MHz
– 16 ch: 100 MHz

Stream Mode:
– 3 ch: 100 MHz
– 6 ch: 50 MHz
– 12 ch: 25 MHz
– 16 ch: 20 MHz
Minimum Pulse Width ⏱️ 5 ns
Max Input Signal 📡 100 MHz
💾 3. Memory & Recording Duration
Max Sample Depth 256M (buffer mode)
Max Capture Time (stream mode) – 160 seconds @ 100M
– 4 hours @ 1M
– 19 days @ 10K
🔧 4. Hardware & Trigger
Onboard Memory 256 Mbits
Trigger Simple trigger
⚡ 5. Electrical Specifications
Input Threshold 0–5 V adjustable (0.1 V steps)
Voltage Tolerance ±30 V
Input Impedance 250KΩ / ~20 pF
State Sampling Rate Max 30 MHz
External Interface Standard Dupont wires
