YX-OS04 LibreVNA 100kHz–6GHz Two-Port VNA | Latest Flanged Version with Improved Thermal Dissipation

Sale price: $584.00
Regular price: ~~$799.00~~
Regular price: $584.00
Unit price: per

Vendor: YanTechLab

Only 8 items in stock! Out of stock!

Product variants

Quantity

Guaranteed safe checkout

Description

📡 Vector Network Analyzer (VNA) — up to 3 GHz

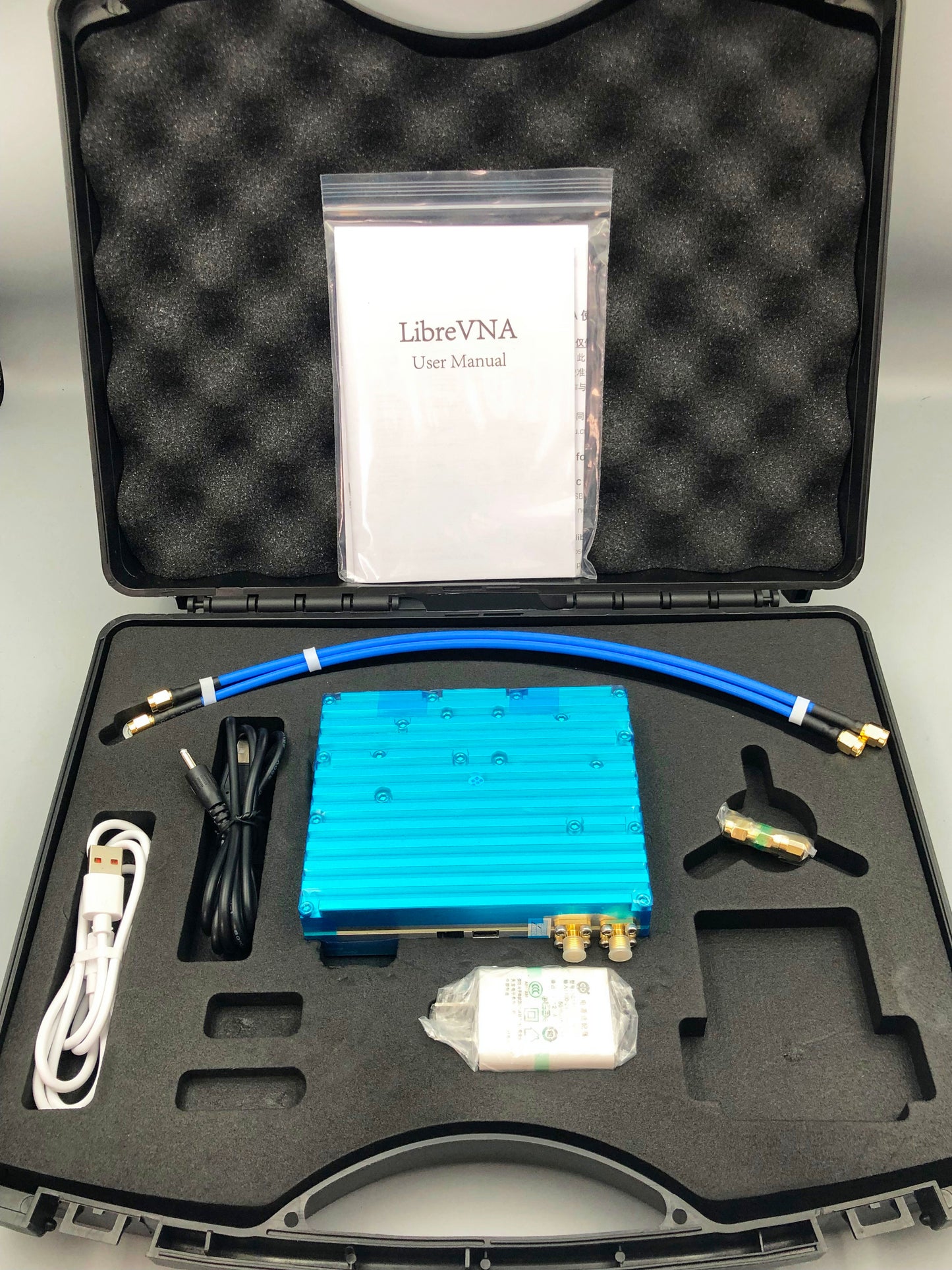

📦 Package Contents

Item	Description
VNA Unit	Reinforced metal enclosure with conductive sandblasted finish 💪
RF Cables	High-quality coaxial cables for accurate measurements 🔗
Power Adapter	5 V / 2 A power adapter
Power Cable	Included
USB Cable	USB 3.0 high-speed data cable ⚡
Calibration Kit	5-piece calibration set (Open/Short/Load/Through etc.) 🎯
User Guide	Detailed user manual 📘
Software	U-Disk with software & component libraries 💾
Organizer	Storage organizer for the entire kit

📊 Technical Specifications

Parameter	Value
S21 Dynamic Range	- Up to 3 GHz: approx. 100 dB - Above 3 GHz: ≥60 dB
S12 Dynamic Range	- Up to 3 GHz: approx. 100 dB - Above 3 GHz: ≥50 dB
S11 / S22	Reflection parameters better than −40 dB across full range 📈

🎯 Key Advantages

✅ Ready-to-use complete kit — all essential accessories included
✅ Professional calibration for high measurement accuracy
✅ Reinforced enclosure for mechanical protection
✅ USB 3.0 ensures fast PC data transfer ⚡
✅ Software + documentation for quick start

🛠️ Applications

📡 Measuring frequency/phase response of amplifiers, filters & antennas
🔌 RF matching network analysis
🏠 Hobby RF projects — antenna tuning, filter design
🔬 Research & education labs
