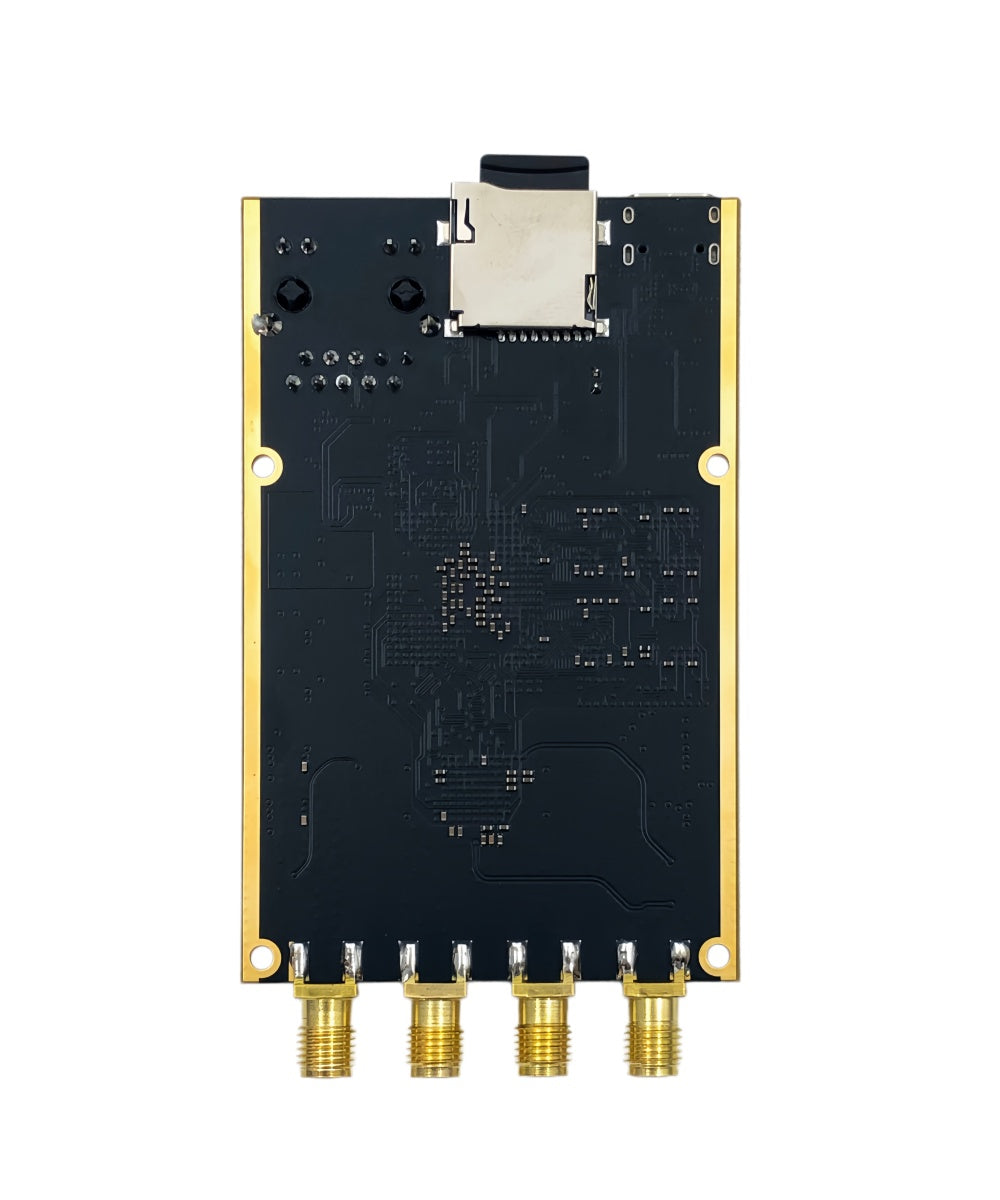

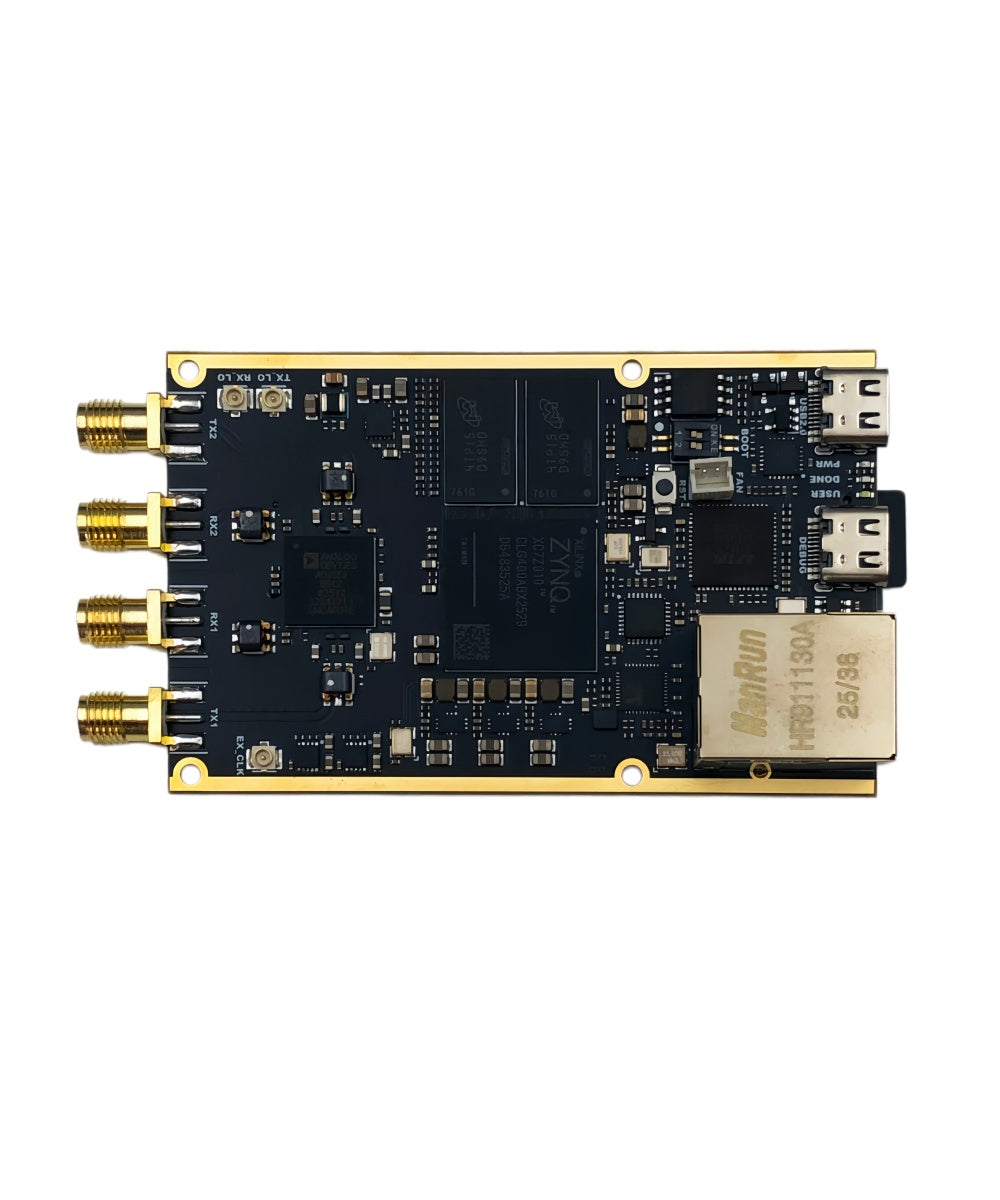

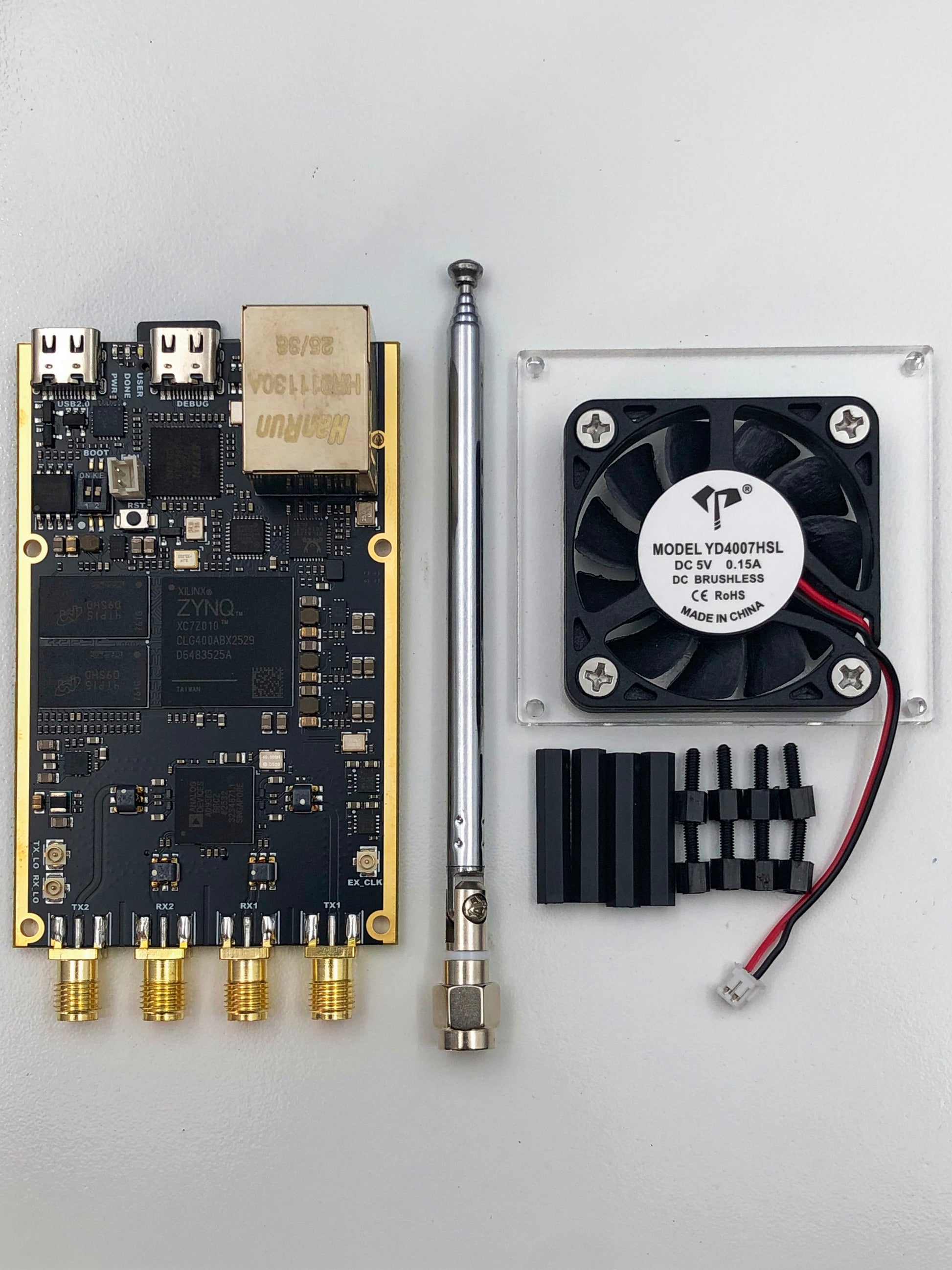

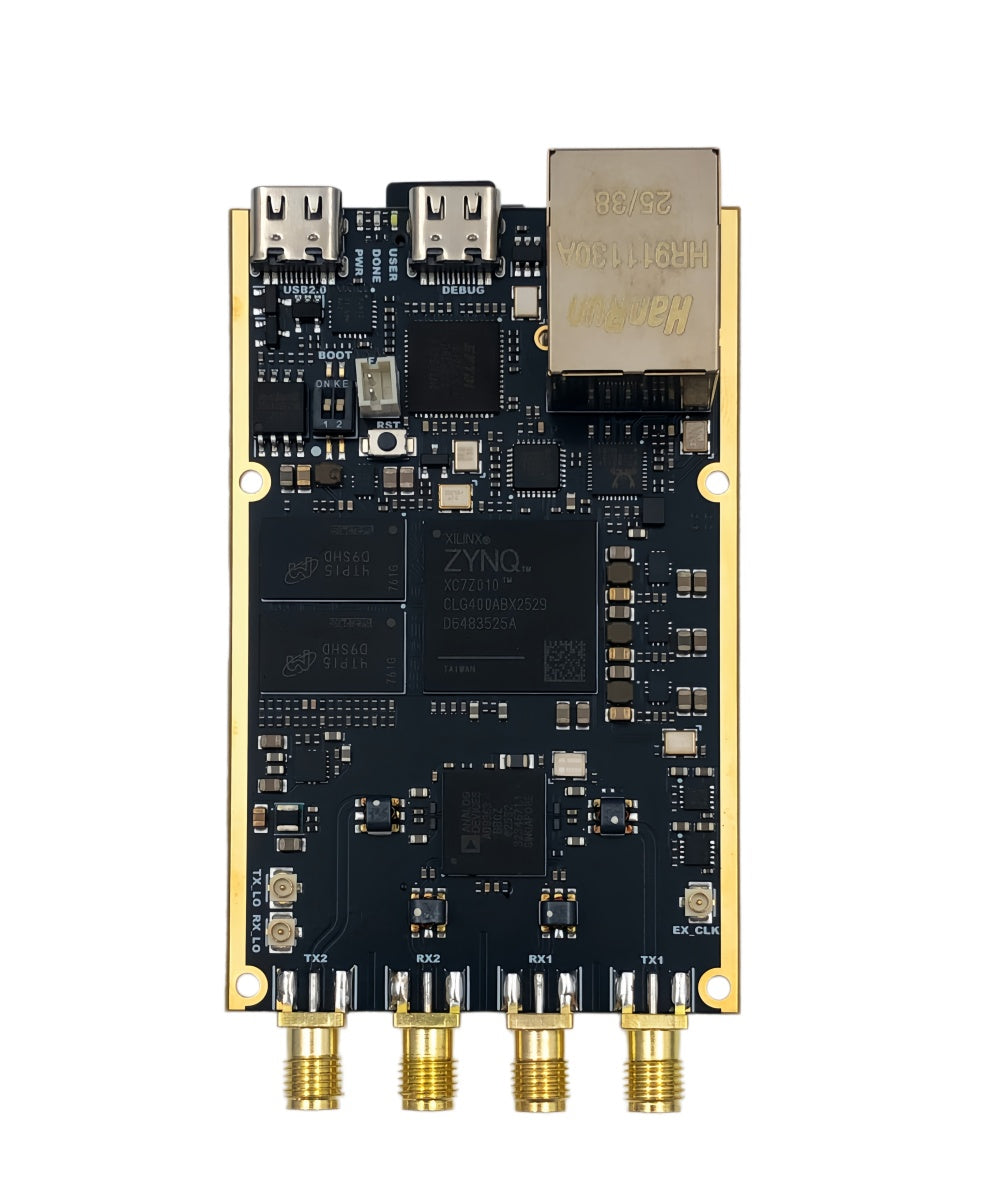

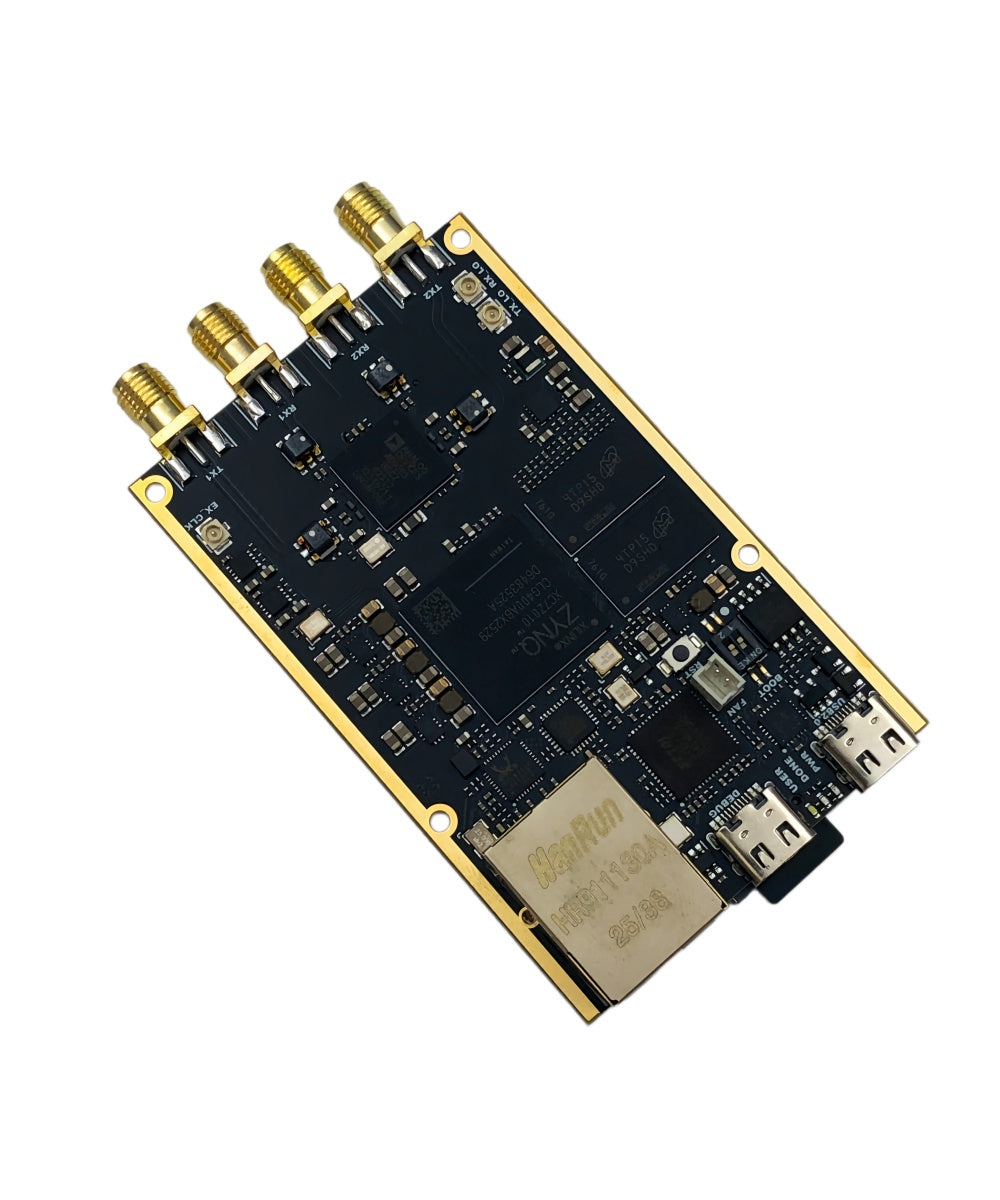

YX-OS08 PlutoSDR 7010+9363 Module with Gigabit Ethernet Data Transfer & Dual DDR for SDR Wireless Communication Development

Sale price: $129.00
Regular price: ~~$160.00~~
Regular price: $129.00
Unit price: per

Vendor: YanTechLab

Only 9 items in stock! Out of stock!

电路板特点: 7010+9363 7010+9363

Product variants

Quantity

Guaranteed safe checkout

Description

YX-OS08 PlutoSDR Module | Gigabit Ethernet | Dual DDR | SDR Development Platform

The YX-OS08 PlutoSDR Module is an advanced software-defined radio (SDR) development board engineered for high-bandwidth wireless communication, RF experimentation, and MIMO system research. Designed with a black & green cyber-tech aesthetic, it delivers stability, scalability, and professional-grade performance.

70MHz–6GHz 2×2 MIMO Gigabit Ethernet 1GB DDR

Firmware Improvements

Firmware unlocked to AD9361-compatible mode
Extended RF coverage: 70 MHz – 6 GHz
Dual transmit and dual receive supported
Simultaneous USB + Ethernet data interfaces
Enhanced power supply stability for continuous operation
Added external input clock interface for AD9363

Technical Specifications

RF Chipset	AD9363 (hardware-compatible replacement for AD9361)
Frequency Range	70 MHz – 6 GHz
TX / RX Channels	2 Transmit / 2 Receive (2×2 MIMO)
Memory	Dual DDR, total 1 GB
Flash Storage	N25Q128 Flash (boot supported)
SD Card Interface	Single-channel SD card, boot supported
USB Interface	PS-side USB 2.0
Ethernet	PS-side Gigabit Ethernet
Debugger	Integrated FT2232 with serial port
Clock Architecture	PL-side crystal oscillator driving AD9363
External Clock	Supports external local oscillator (LO) input
Board Size	Approx. 5 × 8 cm

Application Scenarios

SDR and RF algorithm development
Wireless communication system prototyping
5G / LTE / WiFi / ISM band experimentation
MIMO, wideband and spectrum analysis research
Academic research and advanced engineering education
