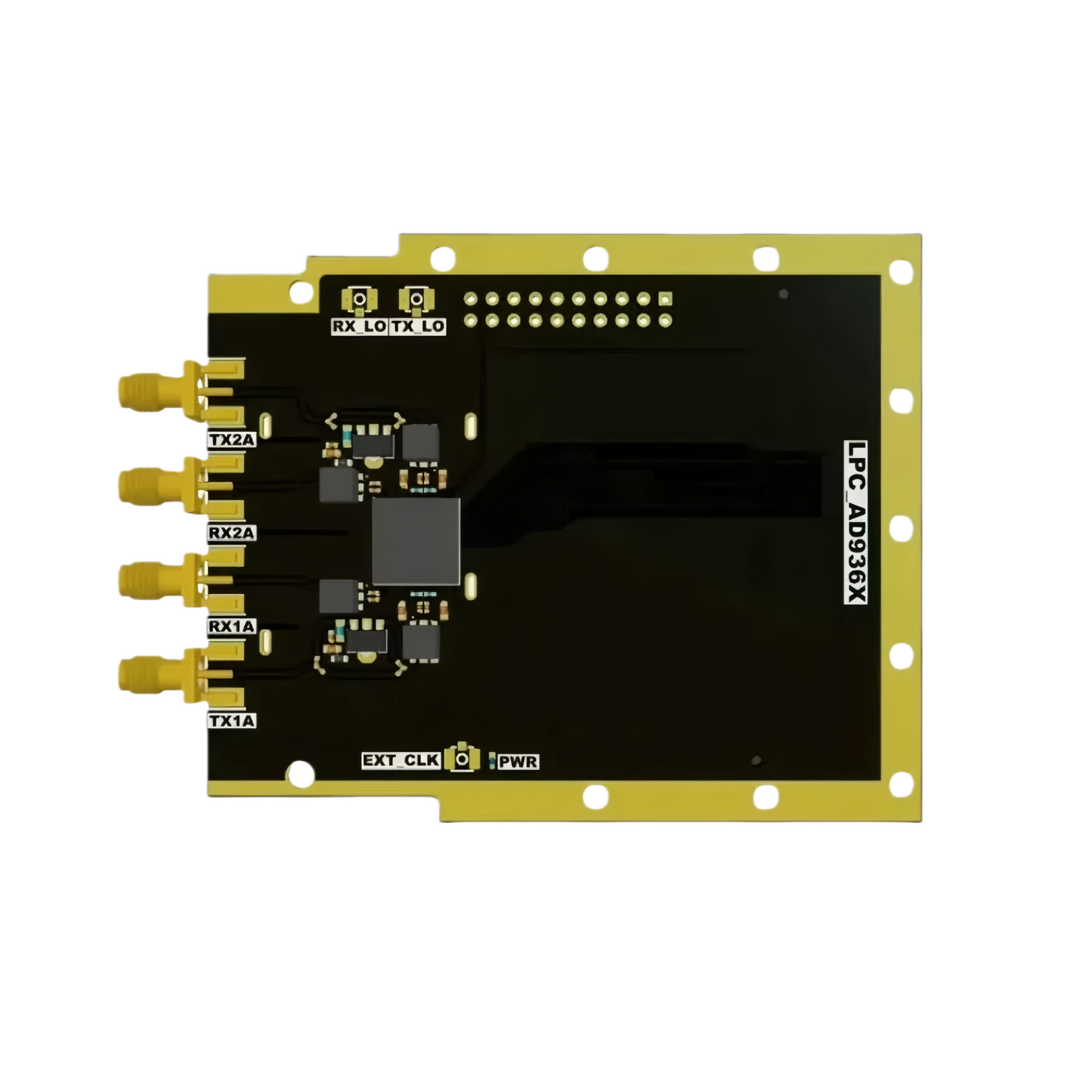

YX-OS10 AD936X FMC LPC RF Card Compatible with ZC706 for SDR Wireless Communication Development

$145.00
$145.00
-0%
Vendor: YanTechLab
Only 9 items in stock! Out of stock!
电路板特点: 9361

Guaranteed safe checkout

  • PayPal

Description

FMCOMMS2-Compatible SDR Daughterboard | TX PA PGA102+ | ZC706 Bare-Metal Support

This SDR daughterboard is engineered for seamless compatibility with FMCOMMS2 reference designs, optimized for wideband SDR signal transmission and professional RF development. It integrates a dedicated TX power amplifier and provides complete bare-metal resources for ZC706 platforms.

FMCOMMS2 Pinout TX PA PGA102+ Wideband SDR ZC706 Bare Metal

Technical Details & Design Notes

Interface Pinout Signal pin assignment is fully compatible with official FMCOMMS2, ensuring plug-and-play electrical and logical consistency.
TX Power Amplifier TX path integrates PGA102+ power amplifier, significantly increasing output power for wideband SDR transmission.
Removed Components Official board power monitoring IC and EEPROM have been removed to simplify the design and reduce unnecessary overhead.
Software Support Provides ZC706 bare-metal reference examples for low-level driver and FPGA development.
Documentation Complete schematics are provided for hardware customization and secondary development.

Package Contents

SDR Daughterboard ×1
