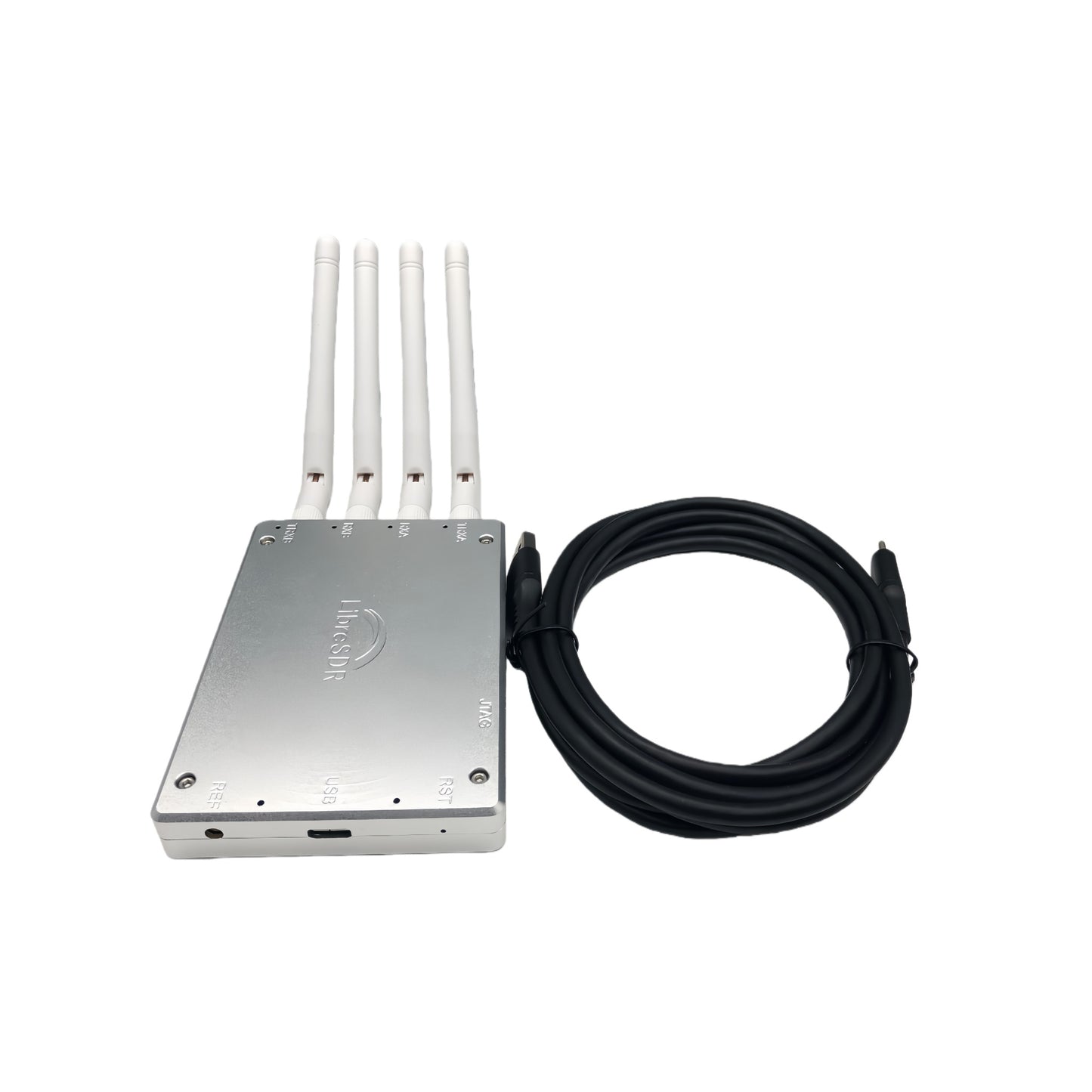

YX-OS26 libresdr XC7A100T/200T + AD9361 Professional B210mini SDR with High Bandwidth, UHD and OAI Compatible for Wireless Communication Development
- Sale price
- $336.00
- Regular price
-
- Regular price
- $336.00
- Unit price
- per
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
Artix-7 B210-Compatible SDR Platform – USB 3.0 Type-C
Product Overview
This software defined radio platform is designed to be fully compatible with USRP B210 under both Windows and Linux environments. Compatibility is achieved by replacing the firmware binary file. For Linux, an automatic replacement script is provided, while Windows users can directly replace the firmware in the corresponding tool directories.
The platform is based on the Xilinx Artix-7 FPGA series, significantly reducing power consumption while offering improved logic resources. Both XC7A100T and XC7A200T versions are fully compatible with B210, with differences only in FPGA logic scale.
Compatibility & Software Ecosystem
| Item | Support |
|---|---|
| Operating Systems | Windows / Linux (full B210 compatibility) |
| UHD Interface | Fully compatible |
| MATLAB | Supported |
| GNU Radio | Supported |
| SDRangel | Supported |
| OAI (OpenAirInterface) | Tested and supported |
FPGA Architecture
| FPGA Model | Description |
|---|---|
| XC7A100T | Meets 2-channel TX/RX requirements, logic utilization relatively high |
| XC7A200T | Meets 2-channel TX/RX requirements with more abundant logic resources |
For users concerned about compatibility after FPGA replacement:
- Software-level development using the UHD interface is not affected by FPGA changes
- For FPGA developers, Artix-7 offers major improvements in process technology, power efficiency and available resources
- The Vivado ecosystem provides a stronger development environment compared to Spartan-6
Clock & Synchronization Support
| Feature | Support |
|---|---|
| External Clock Input | Supported |
| 10 MHz Reference | Supported |
| PPS Synchronization | Supported |
| PPS Phase Synchronization | Supported |
Hardware Interface
| Item | Specification |
|---|---|
| USB Interface | USB 3.0 Type-C |
| Power Amplifier | ADI PA model optimized for 5V supply |
| Power Optimization | Converts original 3.3V PA LDO loss into usable output power |
Main Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 70 MHz – 6 GHz |
| Maximum Sample Rate | 61.44 MSPS |
| TX/RX Configuration | Up to 2R2T |
| ADC / DAC Resolution | 12 bit |
RF Output Performance
| Frequency | Output Power |
|---|---|
| 1 GHz | Up to 15 dBm |
| 2.4 GHz | > 10 dBm |
| 5 GHz and above | Noticeable attenuation |
| 6 GHz | Approximately 2 dBm |
OAI & Practical Testing
OAI testing was performed in the N78 band using a commercial UE, achieving approximately 125 Mbps downlink and 24 Mbps uplink.
The platform has also been used to run the DroneSecurity UAV and pilot detection program from GitHub.
Research & Learning Applications
- Algorithm verification combined with MATLAB
- Listening and signal reception using SDRangel or SDR# (FM, ADS-B, AIS, DVB-T)
- Spectrum monitoring and vector signal generation with GNU Radio
- Custom product development using the UHD programming interface
- Mobile communication experiments with OAI and srsRAN
- Continuous testing and updates with real-world experimentation
