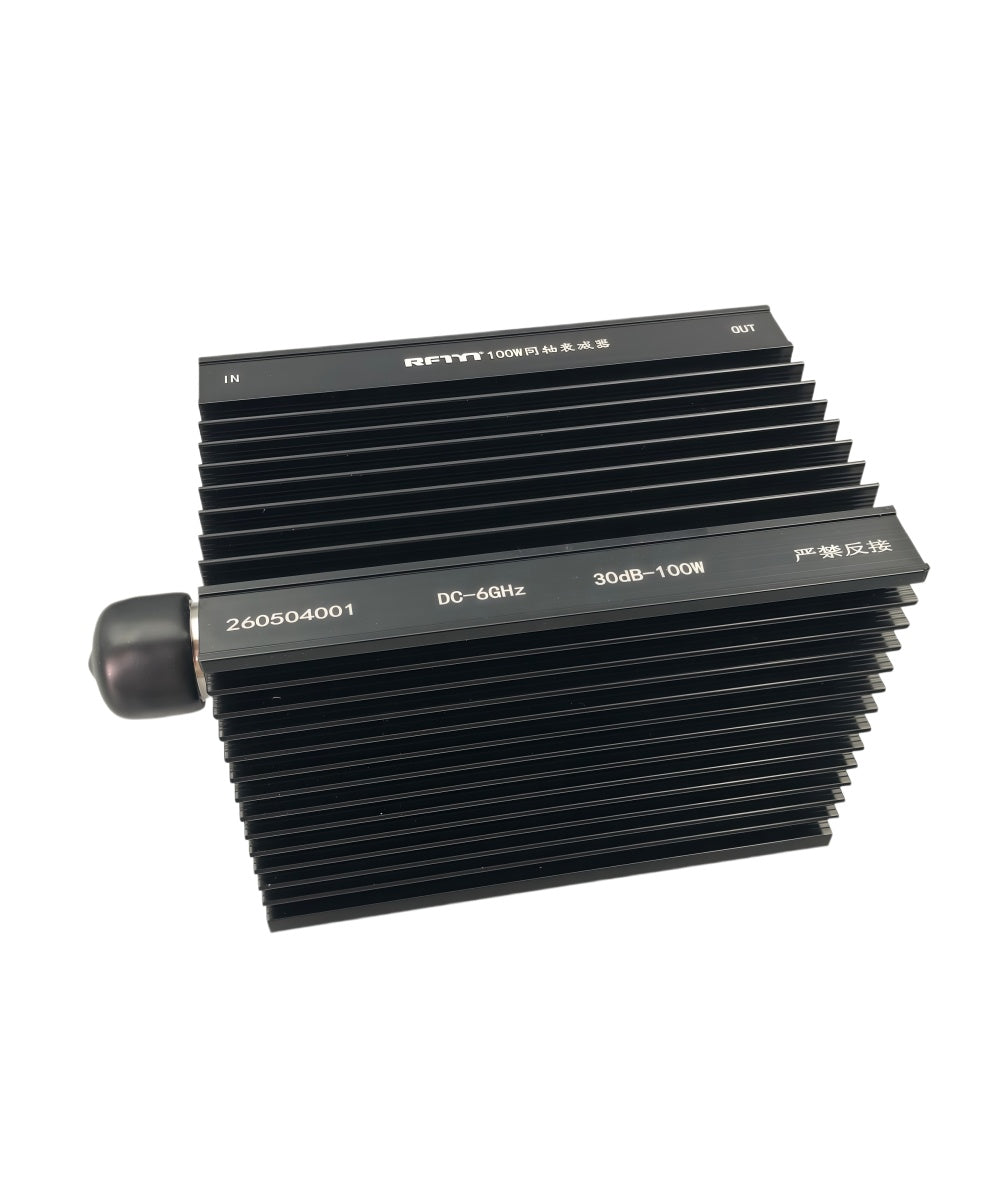

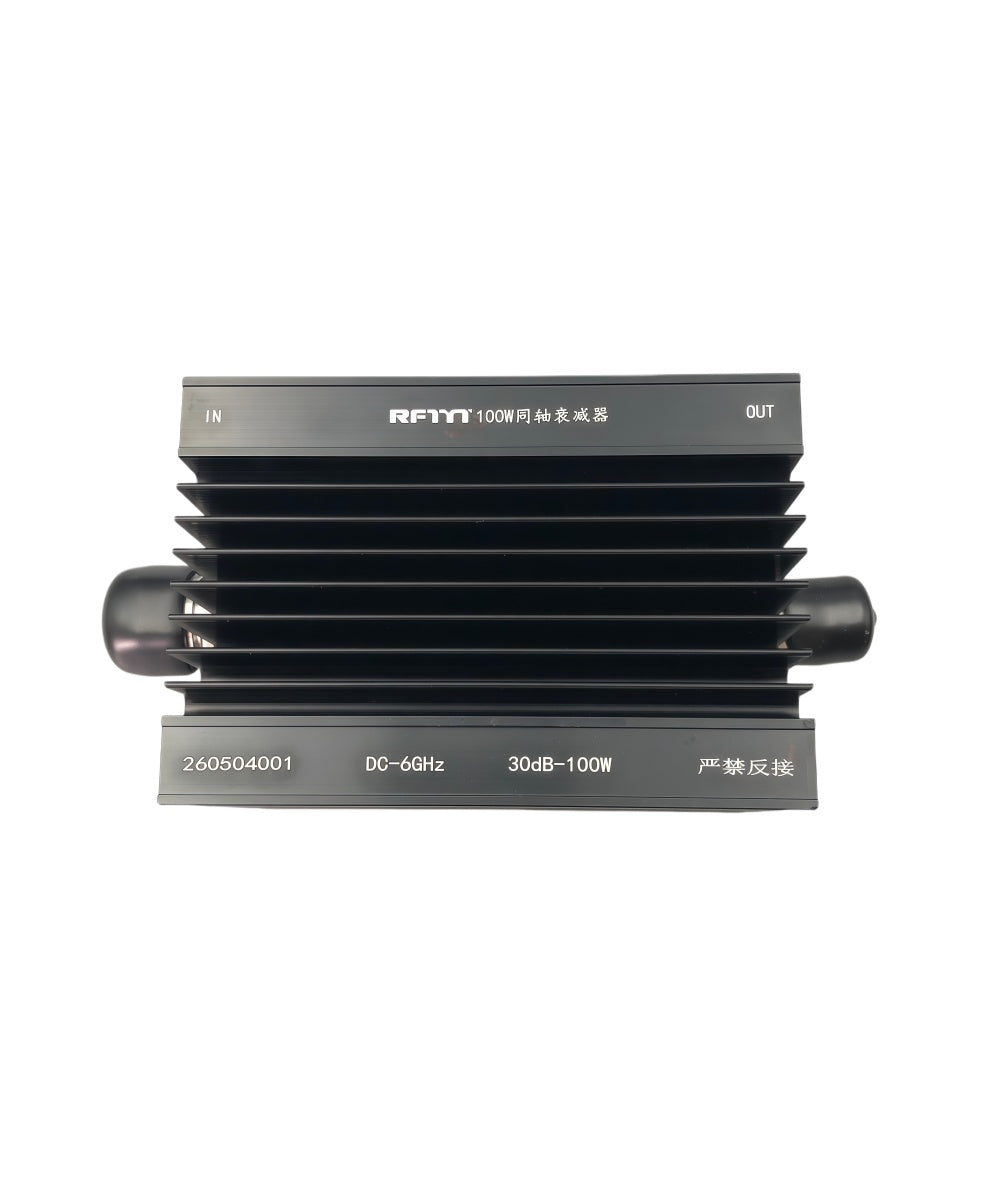

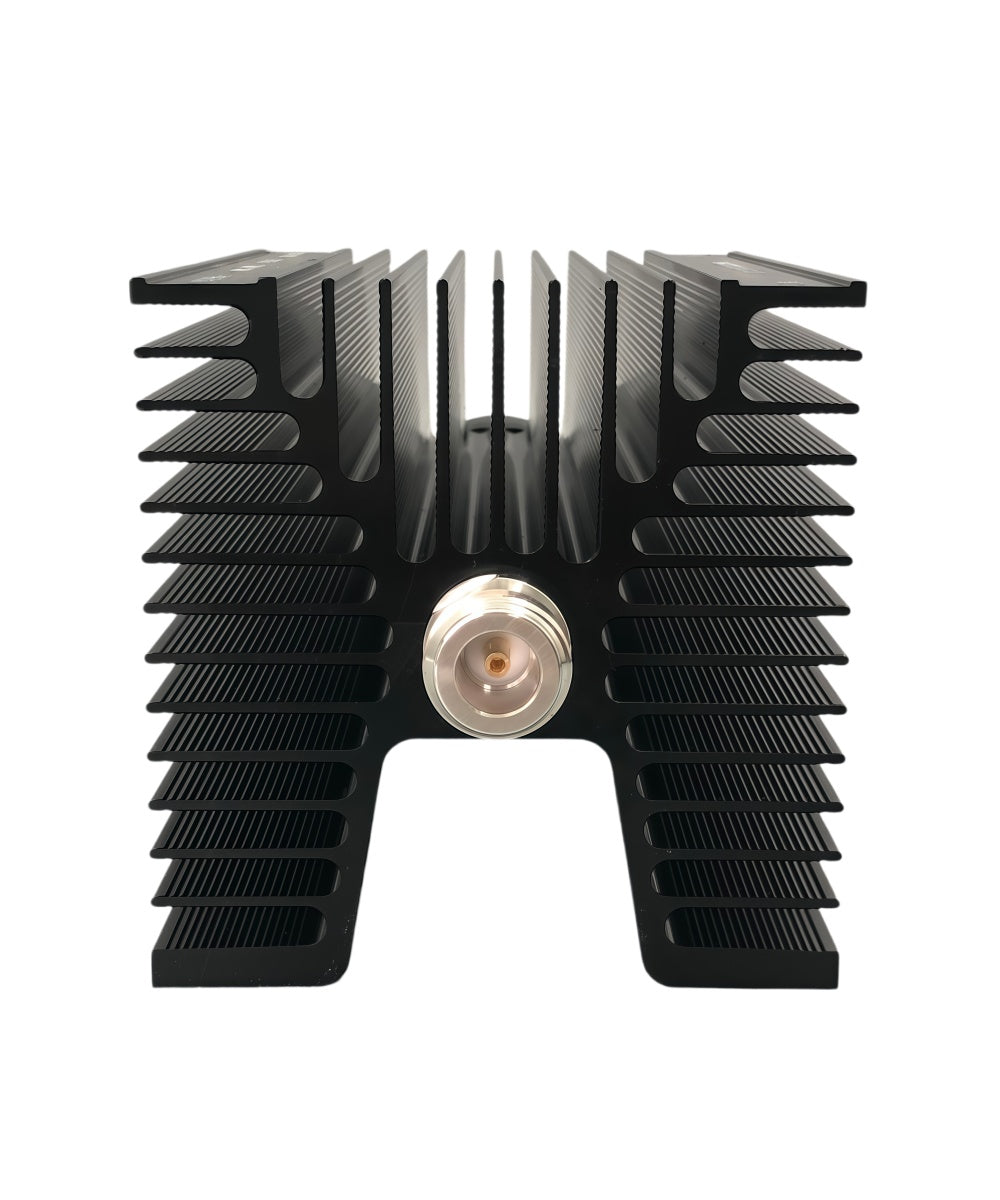

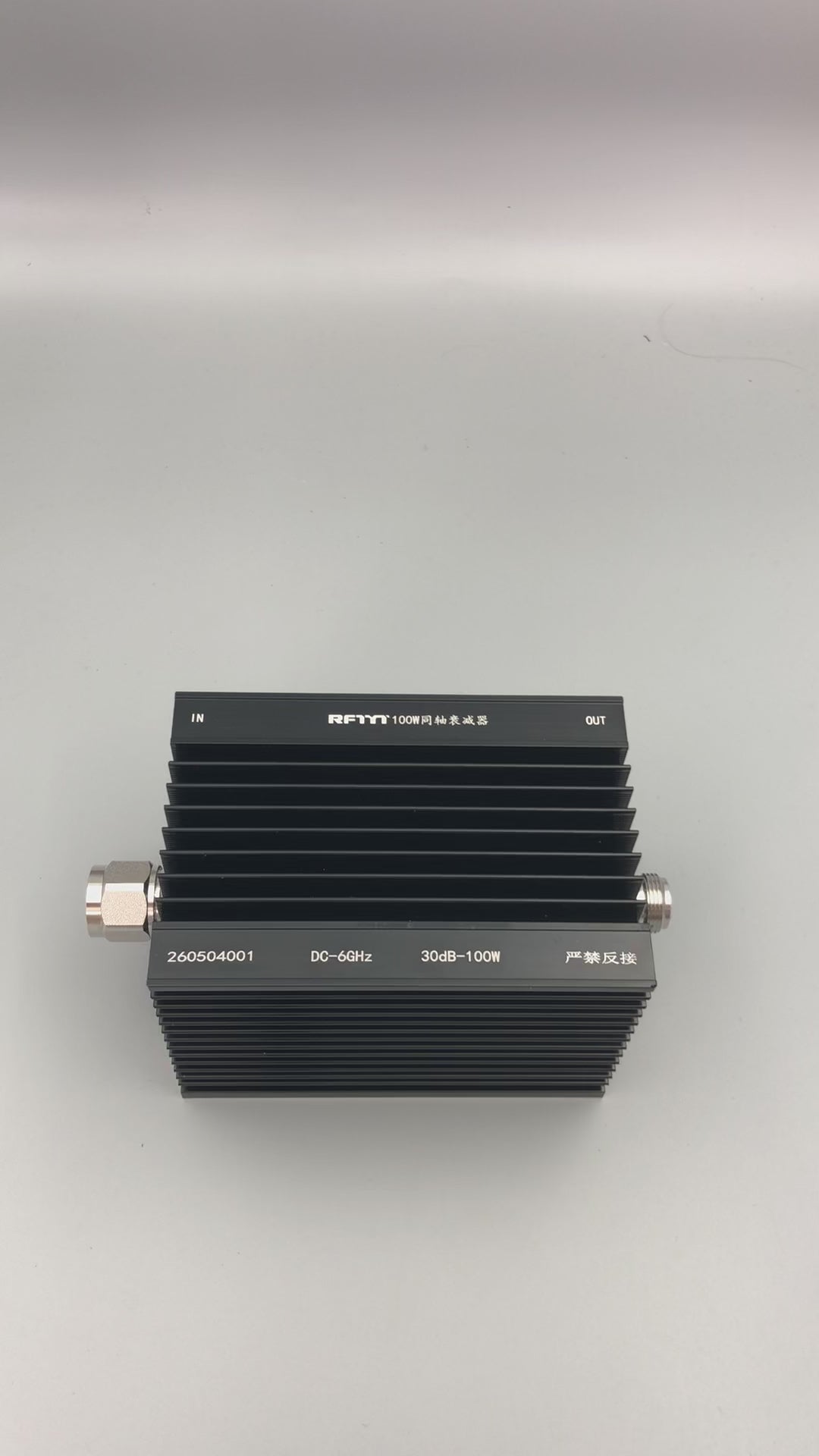

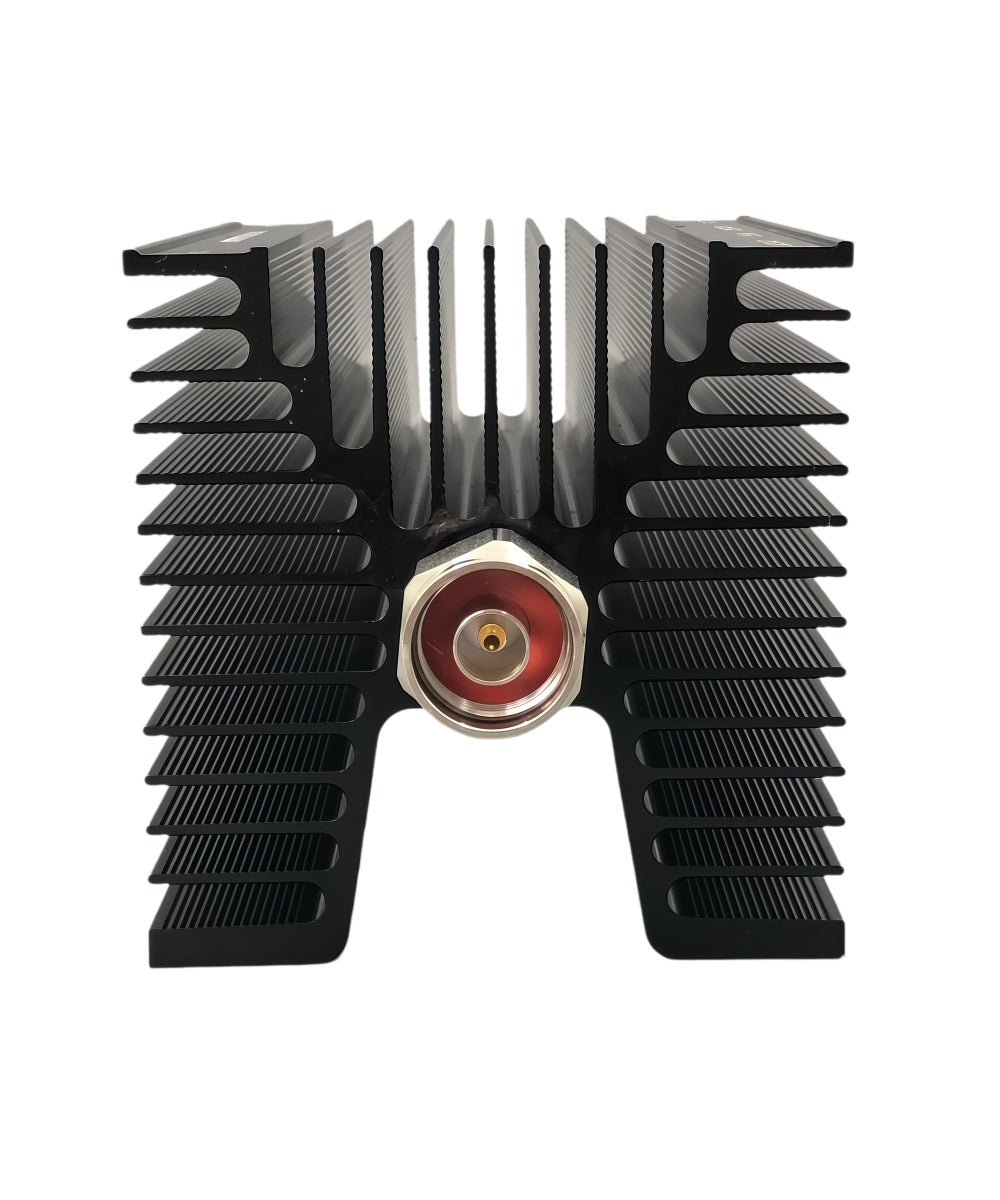

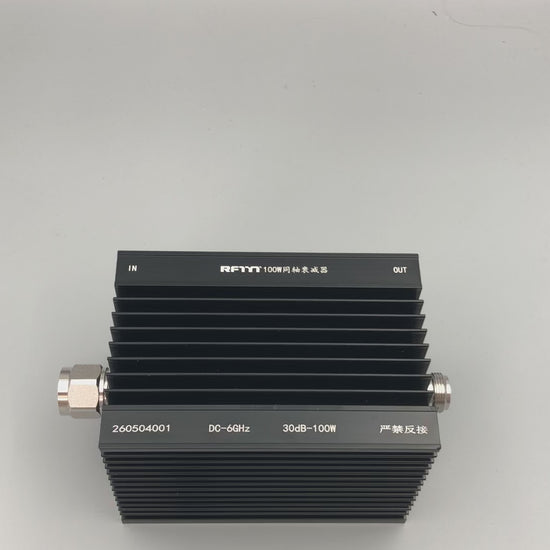

YX-OS54 RFTYT 100W Fixed Attenuator – N-Type Connectors, DC–6GHz Wideband, 30dB Attenuation

$96.00
$120.00
$96.00
-20%
Vendor: YanTechLab
Only 9 items in stock! Out of stock!

Guaranteed safe checkout

  • PayPal

Description

ATT-100WXXdB-FA8011-NJK-6G is a high‑power coaxial fixed attenuator covering DC to 6 GHz with 100 W power handling. Features low VSWR (<1.25), attenuation accuracy of ±1.0 dB, and a wide operating temperature range of ‑55 to +125°C. Equipped with N‑type connectors, it is ideal for RF testing, communication systems, and high‑power signal applications.

Key features
  • Wide band: DC – 6 GHz · covers DC to C‑band
  • High power: 100 W (derating required) · temperature derating
  • High accuracy: attenuation tolerance ±1.0 dB
  • Excellent matching: VSWR ≤1.25 · 50 Ω

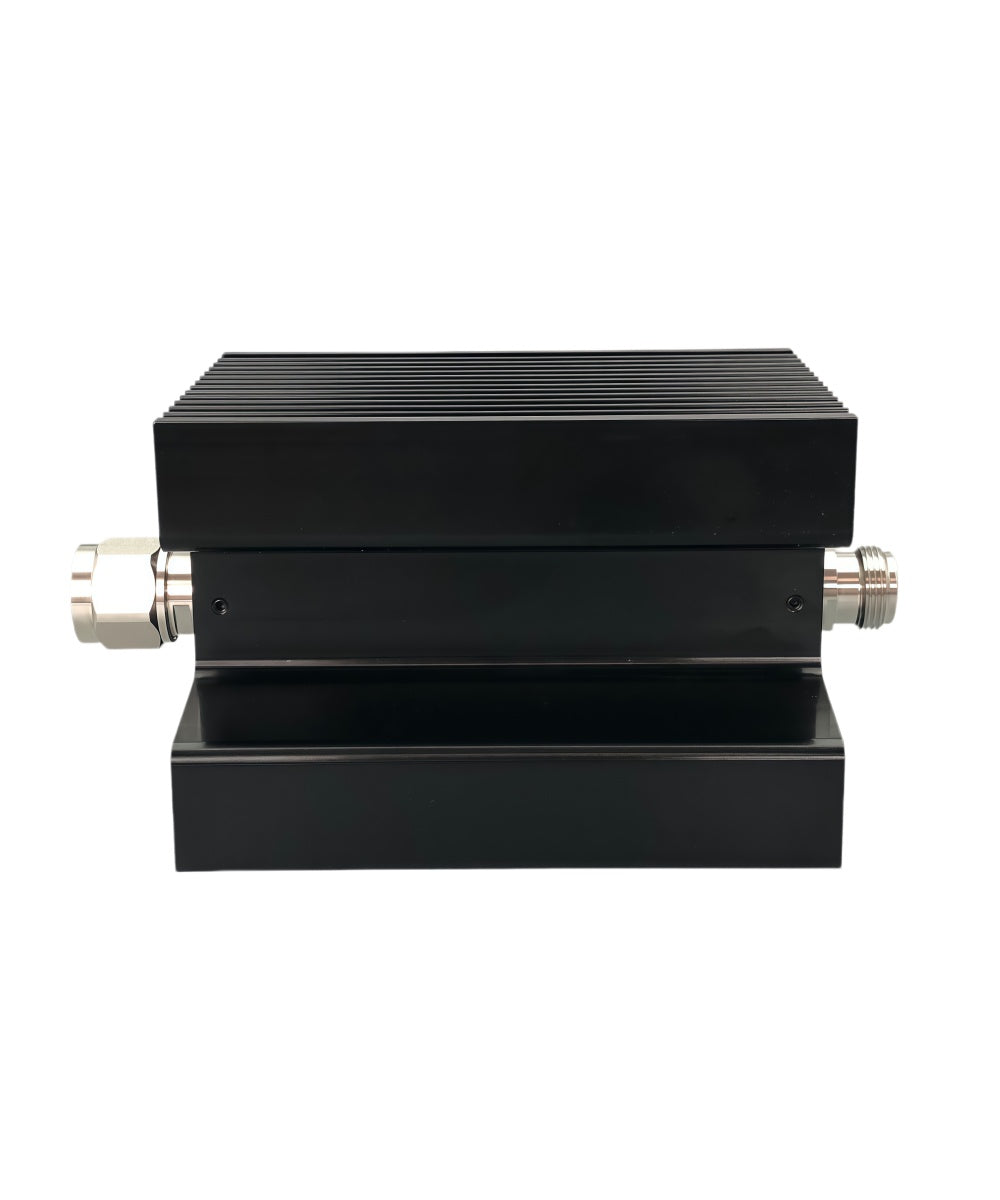

  • Robust design: N‑type connectors · 78×80×113.5 mm · 880 g
  • Wide temperature: ‑55…+125°C

Applications: high‑power RF testing, transmitter signal attenuation, generator calibration, antenna measurements, base station maintenance.

Technical Specifications
Model ATT‑100WXXdB‑FA8011‑NJK‑6G
Frequency range DC – 6 GHz
VSWR ≤ 1.25
Impedance 50 Ω
Power handling 100 W (derating required)
Attenuation accuracy ±1.0 dB
Connectors N‑type (male / female)
Dimensions (W×H×D) 78 × 80 × 113.5 mm
Weight 880 g
Operating temperature ‑55 … +125°C
Important Notes
  • Power derating: 100 W rating requires proper heat sinking / cooling. Power must be derated at elevated ambient temperatures.
  • Attenuation value: "XX" in model number denotes custom attenuation value — please specify when ordering.
Applications
  • High‑power RF and microwave testing
  • Transmitter output signal attenuation
  • Signal generator and amplifier calibration
  • Antenna and feed system measurements
  • Base station and communication system maintenance
Package Contents
  • ATT‑100WXXdB‑FA8011‑NJK‑6G attenuator ×1
