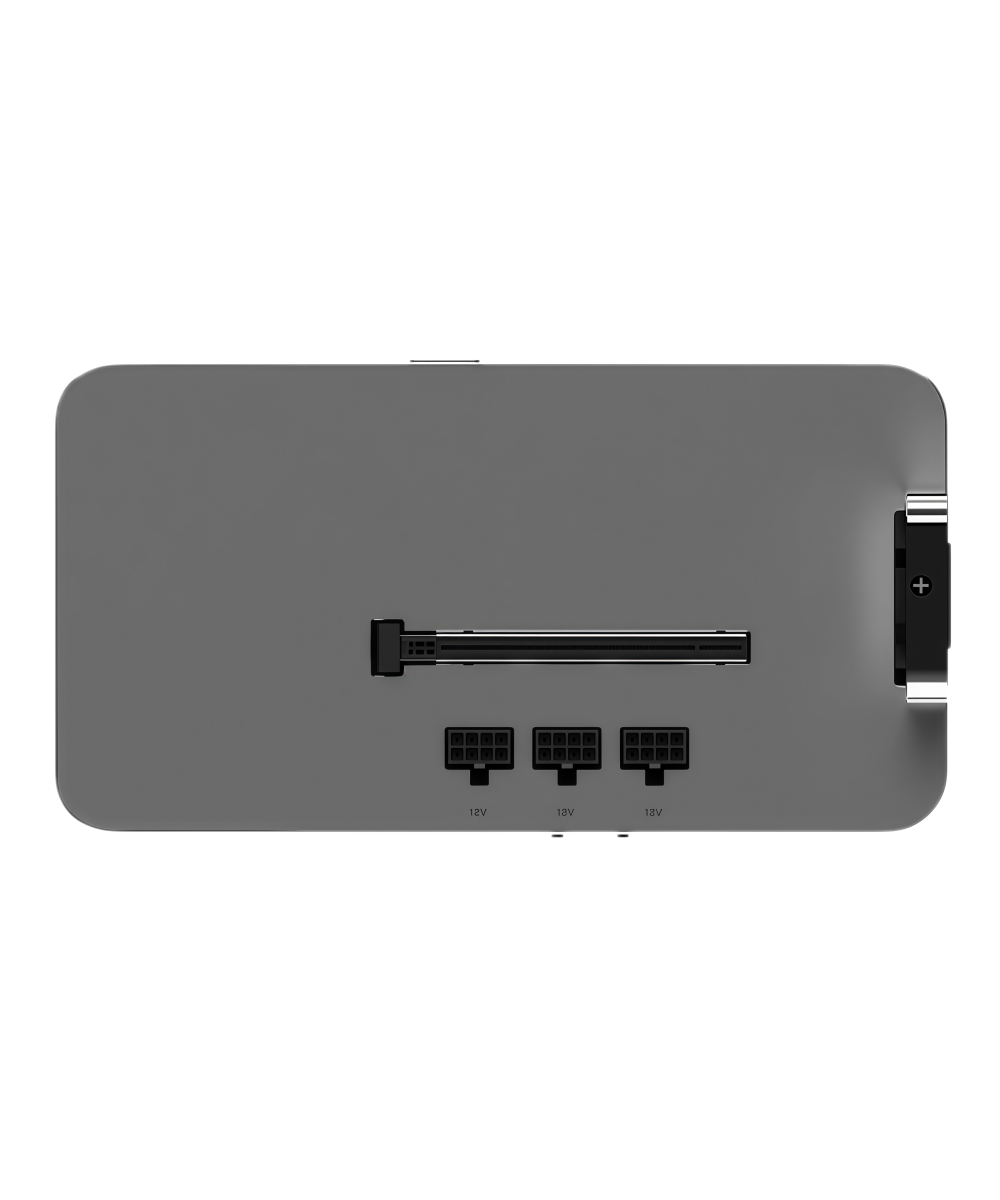

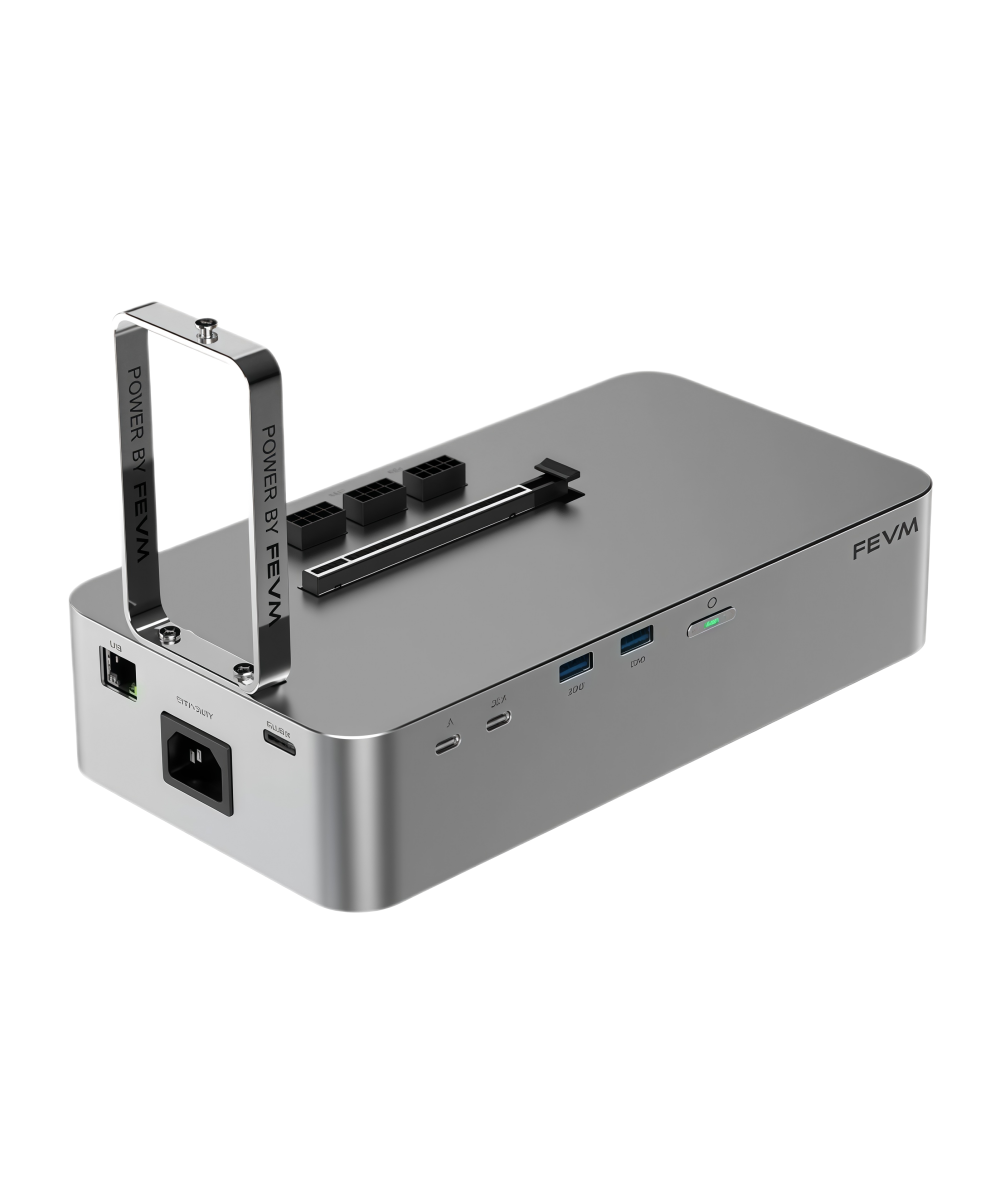

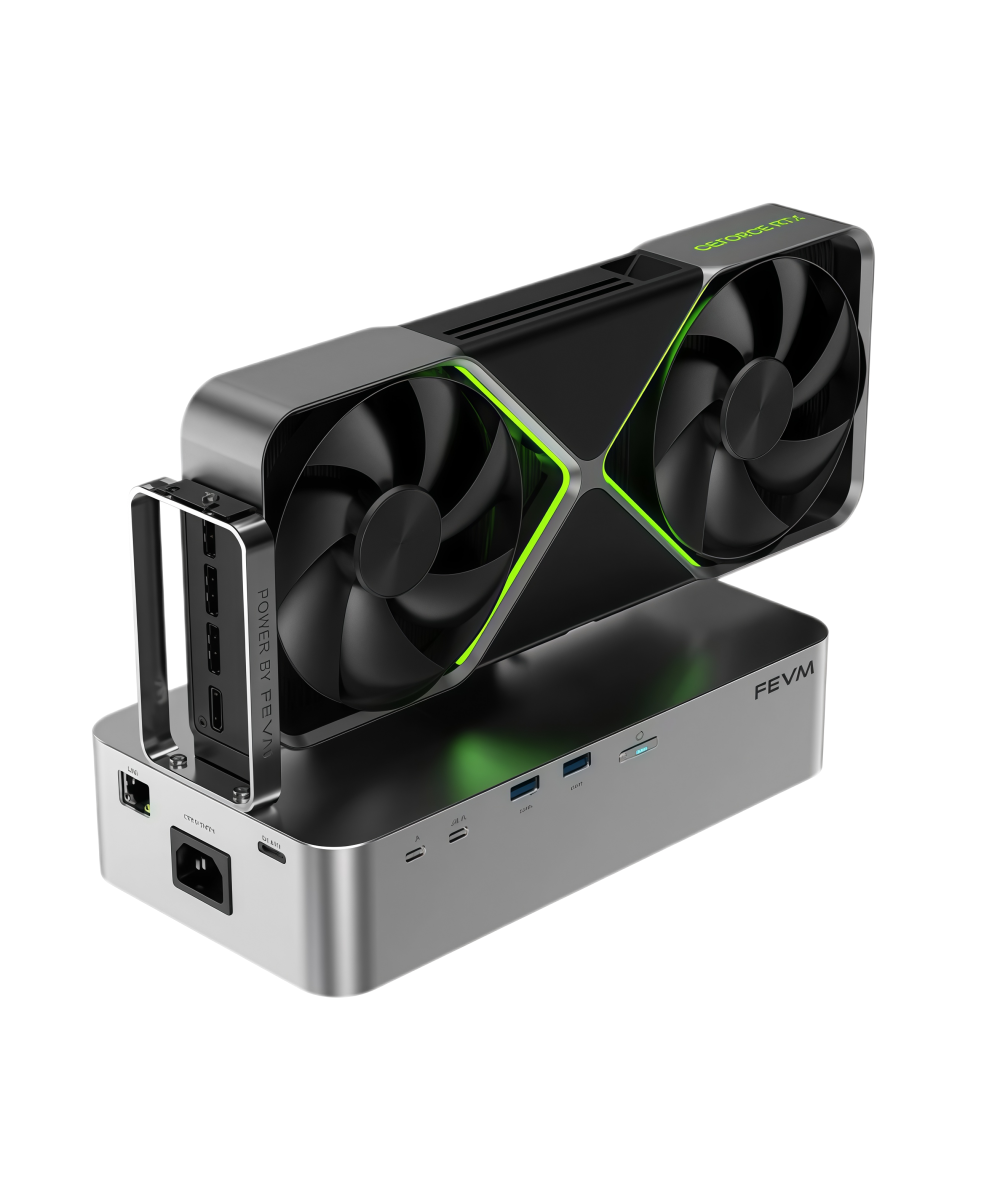

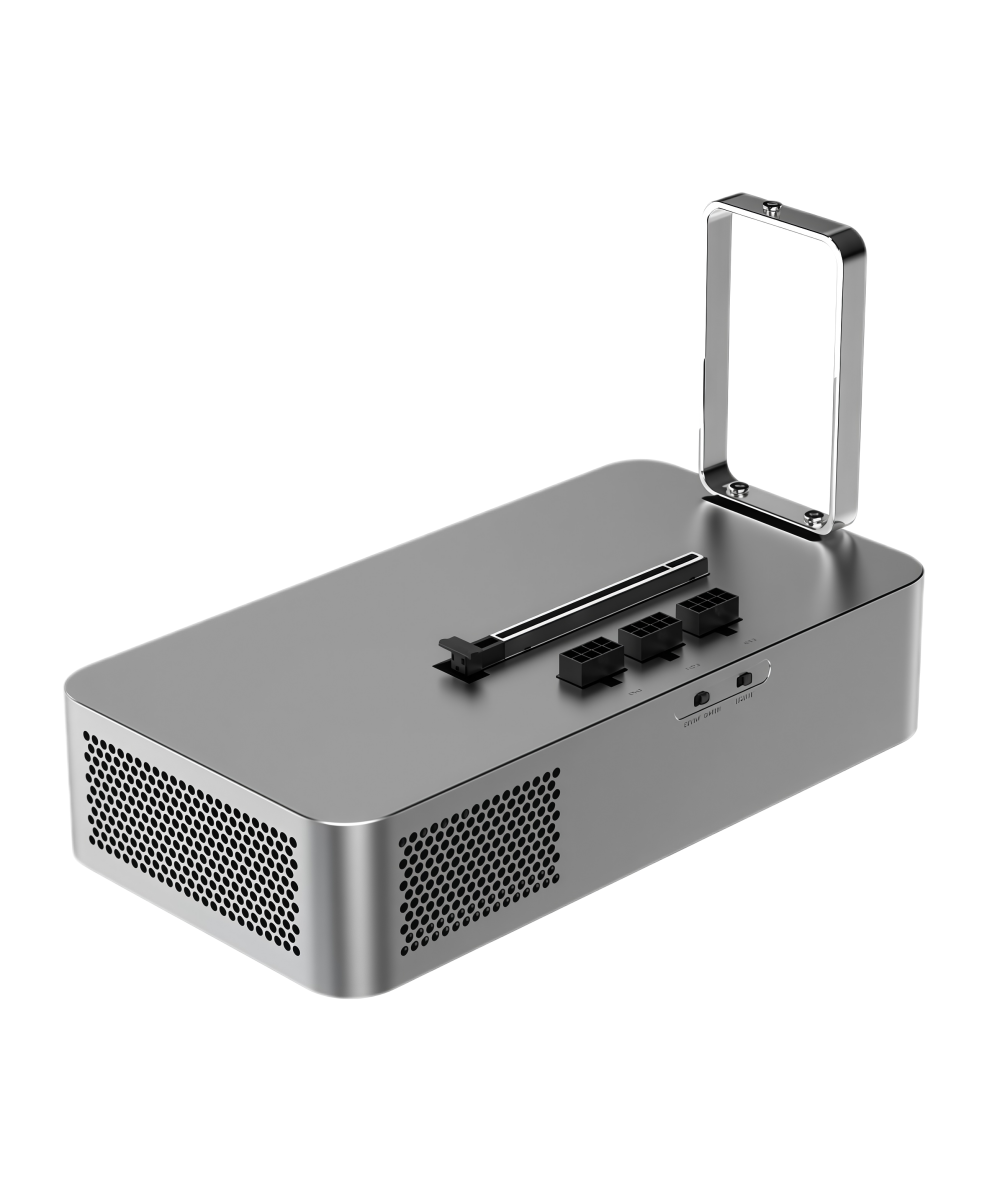

YX-OS58 FEVM Thunderbolt 5 Desktop GPU Docking Station – 12VHPWR GPU Power Cable, Oculink Dual-Mode, Built-in Medical-Grade Ultra-Quiet PSU

$388.00
$484.48
$388.00
-20%
Vendor: YanTechLab
Only 9 items in stock! Out of stock!

Guaranteed safe checkout

  • PayPal

Description

FEVM Thunderbolt 5 eGPU Dock — powered by the new JHL9480 controller delivering 80 Gbps Thunderbolt 5 throughput. Features dual‑mode connectivity with Thunderbolt 5 and OCuLink (64 Gbps), a built‑in 600W medical‑grade power supply, and 12VHPWR cable for modern GPUs. Designed for creators, gamers, and AI developers seeking desktop‑class graphics performance on laptops and mini PCs.

Key features
  • Controller: Intel JHL9480 · Thunderbolt 5 (80 Gbps)
  • Dual‑mode: TB5 + OCuLink (64 Gbps, PCIe 4.0 ×4)
  • GPU power: 12VHPWR cable included · supports TGP ≤ 500W
  • PD charging: Up to 100W upstream · 30W downstream
  • Video: DP 2.1 output · HDMI · downstream Thunderbolt
  • Ultra‑quiet: 0‑noise operation with 250W GPUs · <40dB with 5080
  • PSU: Built‑in 600W medical‑grade · LOP certified

Applications: AI/ML acceleration, 3D rendering, video editing, high‑end gaming, workstation expansion, prototyping.

Technical Specifications
Controller Intel JHL9480 (Thunderbolt 5)
Host interface (TB5) 80 Gbps (upstream)
Host interface (OCuLink) PCIe 4.0 ×4 · 64 Gbps
GPU compatibility NVIDIA RTX 30/40/50 series · TGP ≤ 500W
GPU power connector 12VHPWR cable included
Power supply Built‑in 600W medical‑grade · LOP certified
PD upstream Up to 100W (PD 3.0/3.1) for laptop charging
PD downstream Up to 30W for peripherals
Video output DP 2.1 · HDMI · downstream Thunderbolt (DP alt)
Ports Upstream TB5 · OCuLink · Downstream TB5 ×1 · USB‑A ×2 · RJ45 ×1
Daisy‑chain Supports multiple devices (hot‑plug)
OCuLink connector Foxconn high‑spec · 1000+ insertion cycles
Redriver High‑spec integrated · improved compatibility
Cooling & Acoustic Performance
  • With RTX 5070 class (≤250W): Fan remains off under full load — true 0‑noise operation.
  • With RTX 5080 class: Noise controlled within <40 dB · internal temperature stays below 80°C.
  • Balanced design: Quiet, cool, and stable — an ideal user experience.
I/O Ports Summary
Upstream TB5 80 Gbps · PD 100W
OCuLink 64 Gbps · PCIe 4.0 ×4
Downstream TB5 1× · DP alt · PD 30W
USB‑A 2× (peripherals)
RJ45 1× (Gigabit Ethernet)
HDMI 1× · DP 1×
Important Notes
  • GPU compatibility: Supports NVIDIA RTX 30/40/50 series with TGP ≤ 500W.
  • RTX 5090: To use with RTX 5090, please disable PD power delivery or use the OCuLink connection.
  • Card thickness: Not compatible with 3‑slot bracket graphics cards — please replace with a dual‑slot bracket.
  • Included cables: Thunderbolt cable and USB4 cable are included in the package.
Package Contents
  • FEVM Thunderbolt 5 eGPU Dock ×1
  • 12VHPWR GPU power cable ×1
