YX-OS66 High-Precision Spectrum Analyzer – Blue Light Measurement, Full Spectral Analysis, Laser Testing, Absorption Tests, Fully Windows Compatible

Sale price: $98.00
Regular price: ~~$122.00~~
Regular price: $98.00
Unit price: per

Vendor: YanTechLab

Only 9 items in stock! Out of stock!

Product variants

Quantity

Guaranteed safe checkout

Description

Compact spectrometer covering 340–1050 nm for light source analysis and optical measurements. Delivers 1 nm software resolution with the ability to resolve mercury spectral lines at 577/579 nm. Connected via USB and compatible with Theremino_Spectrometer software (Windows). An accessible tool for professional and hobbyist optical research with accuracy comparable to commercial alternatives.

Key features

Wavelength range: 340 – 1050 nm
Resolution: 1 nm (software)
Line separation: Resolves 577/579 nm (mercury)
Software: Theremino_Spectrometer (Windows)
Interface: USB
LED analysis: Blue light intensity, full‑spectrum check, eye safety
Advanced: Fluorescence, absorption, filter transmission, laser wavelength sorting

Applications: education, LED/laser testing, industrial quality control, scientific research, fluorescence and absorption experiments.

Technical Specifications

Wavelength range	340 – 1050 nm
Software resolution	1 nm
Line separation accuracy	Resolves 577/579 nm (mercury lamp)
Software compatibility	Theremino_Spectrometer (Windows)
Connection	USB port

Software Capabilities

Integration mode: For short‑duration light pulses
Calibration: Reference light source calibration
Data export: For external analysis
Custom algorithms: Modified versions available upon request

Measurement Capabilities

LED Analysis Blue light intensity · full‑spectrum verification · eye safety assessment

Specialized Fluorescence · absorption · filter bandwidth · laser diode wavelength sorting

Reverse Engineering Light source identification in devices · laser sorting (e.g., 522nm vs 524nm)

Educational Demos Chlorophyll absorption spectrum · alcohol concentration via water absorption

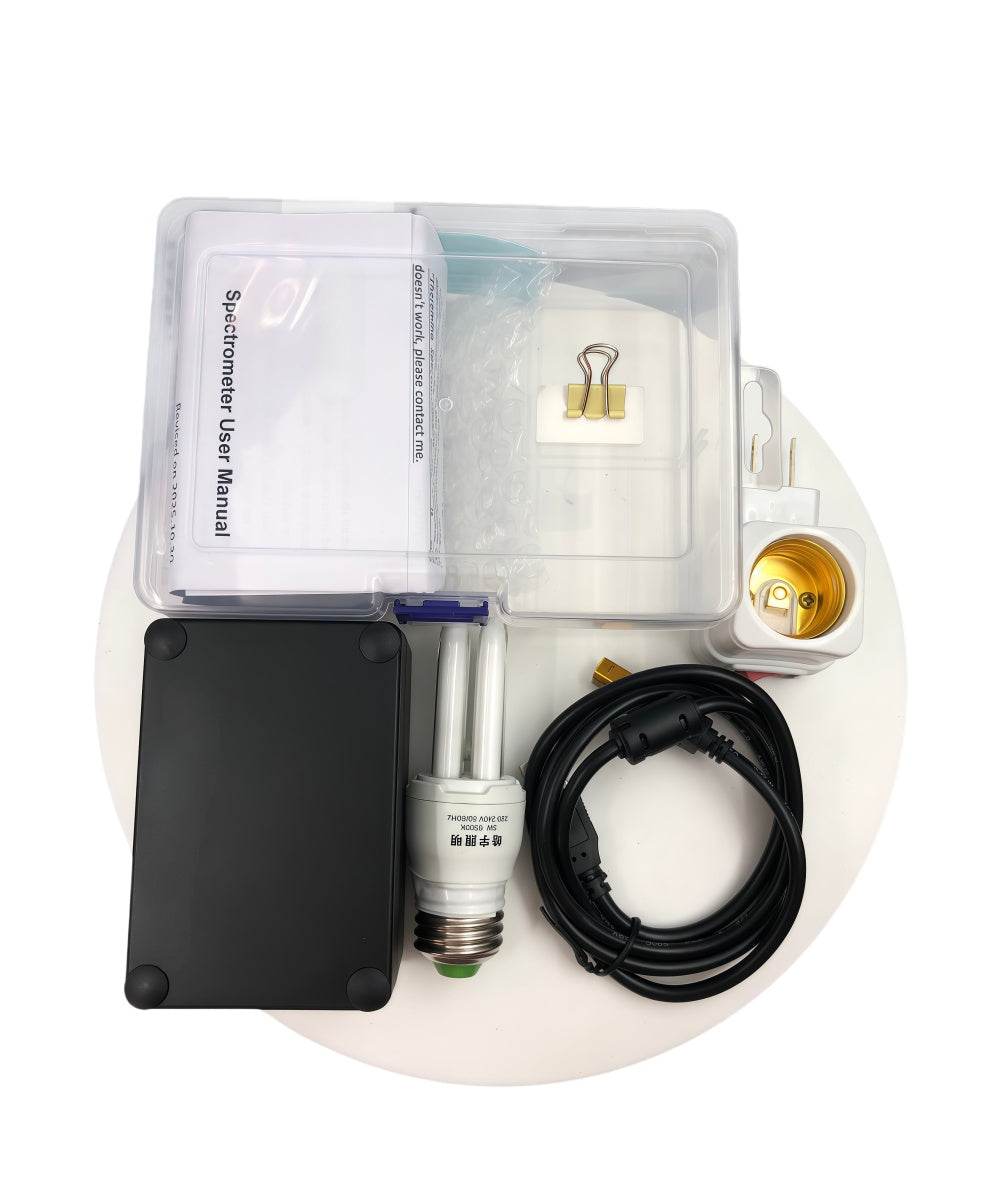

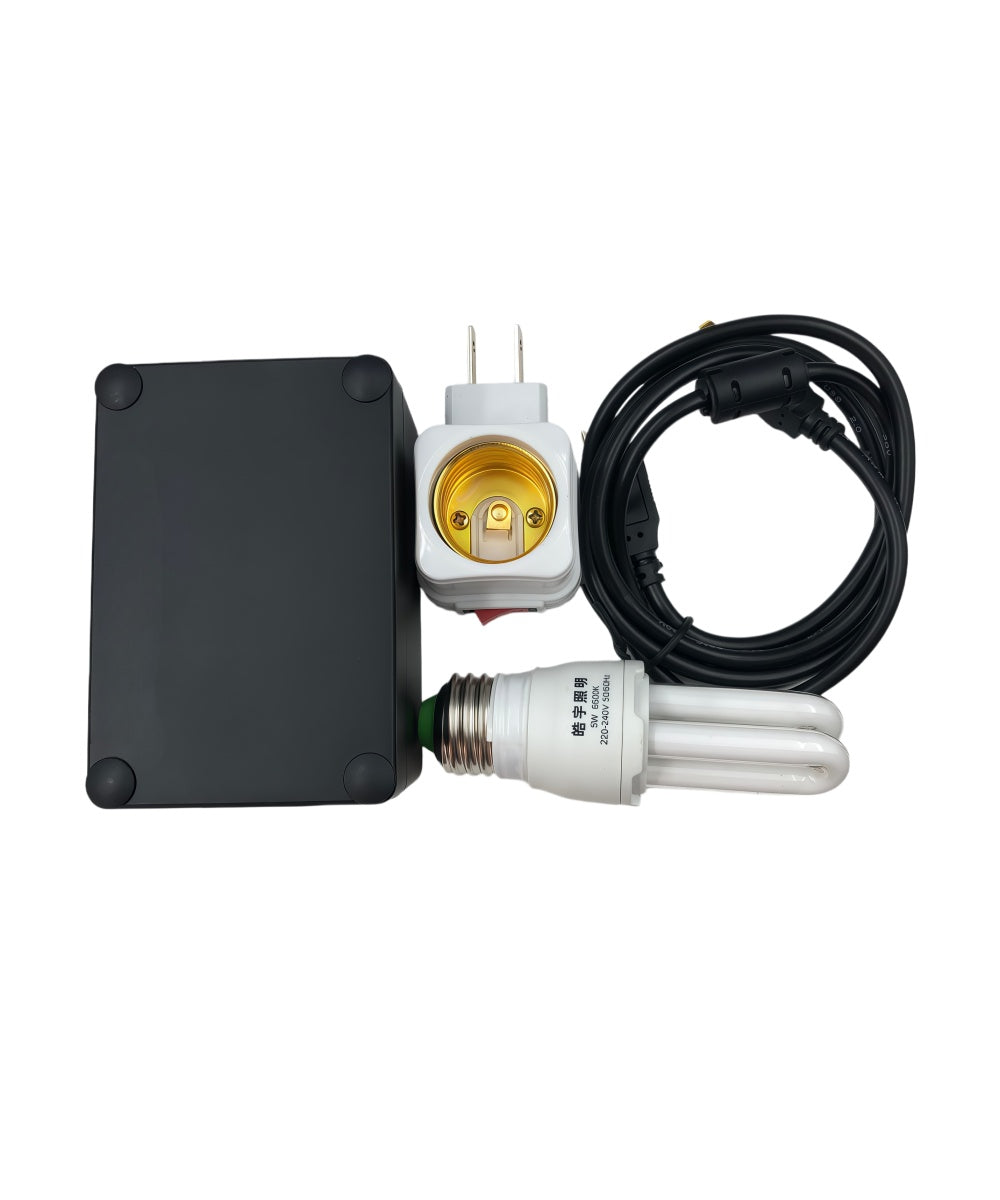

Package Contents

Spectrometer ×1
USB connection cable ×1
Storage case ×1
Light stand ×1
Calibration light source ×1
Diffusing paper ×1

Applications

Education: Demonstrating optical principles in schools and universities
Consumer products: LED lamp and monitor safety testing
Industrial: LED and laser parameter quality control
Research: Absorption and fluorescence experiments

Comparison with Handheld Spectrometers

Comparable accuracy for peak wavelength measurements
No scale distortion — larger PC display provides better visualization
Enhanced analysis through powerful software tools
