YX-OS73 KC901C+ Multi-Function Antenna & Feeder Analyzer – Network Tester, Signal Generator, Field Strength Meter, Spectrum Scanner, Fault Locator, 2G Support

$1,104.00
$1,380.00
$1,104.00
-20%
Vendor: YanTechLab
Only 9 items in stock! Out of stock!

Guaranteed safe checkout

  • PayPal

Description

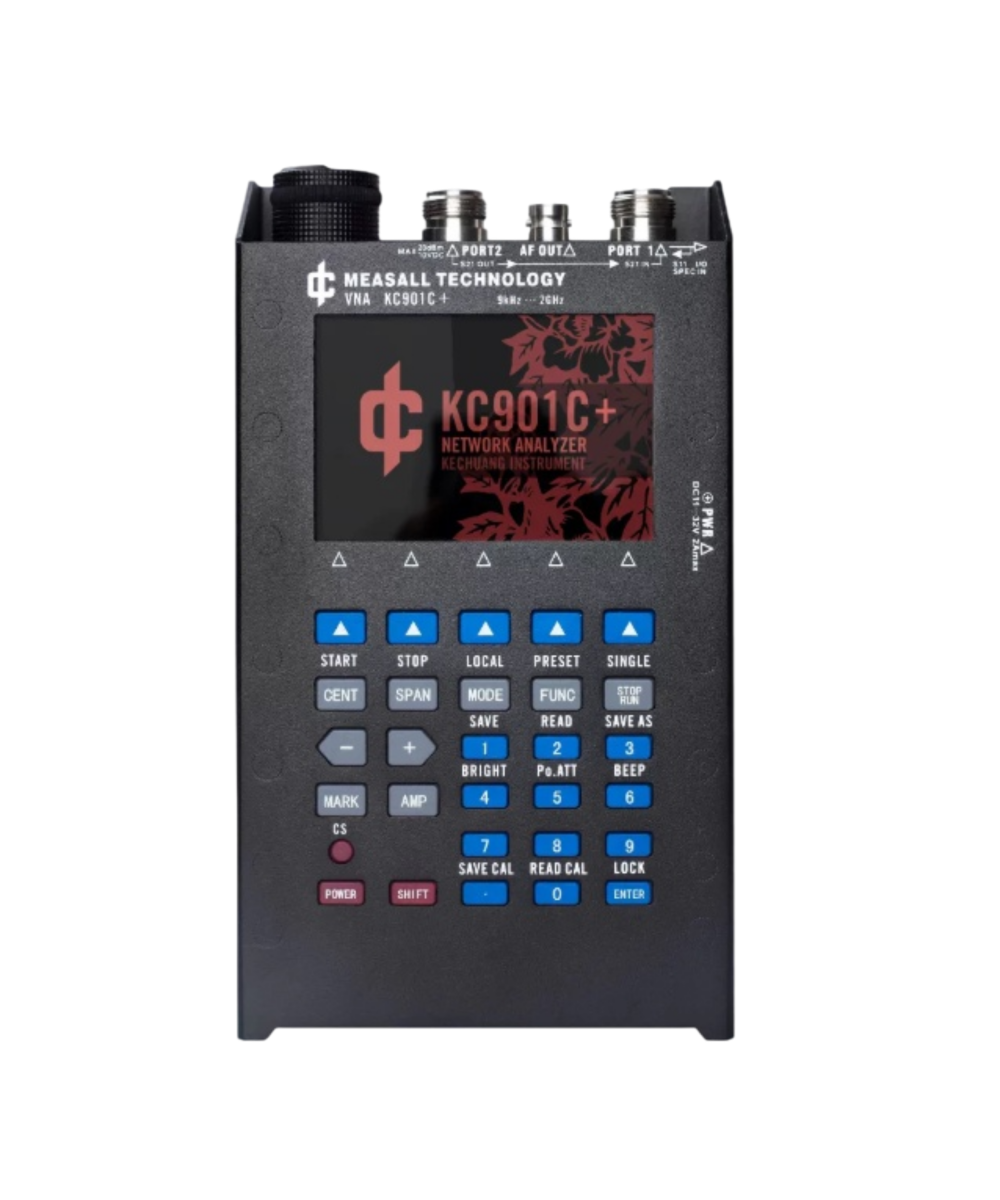

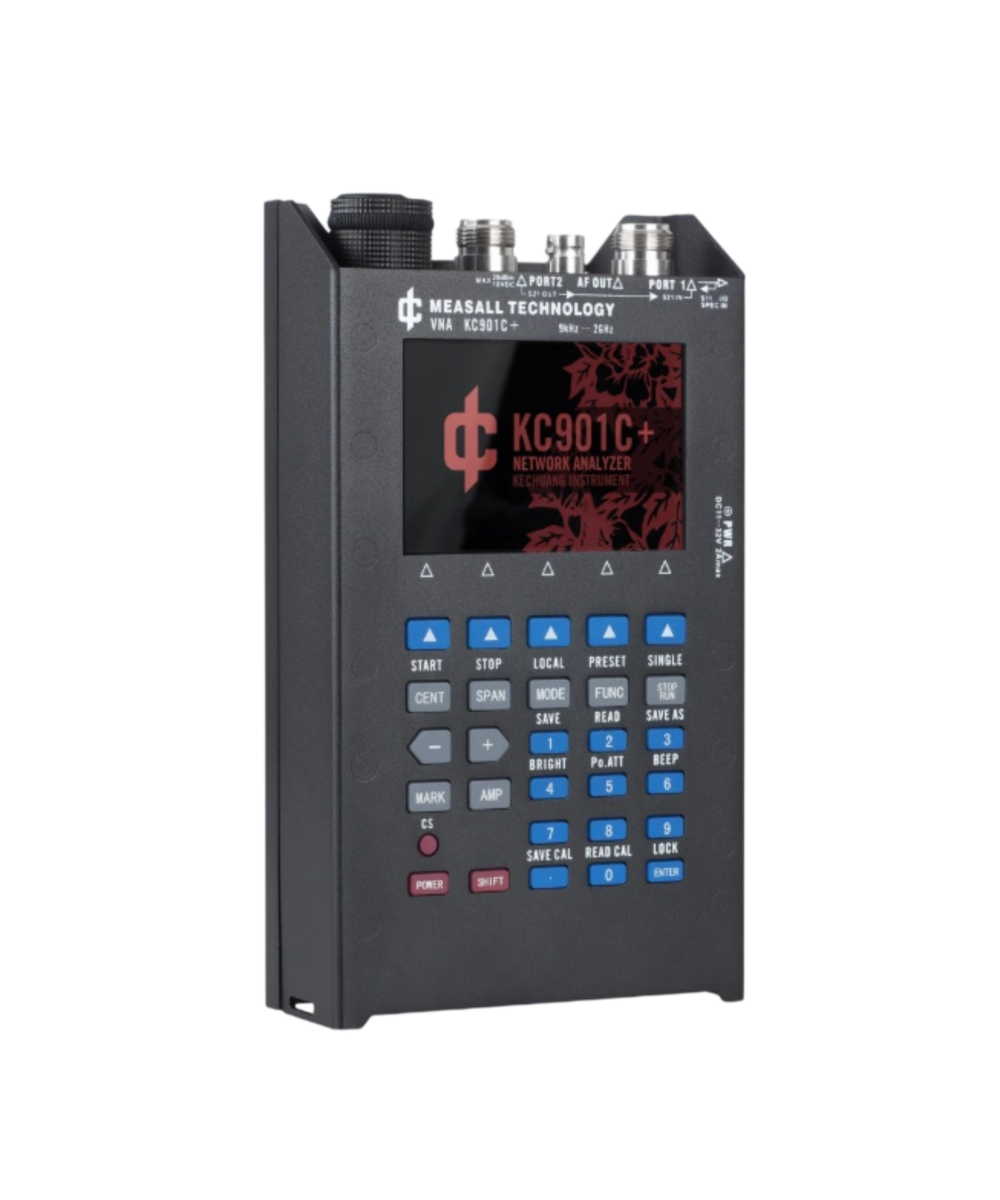

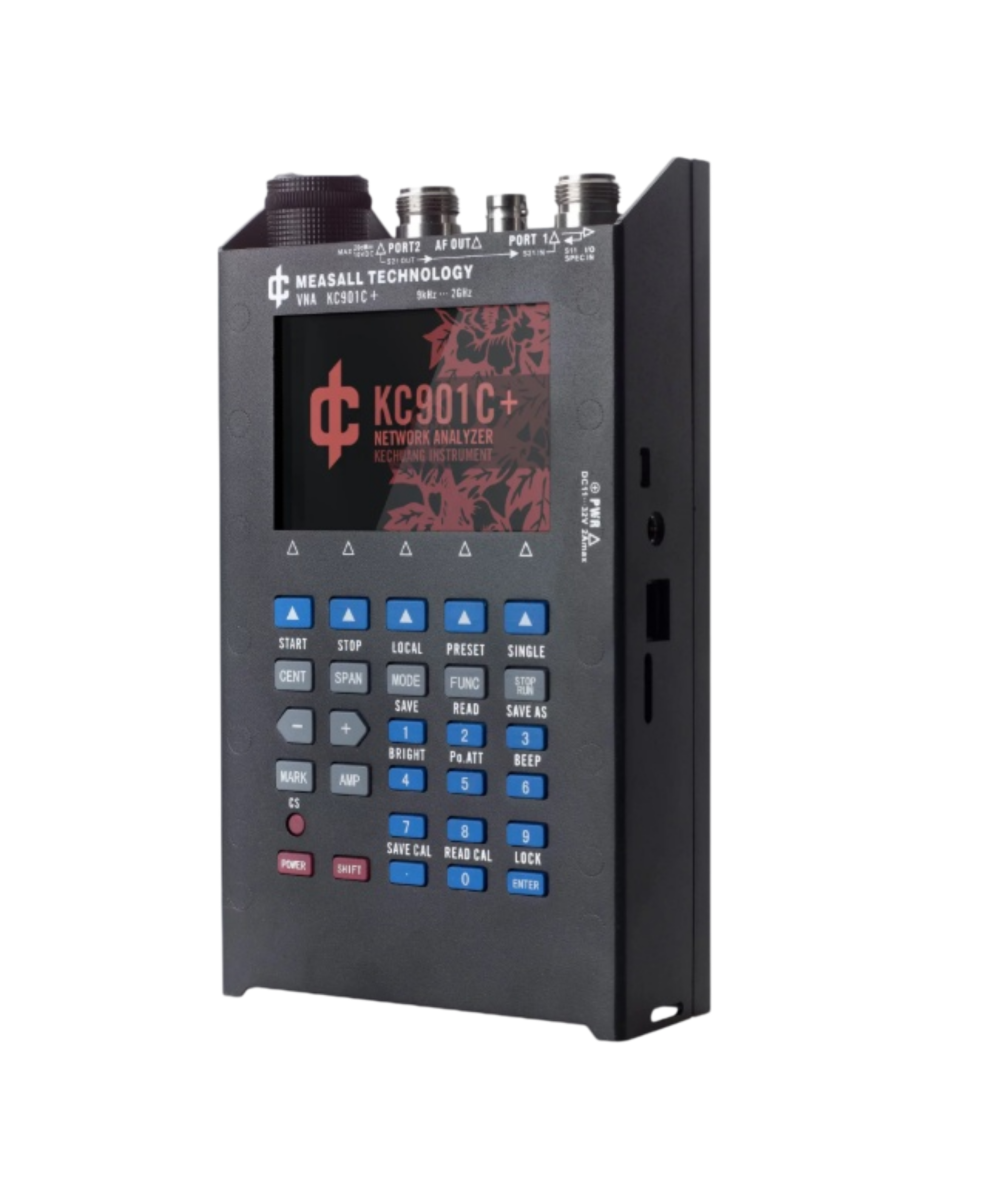

KC901C+ is a versatile vector antenna analyzer and network tester, part of the trusted 901 family with frequency coverage up to 2 GHz. It supports single‑port vector network analysis and simple two‑port vector analysis, while extending functionality with spectrum viewing, field strength observation, and signal generation. Portable and practical — with a 5‑hour battery, 1‑liter volume, and 1 kg weight — it brings a new level of freedom to field testing.

Key features
  • Frequency range: 9 kHz – 2 GHz
  • Frequency resolution: 1 Hz
  • Reliable accuracy & stability
  • Double conversion · excellent anti‑interference performance
  • Rich features in a lightweight design — 1 dm³, 1 kg, 5h battery
  • Multiple modes: transmission, reflection, spectrum, field strength, signal source

Applications: RF circuit debugging, filter/amplifier/divider tuning, antenna system evaluation, impedance matching, interference hunting, broadcast transmitter maintenance.

Main Functions
Transmission Test Phase & amplitude · filter/amplifier tuning · antenna directivity verification
Reflection Test Vector impedance matching · feed system quality check
Spectrum & Field Strength Transmitter performance verification · interference source detection
Signal Source Single‑frequency output · FM/ASK modulation support
Technical Specifications
Model KC901C+
Frequency range 9 kHz – 2 GHz
Frequency resolution 1 Hz
Architecture Double conversion (anti‑interference)
Network analysis Single‑port vector · two‑port simplified vector
Additional functions Spectrum view · field strength · signal generator
Signal modulation FM / ASK
Battery life Up to 5 hours continuous
Volume ~1 dm³ (1 liter)
Weight ~1 kg
Typical Applications
  • Tuning RF circuits: filters, amplifiers, splitters, combiners
  • Testing input/output impedance and feed system quality
  • Evaluating signal amplitude at each stage of a device
  • Field strength measurement and interference hunting
  • Professional communications engineering and broadcast transmitter maintenance
Important Note
  • Reference only: Published technical parameters prevail. KC901C is fundamentally a network analyzer — other functions are practical tools derived from the network analyzer architecture and are for reference.
Package Contents
  • KC901C+ vector antenna analyzer ×1

Terms and conditions

Shipping Information

Orders are prepared within 48 hours. Fast small-parcel logistics are used for international shipping.

  • USA / Europe: approximately 8–14 days (subject to variation)
  • Any abnormal situations will be communicated via email promptly

Returns & After-Sales Policy

If you have any questions after receiving the product, please contact us immediately. Returns or exchanges will be processed according to our return policy. Thank you for your understanding.

Documentation & Technical Support

👉 https://t.me/YanTechLab
