YX-OS74 4-Channel SDR Vector Signal Generator – Multi-Channel Software-Defined Radio Signal Source

Sale price: $1,610.00
Regular price: ~~$2,012.00~~
Regular price: $1,610.00
Unit price: per

Vendor: YanTechLab

Only 9 items in stock! Out of stock!

Product variants

Quantity

Guaranteed safe checkout

Description

4‑channel SDR vector signal generator covering 70 MHz – 6 GHz per channel. Each channel supports frequency hopping across 1–8 arbitrary frequency points, with a maximum instantaneous bandwidth of 61.44 MHz per point. Features 3M‑point memory depth per channel, ≥0 dBm output power across the full band, and arbitrary waveform loading. Includes DDS, QPSK wideband modulation, and OFDM typical waveforms. Controlled via Ethernet with both real‑time and standalone (offline) operation modes.

Key features

4 channels · independent vector signal generation
Frequency: 70 MHz – 6 GHz per channel
Hopping: 1–8 arbitrary frequency points per channel
Bandwidth: up to 61.44 MHz instantaneous
Memory: 3M points per channel
Output power: ≥ 0 dBm across full band
Waveforms: DDS · QPSK · OFDM · arbitrary waveform loading
Control: Ethernet · real‑time or standalone offline mode
Receive path: 1 reserved RX for spectrum sensing / SDR
RF connector: MMCX

Applications: signal simulation, receiver testing, spectrum sensing, electronic countermeasures, 5G/OFDM prototyping, SDR development.

Technical Specifications

Channels	4 independent transmit channels
Frequency range	70 MHz – 6 GHz (per channel)
Frequency hopping	1–8 arbitrary frequency points per channel
Instantaneous bandwidth	Up to 61.44 MHz per frequency point
Memory depth	3M points per channel
Output power	≥ 0 dBm (full band)
Waveform support	Arbitrary waveform loading · DDS · QPSK · OFDM

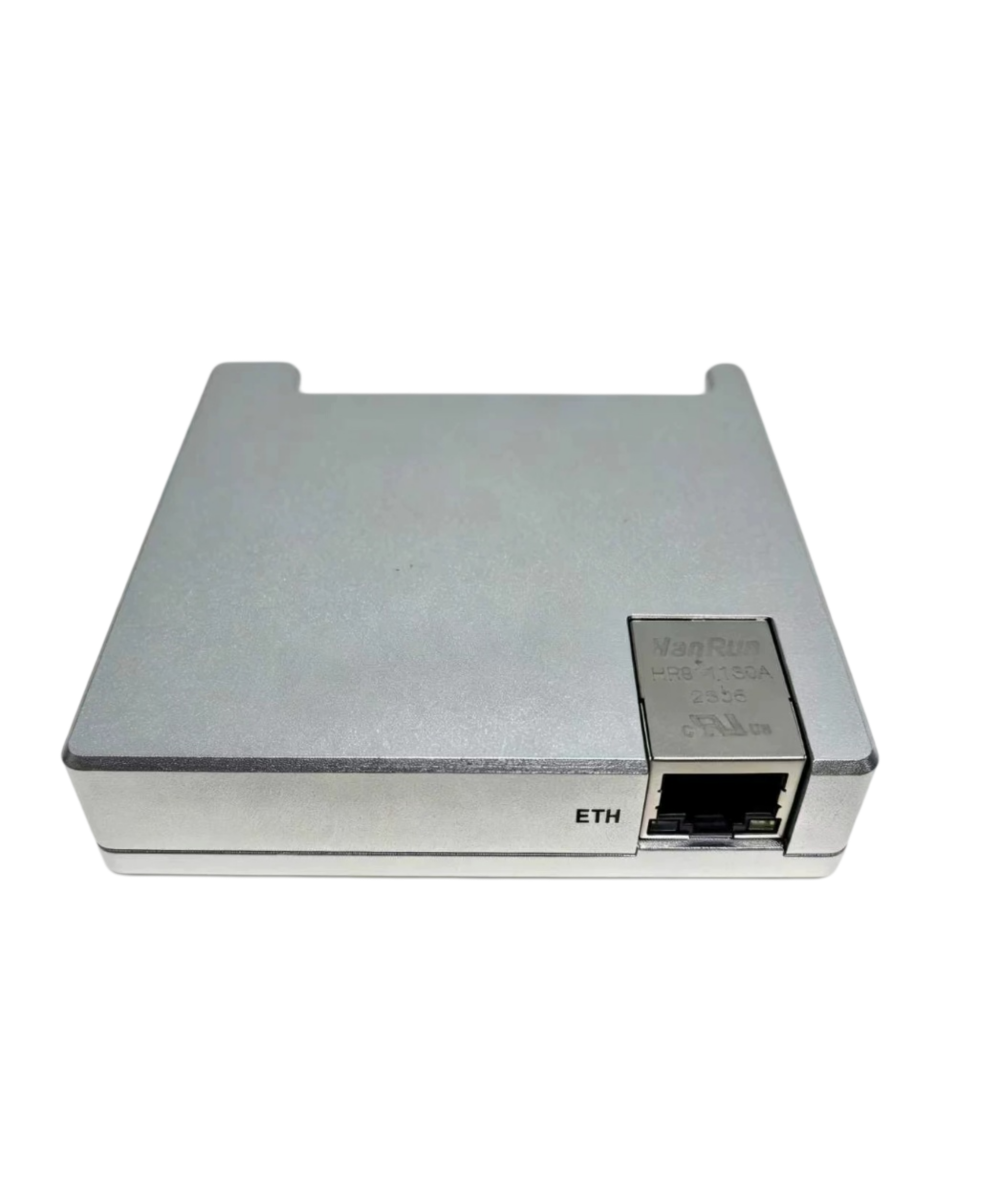

Control interface	Ethernet (real‑time control)
Standalone mode	Yes — parameters & waveforms can be stored for offline operation
Receive path	1 reserved RX channel (spectrum sensing / SDR)

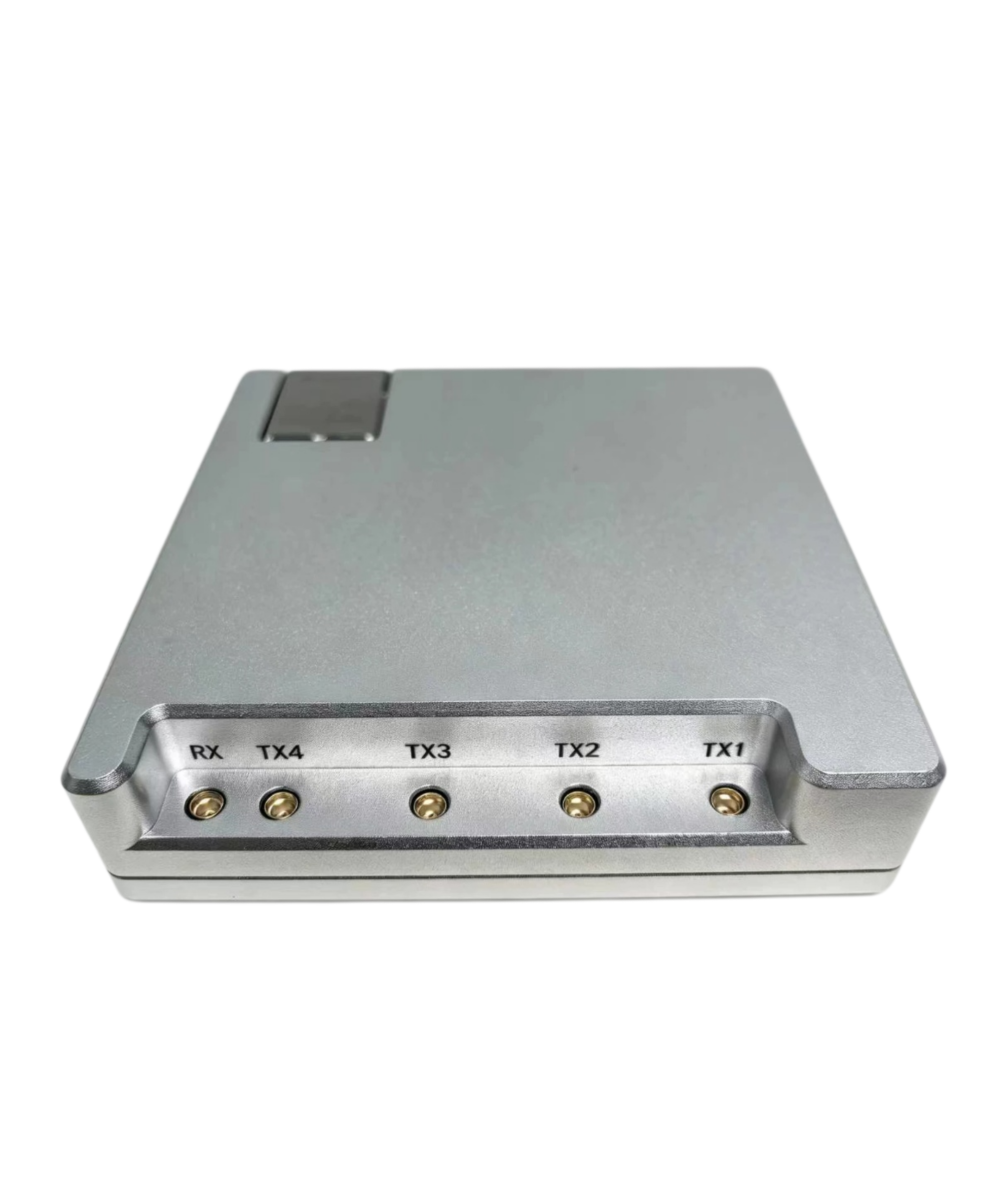

RF connector	MMCX

Capability Highlights

Multi‑Channel 4 independent vector outputs

Frequency Hopping 1–8 points per channel

Wide Bandwidth 61.44 MHz instantaneous

Deep Memory 3M points per channel

Flexible Waveforms DDS, QPSK, OFDM, arbitrary

Dual Mode Real‑time Ethernet or offline standalone

Reserved RX Spectrum sensing / SDR capability

Compact RF MMCX connectors

Applications

Receiver sensitivity and performance testing
Signal simulation and electronic countermeasures
Spectrum sensing and signal collection (reserved RX)
5G / OFDM / QPSK waveform prototyping
Software Defined Radio (SDR) development
Multi‑channel synchronized signal generation

Package Contents

4‑channel SDR vector signal generator ×1
