YX-OS75 SDR Vector Wideband Signal Source – with Host Software & Communication Protocol Included

$583.00
$729.00
$583.00
-20%
Vendor: YanTechLab
Only 9 items in stock! Out of stock!

Guaranteed safe checkout

  • PayPal

Description

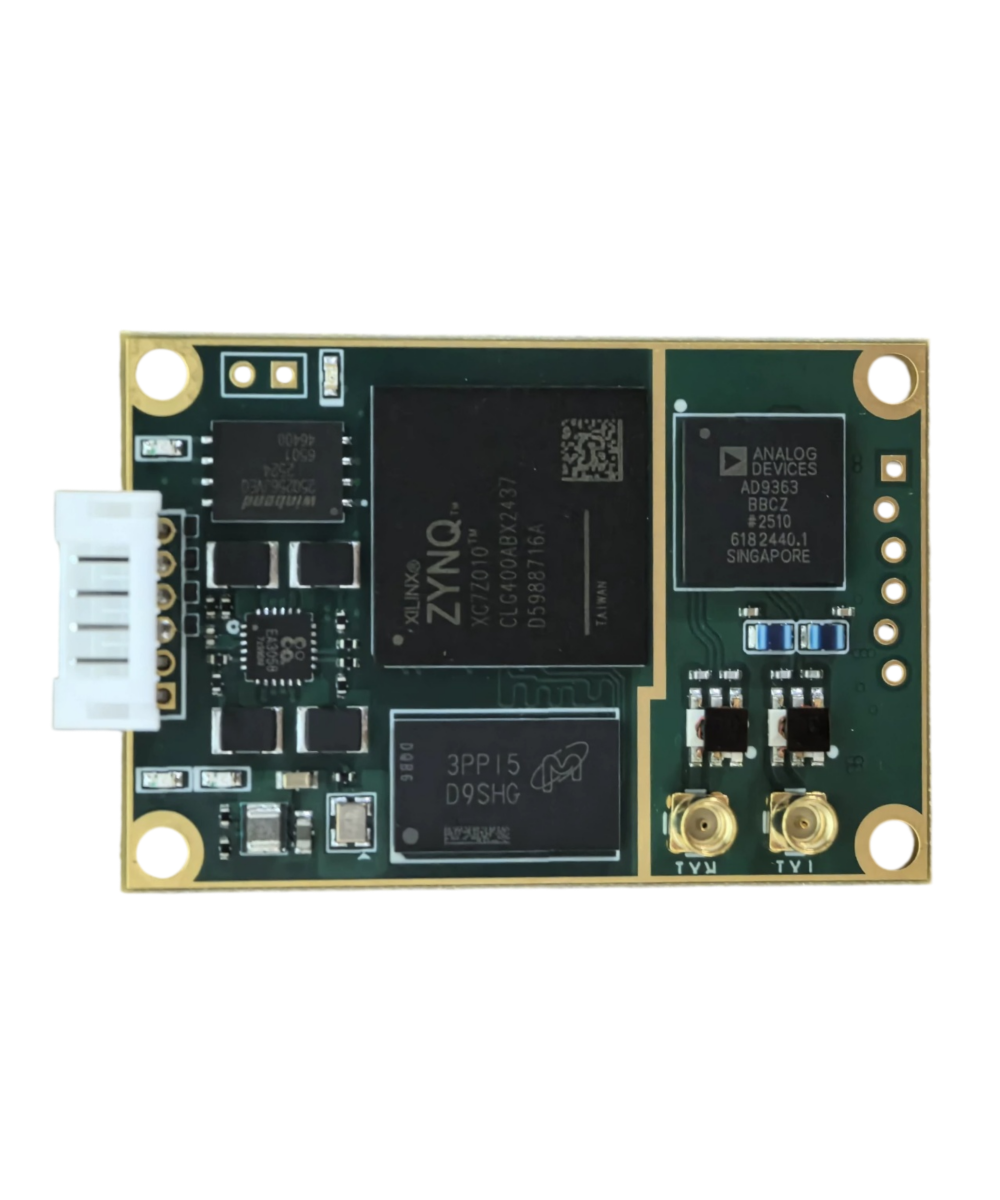

SDR-6000 is a vector signal generator module built on the ZYNQ7010 + AD9363 platform, delivering one channel of vector RF signal output across 70 MHz – 6 GHz. The RF output is synthesized from baseband and RF local oscillator signals, with configurable baseband sampling rates including 15.36M, 20M, 20.48M, 22.4M, 30.72M, 40M, 40.96M, and 61.44M — custom rates are also supported. The LO covers 70 MHz – 6 GHz.

IQ baseband data can be imported from a host PC to generate QPSK, QAM, DDS sweep, wideband, LTE, 5G NR, Wi‑Fi, and GPS signals. Maximum real‑time bandwidth is 56 MHz. Through fast frequency hopping, it can cover up to 8 frequency points within an extremely short time, spanning approximately 450 MHz of spectrum.

Key features
  • Platform: ZYNQ7010 + AD9363
  • Frequency range: 70 MHz – 6 GHz
  • Max real‑time bandwidth: 56 MHz
  • IQ memory depth: 24 MB (6M points)
  • Frequency hopping: 8 points · 10 µs switching time
  • Power: 7 dBm @ 1GHz · 3 dBm @ 3GHz · 0 dBm @ 6GHz
  • Waveforms: QPSK · QAM · DDS sweep · LTE · 5G NR · Wi‑Fi · GPS
  • Control: UART serial with host software & protocol
  • Standalone: Auto‑loads stored configuration and waveform on power‑up

Applications: communication system testing, laboratory signal simulation, electronic countermeasures, UAV applications.

Detailed Technical Specifications
Output frequency range 70 MHz – 6 GHz
Maximum real‑time bandwidth 56 MHz
IQ memory depth 24 MB (6M points)
Frequency resolution 2 Hz
Frequency hopping points 8
Hopping switching time 10 µs
Maximum output power 7 dBm @ 1 GHz · 3 dBm @ 3 GHz · 0 dBm @ 6 GHz
Power adjustment step 0.25 dB
Power dynamic range 89.75 dB
Supply voltage DC 5V
Power consumption ~3.5W (1 GHz full power output)
Operating temperature ‑40°C to +85°C
Storage temperature ‑40°C to +85°C
RF connector MMCX (model BWMMCX‑KE)
RF impedance 50 Ω
Control interface BX‑PH2.0‑6PWZ
Supported Baseband Sampling Rates
15.36 MSPS
20 MSPS
20.48 MSPS
22.4 MSPS
30.72 MSPS
40 MSPS
40.96 MSPS
61.44 MSPS
Custom rates — available on request
Supported Waveforms
  • QPSK modulation
  • QAM modulation
  • DDS frequency sweep
  • Wideband signal generation
  • LTE waveforms
  • 5G NR waveforms
  • Wi‑Fi waveforms
  • GPS signal simulation
Communication & Standalone Operation
  • UART (Serial 1): Host software and interface protocol provided by manufacturer
  • Configurable via protocol: Transmit power, hopping table, waveform loading
  • Standalone mode: Module automatically loads stored configuration and waveforms on power‑up and can operate offline
Applications
  • Communication system testing and verification
  • Laboratory signal simulation and emulation
  • Electronic countermeasures (ECM) and electronic warfare
  • UAV and drone communication links
  • SDR development and research
Package Contents
  • SDR‑6000 vector signal generator module ×1
  • Control cable ×1
  • Power cable ×1

Terms and conditions

Shipping Information

Orders are prepared within 48 hours. Fast small-parcel logistics are used for international shipping.

  • USA / Europe: approximately 8–14 days (subject to variation)
  • Any abnormal situations will be communicated via email promptly

Returns & After-Sales Policy

If you have any questions after receiving the product, please contact us immediately. Returns or exchanges will be processed according to our return policy. Thank you for your understanding.
