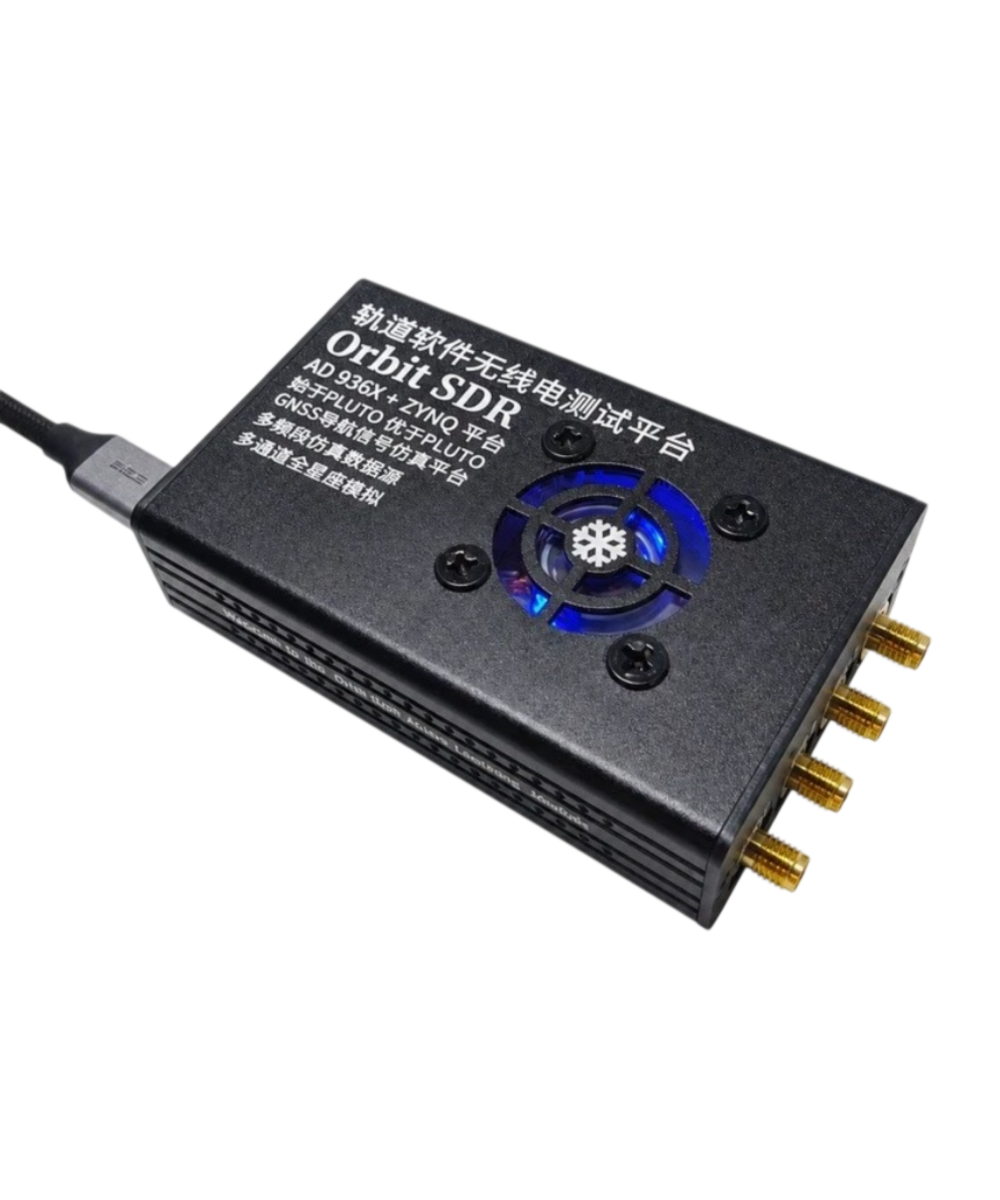

YX-OS76 YanTechLab Orbit SDR GPS Signal Simulator – Software-Defined Radio GNSS Signal Simulation Platform
- Sale price
- $844.00
- Regular price
-
$1,055.00 - Regular price
- $844.00
- Unit price
- per
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
Multi‑constellation GNSS signal simulation and testing system designed for satellite navigation receiver R&D, production, and testing. Supports GPS, BeiDou and other navigation signals with local ephemeris import, trajectory playback, and dynamic scenario generation. Users can flexibly adjust frequency, noise, elevation angle, and channel count to quickly reproduce static positioning, vehicle driving, and complex signal environments.
The system provides stable continuous transmission capability and can simultaneously adapt to different receiver models — helping users efficiently complete positioning performance, signal compatibility, and long‑duration operation testing. With intuitive operation and rich parameters, it delivers repeatable and comparable test results without building complex outdoor environments.
- Multi‑constellation: GPS · BeiDou (BDS) · Galileo (GAL)
- Trajectory simulation: Real satellite data source · true data sync
- Simulation modes: Static fixed‑point · dynamic trajectory
- Ephemeris management: Online mode · local ephemeris import
- Trajectory sources: Map points, lines, polygons, native data import
- Flexible parameters: Frequency, noise, elevation, channel count
Applications: automotive navigation R&D, wearable devices, IoT tracking, GNSS receiver/module development, university/research labs, third‑party testing/certification, time synchronization, UAV/robotics, surveying.
| Trajectory Simulation | Uses online real satellite data source; restores real data; achieves true satellite data sync. Suitable for converting outdoor routes into repeatable lab test flows; reduces loop jumps during continuous transmission; ideal for long‑duration testing. |
| Simulation Modes | Static fixed‑point (for stationary testing) · Dynamic trajectory (for route playback and moving scenario verification) |
| Ephemeris Management | Displays GPS, BDS, GAL satellite status and ephemeris availability. Online mode and local ephemeris import supported. Can import ephemeris for a specified time to test specified time data. |
| Trajectory Sources | Map point selection · line drawing · polygon closed loop · native data import. Supports route preview, trajectory point count, route length, and estimated time display. |
| System | Signal | Center Frequency |
| GPS | L1 C/A | 1575.420 MHz |
| GPS | L1C | 1575.420 MHz |
- Intended users: In‑vehicle navigation / car‑machine R&D, consumer electronics / wearable terminals, IoT / civil tracking devices, GNSS receiver/module R&D, university / research institute laboratories, third‑party testing / certification pre‑testing, timing & time synchronization equipment auxiliary testing, production line / after‑sales batch reproduction, UAV / robotics enterprises, surveying / geographic information industry.
- Legal use only: This system is intended for lawful and compliant use by the above entities. Improper or unauthorized use is strictly prohibited.
- GNSS signal simulator main unit ×1
