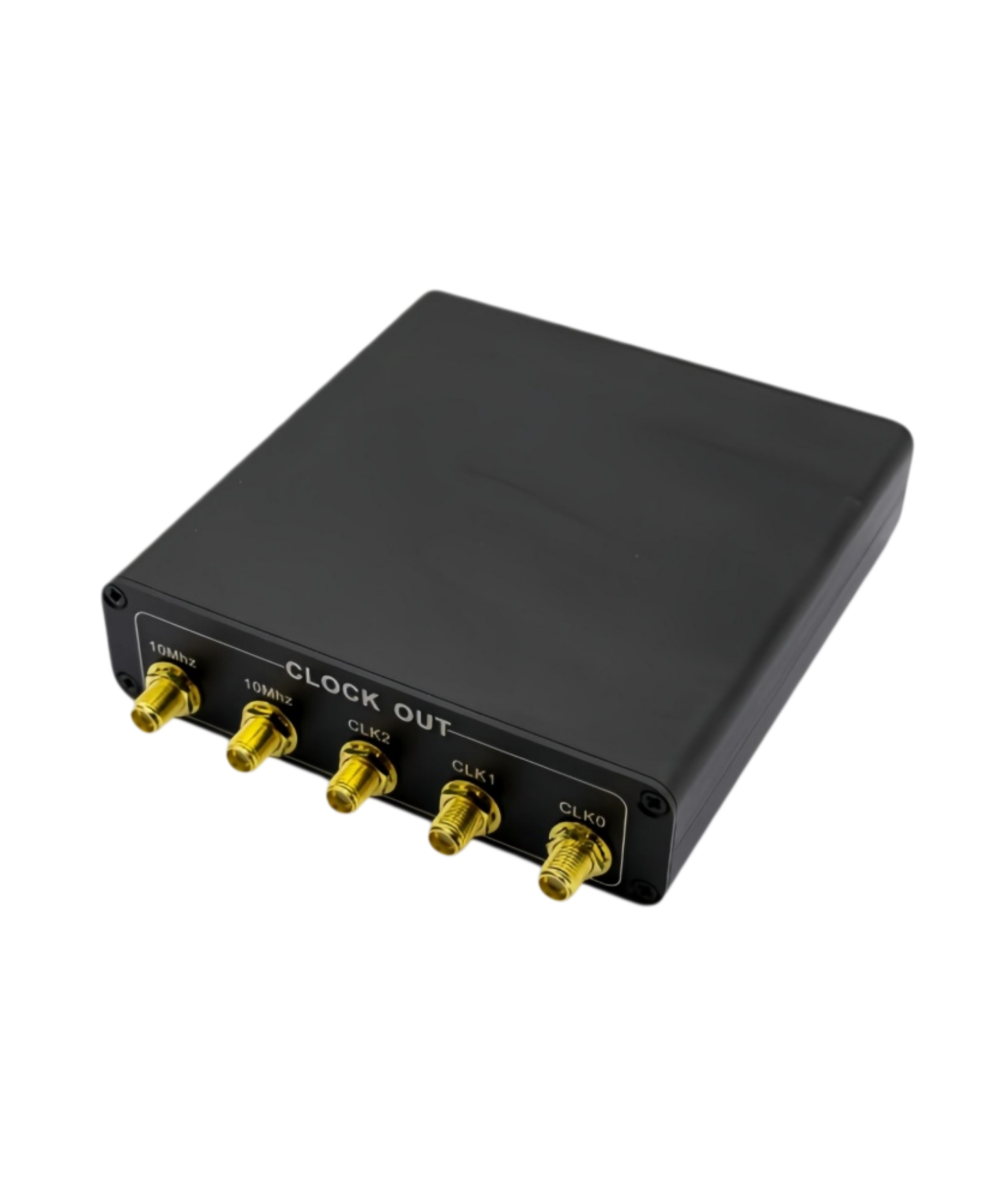

YX-OS77 5-Output Clock Generator – 2.5kHz–200MHz Frequency Range for B210 Radio Receiver Systems

$189.00
$236.00
$189.00
-20%
Vendor: YanTechLab
Only 9 items in stock! Out of stock!

Guaranteed safe checkout

  • PayPal

Description

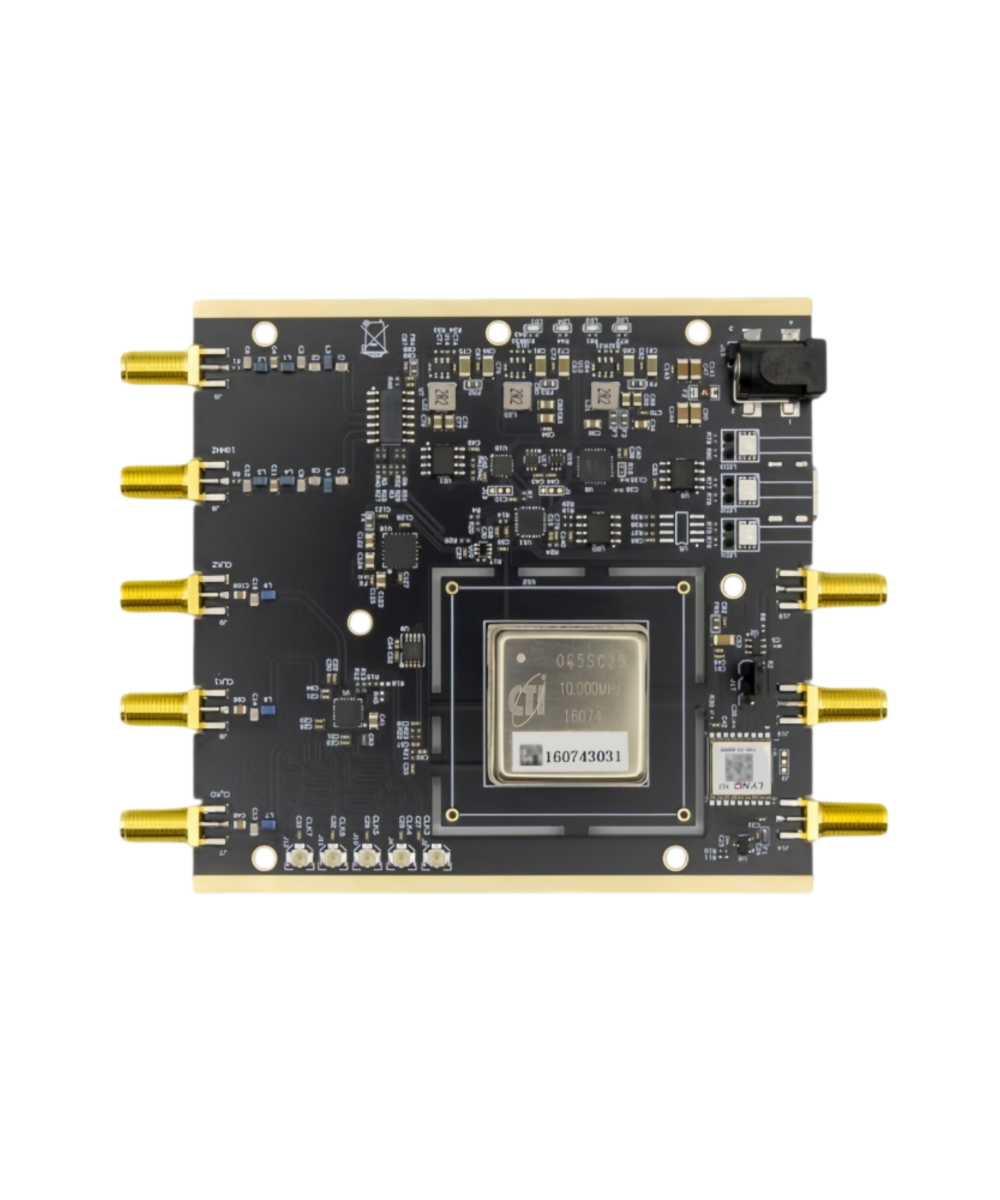

GPS Disciplined Oscillator (GPSDO) combining a high‑sensitivity GPS receiver with a precision OCXO. Provides 5 outputs: 2 fixed at 10 MHz and 3 programmable (default 10/20/30 MHz). Output frequency can be configured via USB from 2.5 kHz to 200 MHz. Delivers stable, GPS‑disciplined frequency reference for SDR, test equipment, and synchronization applications.

Key features

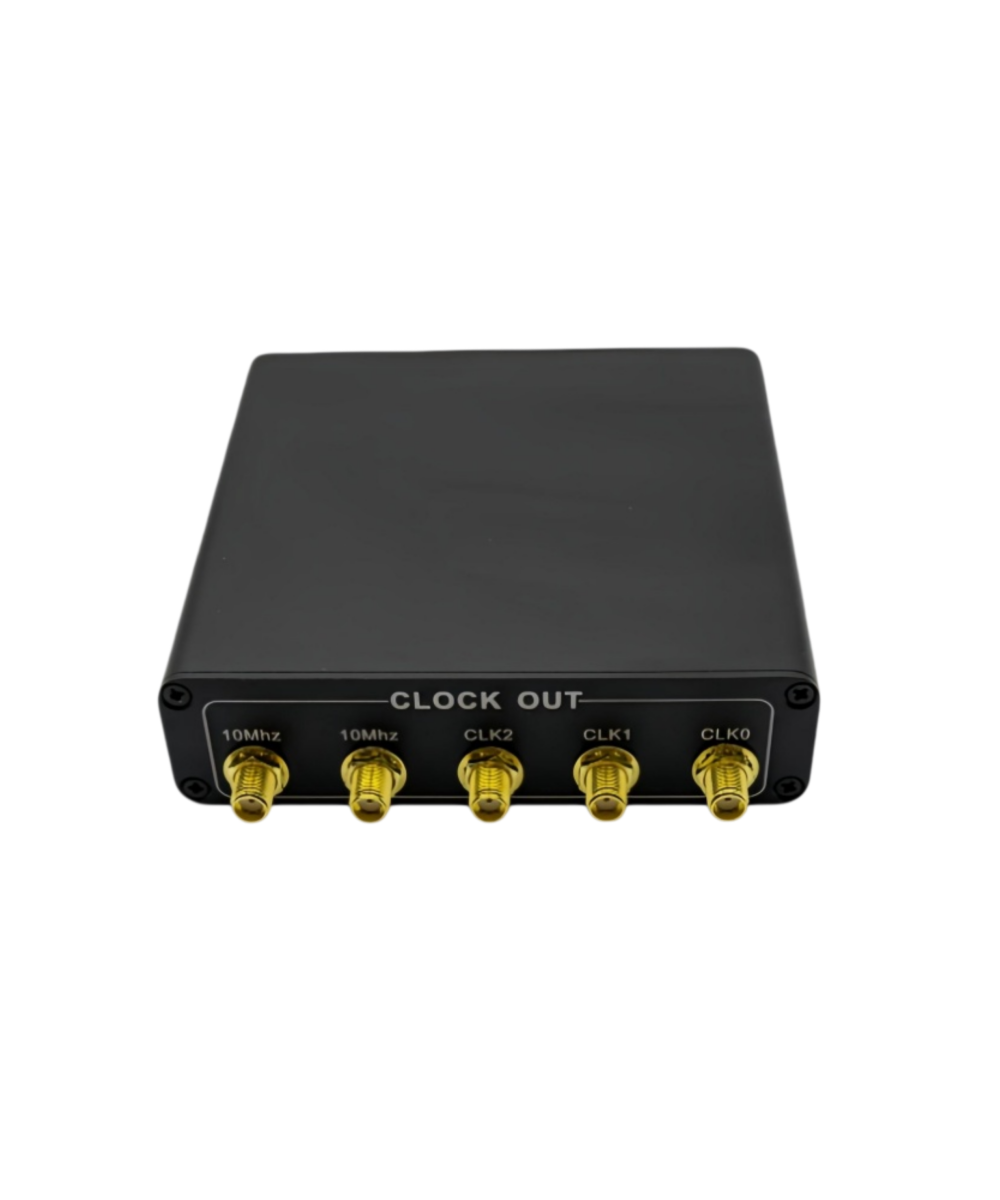

  • 5 outputs: 2 fixed (10 MHz) + 3 programmable
  • Frequency range: 2.5 kHz – 200 MHz
  • Control: USB interface
  • Internal connectors: 5× IPEX (for expansion)
  • Stabilization: GPS + OCXO discipline
  • External outputs: 5× SMA

Applications: SDR reference clock, test & measurement equipment, time/frequency synchronization, laboratory standards.

Technical Specifications
Outputs 5× SMA (2 fixed + 3 programmable)
Frequency range 2.5 kHz – 200 MHz
Control interface USB
Internal connectors 5× IPEX (for expansion)
Stabilization GPS + OCXO discipline
Fixed outputs 2× 10 MHz
Programmable outputs 3× default 10/20/30 MHz (adjustable 2.5 kHz – 200 MHz)
Capability Highlights
5 Outputs 2 fixed + 3 programmable
Programmable 2.5 kHz – 200 MHz via USB
GPS + OCXO Disciplined frequency standard
Expansion 5× internal IPEX connectors
SMA Outputs Standard lab connectivity
Stable Reference Ideal for SDR & test gear
Important Notes

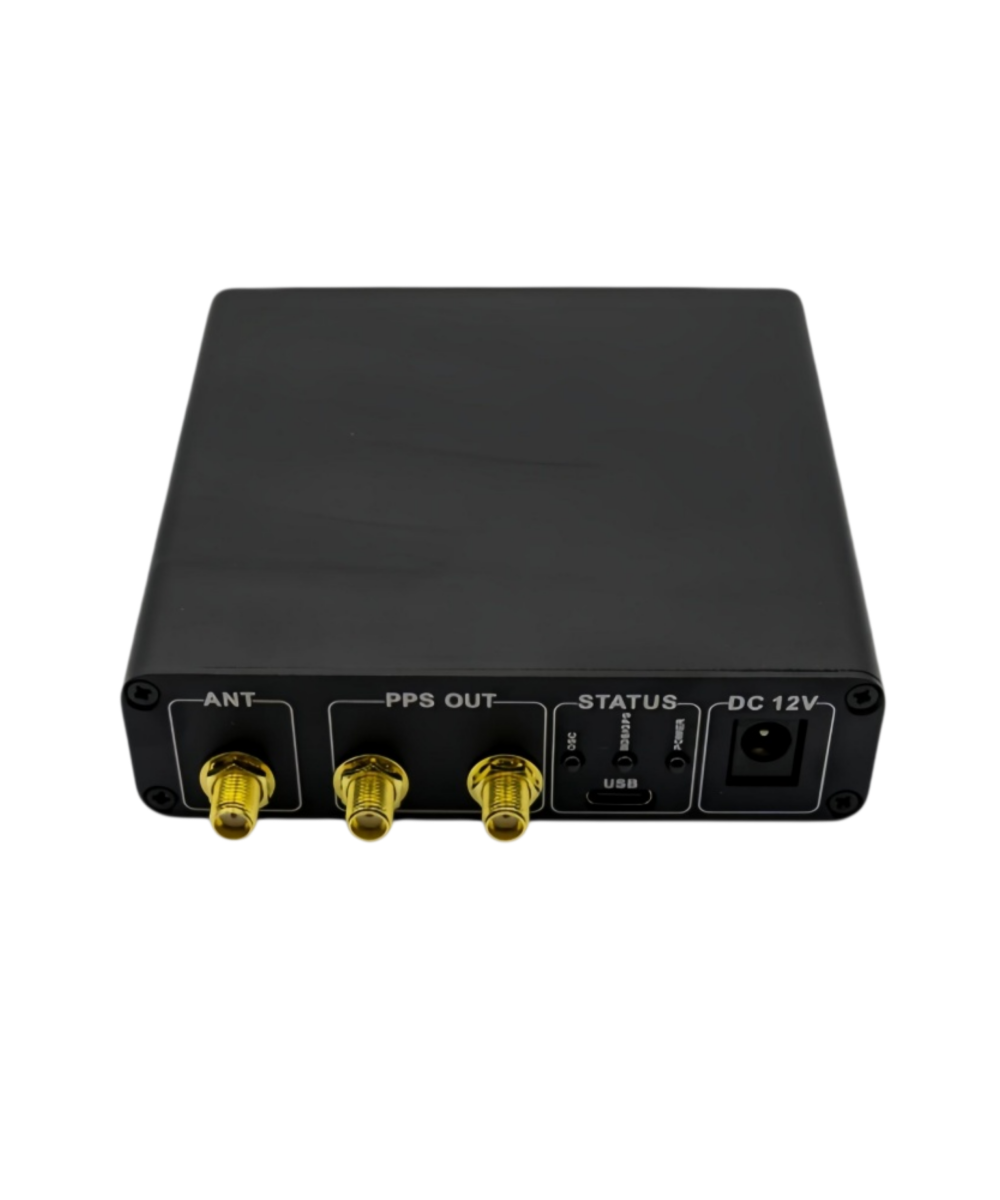

  • GPS antenna: Active antenna required · SMA connector.
  • Software: Driver and utility provided after purchase.
  • Warm‑up: 5–10 minutes for full OCXO stabilization.
  • Amplitude: Please confirm signal type (sine / square) for your application.
  • Connectors: External outputs are SMA · internal expansion is IPEX.
Applications
  • SDR (Software Defined Radio) reference clock
  • Test and measurement equipment
  • Time and frequency synchronization
  • Laboratory frequency standards
  • Telecommunications and network timing
Package Contents
  • GPSDO unit ×1
  • User manual ×1
