YX-OS80 High-Speed AD/DA Acquisition FMC Card – AD9176 12.6GSPS DAC + AD9695 1.3GSPS ADC

$1,382.00
$1,727.00
$1,382.00
-20%
Vendor: YanTechLab
Only 9 items in stock! Out of stock!

Guaranteed safe checkout

  • PayPal

Description

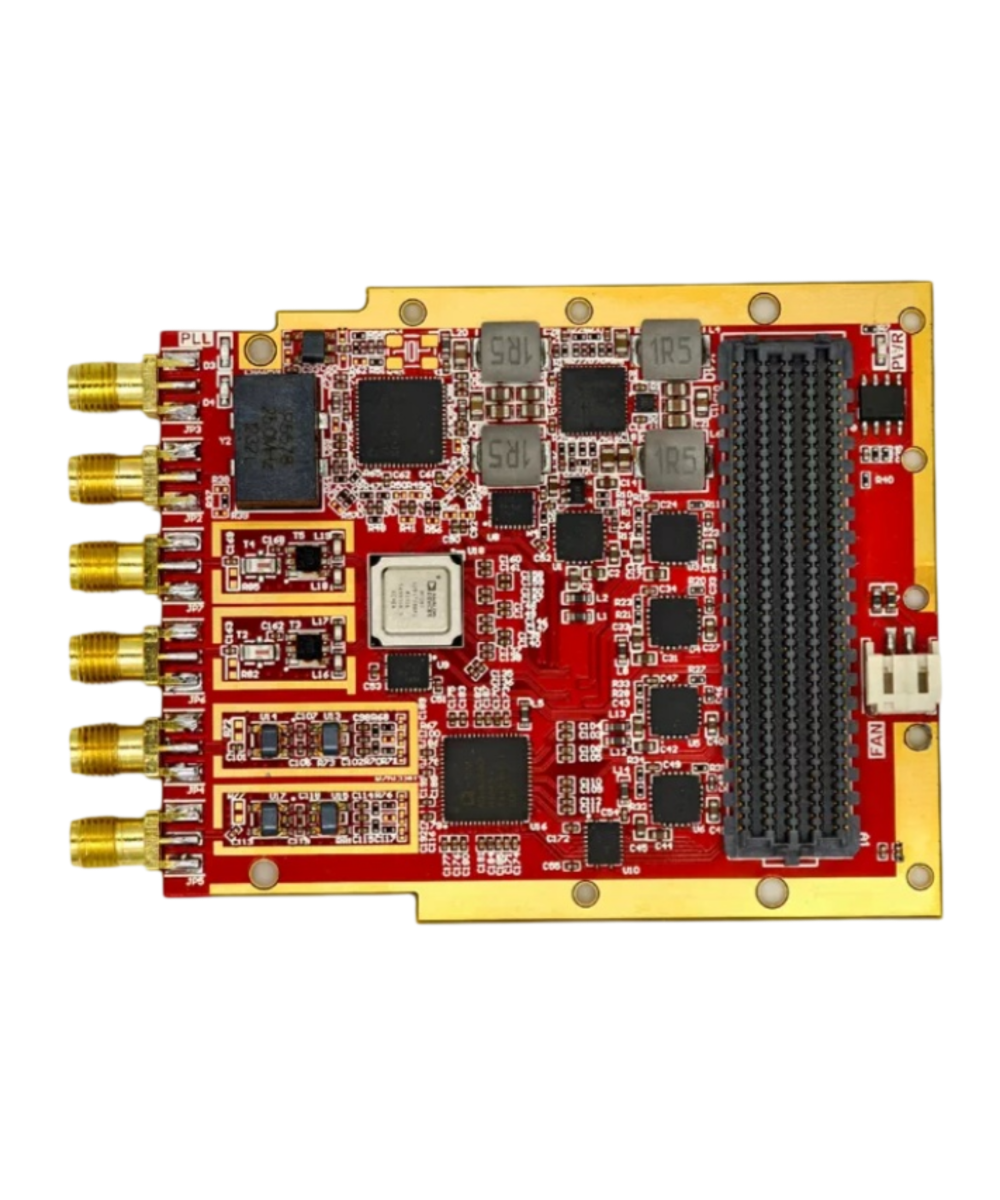

FMCADDA-9695-9176 is a high‑speed ADC/DAC FMC daughter card equipped with dual‑channel 14‑bit 1300 MSPS ADC (AD9695) and dual‑channel 16‑bit 12.6 GSPS DAC (AD9176). Compliant with the FMC HPC standard (VITA 57.1), it features a gold‑plated process board, on‑board constant‑temperature crystal oscillator (OCXO), and JESD204B PLL synchronous clock distribution. ADDA input/output uses standard SMA connectors and supports external clock input and trigger I/O.

Key features
  • ADC: Dual‑channel 14‑bit 1300 MSPS (AD9695BCPZ‑1300)
  • DAC: Dual‑channel 16‑bit 12.6 GSPS (AD9176BCPZ)
  • Interface: FMC HPC (VITA 57.1) high‑density board‑to‑board connector
  • Clock: On‑board OCXO 25M low phase noise · 0.1 ppm stability
  • Sync: JESD204B PLL clock distribution · LMK04828
  • RF: Standard SMA connectors · external clock & trigger I/O
  • Cooling: Active fan heatsink included

Applications: high‑speed data acquisition, software defined radio, radar, 5G/6G prototyping, arbitrary waveform generation, laboratory instrumentation.

ADC Specifications
ADC model AD9695BCPZ‑1300
Sampling rate / resolution 1300 MSPS · 14‑bit
Number of channels Dual‑channel
Input frequency response 500 kHz – 500 MHz (RF transformer AC coupling)
Input amplitude 2 Vpp max (50 Ω)
Drive interface JESD204B (4‑lane, up to 10 Gbps per lane)
DAC Specifications
DAC model AD9176BCPZ
Sampling rate / resolution 12.6 GSPS · 16‑bit
Number of channels Dual‑channel
Output frequency response 10 MHz – 5000 MHz (RF transformer AC coupling)
Output amplitude ~ -5 dBm @ 1 GHz single tone · 50 Ω
Drive interface JESD204B (8‑lane, up to 15.6 Gbps per lane)
Clock & Interface Specifications
On‑board clock OCXO 25 MHz low phase noise constant‑temperature crystal
Clock stability 0.1 ppm · supports external reference clock input
Clock chip LMK04828 high‑performance JESD204B clock
Sync distribution JESD204B PLL synchronous clock distribution
FMC interface Standard FMC HPC board‑to‑board high‑density connector
RF connectors Standard SMA (ADDA input/output)
External I/O External clock input · trigger I/O
Cooling Dedicated heatsink with active fan
Capability Highlights
1300 MSPS ADC 14‑bit dual channel
12.6 GSPS DAC 16‑bit dual channel
JESD204B High‑speed serial interface
FMC HPC VITA 57.1 compliant
OCXO 25M Low phase noise · 0.1 ppm
LMK04828 Precision clock distribution
SMA I/O Standard RF connectivity
Active Cooling Fan heatsink included
Applications
  • High‑speed data acquisition systems
  • Software Defined Radio (SDR) platforms
  • Radar and electronic warfare systems
  • 5G / 6G prototyping and research
  • Arbitrary waveform generation (AWG)
  • Laboratory instrumentation and measurement
Package Contents
  • FMCADDA‑9695‑9176 FMC daughter card ×1
  • Dedicated heatsink with active fan ×1
  • User manual ×1
