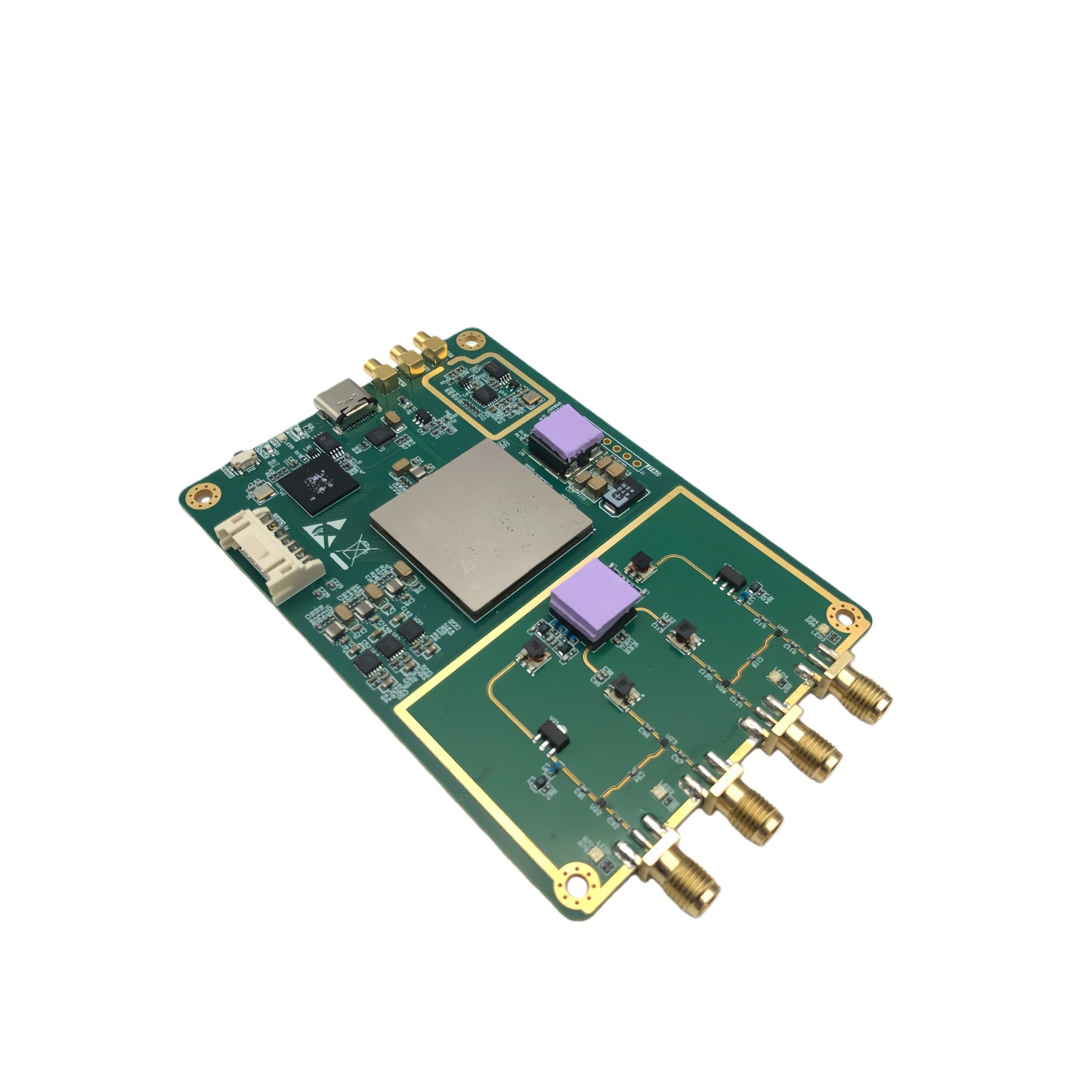

YX-OS30 USRP B210 Wideband SDR Signal Processing Platform with AD9361 and K325T FPGA, UHD Compatible for OpenWiFi Development
YX-OS30 USRP B210 Wideband SDR Signal Processing Platform with AD9361 and K325T FPGA, UHD Compatible for OpenWiFi Development
Verfügbarkeit für Abholungen konnte nicht geladen werden
USRP B210 Upgrade SDR Platform
Product Overview
The DRF UHD B210 upgraded SDR platform features a frequency range from 70 MHz to 6 GHz and is fully compatible with the official UHD driver. It supports GNU Radio , C++ / Python API , MATLAB , and Vivado-based FPGA development (not legacy ISE). Wireless operation is intended for learning and research only and must comply with local regulations.
Core Hardware Specifications
| Parameter | Specification |
|---|---|
| RF Frequency Range | 70 MHz – 6 GHz |
| RF Transceiver | Analog Devices AD9361 |
| Main Processor | Xilinx XC7K325T |
| ADC/DAC Resolution | 12-bit, variable sampling rate |
| RF Channels | 2 TX / 2 RX |
| Operating Modes | Half-duplex / Full-duplex |
| MIMO Support | 2×2 MIMO |
| Max Bandwidth (1×1 Mode) | 56 MHz |
| GPIO | 8 external GPIO pins |

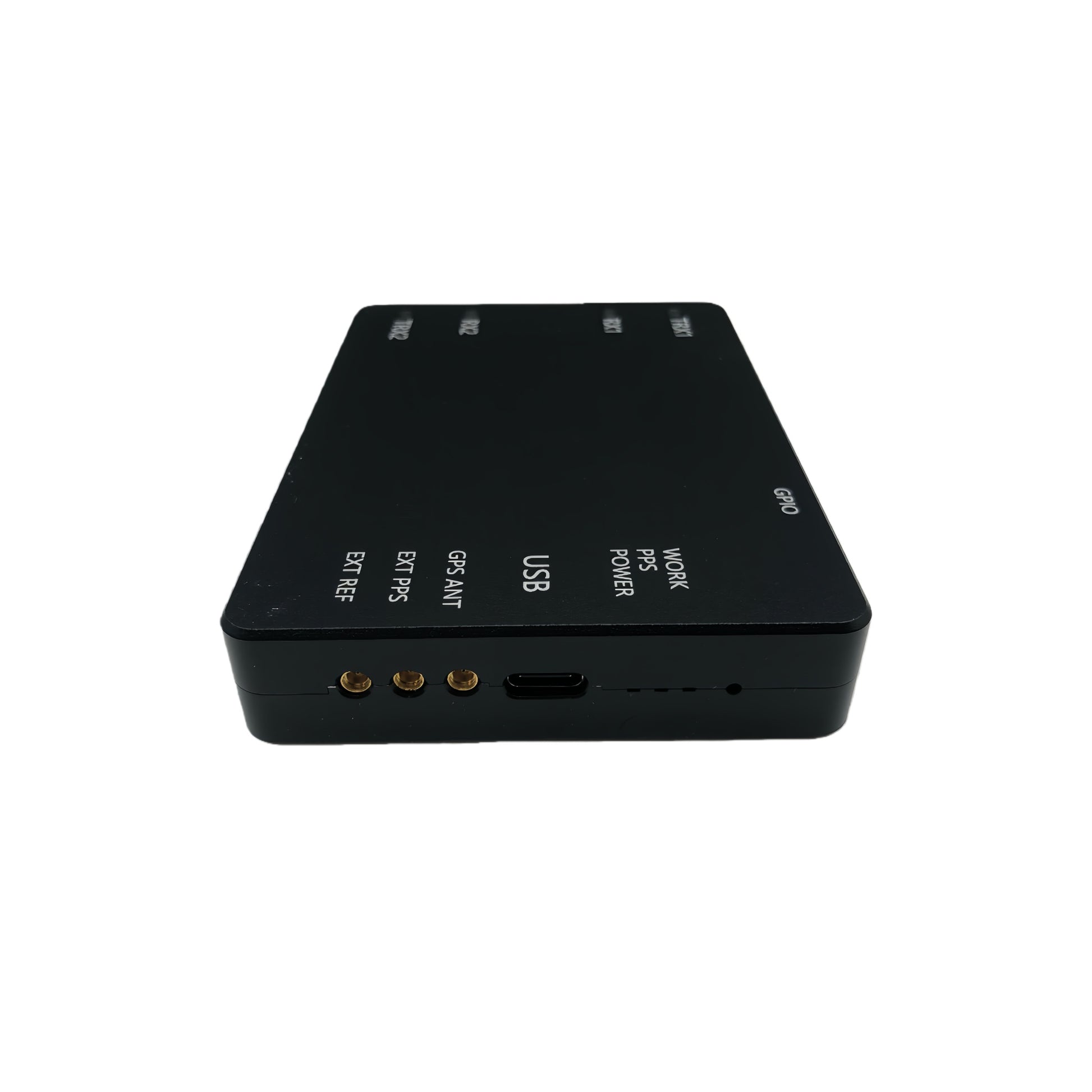

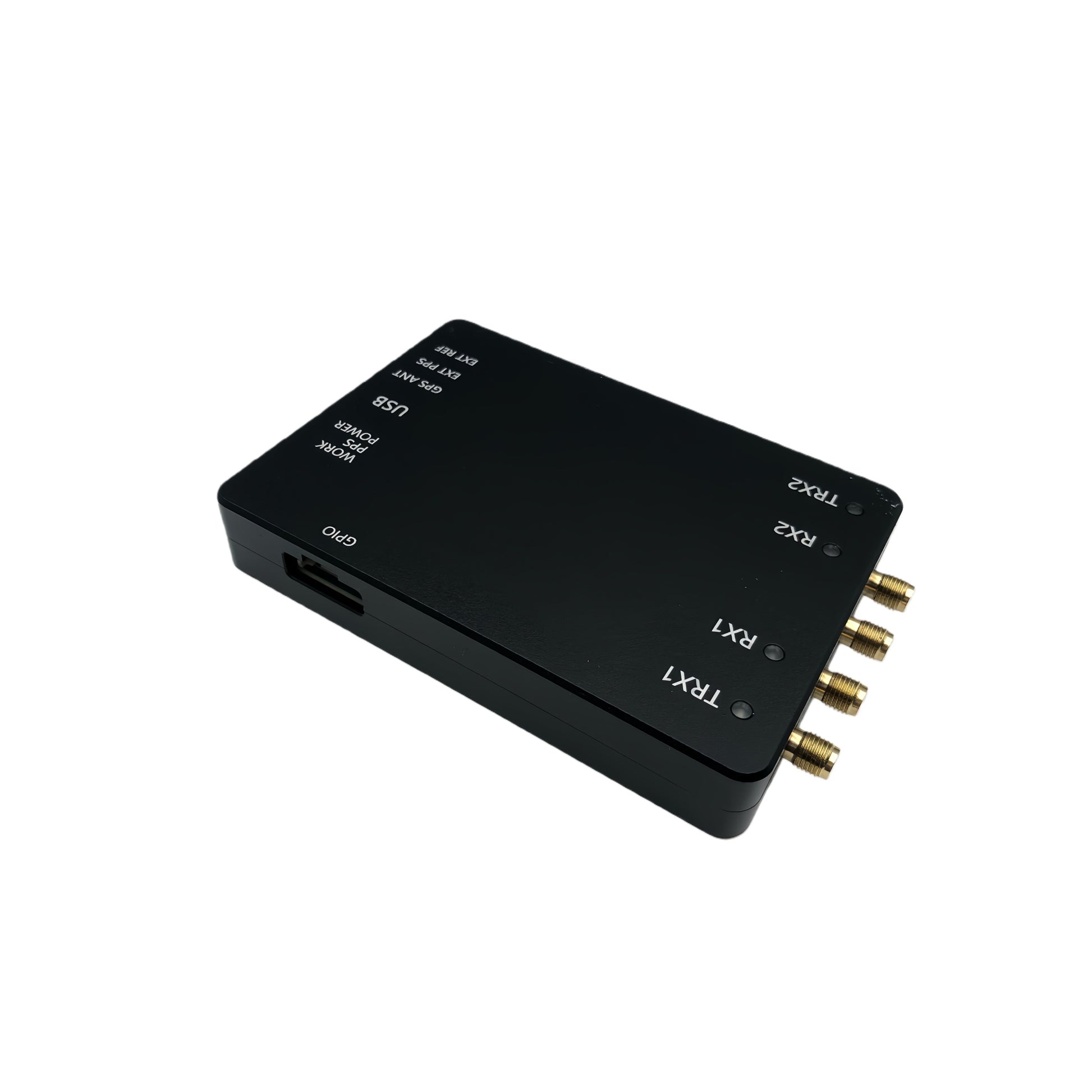

Interfaces & Synchronization
| Interface | Description |
|---|---|
| USB Interface | USB 3.0 with Type-C connector |
| GPS | Integrated GPS synchronization |
| Reference Clock | External 10 MHz reference input supported |
| PPS | External 1PPS synchronization input supported |
Software & Development Support
- Fully compatible with UHD driver
- Supports GNU Radio development
- Supports C++ and Python API
- Supports MATLAB-based SDR development
- FPGA development using Vivado (non-legacy ISE)
Shipping & Delivery
We process orders within 48 hours and ship via small-package express logistics. Delivery to the US and most of Europe typically takes 8–14 days. If any issues arise, we will contact you immediately via email.
Returns & Warranty
If you have any questions upon receiving the product, please contact us immediately. Returns and exchanges are processed promptly if they meet our return policy requirements. Thank you for your understanding.
Technical Support
Documentation and guides are available. For further support, you can reach us via t.me/YanTechLab .
Usage Disclaimer
This SDR platform is intended for learning, research, and experimental use only . All wireless operations must comply with local laws and regulations. Any illegal use is strictly prohibited.
