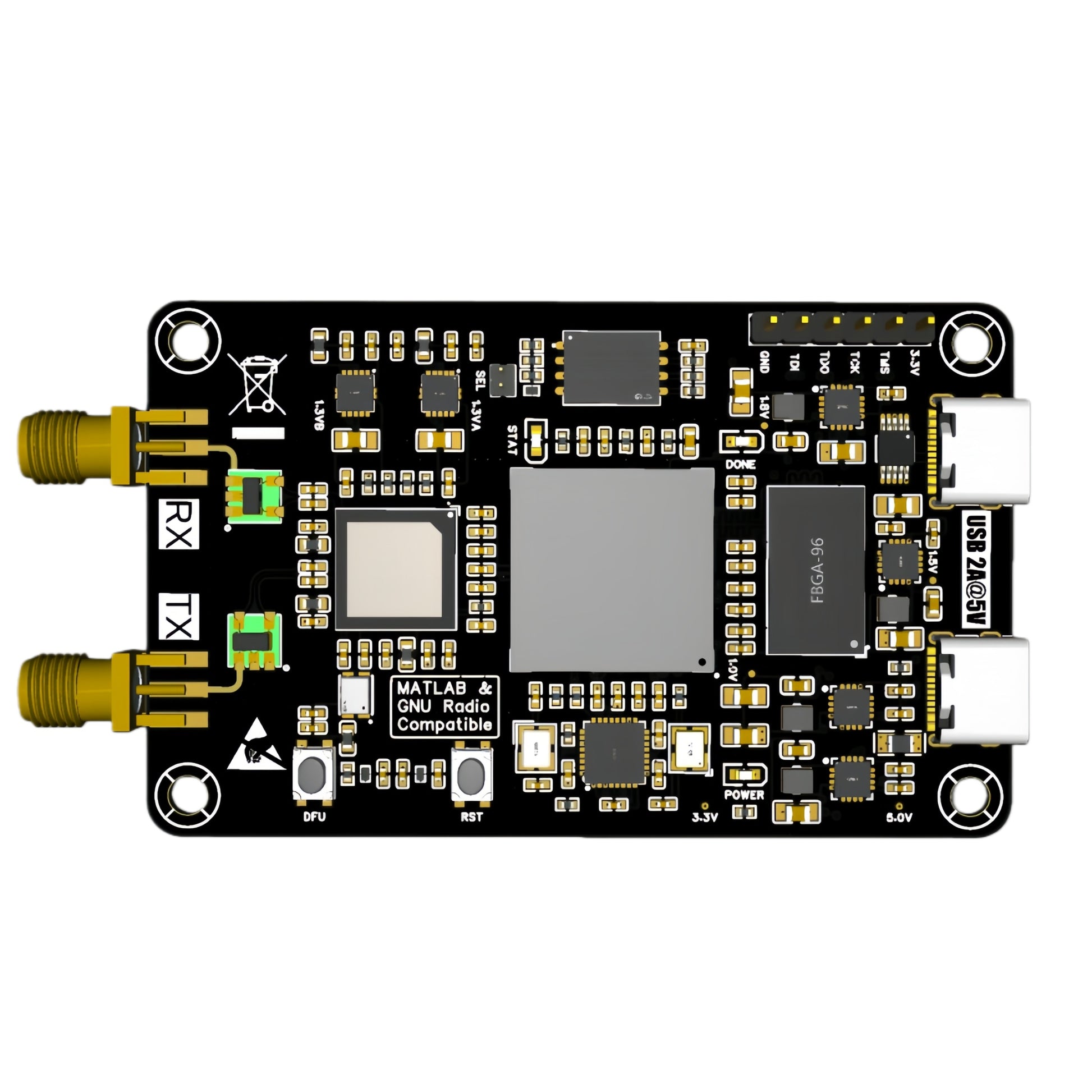

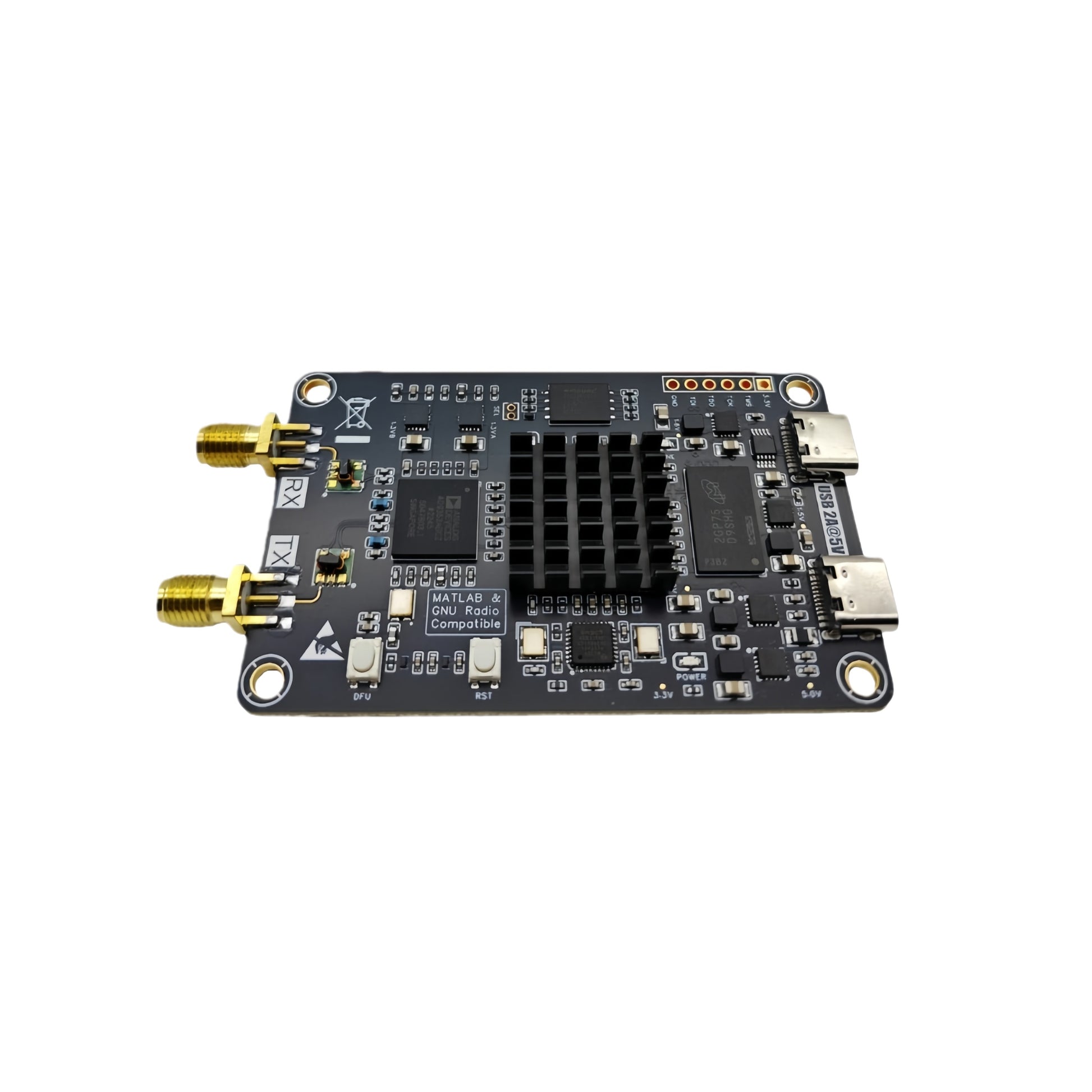

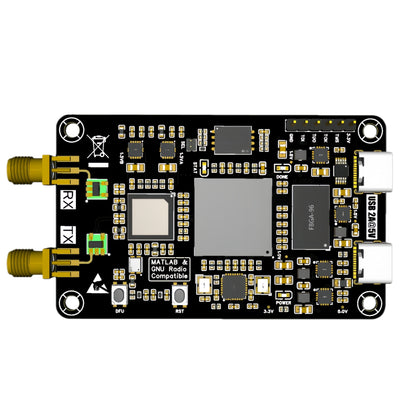

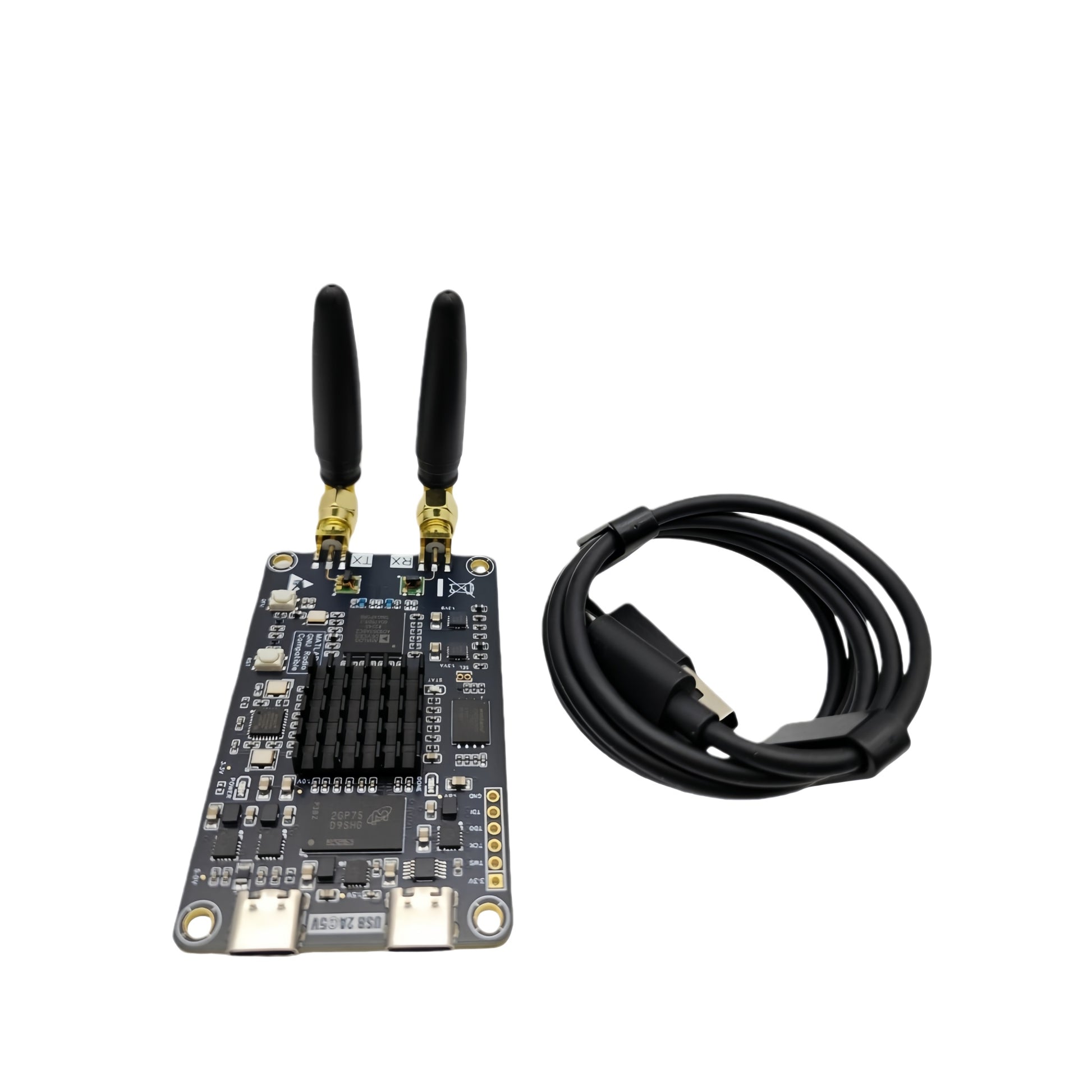

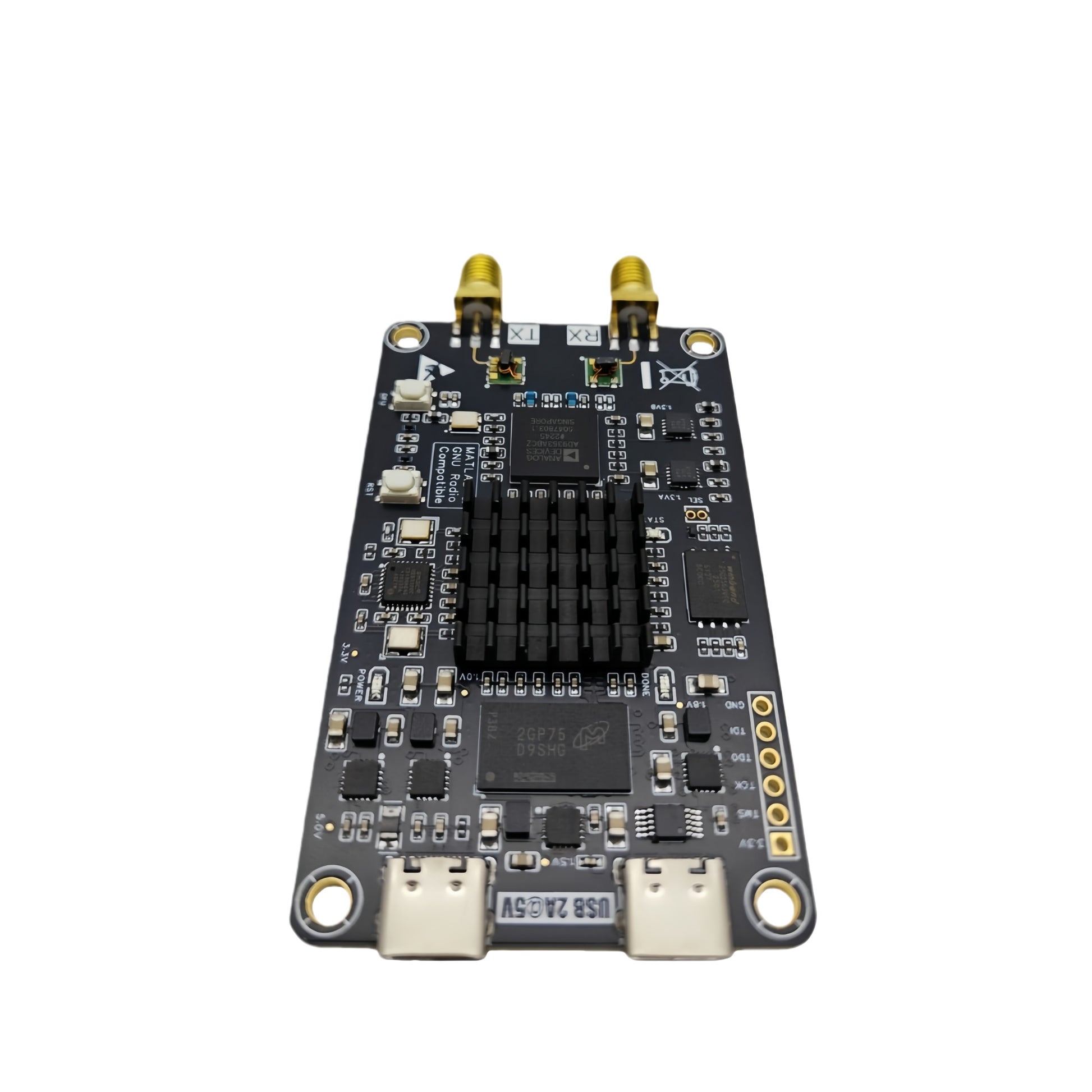

PlutoSDR NANO Software-Defined Radio based on ZYNQ7010 and AD9363, offering exceptional value for money and ideal for beginners.

Name: PlutoSDR NANO Software-Defined Radio based on ZYNQ7010 and AD9363, offering exceptional value for money and ideal for beginners.
Brand: YanTechLab
Price: 67.00 USD
Availability: InStock

$67.00 USD

$67.00 each

Sale Sold out

Appendix 1: Development Documentation (Pinout Constraints)

Pin Mapping Table

AD936X	Pin Number	Pin Number
DATA_CLK_P	G11	H16
RX_FRAME_P	G8	K19
P1_D0/RX_D0_N	K11	E17
P1_D1/RX_D0_P	J12	G18
P1_D2/RX_D1_N	K10	E18
P1_D3/RX_D1_P	J11	G19
P1_D4/RX_D2_N	K9	B20
P1_D5/RX_D2_P	J10	F20
P1_D6/RX_D3_N	K8	H20
P1_D7/RX_D3_P	J9	C20
P1_D8/RX_D4_N	K7	A20
P1_D9/RX_D4_P	J8	D19
P1_D10/RX_D5_N	J7	B19
P1_D11/RX_D5_P	H8	J20
FB_CLK_P	F10	K17
TX_FRAME_P	G9	D20
P0_D0/TX_D0_N	E12	G17
P0_D1/TX_D0_N	D11	H18
P0_D2/TX_D0_N	E11	G20
P0_D3/TX_D0_N	D10	J18
P0_D4/TX_D0_N	E10	D18
P0_D5/TX_D0_N	D9	J19
P0_D6/TX_D0_N	E9	K16
P0_D7/TX_D0_N	D8	K18
P0_D8/TX_D0_N	E8	L20
P0_D9/TX_D0_N	D7	L19
P0_D10/TX_D0_N	F8	E19
P0_D11/TX_D0_N	E7	L16
CTRL_OUT0	D4	P20
CTRL_OUT1	E4	R18
CTRL_OUT2	E5	R17
CTRL_OUT3	E6	N18
CTRL_OUT4	F6	T17
CTRL_OUT5	F5	N17
CTRL_OUT6	F4	R19
CTRL_OUT7	G4	T19
CTRL_IN0	C5	N20
CTRL_IN1	C6	P15
CTRL_IN2	D6	P14
CTRL_IN3	D5	P16
EN_AGC	G5	U18
RESETB	K5	W19
ENABLE	G6	T20
TXNRX	H4	U20
SPI_ENB	K6	Y19
SPI_CLK	J5	W20
SPI_DI	J4	V20
SPI_DO	L6	Y18

Appendix 2: Comparison Between PlutoSDR Nano and ADALM-PLUTO

Parameter	PlutoSDR Nano	ADALM-PLUTO
Main Chip	XC7Z010CLG400	XC7Z010CLG225
RF Chip	AD9363ABCZ	AD9363ABCZ
Memory	DDR3 512MB	DDR3 512MB
Current Limiting Scheme	FUSE 2A	ADM1177
USB PHY	USB3320	USB3320
Flash	QSPI 32MB	QSPI 32MB
Balun	10MHz–6GHz	10MHz–6GHz
TCXO	40MHz ±0.5PPM	40MHz ±25PPM
