Description

Built around the Unicore UM982 module and designed for high‑reliability applications — drones, precision agriculture, autonomous robots, and intelligent driving exams. Delivers centimeter‑level RTK positioning and compass‑free GPS heading, immune to magnetic interference from motors and metal structures.

Key Advantage — GPS Heading Without Compass

Provides reliable heading data for flight controllers and motion control systems. Unlike traditional magnetic compasses, this moving‑baseline heading solution actively avoids errors caused by motor EMI, onboard electronics, and surrounding metal — ensuring robust yaw output even in complex electromagnetic environments.

GNSS & Performance

Channels	1408
Antenna Configuration	Dual‑antenna positioning & heading
Frequency Support	All‑constellation, all‑frequency
Signal Reception	BDS · GPS · GLONASS · Galileo · QZSS
Update Rate	20 Hz
Cold Start	≤ 30 s
Hot Start	≤ 1 s
Antenna Matching	Π‑network 50Ω impedance matching

Positioning & Heading Accuracy

Standalone (H)	1.5 m
Standalone (V)	2.5 m
DGNSS (H)	0.4 m + 1 ppm
DGNSS (V)	0.8 m + 1 ppm
RTK (H)	1 cm + 1 ppm
RTK (V)	1.5 cm + 1 ppm
Heading (1 m baseline)	0.1°

Power

Input Voltage

3.3 – 9 V (5 V recommended)

Resources & Documentation

Firmware Updates

3D Enclosure Design Files (V2.0)

UPrecise Software

Command Protocol Datasheet

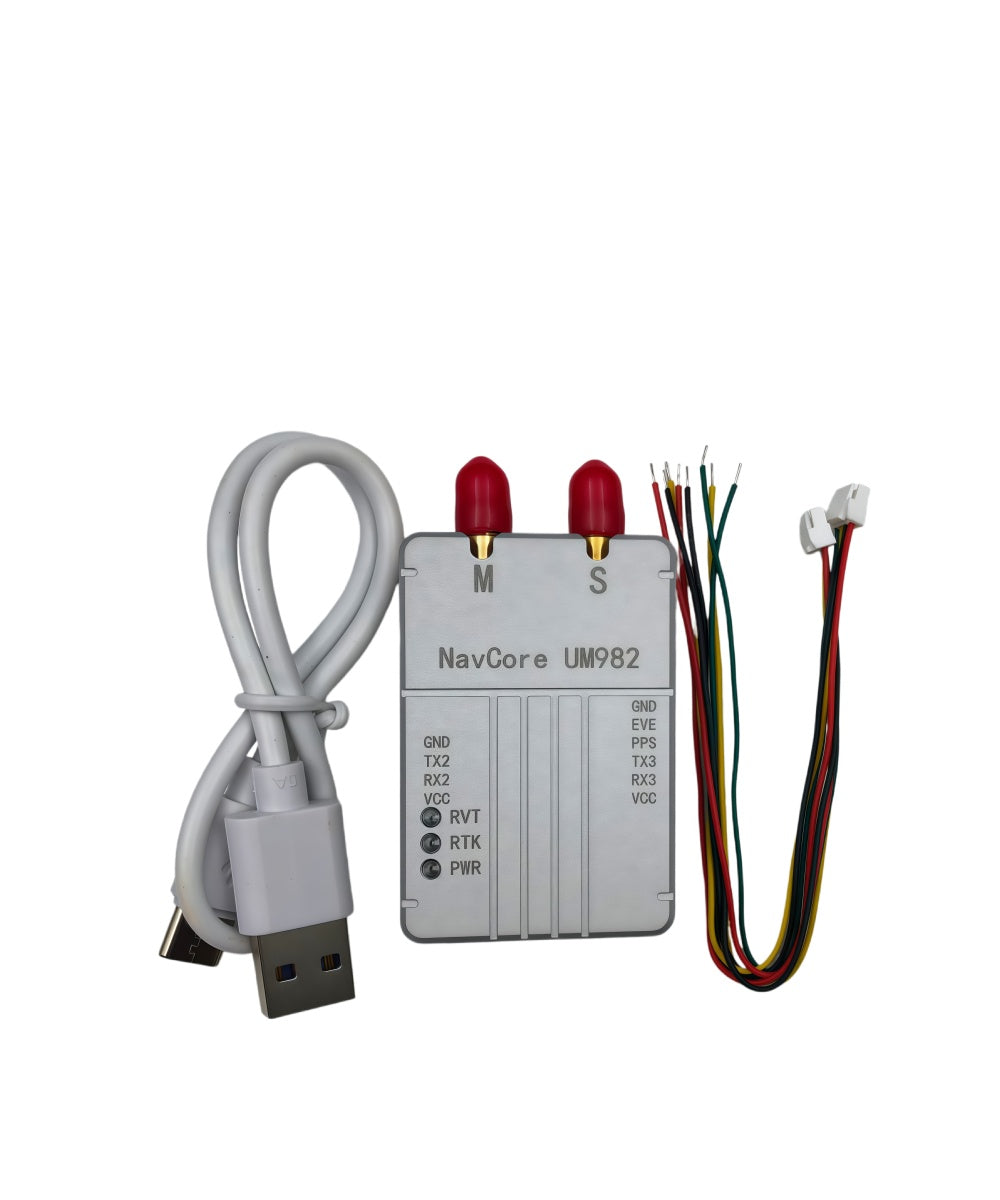

In the Box

1 × NavCore UM982 Board
1 × CNC Enclosure
2 × Expansion Flat Cables
1 × USB to Type‑C Data Cable
2 × SR-303（L1+L2+L5 36±2dB Antenna - Optional Configuration)
