YX-OS37 XC7Z100 + ADRV9009 SDR with Preloaded Firmware and ADI IIO Support

Цена со скидкой: $553.00
Обычная цена: ~~$738.00~~
Обычная цена: $553.00
Цена за единицу: за

Продавец: YanTechLab

Only 9 items in stock! Out of stock!

Варианты товара

Количество

Guaranteed safe checkout

Description

2× TX/RX · 2×1 GB DDR · GPS · External RF Ref & LO · ADI IIO

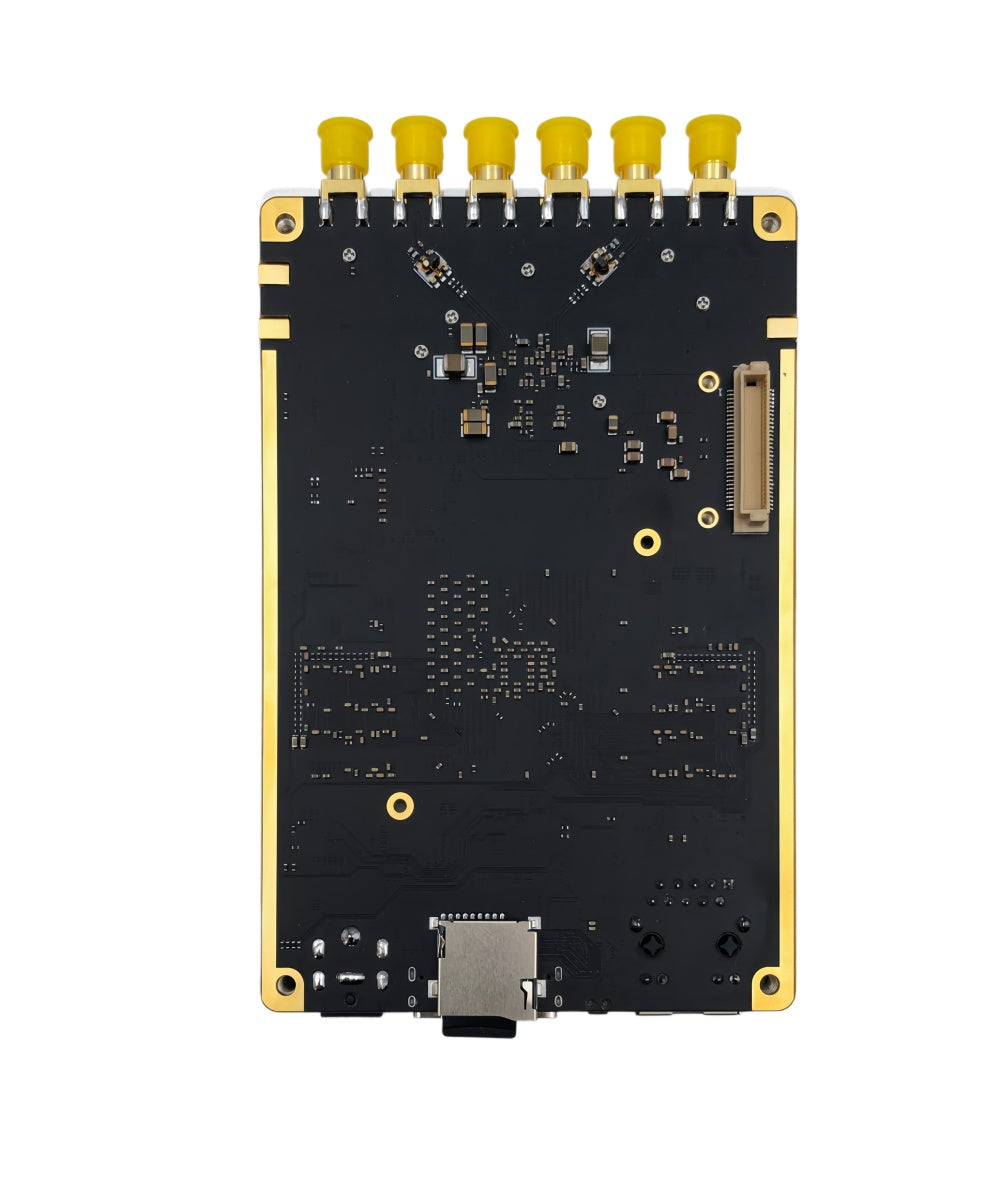

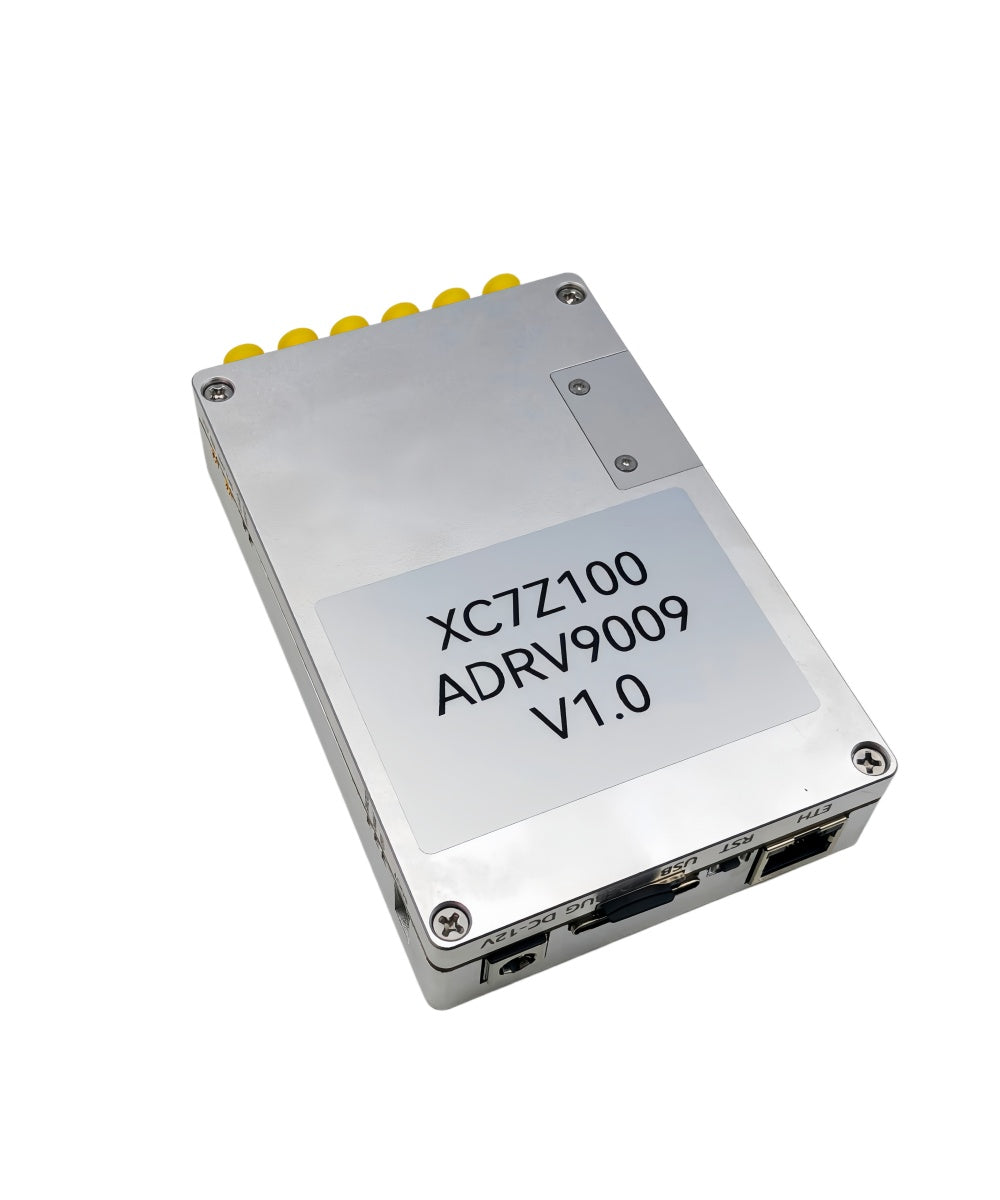

A professional‑grade SDR platform for wideband RF and software‑defined radio development. Built around the ADRV9009 transceiver and XC7Z100 SoC, with dual 1 GB DDR banks, integrated GPS, and external RF reference/LO inputs. Housed in a CNC‑machined aluminum chassis that doubles as a heatsink for reliable sustained operation.

RF & System

RF Transceiver	ADRV9009
Baseband Processor	XC7Z100

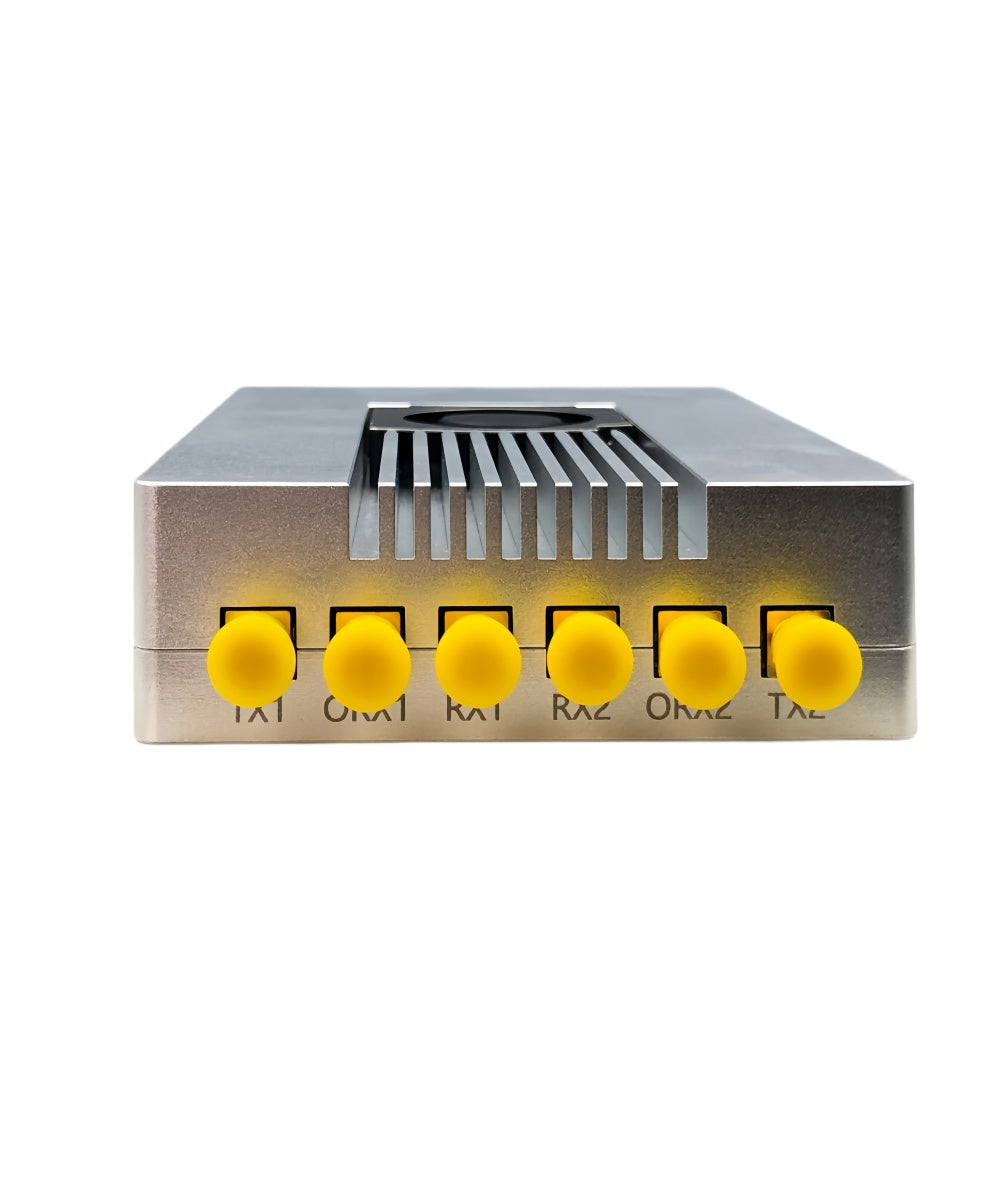

RF Channels	2× TX · 2× RX · 2× OTX
External RF Ref	Supported

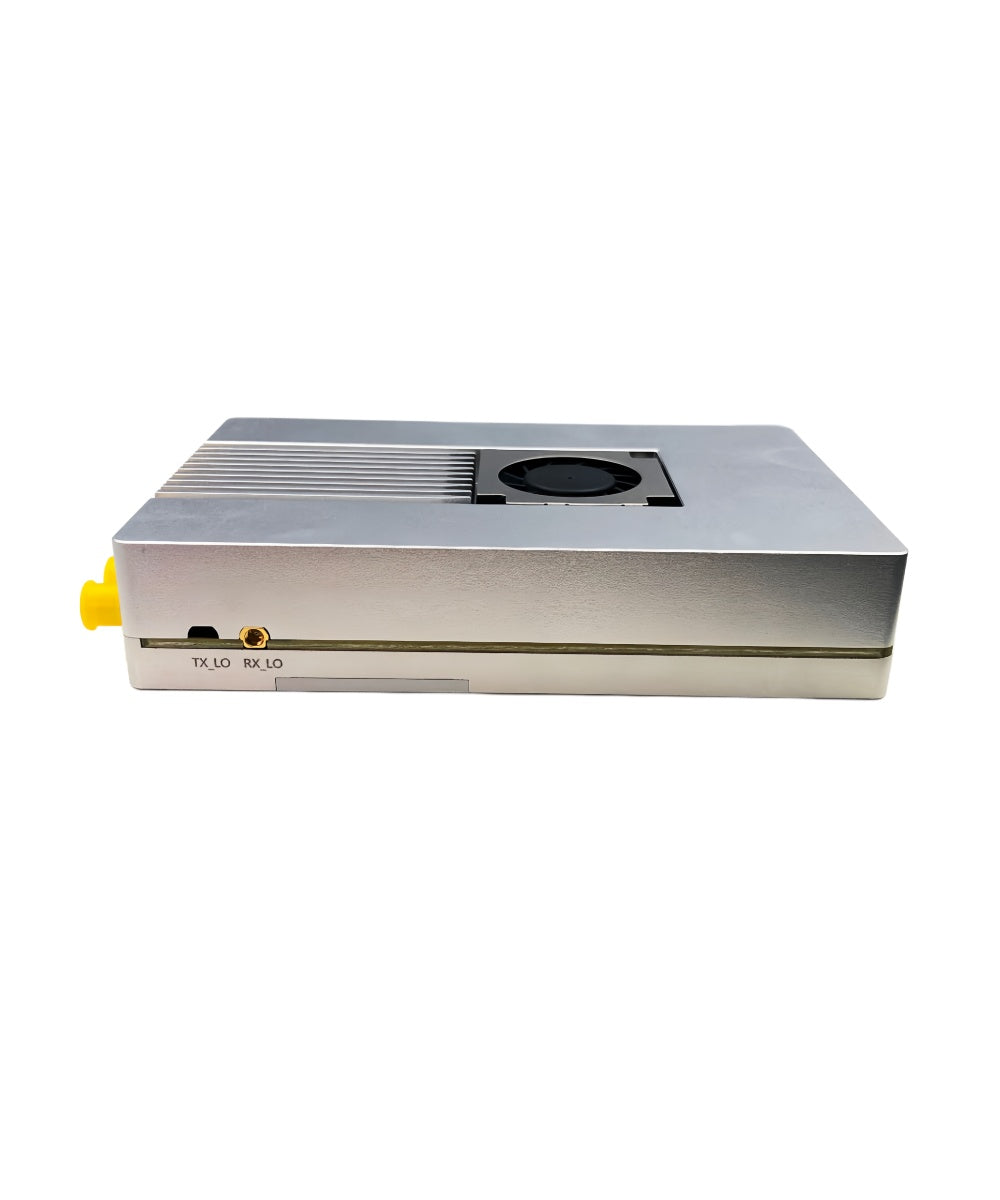

External LO	Supported

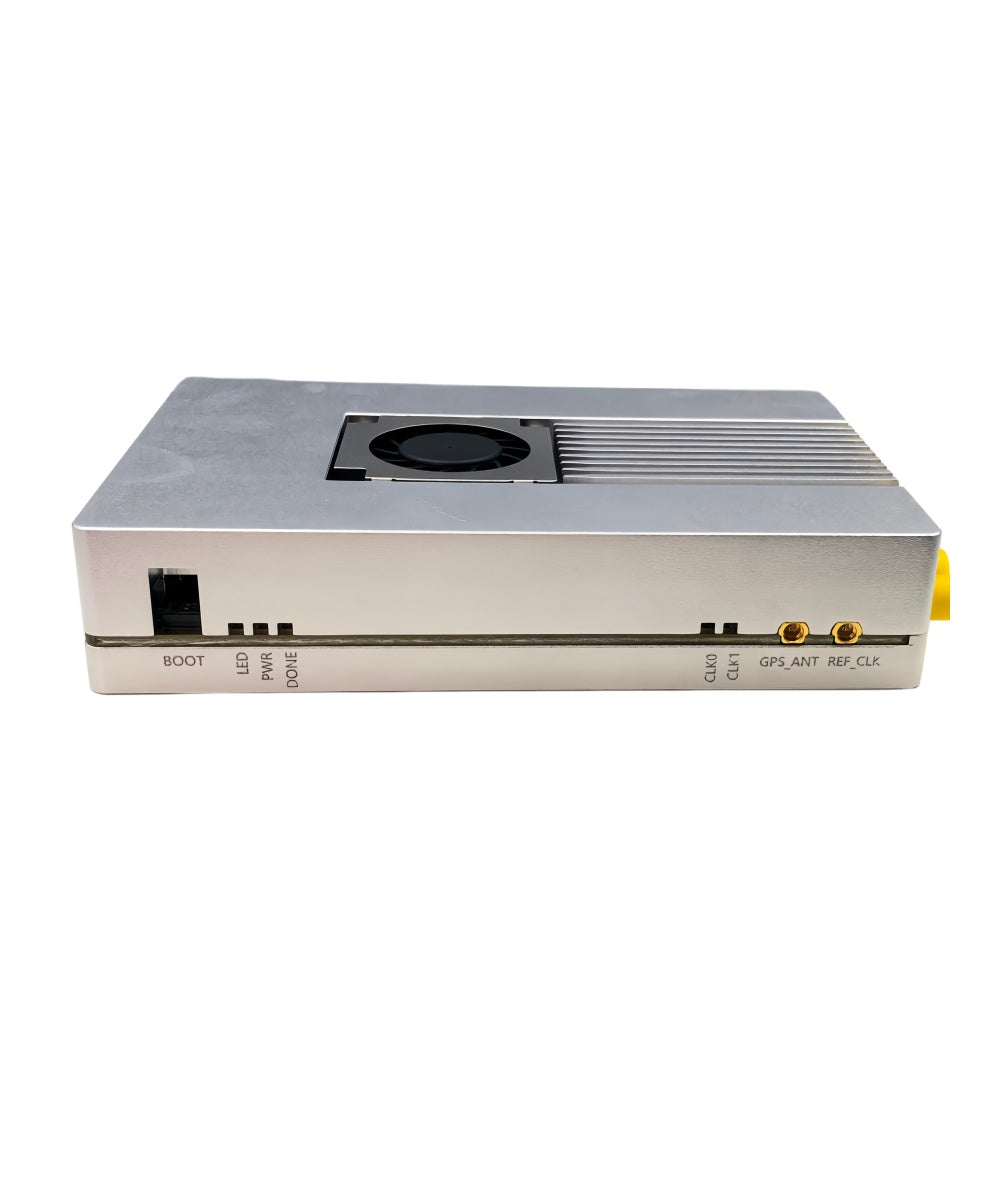

Synchronization	Built‑in GPS module

Memory & Interfaces

DDR (PS Side)	1 GB
DDR (PL Side)	1 GB

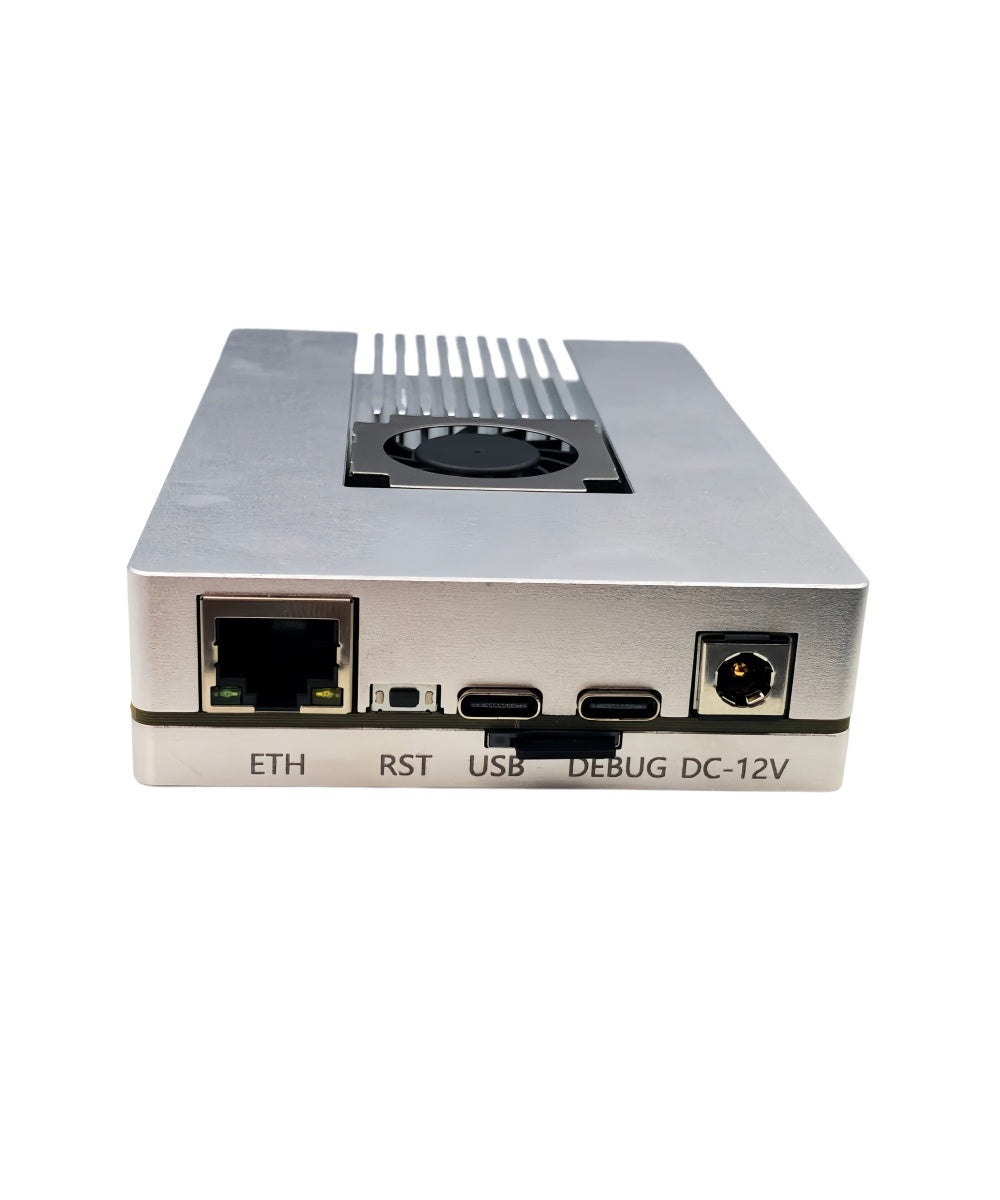

Ethernet	Gigabit (PS Side)
USB	USB 2.0 (PS Side)

Physical & Power

Board Size	~ 8 × 12 cm
Enclosure	CNC aluminum · heatsink function
Power	DC 12 V

Firmware & Documentation

Firmware	Pre‑installed · ADI IIO support
Schematics	Full hardware schematics provided
Drivers	Bare‑metal driver source code included
