YX-OS45 Pushi DS4T252 Ultra-Portable Touchscreen Oscilloscope – 50MHz Bandwidth, 200MSa/s, 2Mpts Memory Depth, Dual-Channel Handheld Mini

Цена со скидкой: $148.00
Обычная цена: ~~$185.00~~
Обычная цена: $148.00
Цена за единицу: за

Продавец: YanTechLab

Only 9 items in stock! Out of stock!

Варианты товара

Количество

Guaranteed safe checkout

Description

DS4T252 Ultra-Portable 2-Channel Oscilloscope · 50MHz 200MSa/s 2Mpts

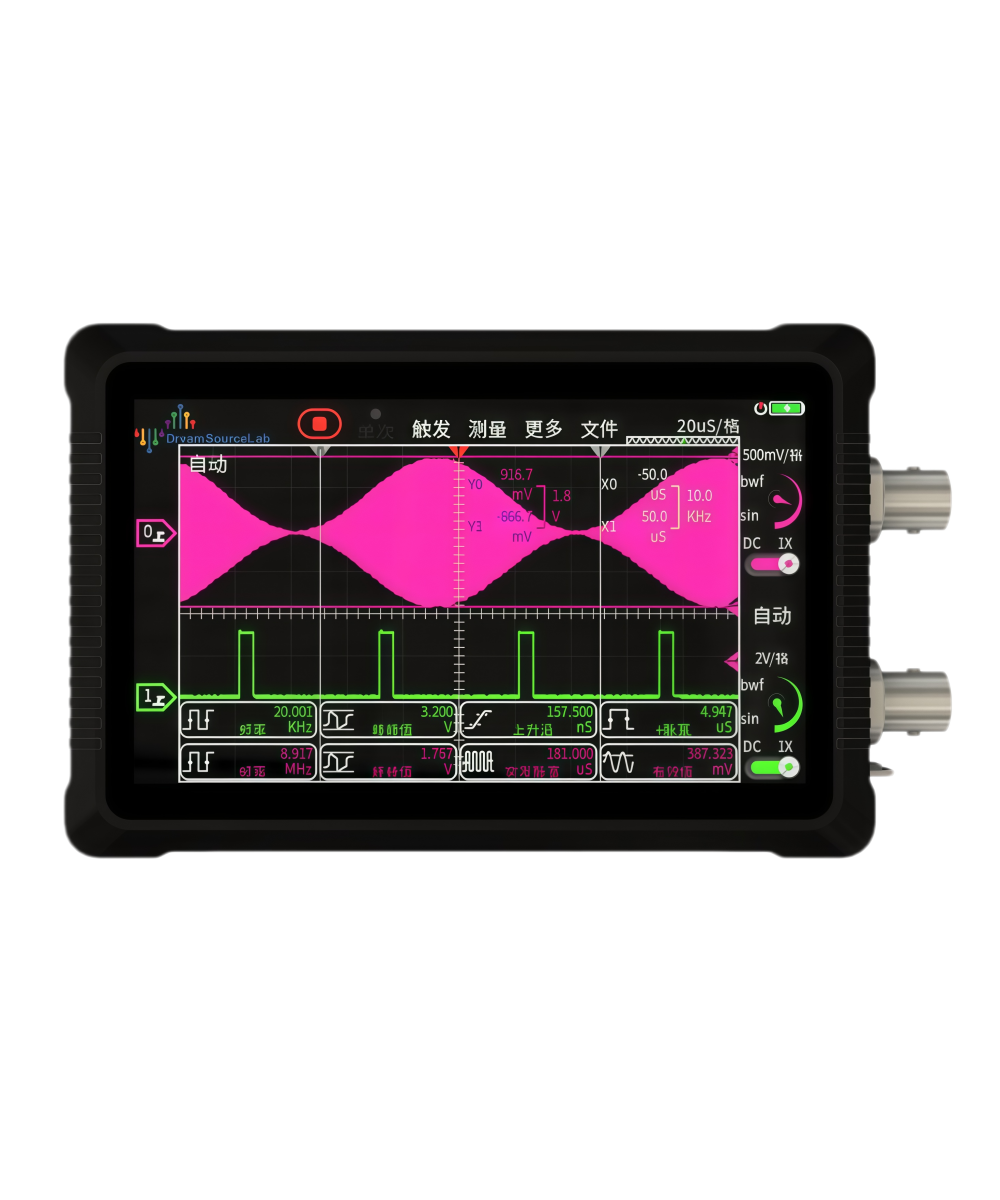

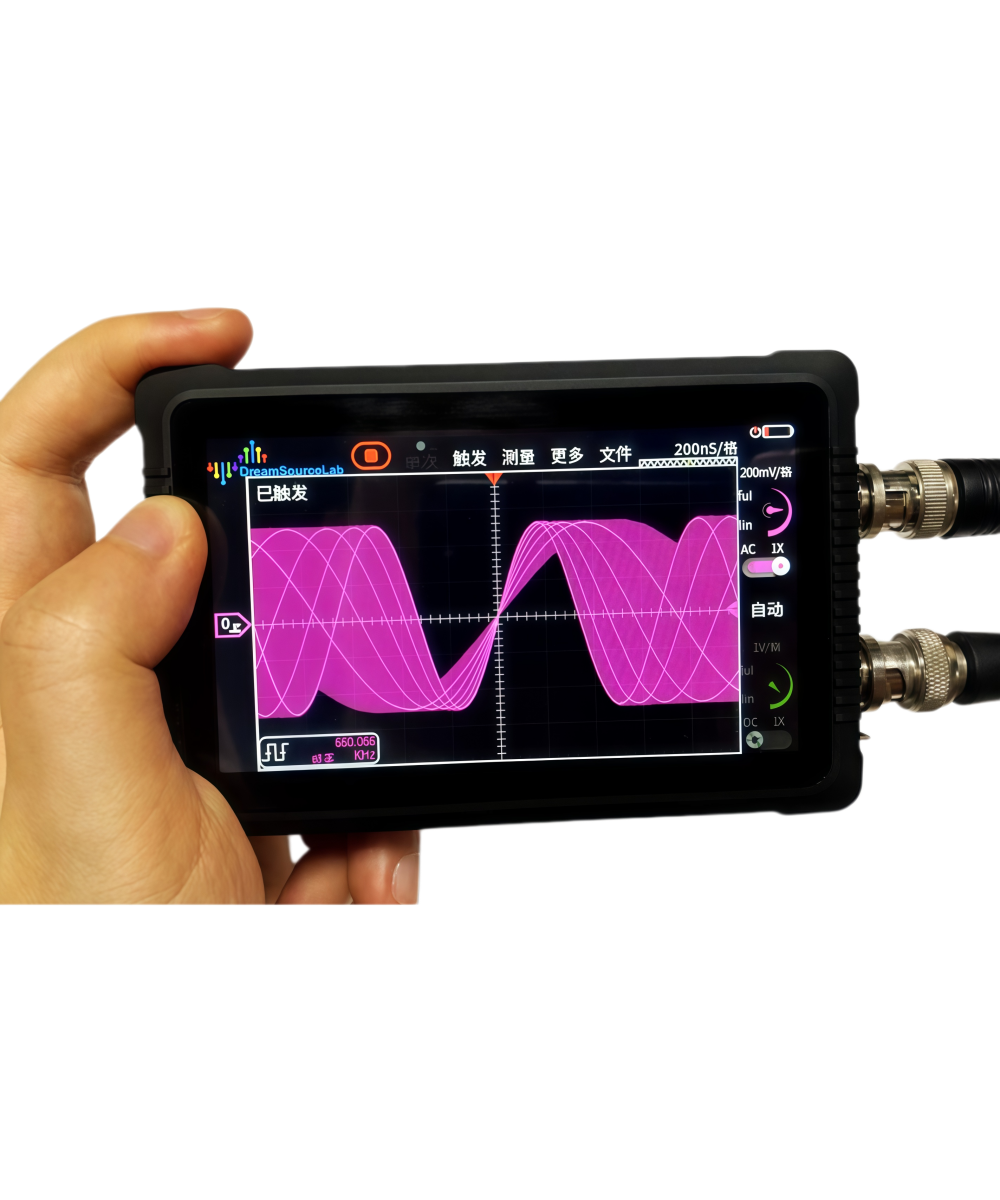

DS4T252 is an ultra‑portable 2‑channel touchscreen oscilloscope with 50MHz analog bandwidth, 200MSa/s real‑time sampling rate, and up to 2Mpts memory depth. Equipped with a 4.3‑inch IPS capacitive touchscreen, built‑in rechargeable battery, and signal generator, it's ideal for field debugging, education, and embedded system development.

Key features

2 channels · 50MHz bandwidth
200MSa/s sample rate (single channel)
2Mpts memory depth (single channel)
1mV/Div vertical sensitivity · 8‑bit resolution
FFT spectrum analysis · protocol decoding (UART, I2C, SPI)
Signal generator · 4.3″ IPS touchscreen
Ultra‑compact 117×77×20mm · Li‑ion battery

Applications: embedded debugging, education, field service, automotive diagnostics, IoT development.

Technical Specifications

Vertical System
Analog Bandwidth	50 MHz
Input Coupling	DC or AC
Input Impedance	1 MΩ // ~17 pF
Vertical Sensitivity	1 mV/Div to 5 V/Div
Vertical Resolution	8 bits
Max Input Range	Peaks ≤ 200 V
DC Gain Accuracy	±4%
Vertical Position	±4 divisions
Vertical Offset Range	±8 mV ~ ±40 V (depending on V/Div)

Horizontal System
Sample Rate (single channel)	200 MSa/s
Sample Rate (dual channel)	100 MSa/s
Timebase Range	5 ns/Div to 10 s/Div
Acquisition Duration (max sample rate)	10 ms (real‑time)
Memory Depth	1 Mpts (dual‑channel) · 2 Mpts (single‑channel)

Trigger System
Trigger Modes	Auto, Normal (ch0, ch1)
Trigger Position	0% – 100% of memory depth
Holdoff Range	0 – 1 s
Trigger Type	Edge (rising/falling)
Trigger Sensitivity	0 – 0.5 divisions
Trigger Level Range	±3.75 divisions

Waveform Measurements
Manual Measurements	Pulse width, frequency, period, voltage amplitude
Automatic Measurements	Frequency, period, +duty, –duty, +pulse count, rise/fall time, +width, –width, burst width, amplitude, high/low, RMS, average, peak‑to‑peak, max, min, +overshoot, –overshoot
Cursors	X‑axis cursor · Y‑axis cursor

Waveform Display & Analysis
Display Modes	Real‑time, Single acquisition, X‑Y (Lissajous), 2‑level persistence
FFT Spectrum	Frequency range 1 Hz – 999 MHz · Linear RMS or dBV RMS · Window: Rectangle, Hann, Hamming, Blackman, Flat_top
Protocol Decoding	Real‑time · UART, I2C, SPI · Display: decimal, hex, ASCII

Signal Generator
Waveform Types	Sine, Square, Triangle, Sawtooth
Frequency Range	0 – 100 kHz (adjustable)
Amplitude Range	0.5 V – 3 V (adjustable)
Duty Cycle	10% – 90% (adjustable)

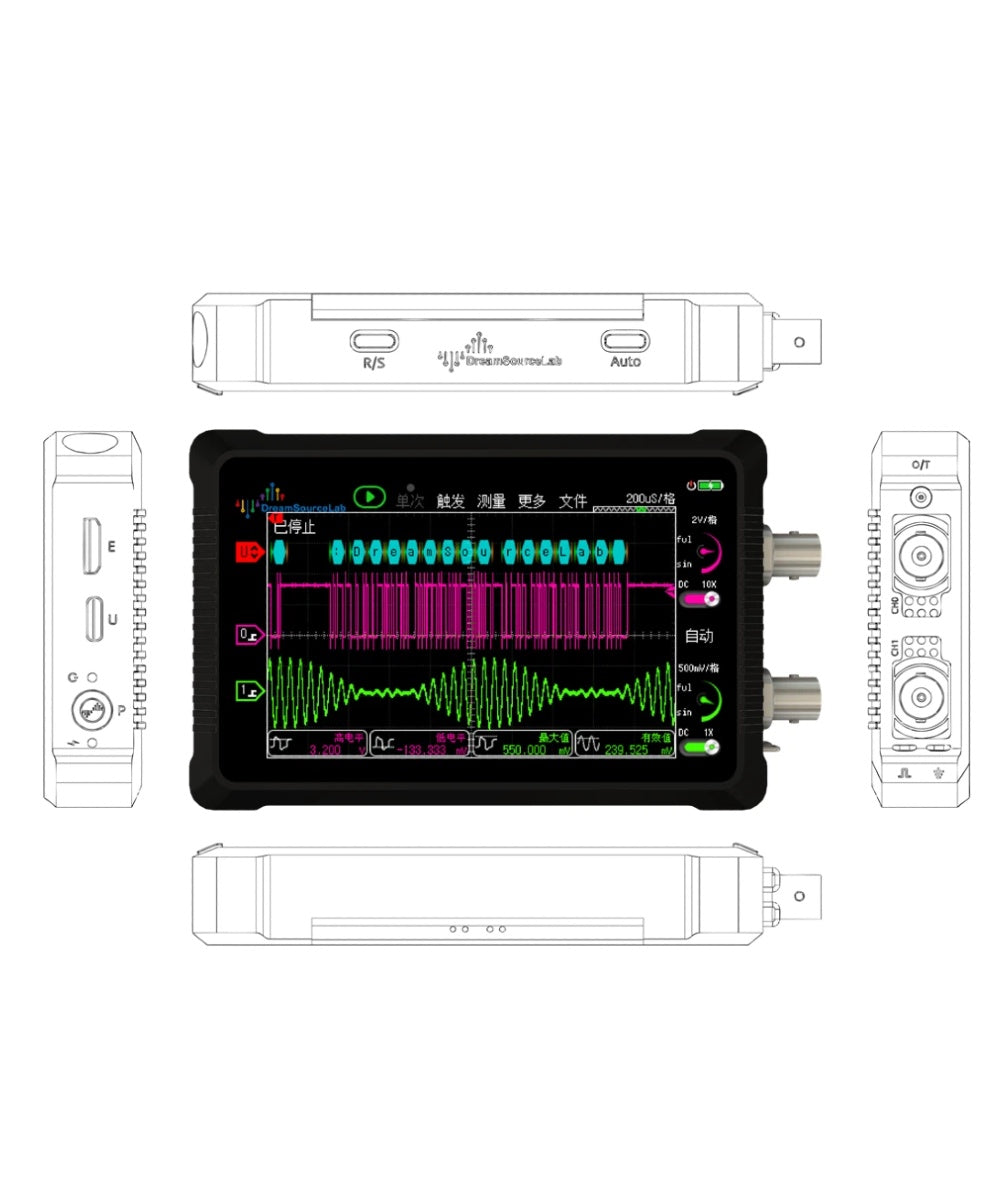

Interfaces & Power

USB Type‑C: Charging / U‑disk mode (PC connection)

Mini HDMI: Custom function expansion (not display)

Buttons: Power, Run/Stop, Auto

LEDs: Power indicator, Charging indicator

MCX: Signal generator output

BNC ×2: Standard probe input + Pogo pin expansion

Probe compensation: ~1 kHz square wave + GND

Charging: 5 V_DC ±5% · max 2 A

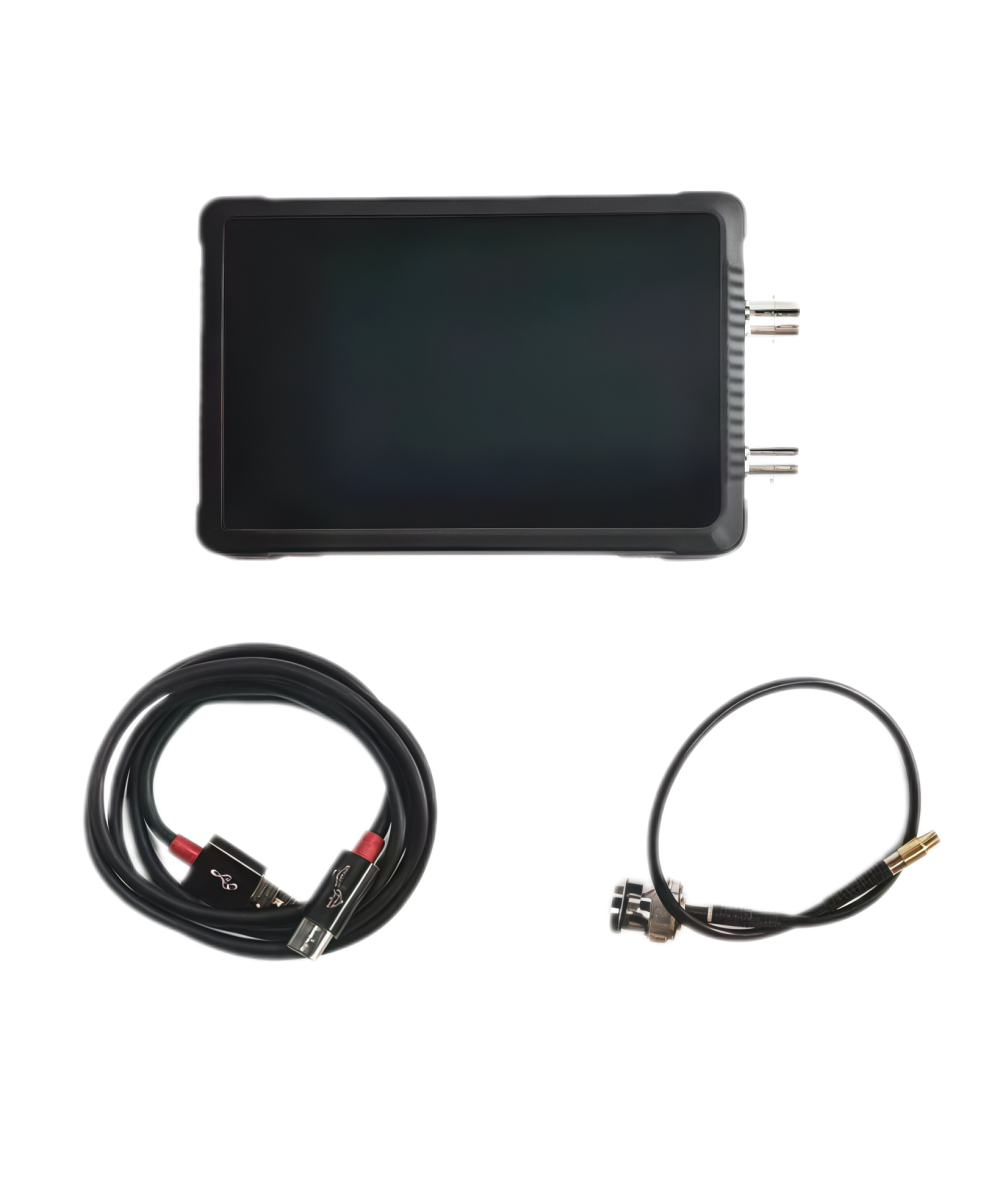

Package Contents

DS4T252 main unit ×1
USB data cable ×1
MCX to BNC signal cable ×1
Quick start guide ×1
