10MHz OCXO + GPS High-Precision Clock Module for USRP B210/B200

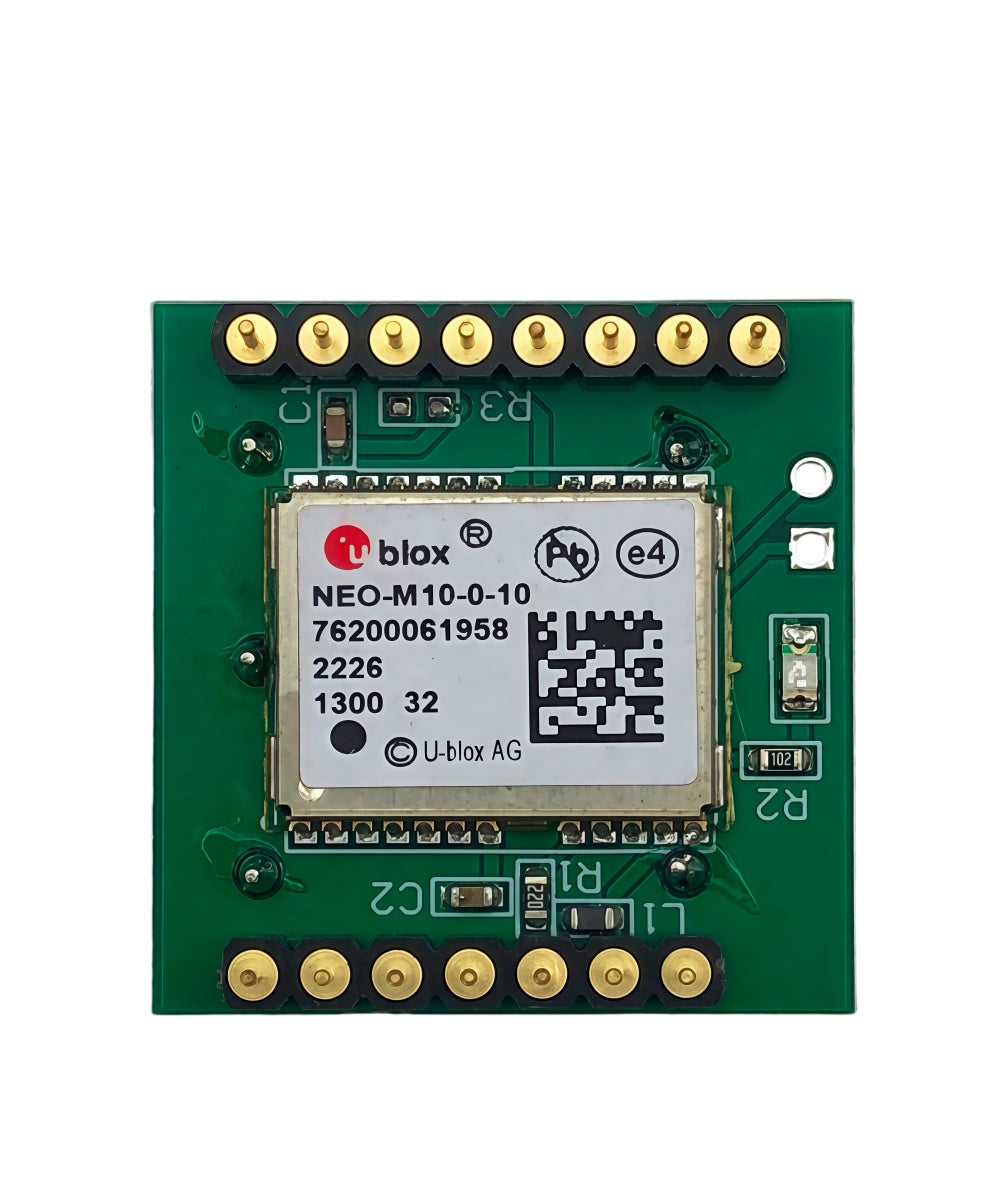

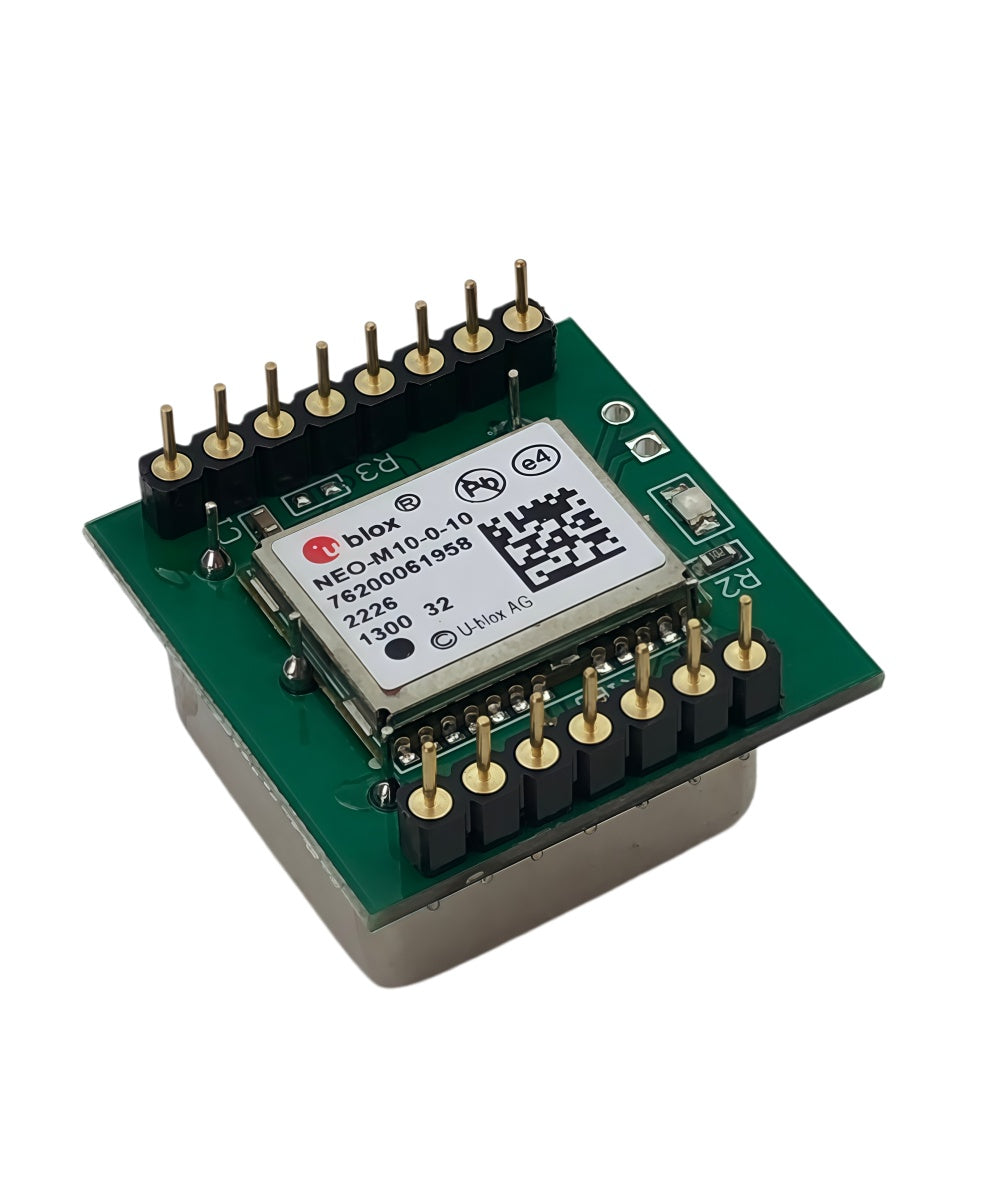

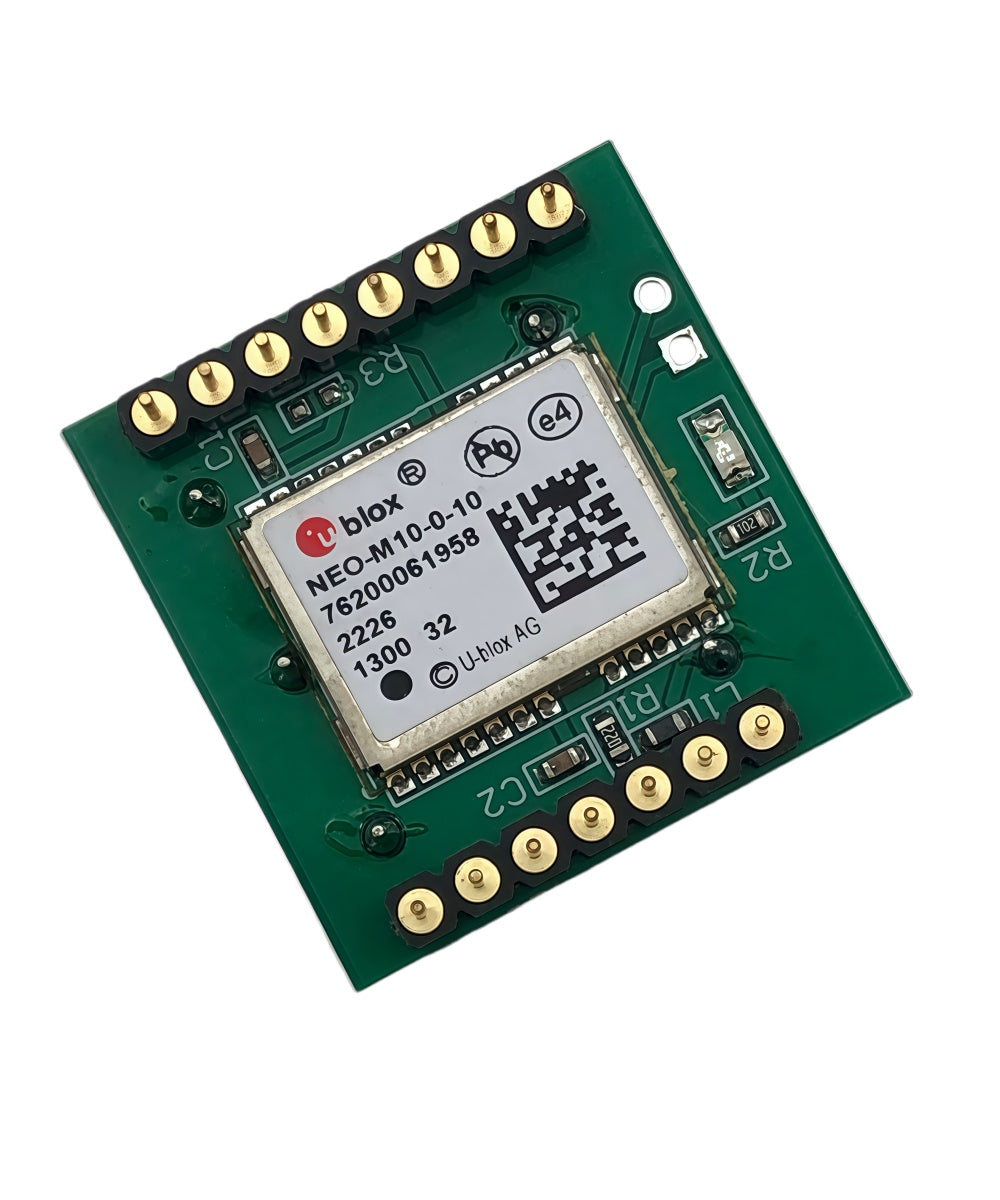

High-precision 10MHz clock module specifically designed for USRP B210/B200 and compatible SDR platforms. This module combines a high-performance GPS receiver with a precision OCXO (oven‑controlled crystal oscillator). Its key advantage is the ability to provide a highly stable 10MHz reference signal with 0.01 PPM accuracy even in indoor environments without GPS signal — ideal for development and testing.

Key advantages

Two modes: Indoor (0.01 PPM without GPS) · Outdoor/GPS sync (PPS for system calibration)
Superior to standard GPSDO: outperforms typical 0.5 PPM units when GPS is unavailable

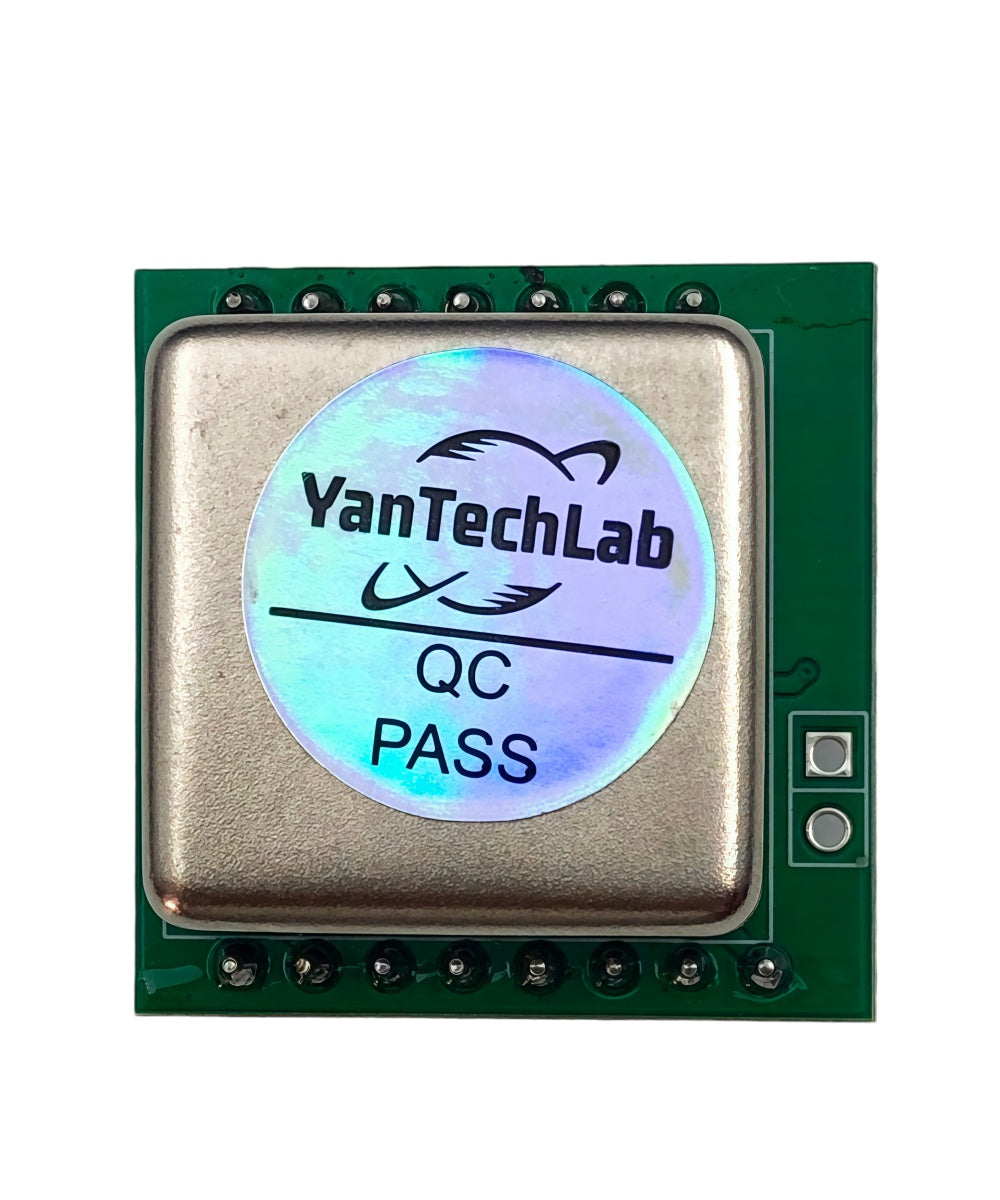

Premium OCXO core: excellent phase noise and long‑term stability
Plug‑and‑play: designed for B210/B200 · no complex setup

Applications: telecom R&D, lab testing, SDR development (USRP B210/B200), precision measurement, phase‑noise sensitive projects.

OCXO Technical Specifications

Output Frequency	10 MHz	—
Temperature Stability	≤ ±1×10⁻⁸	‑40℃ ~ +70℃ (ref. 25℃)
Daily Aging	≤ ±5×10⁻¹⁰	After 30 days of operation
Yearly Aging	≤ ±8×10⁻⁸	—
Frequency Accuracy	≤ ±1×10⁻⁸	—
Short‑term Stability	≤ 1×10⁻¹¹ / s	Allan deviation, τ = 1 s
Phase Noise	≤ -85 dBc/Hz	@ 1 Hz
	≤ -120 dBc/Hz	@ 10 Hz
	≤ -138 dBc/Hz	@ 100 Hz
	≤ -148 dBc/Hz	@ 1 kHz
	≤ -153 dBc/Hz	@ 10 kHz

Operating Modes & Compatibility

Indoor mode (no GPS): Provides 10 MHz reference with 0.01 PPM accuracy — ideal for lab use.
Outdoor / sync mode (GPS locked): Delivers PPS (pulse‑per‑second) for system synchronization and calibration.
Compatibility: Designed specifically for USRP B210 / B200. Works with other SDR platforms that accept 10MHz external reference.

Applications

Indoor telecom equipment development and testing
Laboratory environments requiring high‑precision timebase
High‑stability reference clock for SDR platforms (USRP B210/B200)
Precision measurement projects with strict phase‑noise requirements
