YX-OS52 SR-303 RTK High-Precision Multi-Frequency Helical Antenna – L1+L2+L5 Full-Band, Suction Cup Base + 3M SMA Female-to-Male Cable

Цена со скидкой: $40.00
Обычная цена: ~~$50.00~~
Обычная цена: $40.00
Цена за единицу: за

Продавец: YanTechLab

Only 9 items in stock! Out of stock!

Варианты товара

Количество

Guaranteed safe checkout

Description

SR-303 is a full‑frequency quad‑helix antenna designed for GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, and GALILEO E1/E5a/E5b. With compact size and lightweight construction, it is widely used in navigation dispatch, tracking monitoring, and telemetry. The quad‑helix design provides stable phase center, high gain, and excellent low‑elevation reception — making it especially suitable for UAVs, handheld terminals, and high‑precision positioning modules.

Key features

Quad‑helix design: stable phase center · improves measurement accuracy
High gain: wide beamwidth · excellent low‑elevation reception
Low noise amplifier: high out‑of‑band rejection · low power consumption
Compact & lightweight: Φ28×58.5mm · ≤17g
Multi‑GNSS: GPS, BDS, GLONASS, GALILEO
IP67 waterproof · wide temperature range

Applications: UAV navigation, aerial photography, traffic monitoring, remote telemetry, handheld terminals, high‑precision positioning modules, RTK systems.

Frequency Support

GPS L1C/A, L1C, L2, L5

BeiDou B1C, B1I, B2a, B2b, B2I, B3I

GLONASS L1, L2

Galileo E1, E5a, E5b

Technical Specifications

Model	SR-303
Type	L1+L2+L5 · Quad‑helix
Polarization	Right‑hand circular polarization (RHCP)
Gain (dBi)	≥2.0 @ 90° elevation
Axial ratio (dB)	≤3.0 @ 90° elevation
LNA gain	36 ± 2 dB
VSWR	≤ 2.0
Noise figure	≤ 2.0 dB
DC supply	3.3 – 12 V
Operating current	≤ 45 mA
Input impedance	50 Ω

Mechanical Specifications

Dimensions	Φ28 mm × 58.5 mm
Connector	SMA‑J
Weight	≤ 17 g

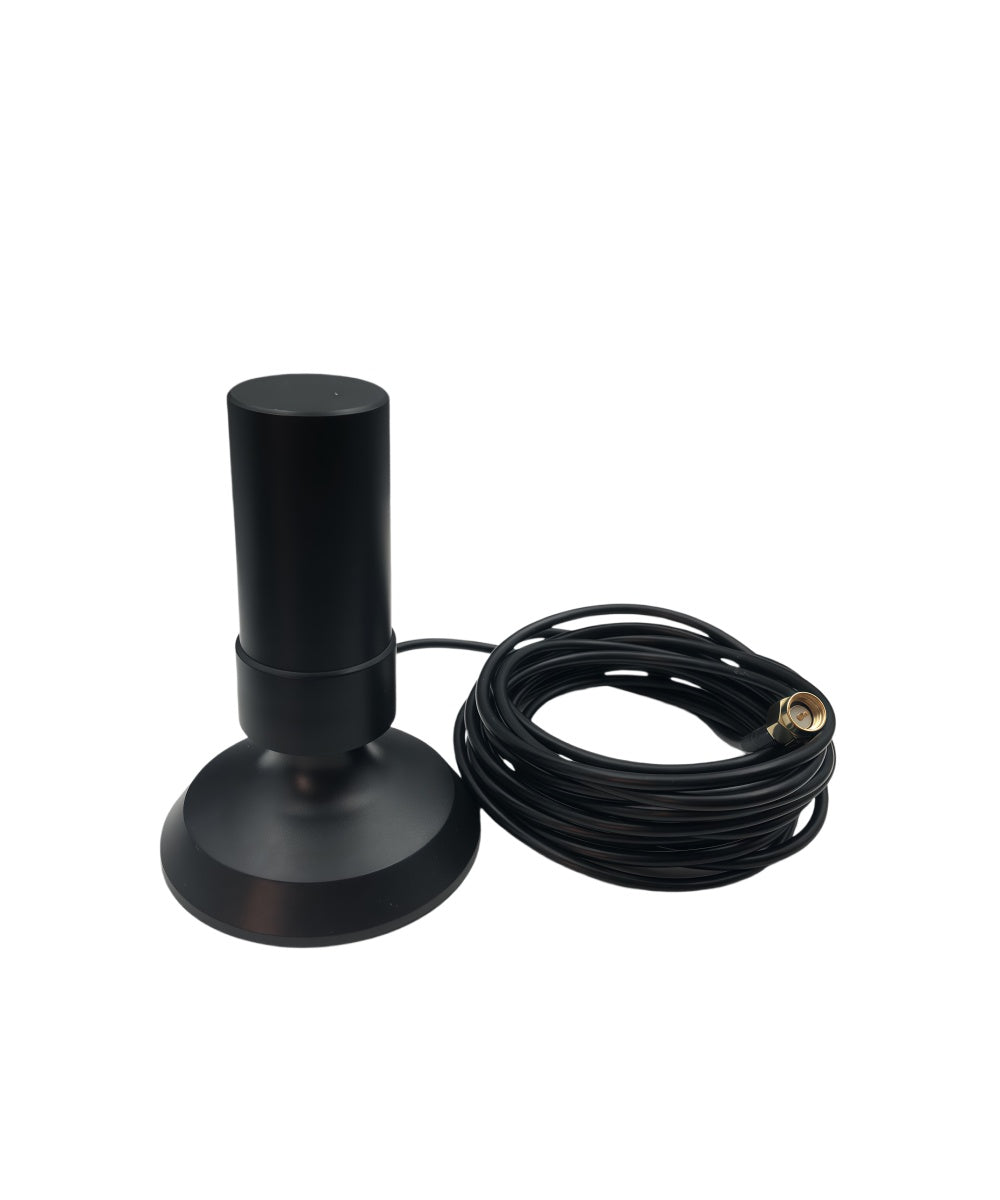

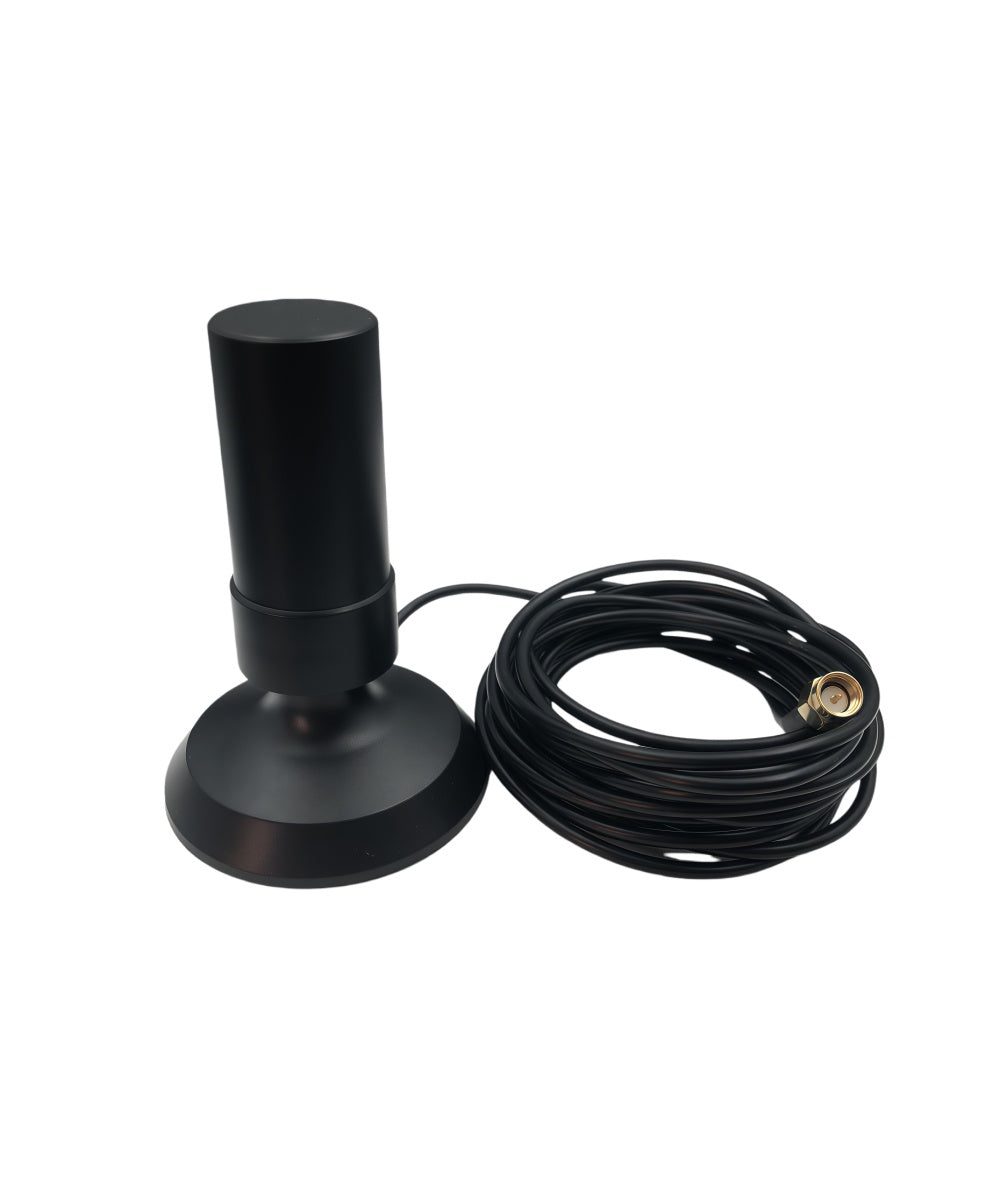

Mounting	Suction cup base included (SMA female to SMA male · 3 m cable)

Environmental Specifications

Operating temperature	‑40℃ ~ +85℃
Storage temperature	‑55℃ ~ +85℃
Humidity	95% non‑condensing
Waterproof rating	IP67

Package Contents

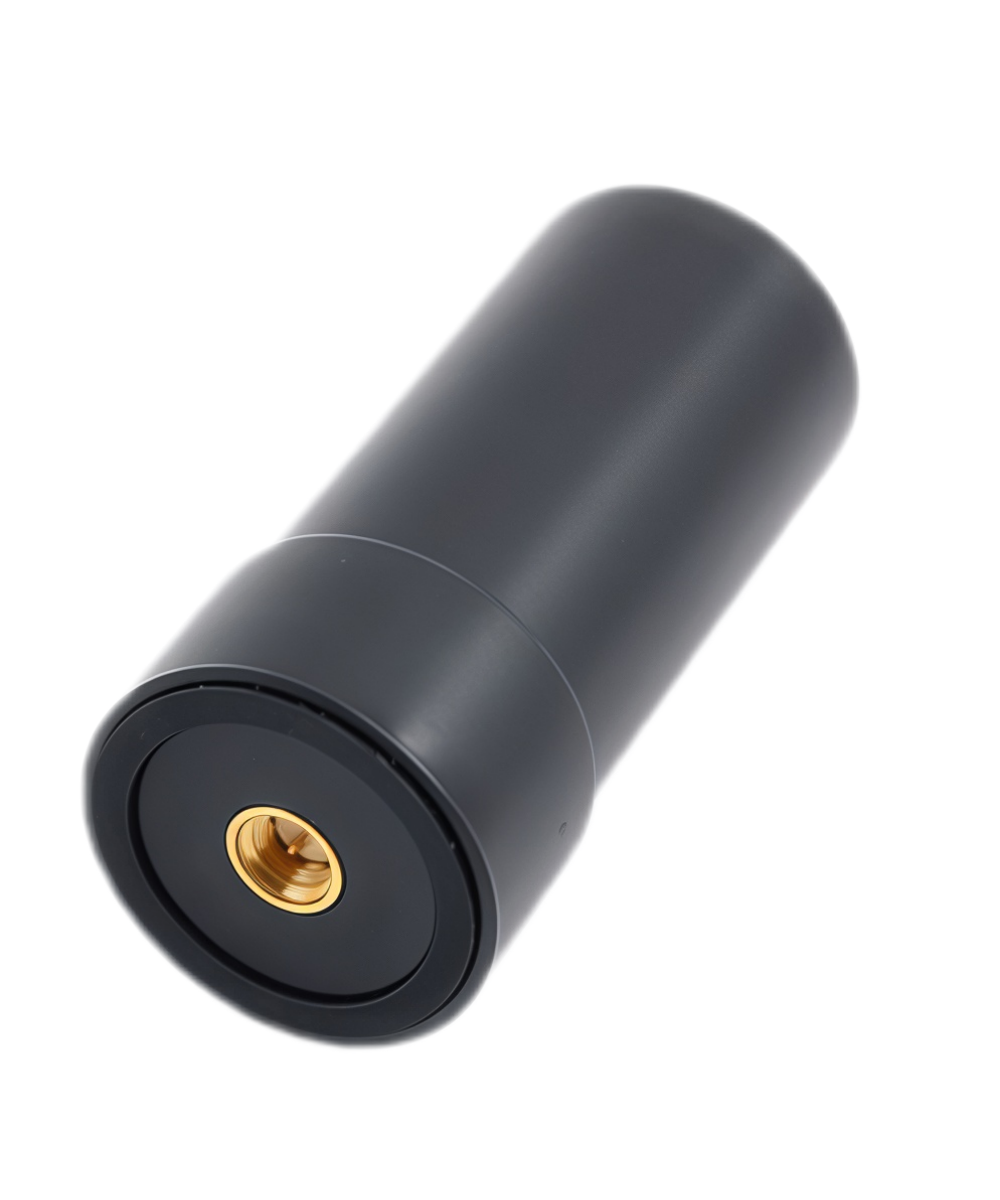

SR-303 helical antenna ×1

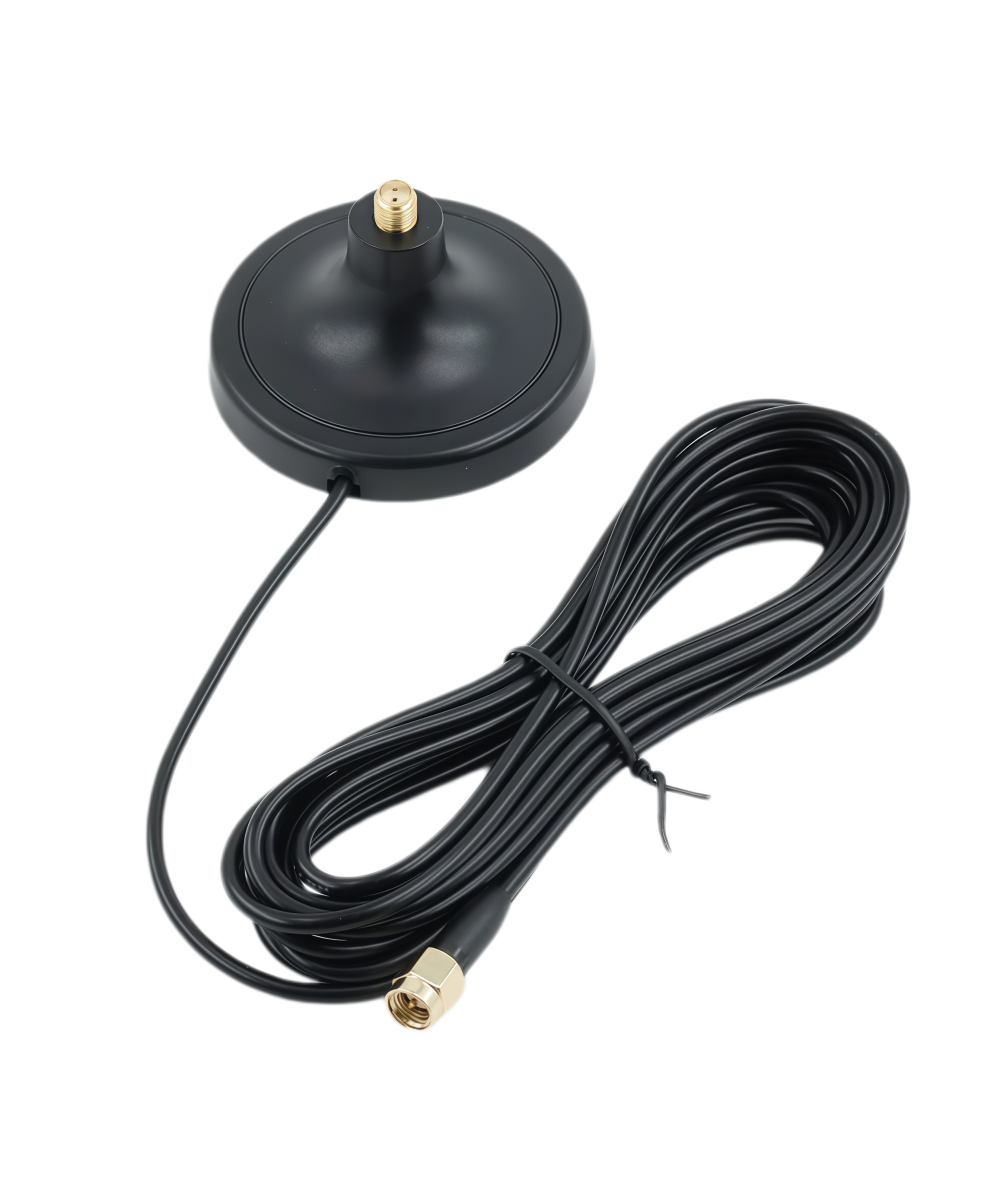

Suction cup base with SMA female to SMA male cable (3 m) ×1
