YX-OS69 AD9361 SDR Software-Defined Radio Module – ZUSDR Pluto Alternative, FMCOMMS3 Communication Platform

$985.00
$1,231.00
$985.00
-20%
Продавец: YanTechLab
Only 9 items in stock! Out of stock!

Guaranteed safe checkout

  • PayPal

Description

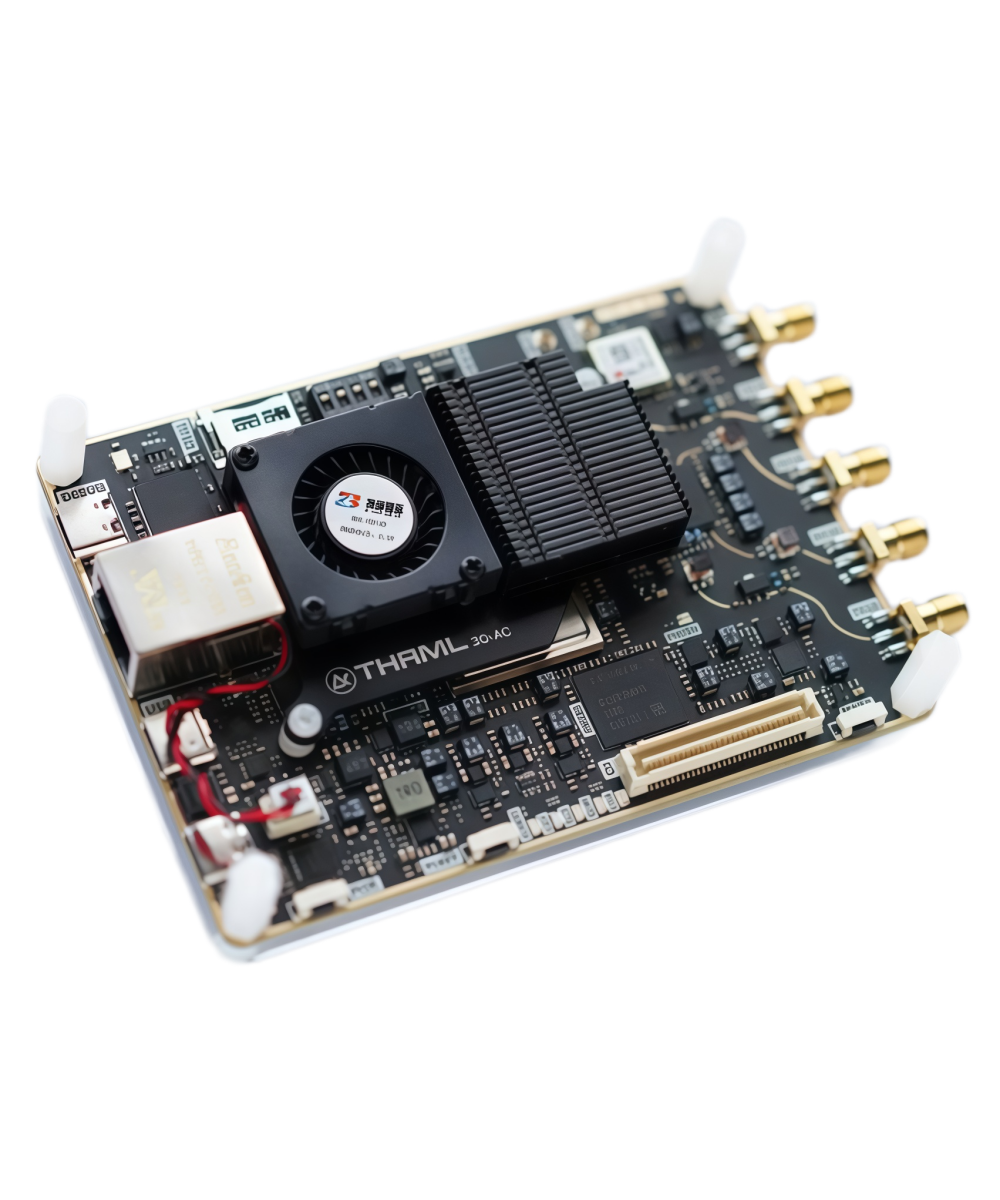

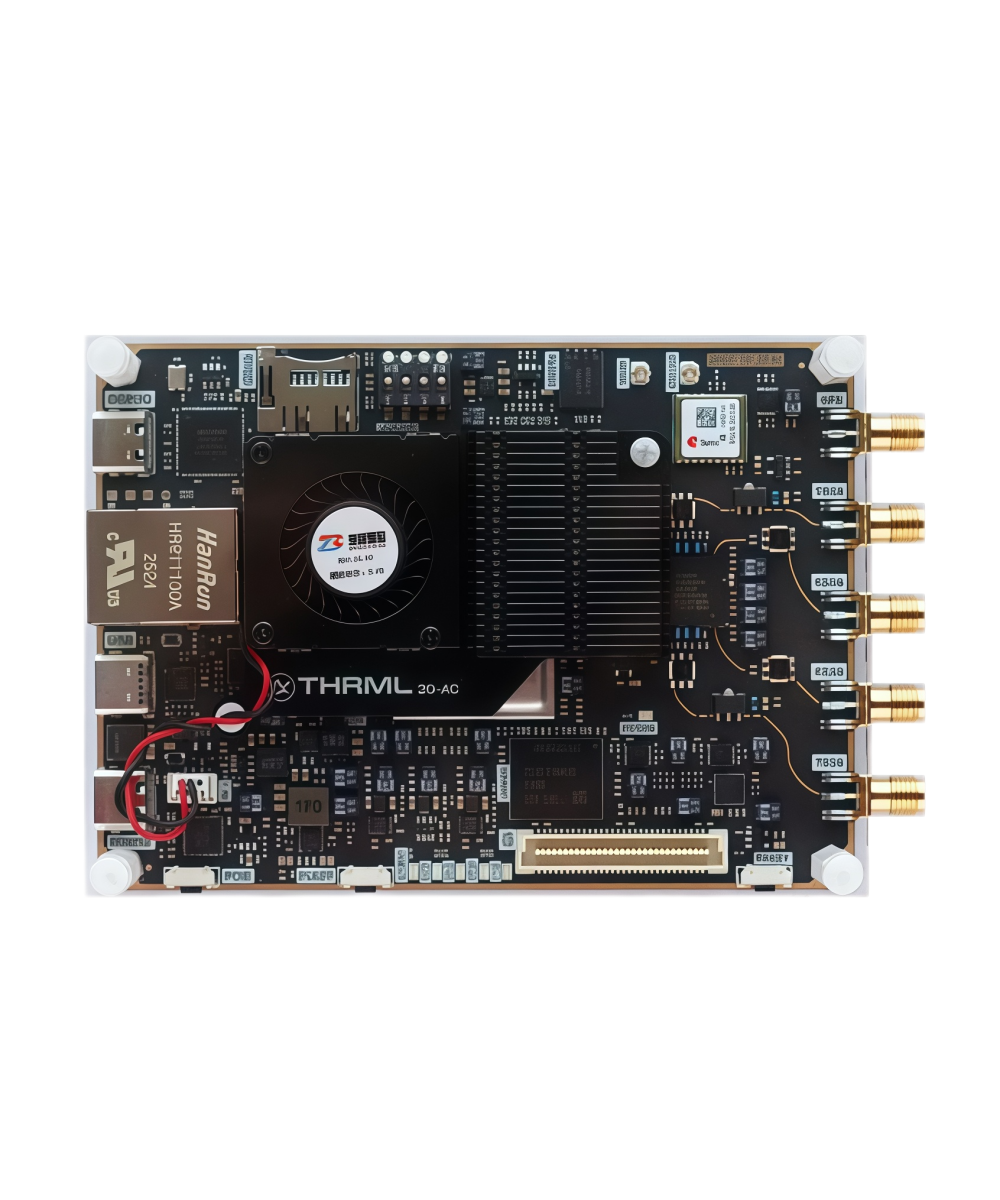

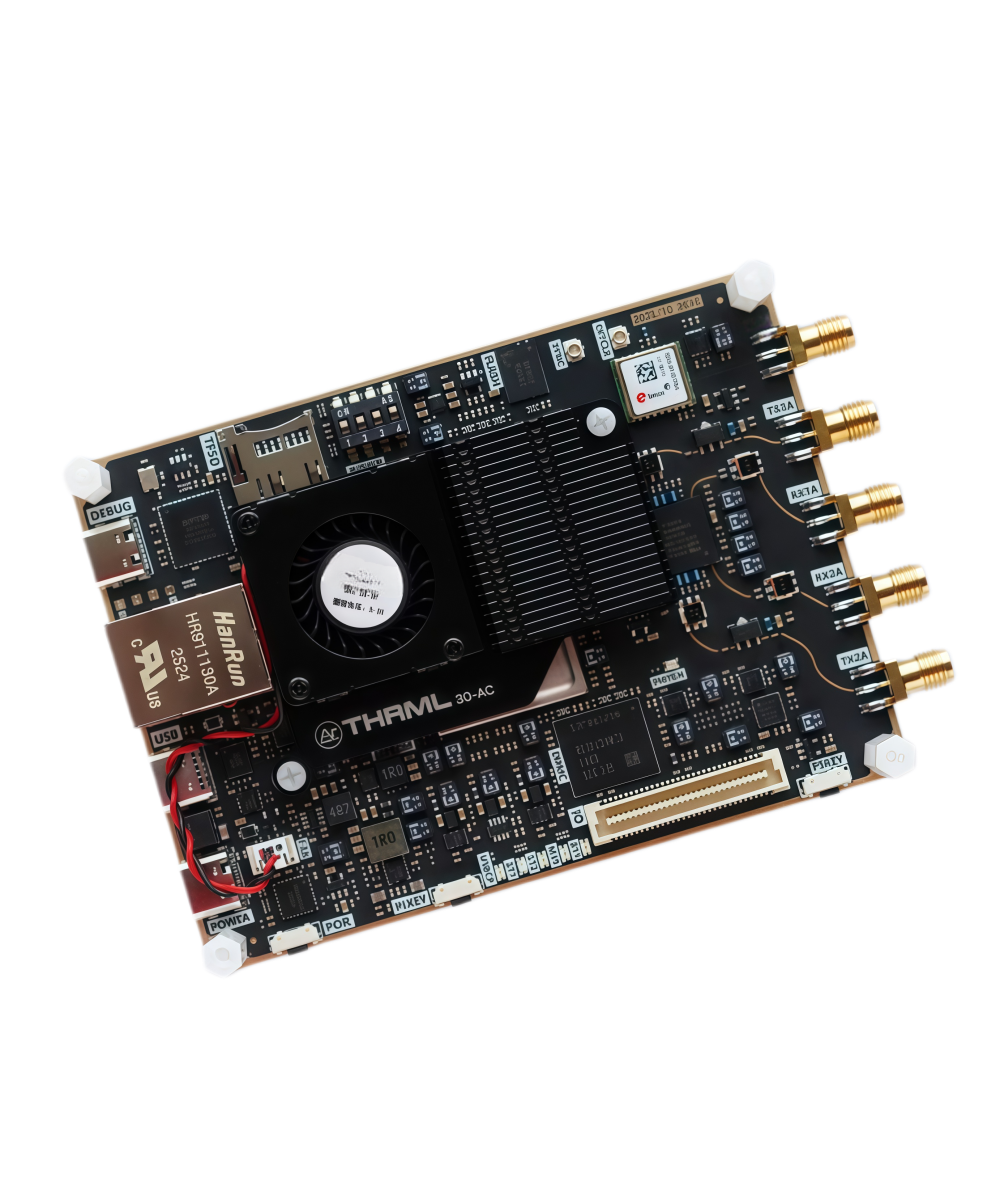

ZUSDR is a high‑performance Software Defined Radio platform built around the Xilinx Zynq UltraScale+ XCZU3EG (quad‑core ARM Cortex‑A53 + FPGA) and the Analog Devices AD9361 wideband transceiver. Delivering 2×2 MIMO capability from 70 MHz to 6 GHz with up to 56 MHz bandwidth, this board is an ideal alternative to PlutoSDR and FMCOMMS3‑based systems for professional SDR development, communications research, and education.

Key features
  • SoC: XCZU3EG · 4× Cortex‑A53 (1.33GHz) + 2× Cortex‑R5 (533MHz)
  • Transceiver: AD9361 · 2× TX / 2× RX · 70MHz–6GHz · 56MHz BW
  • Memory: 2GB DDR4 (PS) · 32MB Flash · 16GB eMMC
  • RF power: +15dBm @ 2.4GHz · +5dBm @ 8GHz (external PA option)
  • GPS disciplined clock: ±0.03 PPM · VC‑TCXO with DAC control
  • Interfaces: Gigabit Ethernet · USB3.0 (RNDIS) · JTAG/UART · 60‑pin expansion
  • Included: Full documentation, Vivado projects, GNU Radio examples, MATLAB support

Applications: SDR development, 5G prototyping, spectrum monitoring, radar, communications research, GNSS simulation, MIMO experiments.

Processor & FPGA Specifications
FPGA model XCZU3EG-2SFC7841 (industrial)
Logic cells (LC) 154,000
Look‑up tables (LUT) 71,000
Flip‑flops 141,000
DSP slices 360
Block RAM 7.6 Mbit
PS processor 4× Cortex‑A53 @ 1.33GHz + 2× Cortex‑R5 @ 533MHz
DDR4 (PS) 2GB · 32‑bit · 2400M (MT40A512M16LY‑075:E)
PLL/MMCM max speed 775 MHz (recommended)
Temperature range ‑40 to +85°C (industrial)
AD9361 Transceiver Specifications
Model AD9361BBCZ
ADC/DAC resolution 12‑bit
Signal bandwidth 200 kHz – 56 MHz
Channels 2× TX / 2× RX (2×2 MIMO, each with I/Q)
TX frequency range 47 MHz – 6.0 GHz
RX frequency range 70 MHz – 6.0 GHz
RX noise figure 2 dB (800 MHz LO)
TX EVM ≤ -40 dB
TX noise floor ≤ -157 dBm/Hz
LO step size 2.4 Hz (max)
Synchronization Multi‑device SYNC support
Gain control AGC / manual gain
RF Performance
  • TX power (2.4GHz): +15 dBm (typical)
  • TX power (8GHz): +5 dBm (typical — external PA required for higher)
  • GPS disciplined clock: ±0.03 PPM accuracy
  • VC‑TCXO: 40 MHz / 0.5 ppm with DAC control for precision tuning
  • GPS PPS accuracy: 30 ns RMS
Interfaces & Peripherals
Power Type‑C with PD · 9–12V input · ~6–8W consumption
Clocks 33.33M (PS), 50M (PL), 26M (PS GTR) · external clock via IPEX
USB USB 3.0 slave · RNDIS virtual Ethernet · USB 2.0 compatible
Ethernet Gigabit Ethernet (PS · RTL8211E)
JTAG / UART FT2232HQ (2‑in‑1)
Expansion header 60‑pin X0802WVS · 36 GPIO (1.8V) · PS GTR pair + ref clock
GPS MAX‑M10S · on‑board
Storage 32MB Flash (MT25QU256) · 16GB eMMC 5.1 · TF card slot
Sync SYNC interface (IPEX connector)
RF connectors SMA female (4×: TX1, TX2, RX1, RX2)
LNA / PA TX PA: ~15dB gain @ 800MHz (NF ~3.8dB)
Expansion Header Notes
  • Voltage: 1.8V only for GPIO (BANK voltage fixed)
  • 3.3V: Requires external level shifters for 3.3V peripherals
  • Differential pairs: PS GTR transceiver pair + reference clock available
Included Documentation & Software
  • Firmware: Optimized port of ZCU102 + FMCOMMS3 reference design
  • Development: Vivado 2018.3 with license · drivers
  • Bare‑metal: AD936x driver tutorials and examples
  • Linux: Ubuntu 18.04 VM image · GNU Radio integration
  • MATLAB: 2018a hardware support package
  • Hardware: Schematic (PDF) · PCB CAD files · acrylic case files
Package Contents
  • ZUSDR development board ×1
  • Type‑C data cables ×2 (USB2.0 + USB3.0)
  • SMA (female‑to‑female) cable ×1
  • FM whip antenna ×1

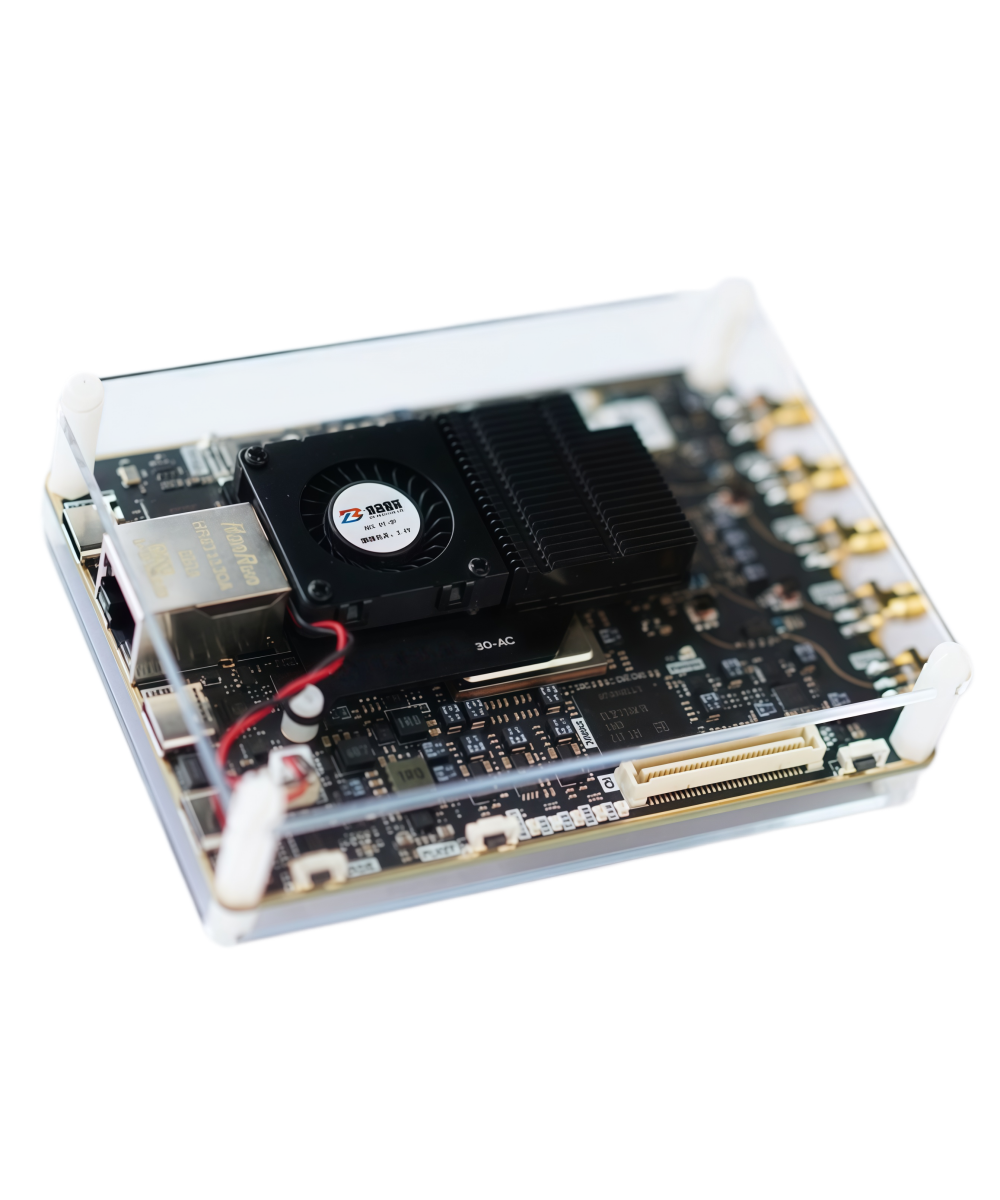

  • Acrylic protective panels ×2
  • Nylon screw / standoff set ×1
  • Baidu Cloud electronic data (download link) ×1

Terms and conditions

Shipping Information

Orders are prepared within 48 hours. Fast small-parcel logistics are used for international shipping.

  • USA / Europe: approximately 8–14 days (subject to variation)
  • Any abnormal situations will be communicated via email promptly

Returns & After-Sales Policy

If you have any questions after receiving the product, please contact us immediately. Returns or exchanges will be processed according to our return policy. Thank you for your understanding.

Documentation & Technical Support

👉 https://t.me/YanTechLab
