YX-OS81 High-Speed Acquisition FMC Double-Width Card – 8Rx/8Tx, 1.3GSPS ADC + 2.8GSPS DAC, HPC Interface

$1,724.00
$2,155.00
$1,724.00
-20%
Продавец: YanTechLab
Only 9 items in stock! Out of stock!

Guaranteed safe checkout

  • PayPal

Description

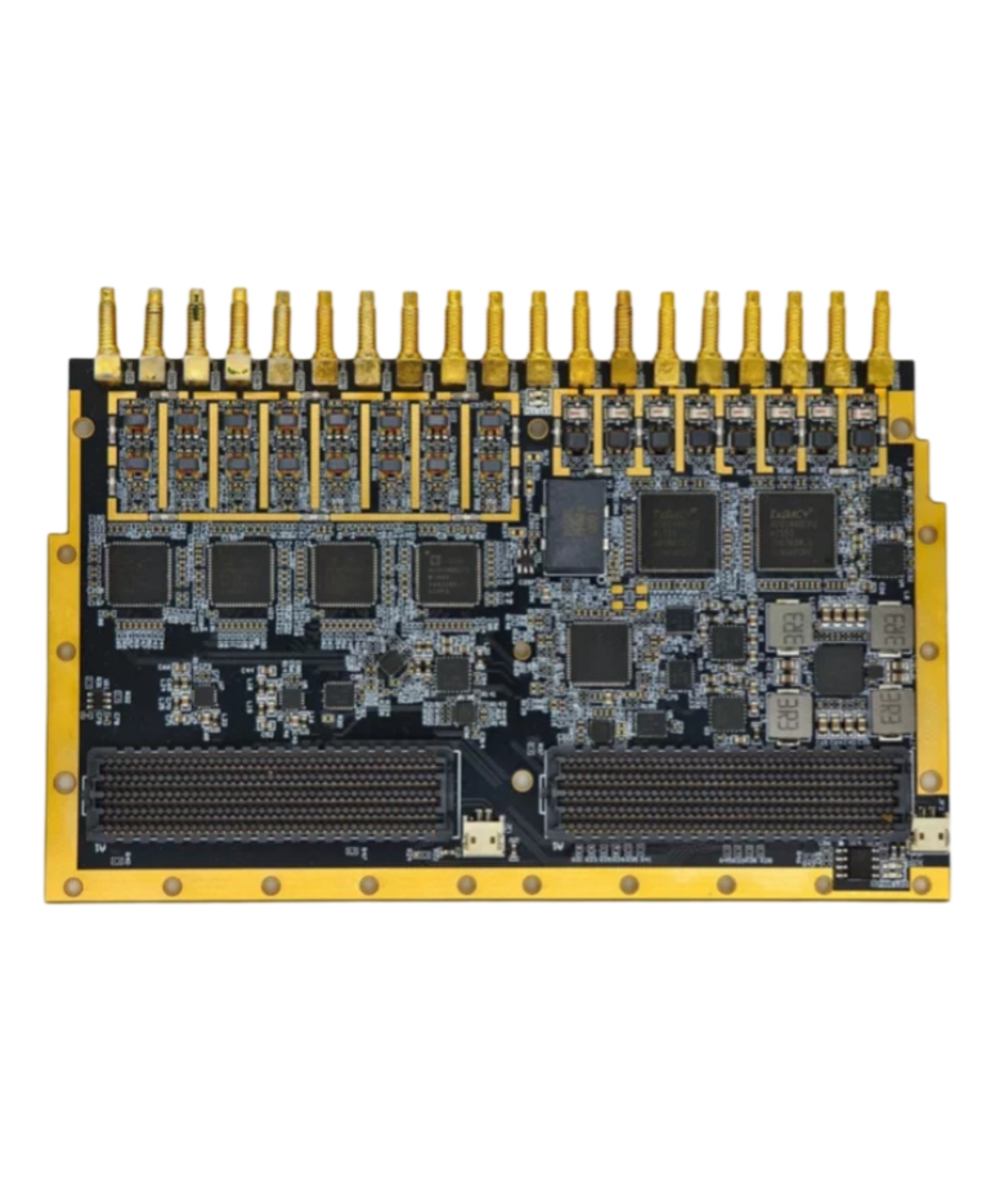

FMCADDA-8T8R-9544 is a high‑speed ADDA FMC daughter card equipped with 4× dual‑channel 14‑bit 1.3 GSPS ADCs (AD9695) and 2× quad‑channel 16‑bit 2.8 GSPS DACs (AD9144), providing 8 receive and 8 transmit channels. Compliant with the FMC HPC dual‑width standard (VITA 57.1), it features a gold‑plated process board, on‑board OCXO, and JESD204B PLL synchronous clock distribution. ADDA I/O uses standard SSMC connectors and supports external clock input and trigger I/O.

Key features
  • 8× ADC: 14‑bit 1.3 GSPS dual‑channel (AD9695BCPZ‑1300)
  • 8× DAC: 16‑bit 2.8 GSPS quad‑channel (AD9144BCPZ)
  • Interface: Dual‑width FMC HPC (VITA 57.1)
  • Clock: On‑board OCXO 25M · 0.1 ppm · LMK04828
  • Sync: JESD204B PLL clock distribution · external reference
  • RF I/O: Standard SSMC connectors
  • Channel isolation: ≥ 80 dB (TX/RX groups)
  • Cooling: Active fan heatsink · shielded components

Applications: massive MIMO, phased‑array radar, 5G/6G prototyping, SDR platforms, high‑channel‑count data acquisition, electronic warfare.

ADC Specifications
ADC model AD9695BCPZ‑1300
Sampling rate / resolution 1.3 GSPS · 14‑bit
Channels 4 chips × dual‑channel = 8 channels
Input frequency response 500 kHz – 500 MHz (RF transformer AC coupling)
Input amplitude 2 Vpp max (50 Ω)
Drive interface JESD204B (4‑lane per chip, up to 16 Gbps per lane)
DAC Specifications
DAC model AD9144BCPZ
Sampling rate / resolution 2.8 GSPS · 16‑bit
Channels 2 chips × quad‑channel = 8 channels
Output frequency response 5 MHz – 1200 MHz (RF transformer AC coupling)
Output amplitude ~ -6 dBm @ 50 MHz single tone · 50 Ω
Drive interface JESD204B (8‑lane per chip, up to 15 Gbps per lane)
Clock, Sync & RF Performance
On‑board clock OCXO 25 MHz low phase noise
Clock stability 0.1 ppm · supports external reference clock input
Clock chip LMK04828 high‑performance JESD204B
Sync distribution JESD204B PLL synchronous clock distribution
Channel isolation ≥ 80 dB (within TX/RX groups)
Amplitude consistency ≤ 0.4 dB @ 50 MHz single tone
Phase consistency ≤ 2° @ 50 MHz single tone
Interface & Mechanical
FMC interface Standard dual‑width FMC HPC high‑density connector
Single‑width support Can be driven by single‑width FMC HPC (1/2 resources for channel splitting)
RF connectors Standard SSMC (ADDA input/output)
External I/O External clock input · trigger I/O
Cooling Dedicated heatsink with active fan
Shielding Complete compartmentalized shielding components included
Capability Highlights
8 RX Channels 1.3 GSPS · 14‑bit ADC
8 TX Channels 2.8 GSPS · 16‑bit DAC
JESD204B High‑speed serial interface
Dual‑Width FMC VITA 57.1 compliant
OCXO 25M Low phase noise · 0.1 ppm
LMK04828 Precision clock distribution
≥80 dB Isolation Excellent channel separation
Active Cooling Fan heatsink + shielding
Important Notes
  • Single‑width FMC support: Can be driven by a single‑width FMC HPC host — 1/2 of the resources are available for channel splitting.
  • Shielding: Complete compartmentalized shielding components are included for optimal signal integrity.
  • External reference: Supports external clock input for multi‑card synchronization.
Applications
  • Massive MIMO and phased‑array radar systems
  • 5G / 6G prototyping and research
  • Software Defined Radio (SDR) platforms
  • High‑channel‑count data acquisition
  • Electronic warfare and signal intelligence
  • Arbitrary waveform generation (AWG)
Package Contents
  • FMCADDA‑8T8R‑9544 FMC daughter card ×1
  • Dedicated heatsink with active fan ×1
  • Compartmentalized shielding components set ×1
  • User manual ×1
