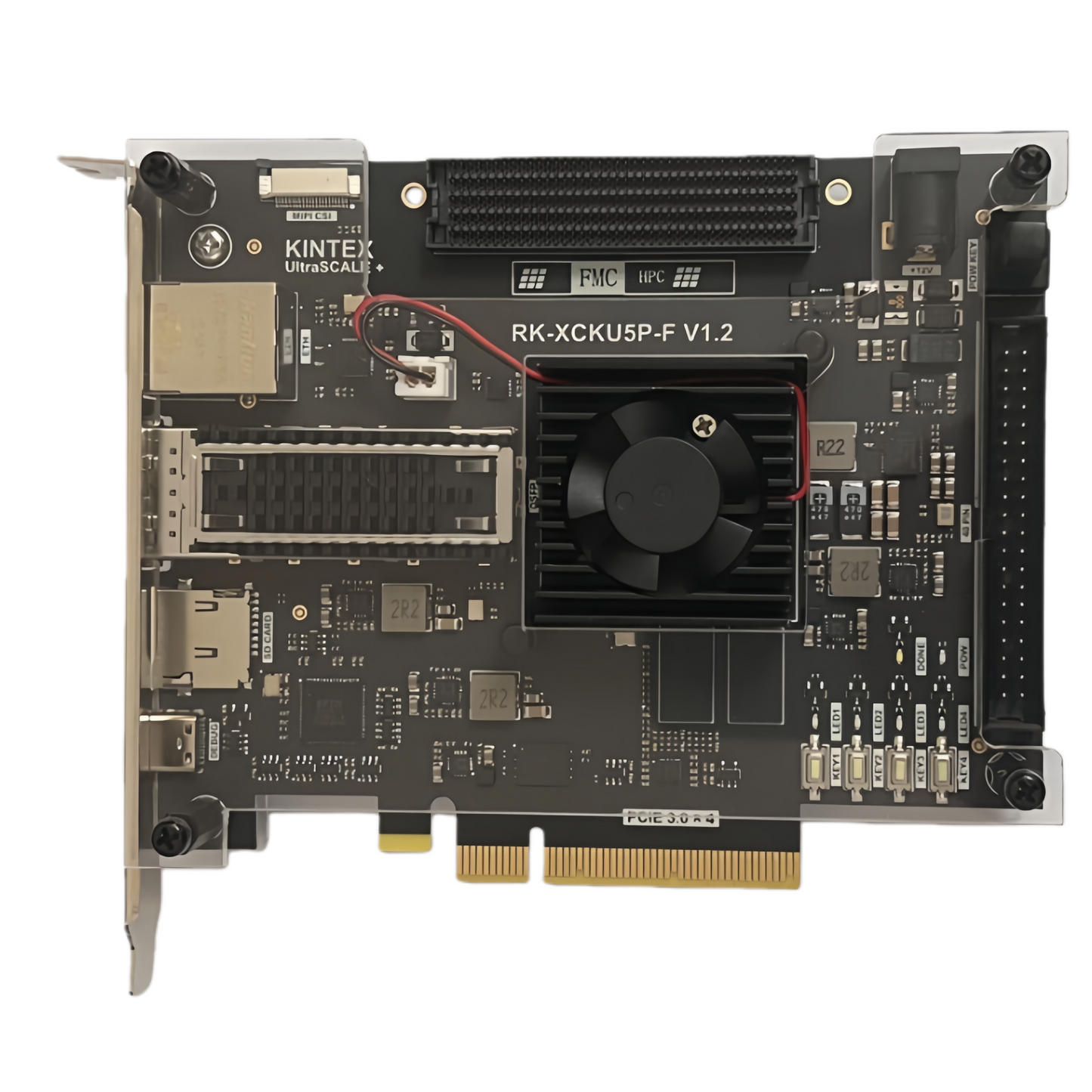

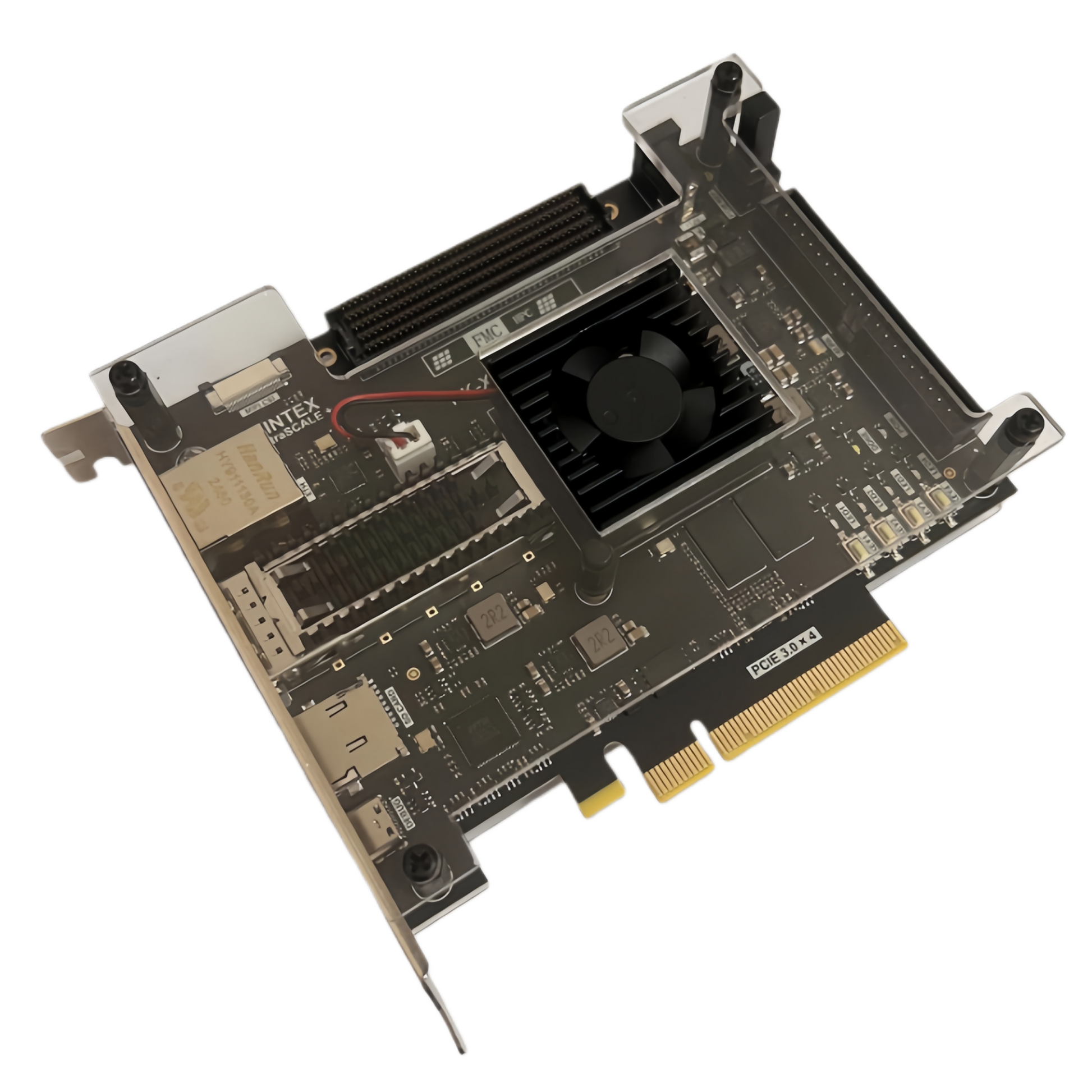

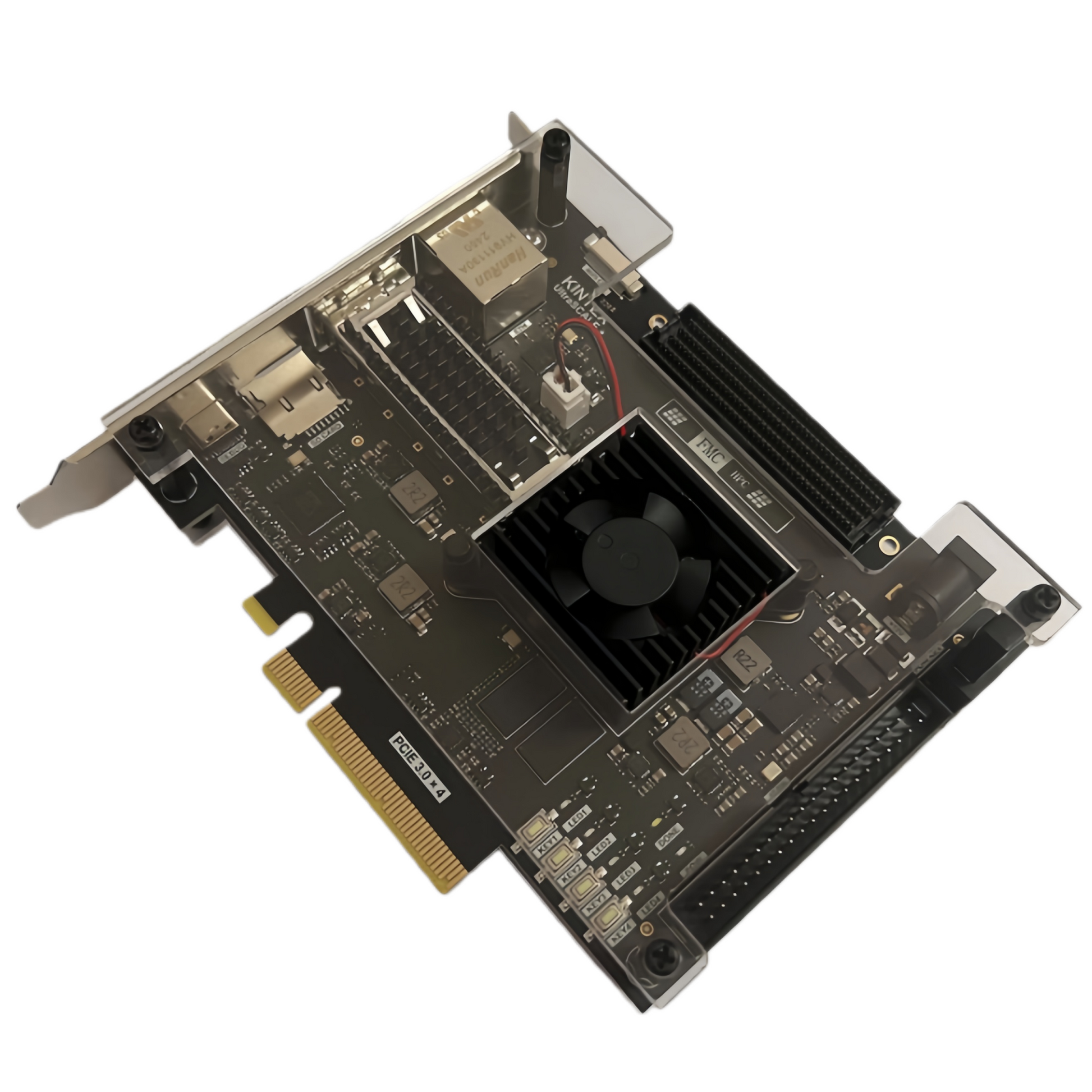

XCKU5P-F Kintex UltraScale+ FPGA Development Board
Product Overview
The XCKU5P-F Development Board is built on the Xilinx Kintex UltraScale+ FPGA , model XCKU5P-2FVB676 . It features a full-board, high-integration design with abundant high-speed interfaces, making it suitable for data acceleration, high-speed networking, machine vision, and advanced FPGA system development.
Core Hardware Specifications
| Item | Specification |
|---|---|
| FPGA | Xilinx Kintex UltraScale+ XCKU5P-2FVB676 |
| FPGA Series | Kintex UltraScale+ |
| Process Technology | UltraScale+ Architecture |
| Power Input | DC 12V |
Memory & Storage Configuration
| Component | Details |
|---|---|
| DDR4 Memory | 2 × 1GB DDR4 |
| QSPI Flash | 512Mb QSPI Flash |
| SD Card | Onboard SD Card Slot |
High-Speed Interfaces & Expansion
| Category | Interfaces |
|---|---|
| Networking | 1 × Gigabit Ethernet, 1 × QSFP28 100G Optical Port |
| PCI Express | PCIe 3.0 x4 |
| Camera & Vision | MIPI CSI (4-lane) |
| FPGA Expansion | FMC HPC Connector |
| General IO | 40-pin IO Header |
Debug & User Interfaces
| Category | Details |
|---|---|
| Debug | Onboard JTAG Interface |
| User Indicators | 4 × LEDs |
| User Input | Buttons / Keys |
Package Contents
| Item | Quantity |
|---|---|
| XCKU5P-F FPGA Development Board | 1 |
| DC 12V 3A Power Adapter | 1 |
| Type-C Cable | 1 |
Shipping Information
Orders are prepared within 48 hours . Fast small-parcel logistics lines are used for international delivery.
- USA / Europe: approximately 8–14 days (delivery time may vary)
- Any exceptions will be communicated via email promptly
Returns & After-Sales Policy
If you have any questions after receiving the product, please contact us immediately. Returns or exchanges will be processed in accordance with our return policy. Thank you for your understanding.
Documentation & Technical Resources
Schematics, reference designs, and technical materials are available via:
👉 https://t.me/YanTechLab
