TinyB210 Software Defined Radio (SDR) Platform
Product Overview

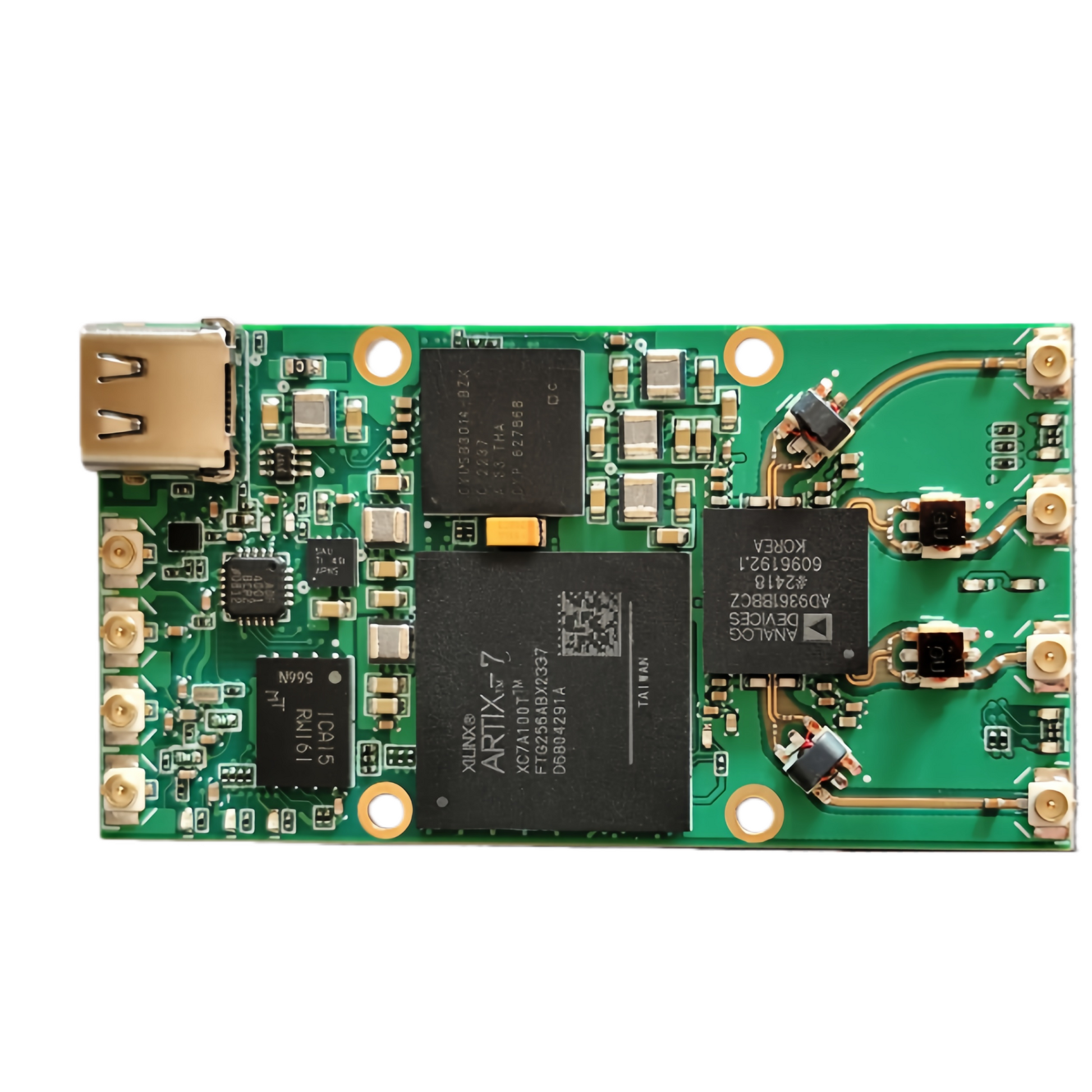

TinyB210 is a fully integrated, single-board, general-purpose software defined radio peripheral platform with continuous frequency coverage from 70MHz to 6GHz . It is designed for low-cost experimentation and education, integrating the Analog Devices AD9361 direct-conversion RF transceiver, a reconfigurable FPGA, and a high-speed USB 3.0 interface with bus-powered operation.
TinyB210 is fully supported by mainstream SDR software ecosystems, allowing developers to immediately start working with GNU Radio , build GSM base station prototypes using OpenBTS , and seamlessly migrate code from B210-class devices to higher-performance, industry-ready SDR platforms.
RF & Digital Architecture
The integrated RF front-end is based on the AD9361 , a single-chip, direct-conversion transceiver capable of up to 56MHz real-time RF bandwidth . TinyB210 utilizes both signal chains of the AD9361 to provide coherent 2x2 MIMO (2Tx / 2Rx) operation.
Onboard signal processing and control are handled by the FPGA, which connects to the host PC via USB 3.0. The system supports a real-time throughput benchmark of 61.44 MS/s complex I/Q , enabling full utilization of the 56MHz instantaneous RF bandwidth in GNU Radio or UHD API-based applications.
Key Performance Parameters
| Category | Value | Unit |
|---|---|---|
| DC Input Voltage | 5 | V |
| ADC Sampling Rate (Max) | 61.44 | MS/s |
| ADC Resolution | 12 | bits |
| ADC SFDR | 78 | dBc |
| DAC Sampling Rate | 61.44 | MS/s |
| DAC Resolution | 12 | bits |
| Host Interface Throughput (16-bit) | 61.44 | MS/s |
| Reference Clock Accuracy | ±2 | ppm |
| TCXO Accuracy (Unlocked) | ±7.5 | ppm |
| TCXO Accuracy (Locked) | <1 | ppm |
| Single-Sideband/Image Suppression | -35 / -50 | dBc |
| Output Power @ 2.4GHz | 3.5 | dBm |
| Output Power @ 6GHz | -12 | dBm |
| Maximum Output Power | >10 | dBm |
| Input IP3 | -20 | dBm |
| Noise Figure | <8 | dB |
Key Features
| Feature | Description |
|---|---|
| Frequency Coverage | 70MHz – 6GHz continuous |
| MIMO Capability | Full-duplex 2Tx / 2Rx coherent MIMO |
| Instantaneous Bandwidth | Up to 56MHz (61.44MS/s complex) |
| Host Interface | High-speed USB 3.0, bus-powered |
| FPGA | Open and reconfigurable FPGA architecture |
| RFIC | Analog Devices AD9361 direct-conversion transceiver |

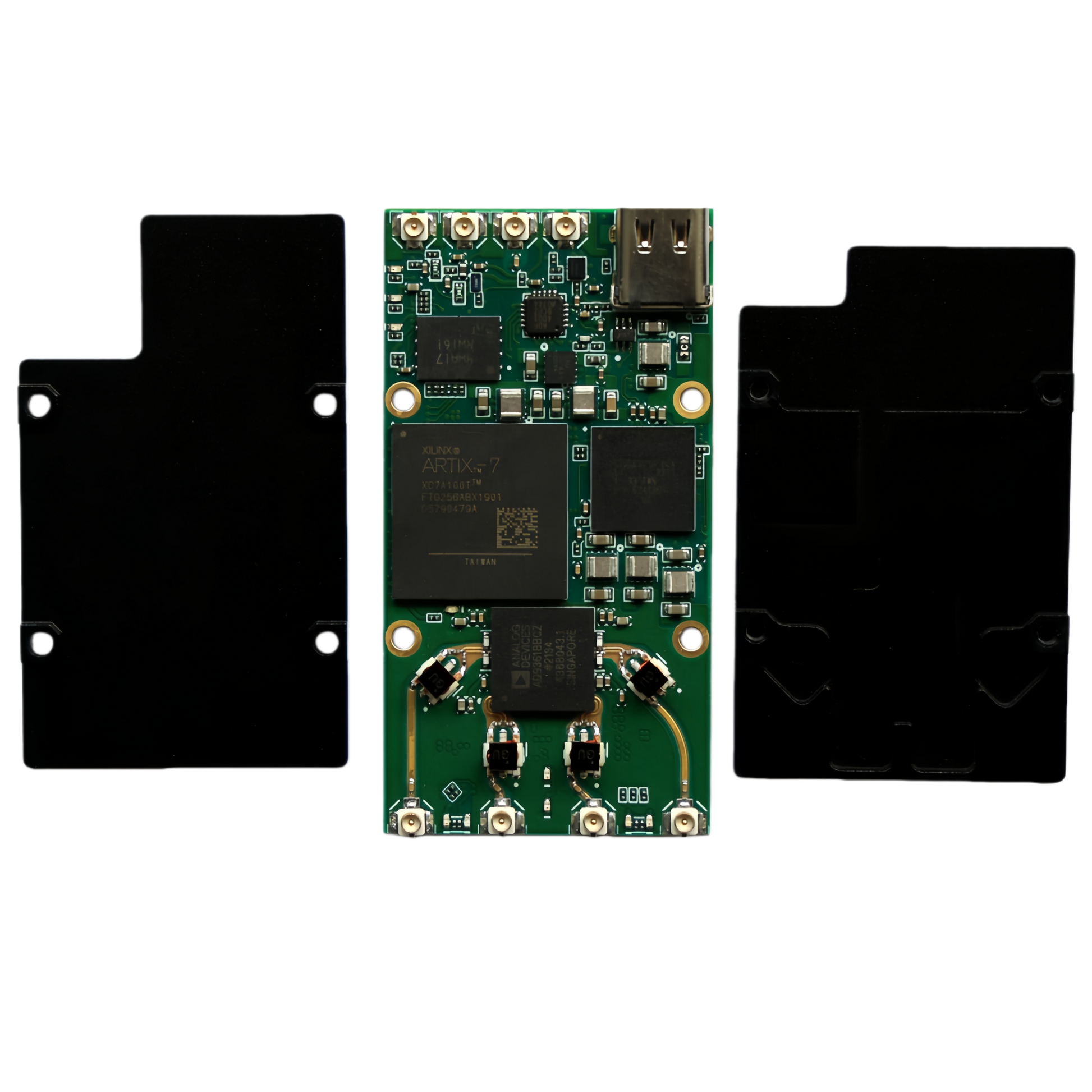

| Enclosure | Optional steel enclosure for black PCB devices |
SRSRAN & Base Station Support
TinyB210 is capable of running SRSRAN small-cell base stations. Detailed workflows and experimental procedures are documented on our blog:
